Product Details | QUICK RELEASE PIN

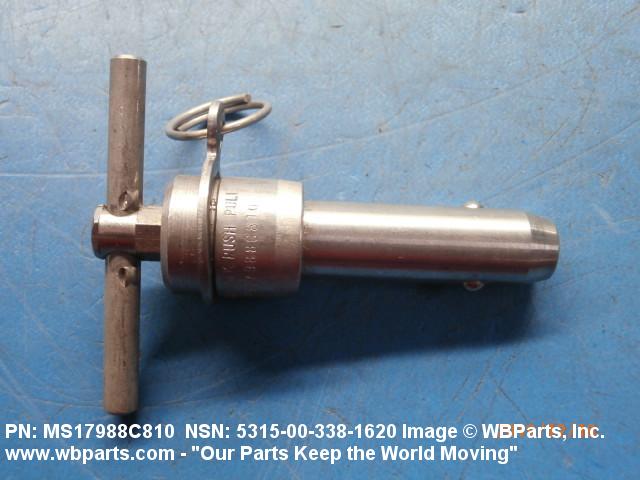

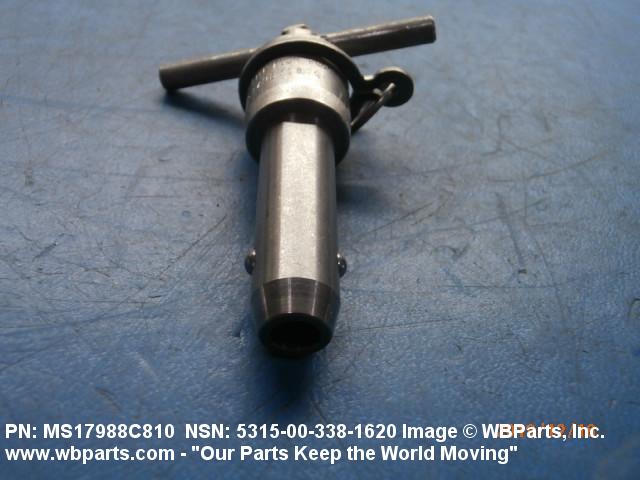

5315-00-338-1620 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Part Alternates: MS17988C810, MS17990C810, MS17990-C810, BLC8T10N, CL8BPDR1, CL-8-BPD-R-1, DLC8T10N, LM8CT10M, 5315-00-338-1620, 00-338-1620, 5315003381620, 003381620
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 JAN 1974 | 00-338-1620 | 08323 ( PIN, QUICK RELEASE ) |

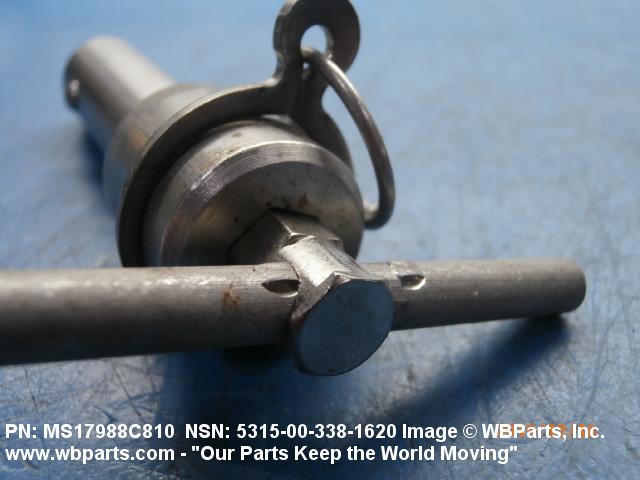

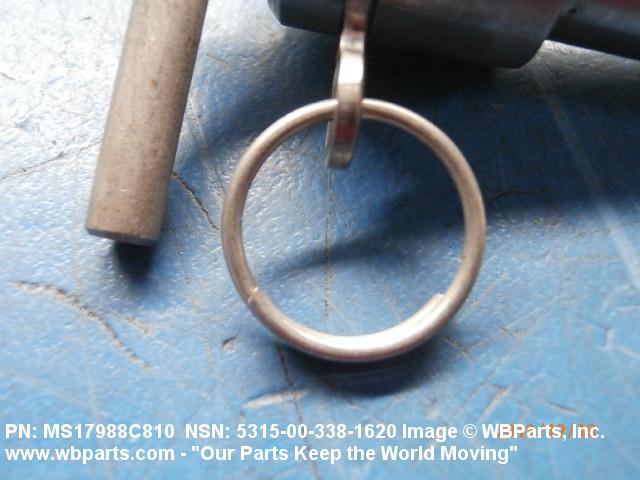

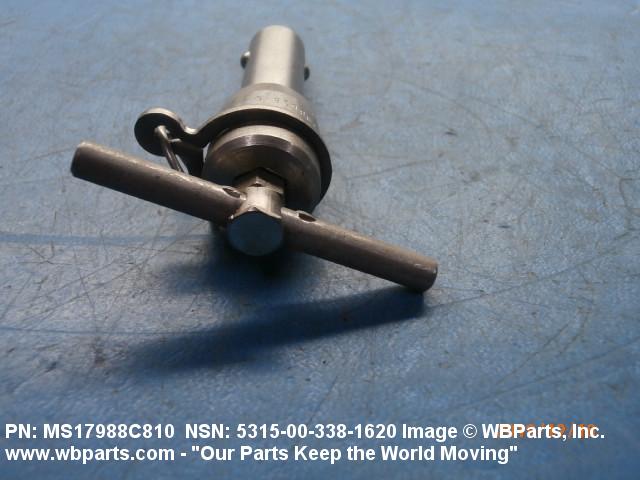

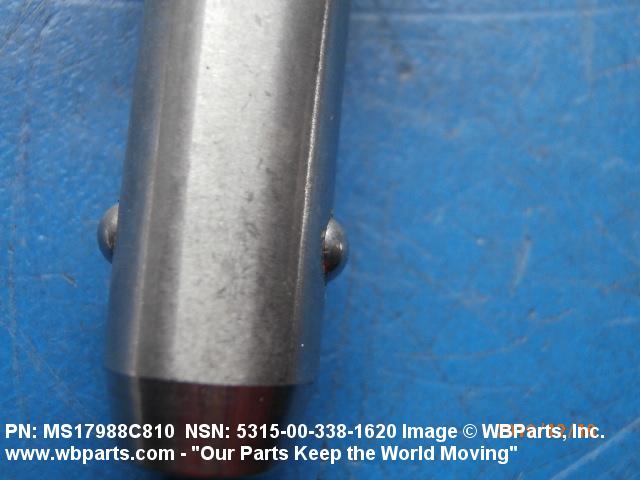

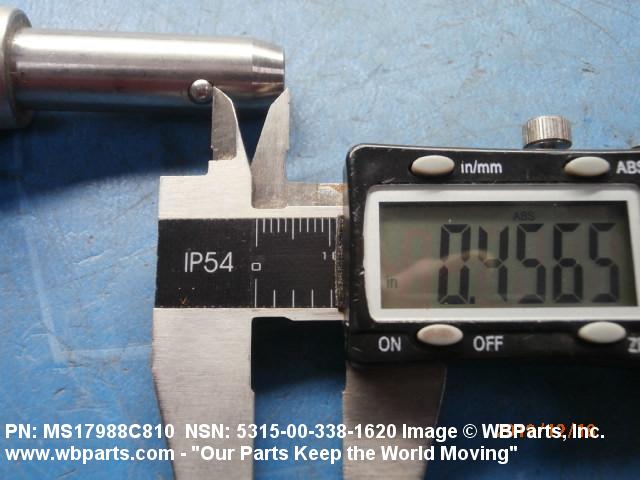

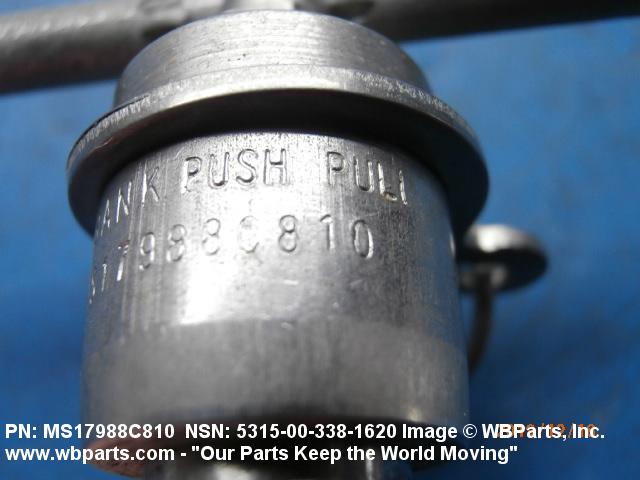

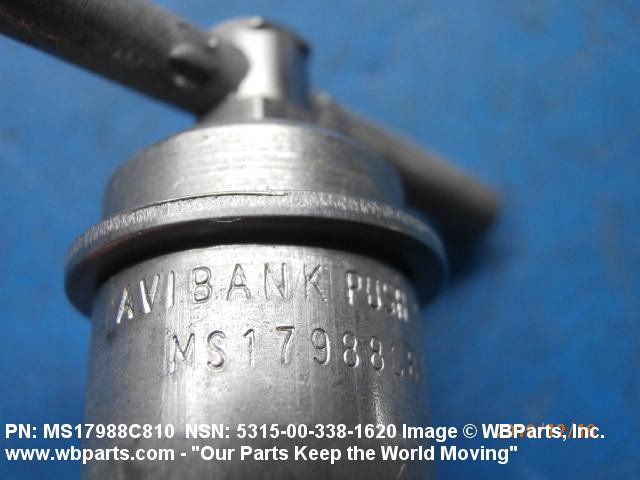

Drawings & Photos | NSN 5315-00-338-1620
Demand History | NSN 5315-00-338-1620
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS17990C810 | 2020-09-259 | 5 | DE |
| 5315-00-338-1620 | 2019-12-337 | 4 | United States |
| 5315-00-338-1620 | 2015-04-120 | 25 | DIBBS |
Cross Reference | NSN 5315-00-338-1620
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BLC8T10N | 84256 | AVIBANK MFG., INC. |
| CL-8-BPD-R-1 | 99862 | CARR LANE MANUFACTURING COMPANY DBA CARR LANE MANUFACTURING |
| DLC8T10N | 16258 | SPACELOK INC. |
| LM8CT10M | 62060 | SOUTHCO INC. |
| LM8CT10M | 83014 | HARTWELL CORPORATION |
| LM8CT10M | SV287 | PRODUCTOS FERROSOS PENINSULARES S.A. DE C.V. |
| MS17988C810 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS17988C810 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS17990-C810 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-338-1620
Related Products | NSN 5315-00-338-1620
Technical Data | NSN 5315-00-338-1620

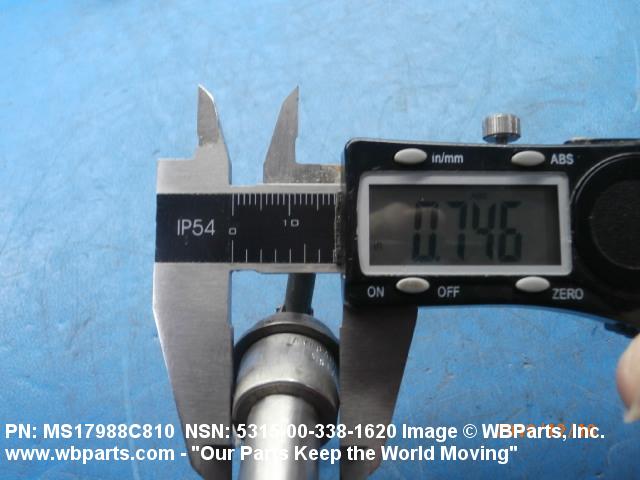

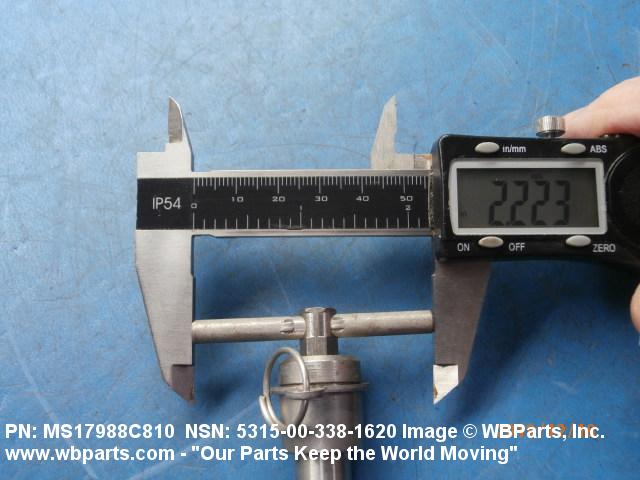

| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 630 OR STEEL COMP 632 SHANK STEEL COMP 630 OR STEEL COMP 632 SPINDLE |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5643 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5657 ASSN STD 2ND MATERIAL RESPONSE SHANK AMS 5643 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5657 ASSN STD 2ND MATERIAL RESPONSE SPINDLE |
| SURFACE TREATMENT | PASSIVATE SHANK PASSIVATE SPINDLE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SHANK QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SPINDLE |
| HARDNESS RATING | 40.0 ROCKWELL C MINIMUM SHANK 40.0 ROCKWELL C MINIMUM SPINDLE |
| STYLE DESIGNATOR | Q245 T HANDLE |
| HEAD DIAMETER | 0.640 INCHES MINIMUM AND 0.755 INCHES MAXIMUM |
| HANDLE LENGTH | 2.125 INCHES MINIMUM AND 2.250 INCHES MAXIMUM |

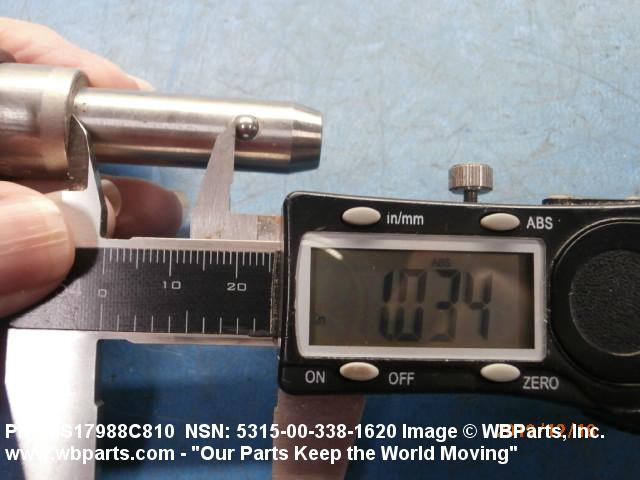

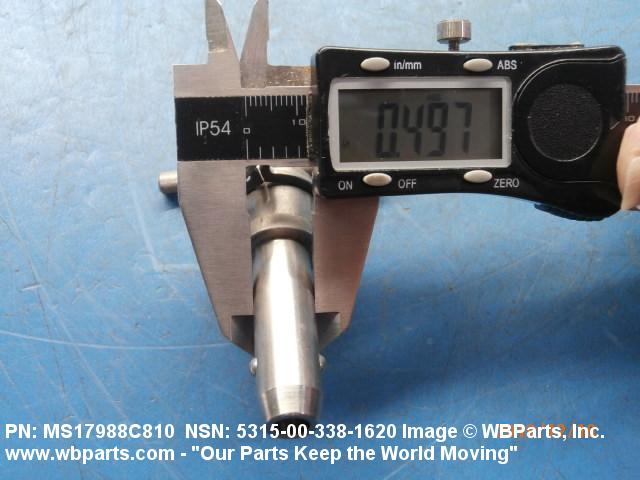

| SHANK DIAMETER | 0.4970 INCHES MINIMUM AND 0.4985 INCHES MAXIMUM |
| GRIP LENGTH | 1.000 INCHES MINIMUM AND 1.020 INCHES MAXIMUM |

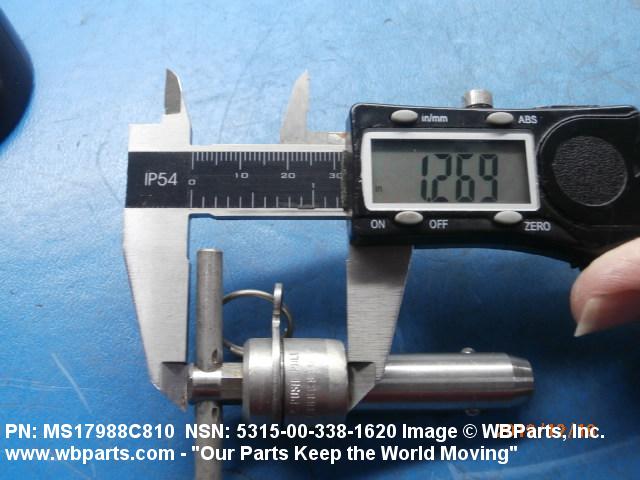

| SHOULDER TO HEAD END DISTANCE | 1.270 INCHES MAXIMUM |
