NSN 5315-00-281-7938 HP908, 62531V, 2817938
Product Details | WOODRUFF KEY
5315-00-281-7938 An item in the form of a segment of a disk, which may have a flat bottom, with or without projecting shoulders, designed to fit into a keyway in an axle or shaft, and into a matching slot in the hub or boss of a wheel, gear or pulley.
Part Alternates: HP908, 62531V, 2817938, 5315-00-281-7938, 00-281-7938, 5315002817938, 002817938
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-281-7938 | 02380 ( KEY, WOODRUFF ) |
Drawings & Photos | NSN 5315-00-281-7938
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-281-7938
Technical Data | NSN 5315-00-281-7938
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

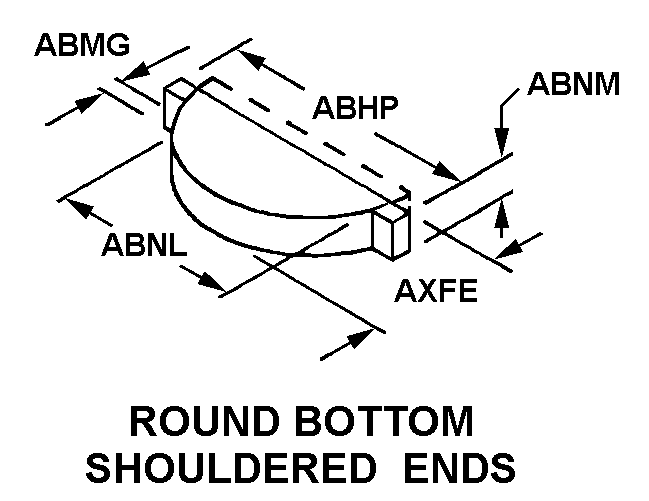

| STYLE DESIGNATOR | C59 ROUND BOTTOM SHOULDERED ENDS |
| OVERALL LENGTH | 1.188 INCHES NOMINAL |
| SHOULDER HEIGHT | 0.110 INCHES MINIMUM AND 0.115 INCHES MAXIMUM |
| CIRCLE DIAMETER | 1.125 INCHES NOMINAL |
| THICKNESS | 0.250 INCHES MINIMUM AND 0.251 INCHES MAXIMUM |
| KEY HEIGHT | 0.4784 INCHES MINIMUM AND 0.4834 INCHES MAXIMUM |
| STARTING EDGE SHAPE | STRAIGHT |
| KEY SIZE DESIGNATION | WOODRUFF 18 |
Restrictions/Controls & Freight Information | NSN 5315-00-281-7938
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063520 | WAVEGUIDE IN BOXES/CRATES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
