NSN 5315-00-281-7760 0052671, 00526715, 0052671-5
Product Details | HEADED STRAIGHT PIN
5315-00-281-7760 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: 0052671, 00526715, 0052671-5, 052671, 5315-00-281-7760, 00-281-7760, 5315002817760, 002817760
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-281-7760 | 02384 ( PIN, STRAIGHT, HEADED ) |
Drawings & Photos | NSN 5315-00-281-7760
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-281-7760
Technical Data | NSN 5315-00-281-7760
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| CHAMFER LENGTH | 0.141 INCHES NOMINAL |
| DIAMETER | 0.625 INCHES NOMINAL |
| UNDER HEAD LENGTH | 1.719 INCHES NOMINAL |
| PIN CHAMFER ANGLE | 15.0 DEGREES NOMINAL |
| HEAD STYLE | 17 FLAT CHAMFER |
| PIN HEAD DIAMETER | 0.812 INCHES NOMINAL |
| HEIGHT | 0.203 INCHES NOMINAL |

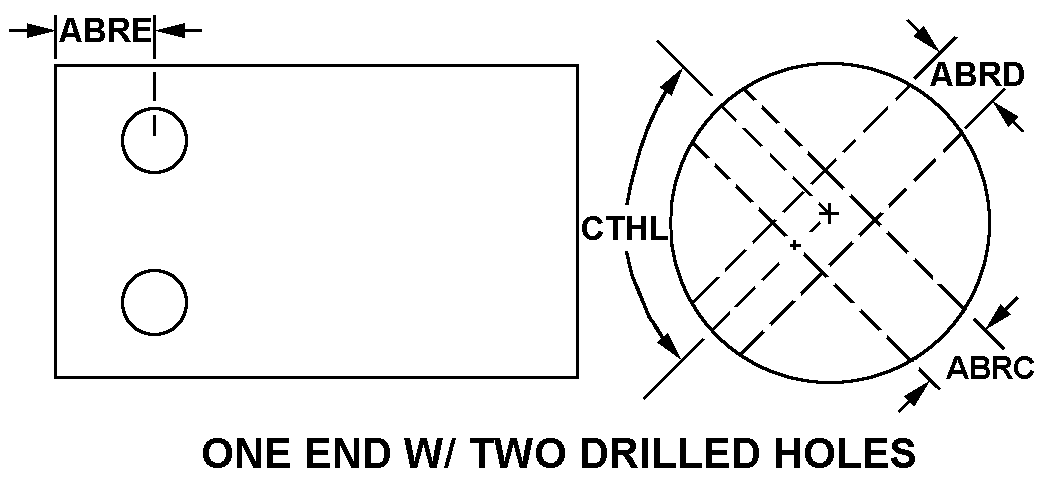

| HOLE ARRANGEMENT STYLE | 3 ONE END W/TWO DRILLED HOLES |
| FIRST HOLE DIAMETER | 0.1406 INCHES NOMINAL |
| FEATURES PROVIDED | CASEHARDENED |
| SPECIAL FEATURES | DRILLED SHANK |
| MANUFACTURERS CODE | 89926 |
| DESIGN CONTROL REFERENCE | 0052671 |
