Product Details | HEADED STRAIGHT PIN
5315-00-226-1815 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: MP300701, MP30-070-1 , A6339, SMB443811 , SMB650936, 10194DAP , 16259511, 1625951-1 , 38313835001, 3831-3835-001 , 4269039001, 426-903-9001 , 5901161, 590116-1 , 715899-042 , 71589942, 715899-42 , 7717121DAP, 7717-121DAP , 5315-00-226-1815, 00-226-1815, 5315002261815, 002261815, 715899042
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-226-1815 | 02384 ( PIN, STRAIGHT, HEADED ) |
Drawings & Photos | NSN 5315-00-226-1815
Cross Reference | NSN 5315-00-226-1815
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A6339 | 72914 | GRIMES AEROSPACE COMPANY DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-226-1815
Technical Data | NSN 5315-00-226-1815
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | L193 STRAIGHT |
| DIAMETER | 0.062 INCHES NOMINAL |
| UNDER HEAD LENGTH | 0.938 INCHES NOMINAL |

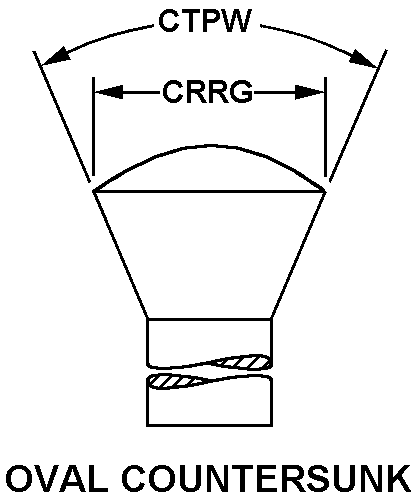

| HEAD STYLE | 31 OVAL COUNTERSUNK |
| PIN HEAD DIAMETER | 0.094 INCHES NOMINAL |
| HEAD COUNTERSINK ANGLE | 120.0 DEGREES NOMINAL |
| MANUFACTURERS CODE | 72914 |
| DESIGN CONTROL REFERENCE | A6339 |
