NSN 5315-00-222-1711 MS17984630, MS17984-630, MS17984C630

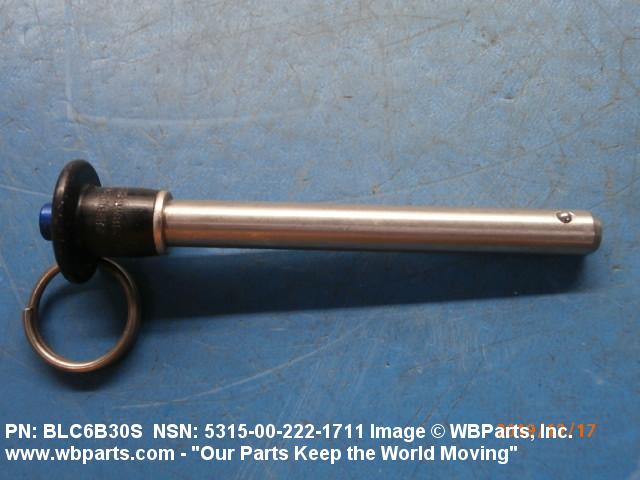

Product Details | QUICK RELEASE PIN
5315-00-222-1711 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Part Alternates: MS17984630, MS17984-630, MS17984C630, SLS6B30, BLC6B30S, BLC6B30SM, BLS6B30S, BLS6B30SM, LG6CB3000, LG6CB30M, LG6SB3000, LG6SB30M, LW6CB3000, LW6CB3-000, 10347607 , 5315-00-222-1711, 00-222-1711, 5315002221711, 002221711
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 JUN 1969 | 00-222-1711 | 08323 ( PIN, QUICK RELEASE ) |

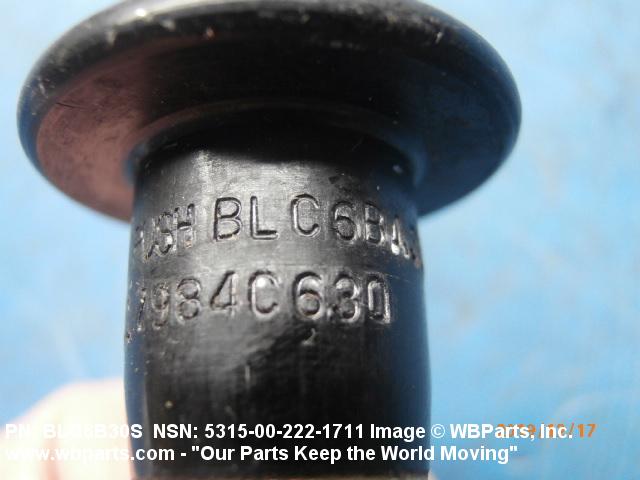

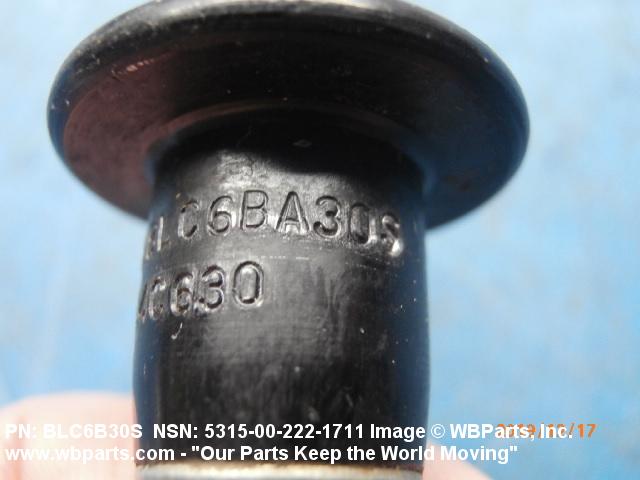

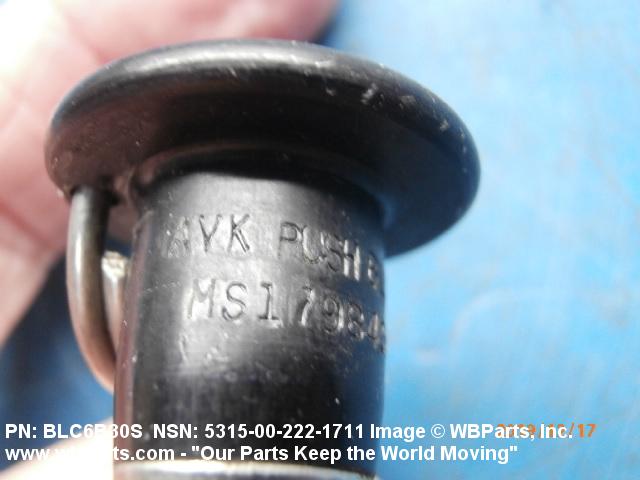

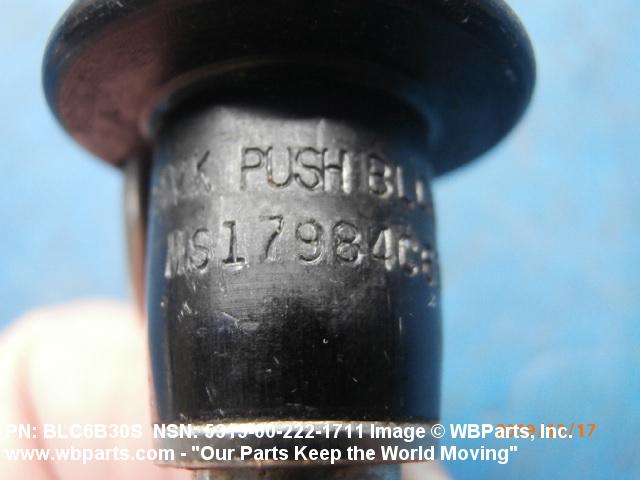

Drawings & Photos | NSN 5315-00-222-1711
Demand History | NSN 5315-00-222-1711
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS17984C630 | 2024-09-254 | 4 | United States |
| MS17984C630 | 2024-03-68 | 5 | United States |
| 5315-00-222-1711 | 2023-08-222 | 1 | United States |
| MS17984C630 | 2023-04-98 | 20 | United States |
| 5315-00-222-1711 | 2023-01-09 | 100 | us |
| MS17984C630 | 2020-08-219 | 10 | United States |
| 5315-00-222-1711 | 2019-11-319 | 2 | United States |
| 5315-00-222-1711 | 2019-03-70 | 100 | US |
| MS17984630 | 2018-05-144 | 4 | United States |
| MS17984630 | 2018-04-115 | 4 | United States |
| 5315-00-222-1711 | 2018-01-24 | 4 | United States |
| 5315-00-222-1711 | 2016-03-69 | 45 | Canada |
| MS17984C630 | 2015-11-322 | 10 | Taiwan |
| 5315-00-222-1711 | 2013-11-319 | 1 | DIBBS-RFPs |
| MS17984C630 | 2013-04-108 | 18 | United States |
| MS17984C630 | 2011-12-346 | 4 | US |
| MS17984630 | 2009-07-188 | 20 | Canada |
| MS17984C630 | 2009-03-89 | 100 | US |
| MS17984C630 | 2009-03-71 | 4 | US |
| 5315-00-222-1711 | 2008-11-308 | 100 | United States |
| 5315-00-222-1711 | 2008-11-308 | 250 | United States |
Cross Reference | NSN 5315-00-222-1711
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BLC6B30S | 84256 | AVIBANK MFG., INC. |
| BLC6B30SM | 84256 | AVIBANK MFG., INC. |
| BLS6B30S | 84256 | AVIBANK MFG., INC. |
| BLS6B30SM | 84256 | AVIBANK MFG., INC. |
| LG6CB3000 | 62060 | SOUTHCO INC. |
| LG6CB3000 | 83014 | HARTWELL CORPORATION |
| LG6CB30M | 62060 | SOUTHCO INC. |
| LG6CB30M | 83014 | HARTWELL CORPORATION |
| LG6SB3000 | 83014 | HARTWELL CORPORATION |
| LG6SB30M | 83014 | HARTWELL CORPORATION |
| LW6CB3-000 | 62060 | SOUTHCO INC. |
| LW6CB3-000 | 83014 | HARTWELL CORPORATION |
| MS17984-630 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS17984C630 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS17984C630 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| SLS6B30 | 16258 | SPACELOK INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-222-1711
Related Products | NSN 5315-00-222-1711
Technical Data | NSN 5315-00-222-1711
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 630 OR STEEL COMP 632 SHANK STEEL COMP 630 OR STEEL COMP 632 SPINDLE |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5643 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5657 ASSN STD 2ND MATERIAL RESPONSE SHANK AMS 5643 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5657 ASSN STD 2ND MATERIAL RESPONSE SPINDLE |
| SURFACE TREATMENT | PASSIVATE SHANK PASSIVATE SPINDLE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SHANK QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SPINDLE |
| HARDNESS RATING | 40.0 ROCKWELL C MINIMUM SHANK 40.0 ROCKWELL C MINIMUM SPINDLE |
| SHEAR STRENGTH | 20600 DOUBLE POUND |

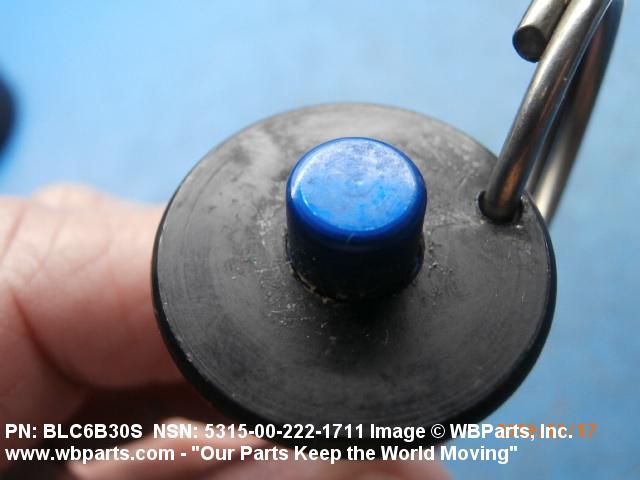

| STYLE DESIGNATOR | Q243 BUTTON |

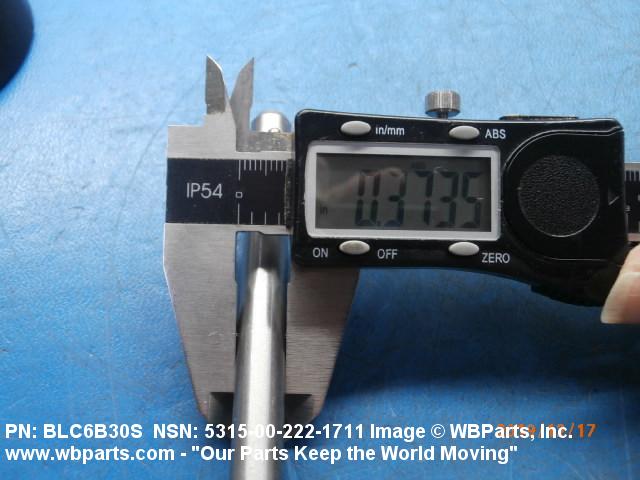

| SHANK DIAMETER | 0.3720 INCHES MINIMUM AND 0.3735 INCHES MAXIMUM |

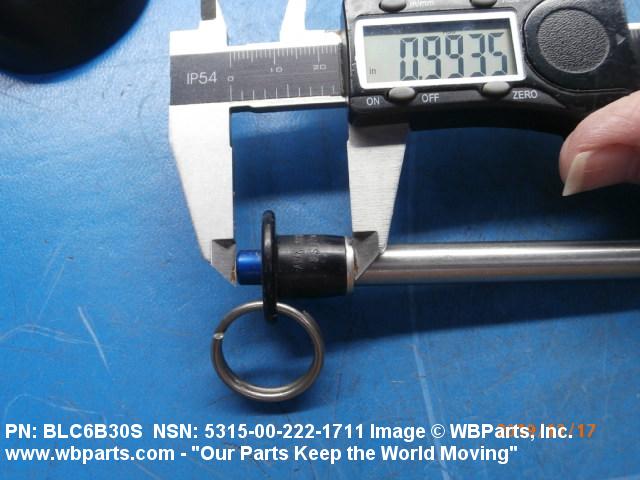

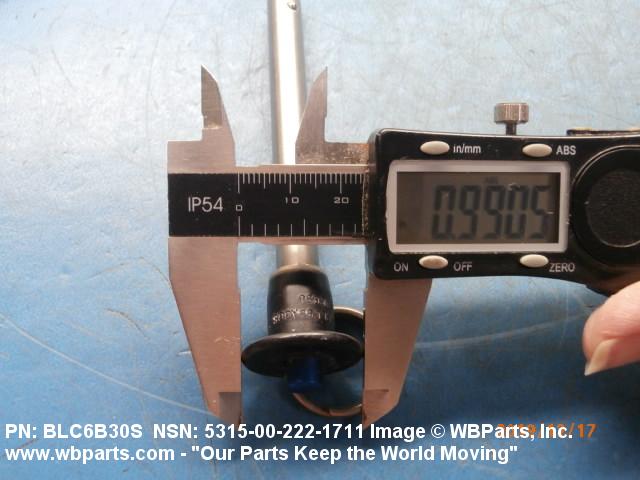

| BUTTON HANDLE DIAMETER | 0.875 INCHES MINIMUM AND 1.135 INCHES MAXIMUM |

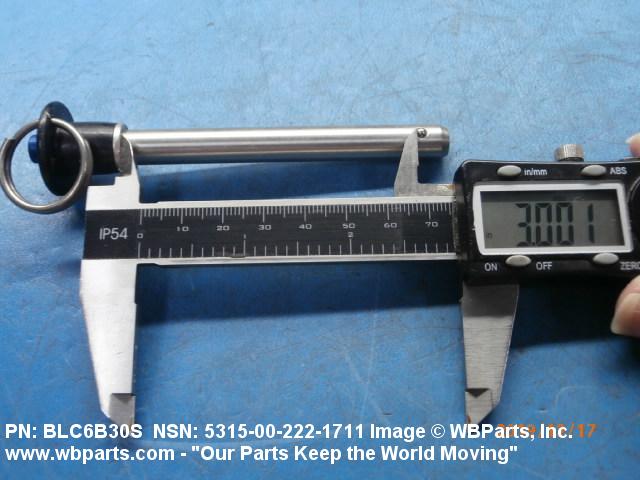

| GRIP LENGTH | 3.000 INCHES MINIMUM AND 3.020 INCHES MAXIMUM |
| SHOULDER TO HEAD END DISTANCE | 1.040 INCHES MAXIMUM |

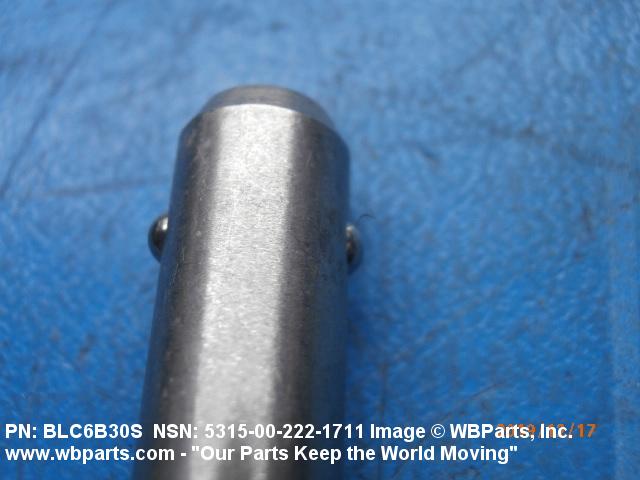

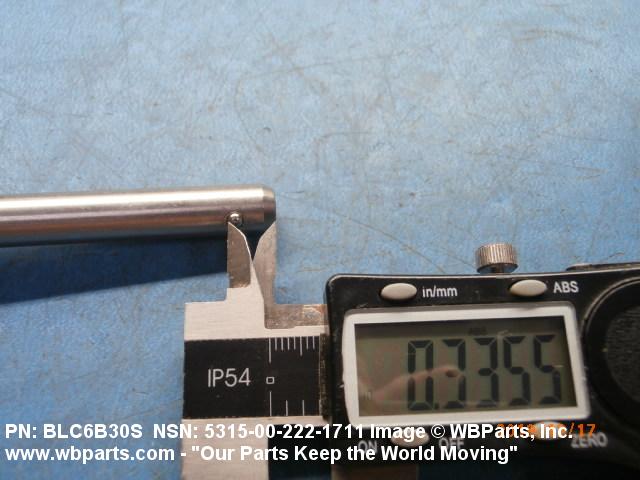

| DETENT TO TAPERED END DISTANCE | 0.335 INCHES MINIMUM AND 0.365 INCHES MAXIMUM |
| ACTUATION TYPE | PUSH |
| ACTUATION METHOD | PUSH BUTTON |
| DETENT QUANTITY | 2 |

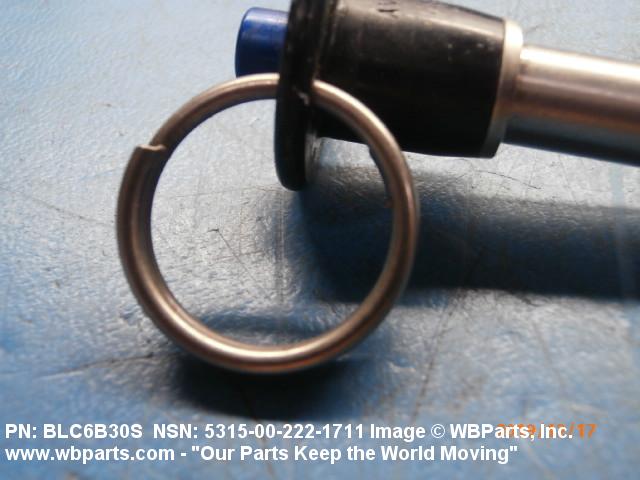

| PIN ATTACHMENT TYPE | LINK OR RING |
