NSN 5315-00-169-9539 701161, 00-169-9539, 001699539
Product Details | HEADLESS GROOVED PIN
5315-00-169-9539 A headless item of various shapes, usually cylindrical, having either circular or longitudinal groove(s). Its length must not exceed 12 inches (304 MM). Excludes ROD, GROOVED, HEADLESS; SHAFT (as modified); and PIN, VEHICULAR LEAF SPRING SHACKLE.
Part Alternates: 701161, 5315-00-169-9539, 00-169-9539, 5315001699539, 001699539
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 FEB 1973 | 00-169-9539 | 02386 ( PIN, GROOVED, HEADLESS ) |
Drawings & Photos | NSN 5315-00-169-9539
Cross Reference | NSN 5315-00-169-9539
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 701161 | 64104 | DRESSER, INC. DIV DRESSER WAUKESHA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-169-9539
Technical Data | NSN 5315-00-169-9539
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AISI ASSN STD SINGLE MATERIAL RESPONSE OVERALL |

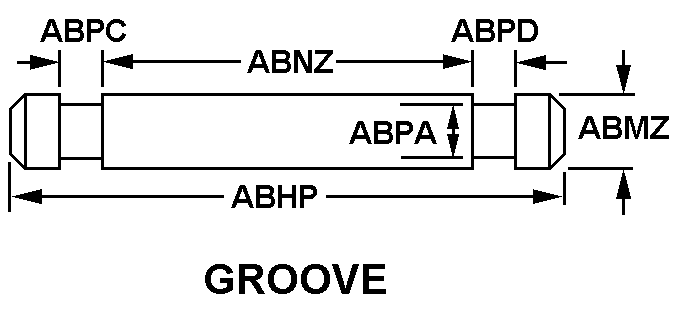

| STYLE DESIGNATOR | F117 GROOVE |
| OVERALL LENGTH | 1.188 INCHES NOMINAL |
| DIAMETER | 0.188 INCHES NOMINAL |
| EFFECTIVE LENGTH | 0.940 INCHES NOMINAL |
| UNDERCUT DIAMETER | 0.125 INCHES MINIMUM AND 0.127 INCHES MAXIMUM |
| UNDERCUT WIDTH | 0.029 INCHES MINIMUM AND 0.032 INCHES MAXIMUM |
| SECOND UNDERCUT WIDTH | 0.029 INCHES MINIMUM AND 0.032 INCHES MAXIMUM |
| FIRST END STYLE | 1 CHAMFERED |
| FIRST END TAPER LENGTH | 0.031 INCHES NOMINAL |
| FIRST END TAPER ANGLE | 45.0 DEGREES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| FIRST END LOCATION | BOTH ENDS |
| SURFACE FINISH | 125.0 MICROINCHES OUTSIDE DIAMETER |
| MANUFACTURERS CODE | 64104 |
| DESIGN CONTROL REFERENCE | 701161 |
Restrictions/Controls & Freight Information | NSN 5315-00-169-9539
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-00-169-9539
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
