NSN 5315-00-165-8389 MS946429, MS9464-29, 00-165-8389
Product Details | HEADED STRAIGHT PIN
5315-00-165-8389 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: MS946429, MS9464-29, 5315-00-165-8389, 00-165-8389, 5315001658389, 001658389
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 JAN 1972 | 00-165-8389 | 02384 ( PIN, STRAIGHT, HEADED ) |

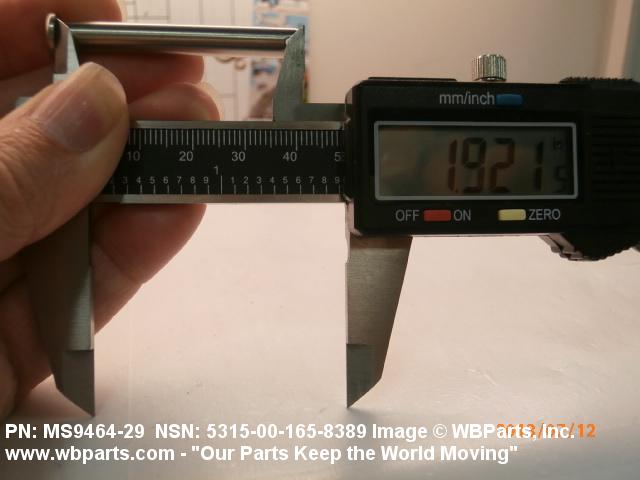

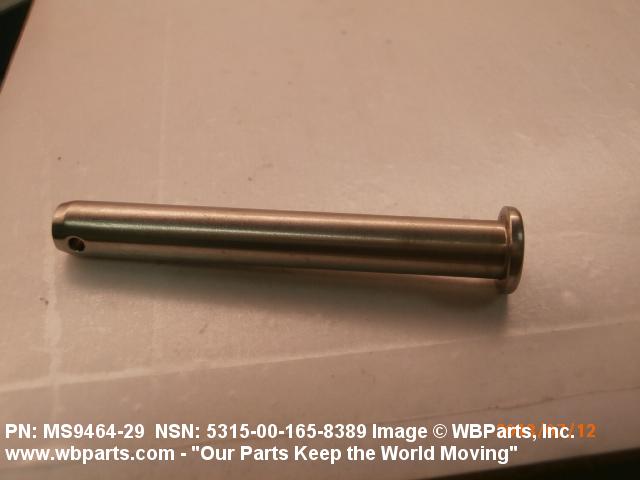

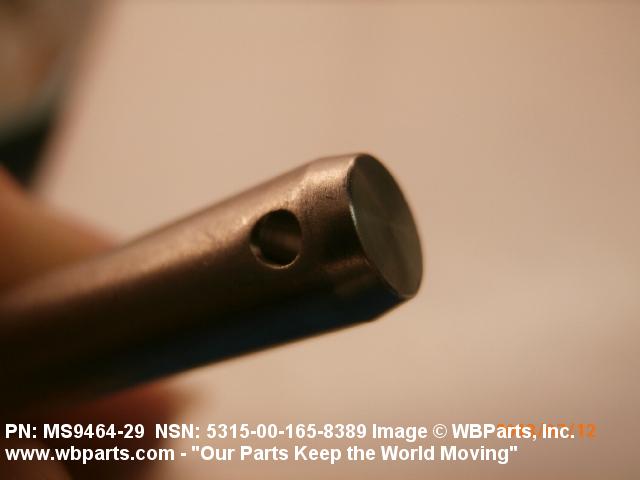

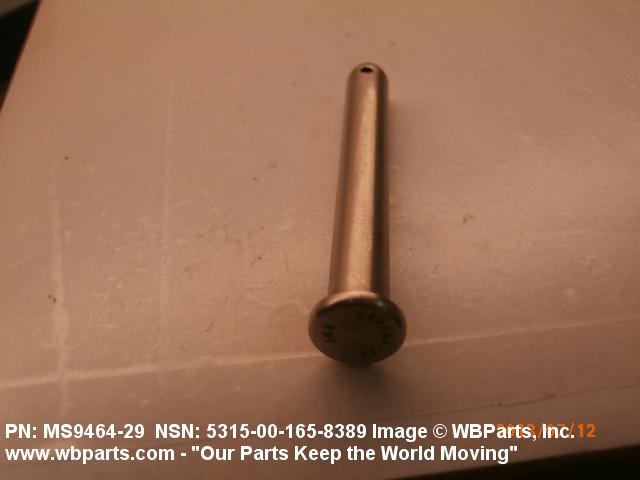

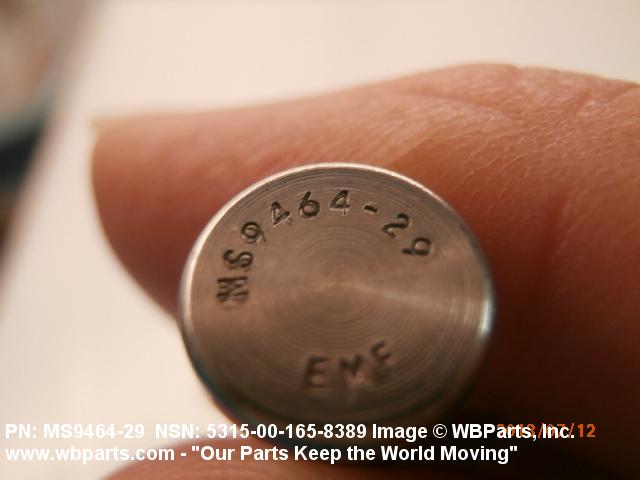

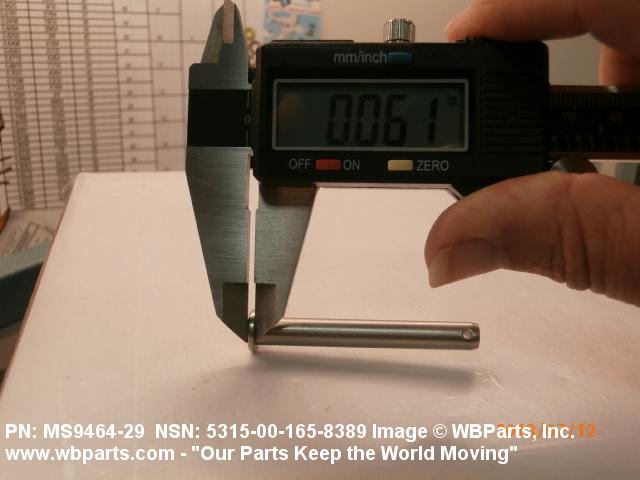

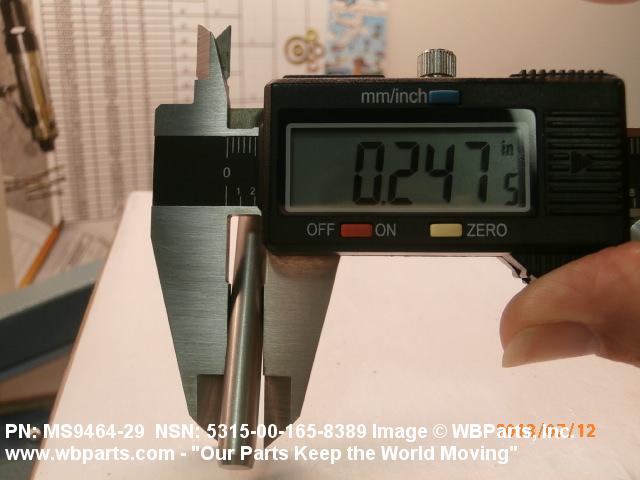

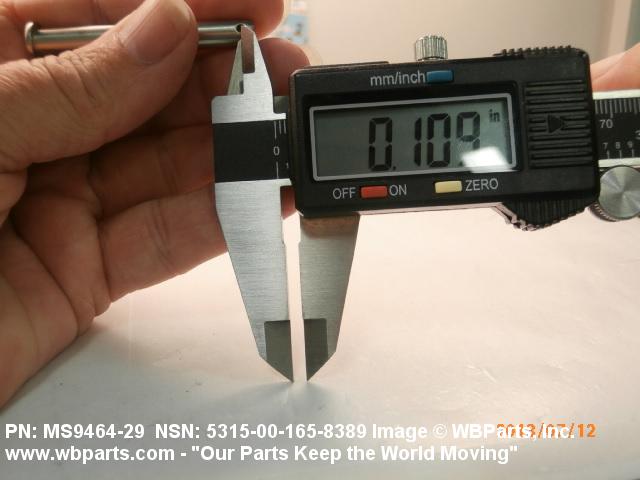

Drawings & Photos | NSN 5315-00-165-8389
Demand History | NSN 5315-00-165-8389
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS946429 | 2013-06-179 | 6 | United States |
| 5315-00-165-8389 | 2012-12-346 | 100 | DIBBS |
| 5315-00-165-8389 | 2012-04-110 | 57 | DIBBS |
| 5315-00-165-8389 | 2011-04-91 | 20 | DIBBS |
Cross Reference | NSN 5315-00-165-8389
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS9464-29 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
