NSN 5315-00-081-7870 MS203921C53, MS20392-1C53, 10122560

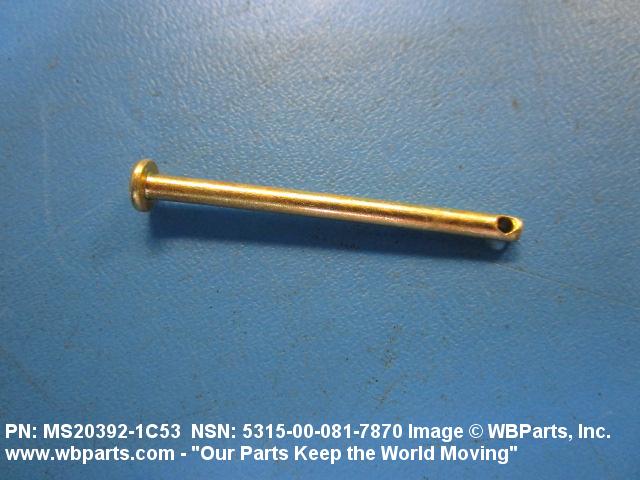

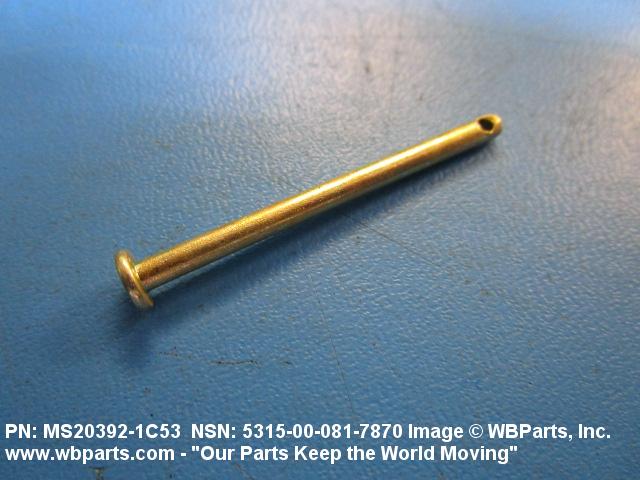

Product Details | HEADED STRAIGHT PIN

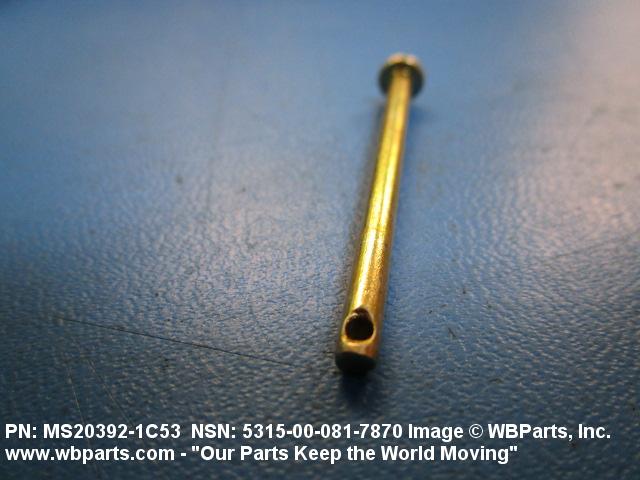

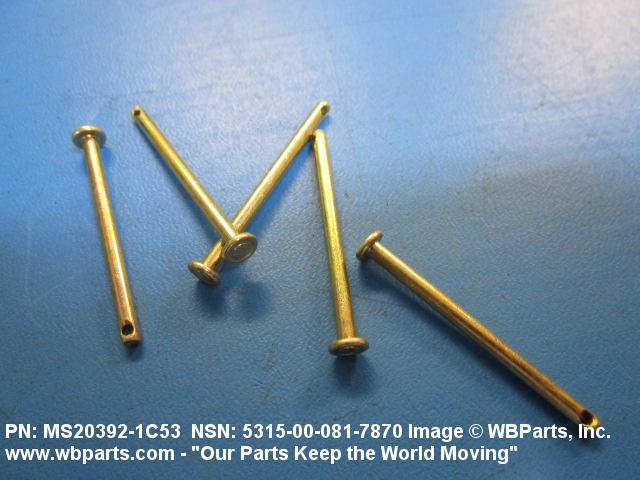

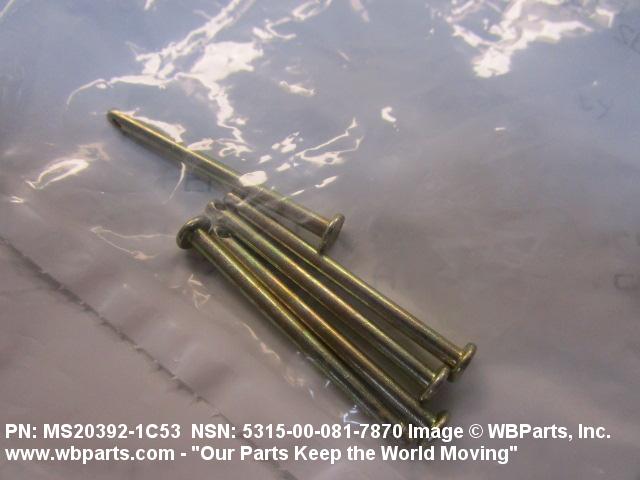

5315-00-081-7870 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: MS203921C53, MS20392-1C53, 10122560 , 5315-00-081-7870, 00-081-7870, 5315000817870, 000817870
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-081-7870 | 02384 ( PIN, STRAIGHT, HEADED ) |

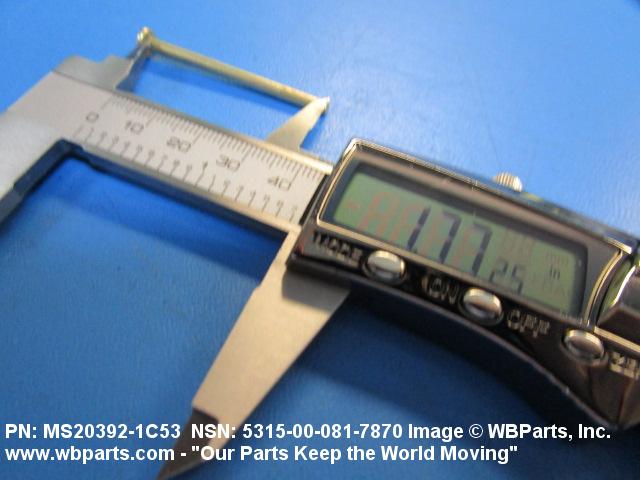

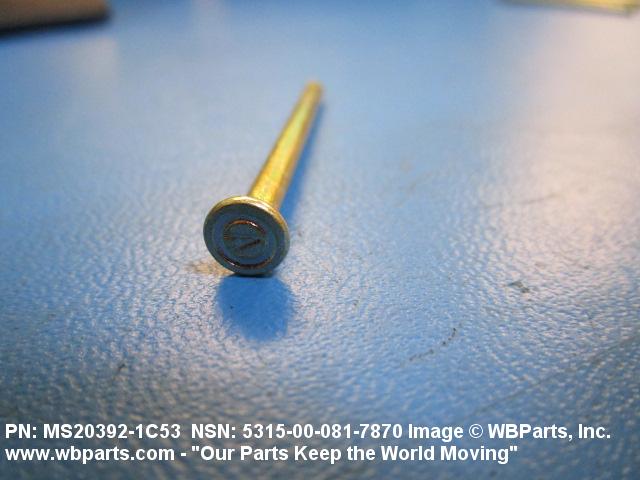

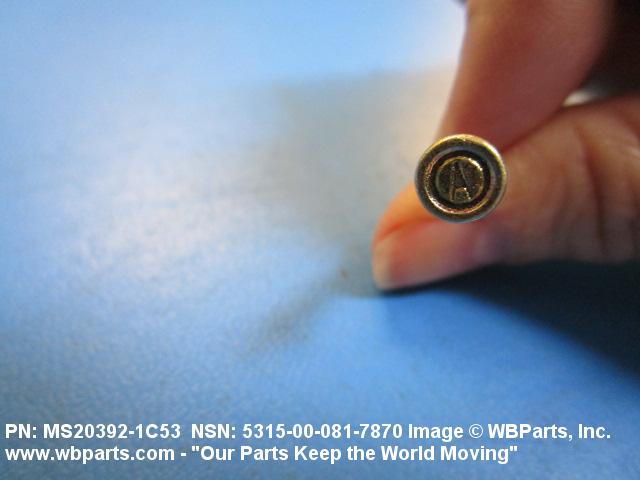

Drawings & Photos | NSN 5315-00-081-7870
Demand History | NSN 5315-00-081-7870
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-081-7870 | 2019-01-30 | 562 | DIBBS |
| 5315-00-081-7870 | 2017-08-228 | 715 | DIBBS |
| MS20392-1C53 | 2014-06-157 | 50 | United States |
Cross Reference | NSN 5315-00-081-7870
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS20392-1C53 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-081-7870
Related Products | NSN 5315-00-081-7870
Technical Data | NSN 5315-00-081-7870
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4037 OR STEEL COMP 4130 OR STEEL COMP 8630 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6300 ASSN STD 1ST MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-6050 MIL SPEC 3RD MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 26.5 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM OVERALL |
| STYLE DESIGNATOR | L193 STRAIGHT |
| CHAMFER LENGTH | 0.046 INCHES NOMINAL |

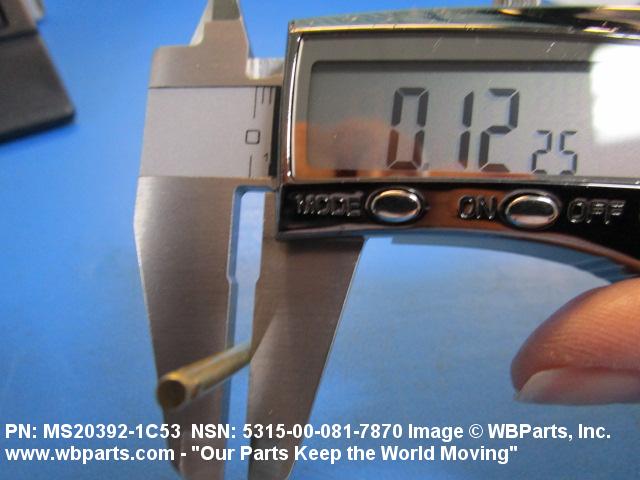

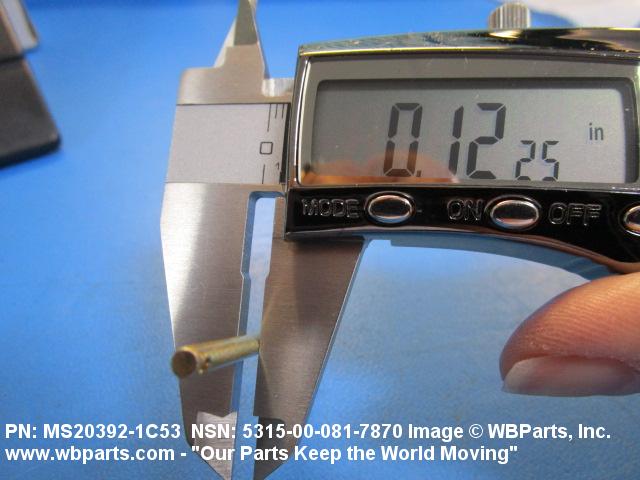

| DIAMETER | 0.122 INCHES MINIMUM AND 0.124 INCHES MAXIMUM |

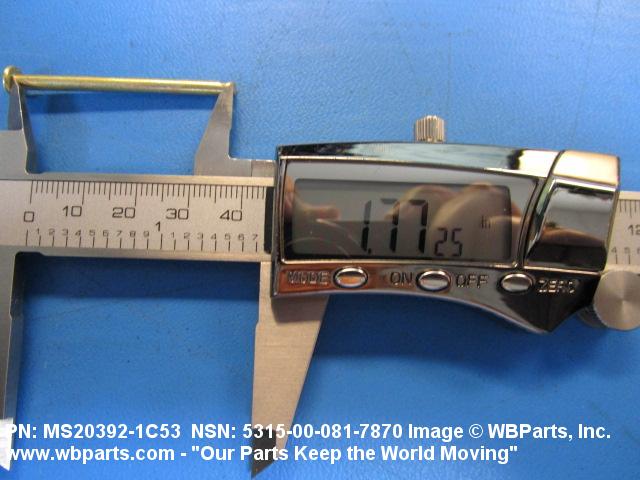

| UNDER HEAD LENGTH | 1.772 INCHES MINIMUM AND 1.792 INCHES MAXIMUM |
| PIN CHAMFER ANGLE | 15.0 DEGREES NOMINAL |
| HEAD STYLE | 34 PAN NO. 2 |
| PIN HEAD DIAMETER | 0.250 INCHES NOMINAL |

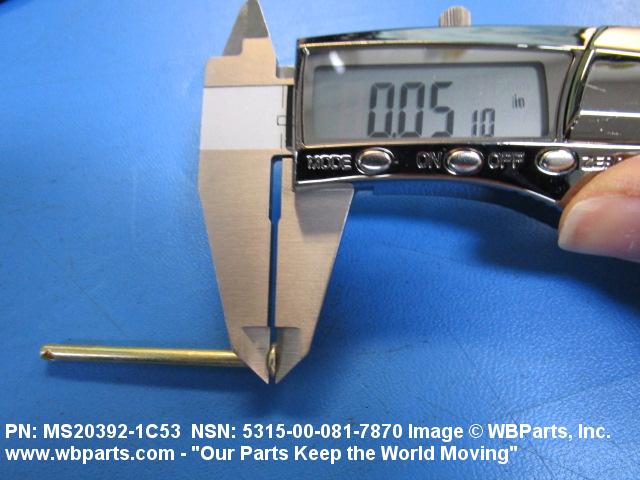

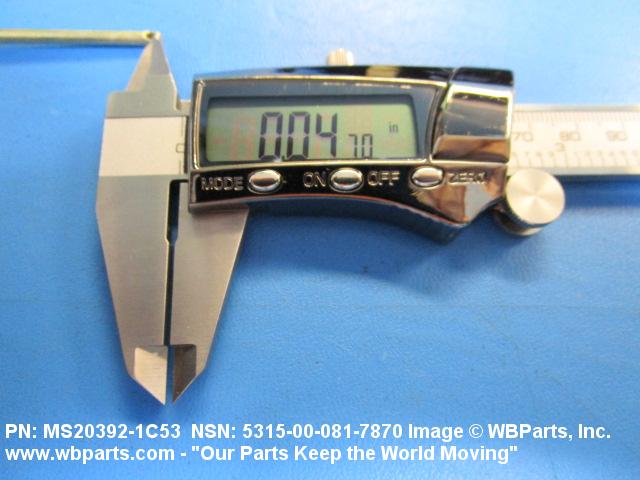

| HEIGHT | 0.046 INCHES NOMINAL |
| HOLE ARRANGEMENT STYLE | 1 ONE END DRILLED |

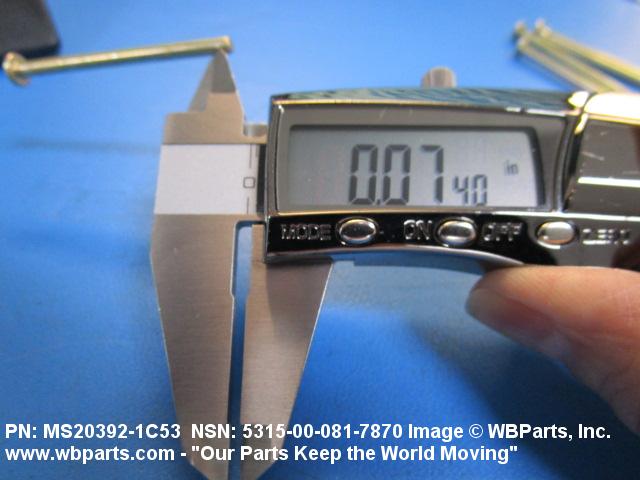

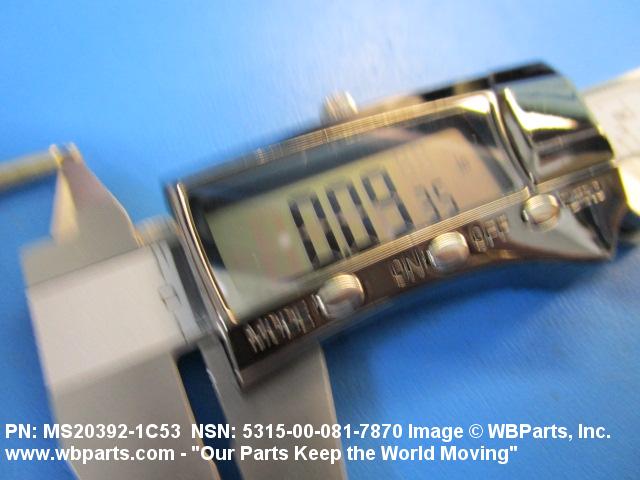

| FIRST HOLE DIAMETER | 0.060 INCHES MINIMUM AND 0.080 INCHES MAXIMUM |

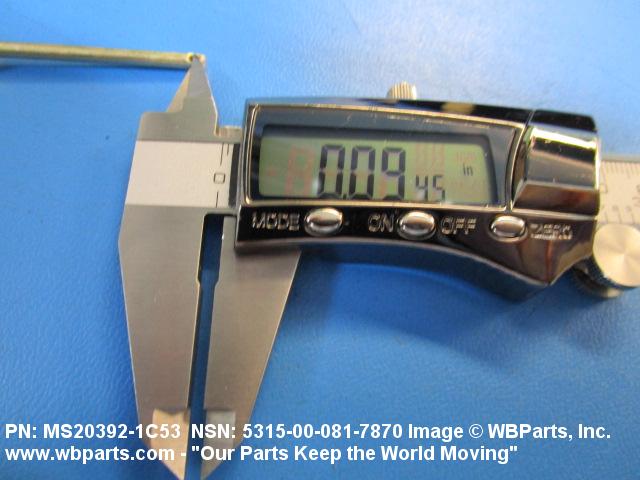

| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.091 INCHES NOMINAL |
| SPECIAL FEATURES | PIN CHAMFER END MAY BE 0.031 IN. NOM RADIUS,IN LIEU OF CHAMFER |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20392-1C53 |
