NSN 5315-00-064-2701 MS203923C37, MS20392-3C37, 00-064-2701
Product Details | HEADED STRAIGHT PIN

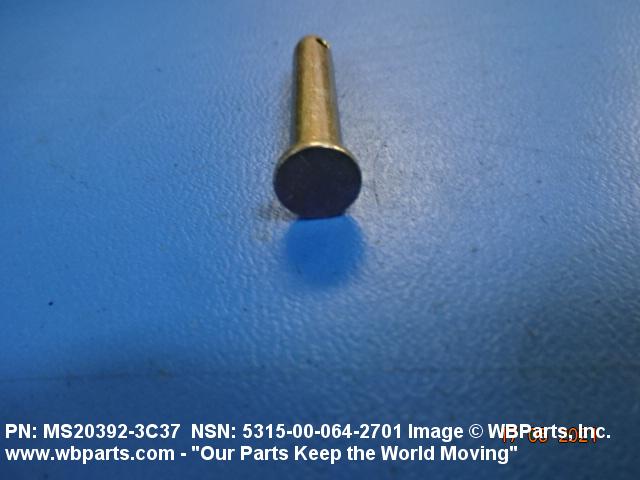

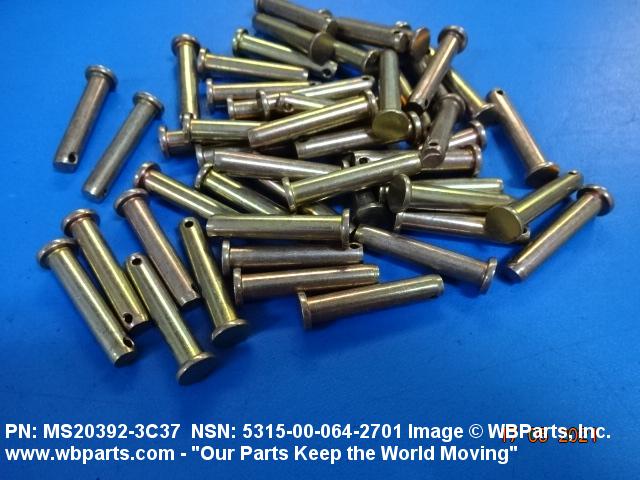

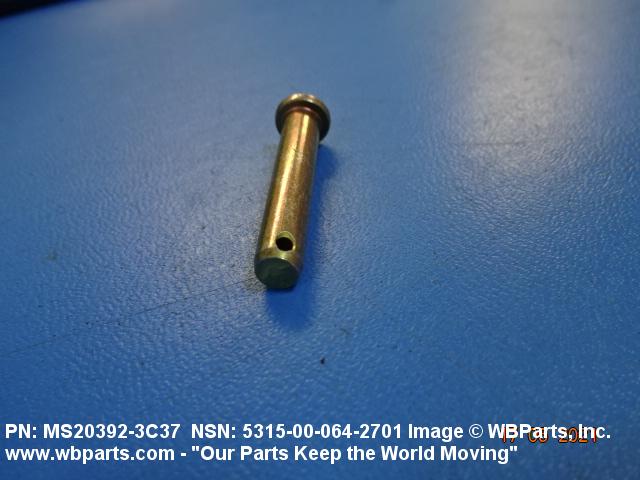

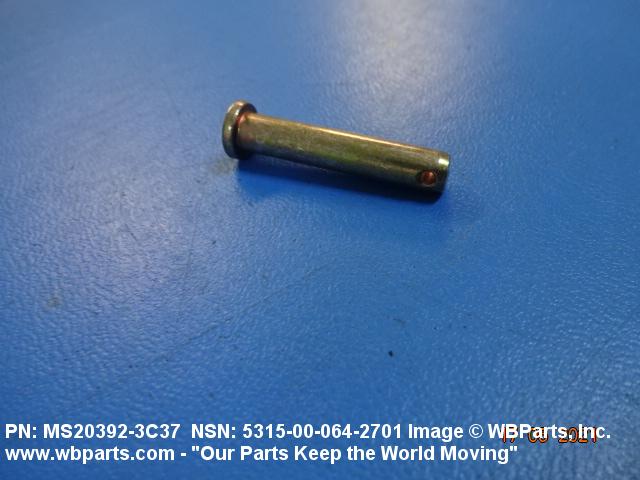

5315-00-064-2701 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: MS203923C37, MS20392-3C37, 5315-00-064-2701, 00-064-2701, 5315000642701, 000642701
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-064-2701 | 02384 ( PIN, STRAIGHT, HEADED ) |
Drawings & Photos | NSN 5315-00-064-2701
Demand History | NSN 5315-00-064-2701
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-064-2701 | 2024-09-259 | 401 | DIBBS |
| 5315-00-064-2701 | 2024-05-140 | 835 | DIBBS |
| 5315-00-064-2701 | 2024-02-46 | 353 | DIBBS |
| 5315-00-064-2701 | 2023-09-262 | 217 | DIBBS |
| 5315-00-064-2701 | 2023-05-141 | 258 | DIBBS |
| 5315-00-064-2701 | 2023-01-16 | 505 | DIBBS |
| 5315-00-064-2701 | 2022-10-289 | 230 | DIBBS |
| 5315-00-064-2701 | 2022-07-198 | 239 | DIBBS |
| 5315-00-064-2701 | 2021-11-322 | 358 | DIBBS |
| 5315-00-064-2701 | 2021-04-111 | 50 | United States |
| 5315-00-064-2701 | 2019-12-363 | 1447 | DIBBS |
| 5315-00-064-2701 | 2018-01-08 | 1329 | DIBBS |
| 5315-00-064-2701 | 2014-05-134 | 2291 | DIBBS |
| MS203923C37 | 2013-03-79 | 4 | United States |
| MS203923C37 | 2013-02-53 | 10 | US |
| MS203923C37 | 2013-01-22 | 12 | US |
| 5315-00-064-2701 | 2010-08-243 | 3336 | DIBBS |
| 5315-00-064-2701 | 2009-08-222 | 150 | US |
| 5315-00-064-2701 | 2009-04-105 | 1646 | DIBBS |
| MS203923C37 | 2008-07-213 | 200 | US |
Cross Reference | NSN 5315-00-064-2701
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS20392-3C37 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-064-2701
Related Products | NSN 5315-00-064-2701
Technical Data | NSN 5315-00-064-2701
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4037 OR STEEL COMP 4130 OR STEEL COMP 8630 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6300 ASSN STD 1ST MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-6050 MIL SPEC 3RD MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 26.5 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM OVERALL |
| SHEAR STRENGTH | 7360 DOUBLE POUNDS PER SQUARE INCH |
| STYLE DESIGNATOR | L193 STRAIGHT |
| CHAMFER LENGTH | 0.046 INCHES MINIMUM AND 0.078 INCHES MAXIMUM |

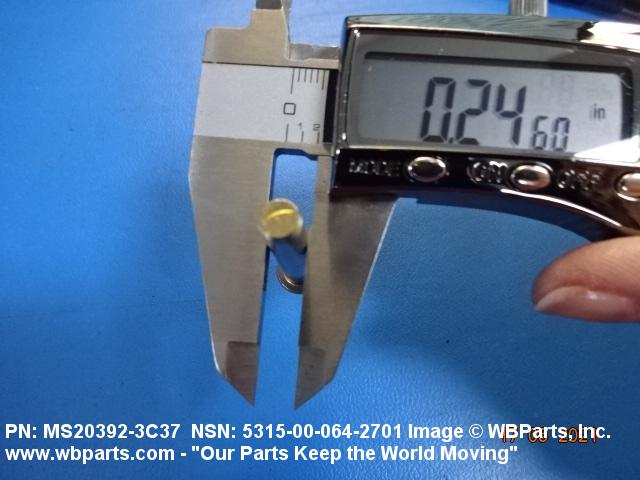

| DIAMETER | 0.246 INCHES MINIMUM AND 0.248 INCHES MAXIMUM |

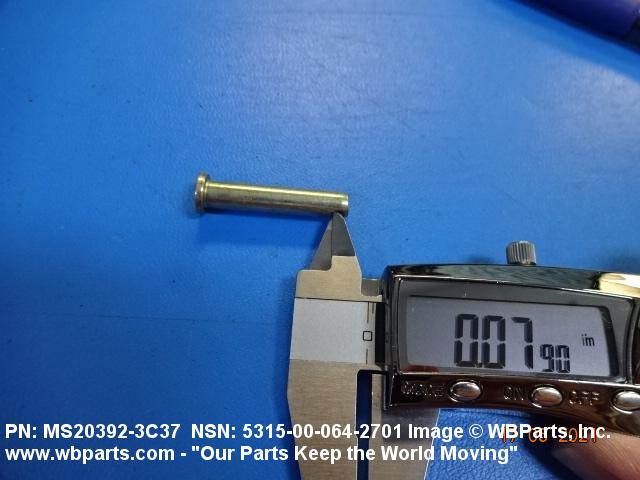

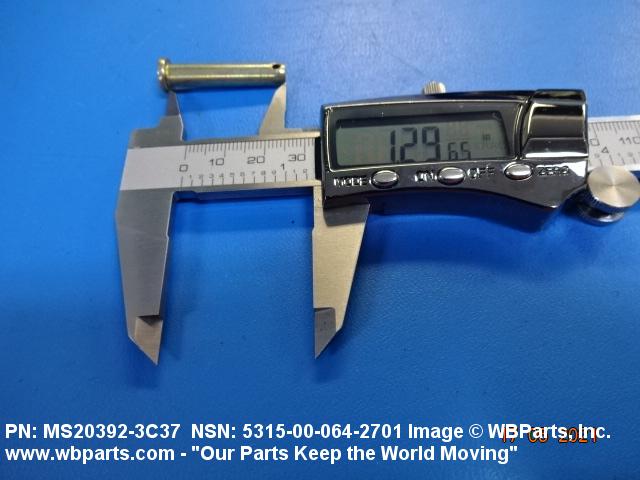

| UNDER HEAD LENGTH | 1.290 INCHES NOMINAL |
| END RADIUS | 0.015 INCHES MINIMUM AND 0.047 INCHES MAXIMUM |
| PIN CHAMFER ANGLE | 14.5 DEGREES MINIMUM AND 15.5 DEGREES MAXIMUM |
| HEAD STYLE | 34 PAN NO. 2 |

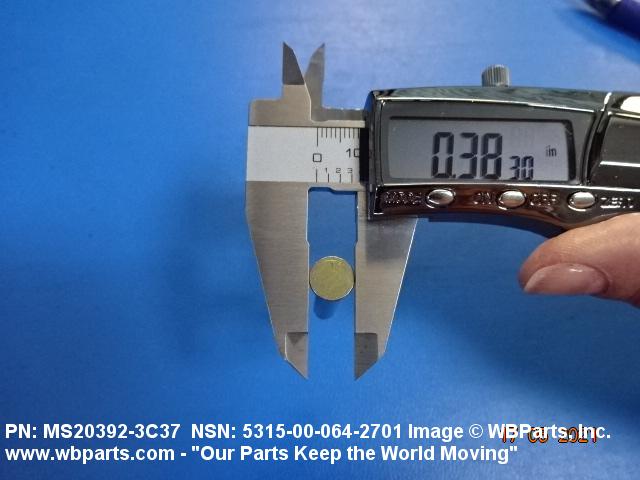

| PIN HEAD DIAMETER | 0.359 INCHES MINIMUM AND 0.391 INCHES MAXIMUM |
| HEIGHT | 0.046 INCHES MINIMUM AND 0.078 INCHES MAXIMUM |
| HOLE ARRANGEMENT STYLE | 1 ONE END DRILLED |
| FIRST HOLE DIAMETER | 0.076 INCHES MINIMUM AND 0.086 INCHES MAXIMUM |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.103 INCHES NOMINAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20392-3C37 |
Restrictions/Controls & Freight Information | NSN 5315-00-064-2701
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
