NSN 5315-00-062-7251 MS203921C57, MS20392-1C57, 00-062-7251
Product Details | HEADED STRAIGHT PIN

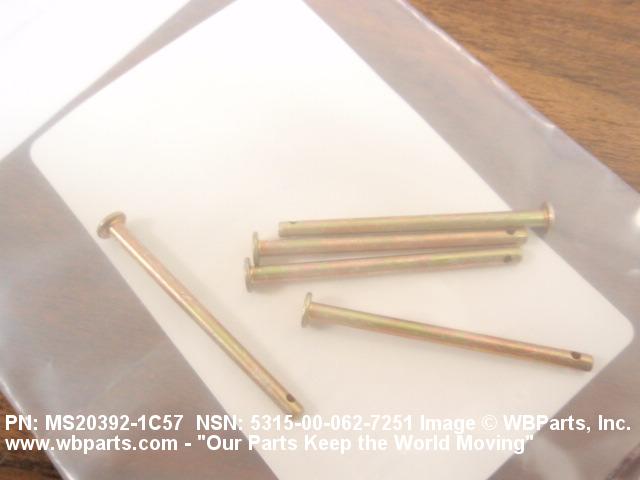

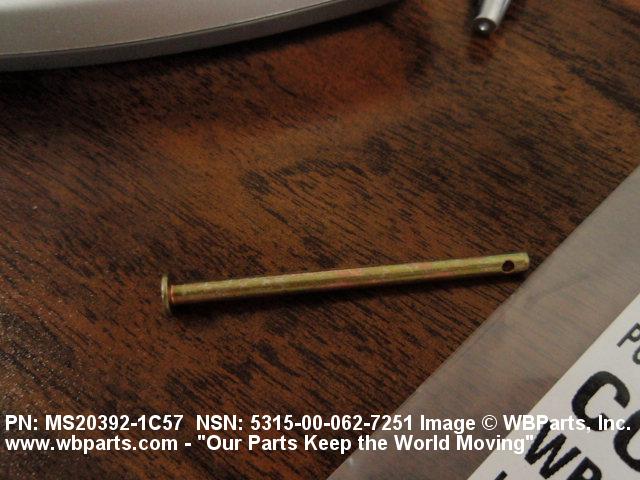

5315-00-062-7251 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: MS203921C57, MS20392-1C57, 5315-00-062-7251, 00-062-7251, 5315000627251, 000627251
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-062-7251 | 02384 ( PIN, STRAIGHT, HEADED ) |
Drawings & Photos | NSN 5315-00-062-7251
Demand History | NSN 5315-00-062-7251
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-062-7251 | 2015-05-131 | 2485 | DIBBS |
| MS20392-1C57 | 2014-06-157 | 50 | United States |
| 5315-00-062-7251 | 2010-12-356 | 10 | United States |
| 5315-00-062-7251 | 2010-05-123 | 371 | DIBBS |
Cross Reference | NSN 5315-00-062-7251
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS20392-1C57 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-062-7251
Related Products | NSN 5315-00-062-7251
Technical Data | NSN 5315-00-062-7251
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4037 OR STEEL COMP 4130 OR STEEL COMP 8630 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6300 ASSN STD 1ST MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-6050 MIL SPEC 3RD MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 26.5 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM OVERALL |
| SHEAR STRENGTH | 1840 DOUBLE POUND |
| STYLE DESIGNATOR | L193 STRAIGHT |
| CHAMFER LENGTH | 0.062 INCHES MAXIMUM |
| DIAMETER | 0.122 INCHES MINIMUM AND 0.124 INCHES MAXIMUM |
| UNDER HEAD LENGTH | 1.897 INCHES MINIMUM AND 1.917 INCHES MAXIMUM |
| PIN CHAMFER ANGLE | 14.5 DEGREES MINIMUM AND 15.5 DEGREES MAXIMUM |
| HEAD STYLE | 34 PAN NO. 2 |
| PIN HEAD DIAMETER | 0.234 INCHES MINIMUM AND 0.266 INCHES MAXIMUM |
| HEIGHT | 0.030 INCHES MINIMUM AND 0.062 INCHES MAXIMUM |
| HOLE ARRANGEMENT STYLE | 1 ONE END DRILLED |
| FIRST HOLE DIAMETER | 0.060 INCHES MINIMUM AND 0.080 INCHES MAXIMUM |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.091 INCHES NOMINAL |
| SPECIAL FEATURES | THE SHANK END MAY HAVE EITHER A CHAMFER OR RADIUS AT THE OPTION OF THE VENDOR |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20392-1C57 |
Restrictions/Controls & Freight Information | NSN 5315-00-062-7251
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105000 | DOWEL PINS I/S NOI IN BAG/BBL/BOXES |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 574 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-00-062-7251
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
