NSN 5315-00-059-8349 418832, 00-059-8349, 000598349
Product Details | HOLLOW PIN
5315-00-059-8349 A cylindrically-shaped headless item, having a straight smooth body and a hole through the longitudinal center. Its length must not exceed five times its diameter or 12 inches (304 mm), whichever is greater. Excludes BEARING, SLEEVE; and PIN, PISTON.
Part Alternates: 418832, 5315-00-059-8349, 00-059-8349, 5315000598349, 000598349
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 JUN 1967 | 00-059-8349 | 19979 ( PIN, HOLLOW ) |
Drawings & Photos | NSN 5315-00-059-8349
Cross Reference | NSN 5315-00-059-8349
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 418832 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-059-8349
Related Products | NSN 5315-00-059-8349
Technical Data | NSN 5315-00-059-8349
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 347 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5646 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |

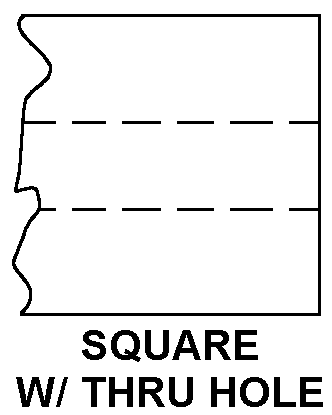

| FIRST END STYLE | 11 SQUARE W/THRU HOLE |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END STYLE | 11 SQUARE W/THRU HOLE |
| PIN OVERALL LENGTH | 0.335 INCHES MINIMUM AND 0.345 INCHES MAXIMUM |
| PIN OVERALL DIAMETER | 0.1699 INCHES MINIMUM AND 0.1709 INCHES MAXIMUM |
| INSIDE DIAMETER | 0.057 INCHES MINIMUM AND 0.067 INCHES MAXIMUM |
| SPECIAL FEATURES | SECOND END DIA 0.097 IN. MIN; 0.102 IN. MAX; LENGTH 0.140 IN. MIN; 0.125 IN. MIN; 0.140 IN. MAX |
| MANUFACTURERS CODE | 77445 |
| DESIGN CONTROL REFERENCE | 418832 |
Restrictions/Controls & Freight Information | NSN 5315-00-059-8349
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-00-059-8349
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
