Product Details | HOLLOW PIN
5315-01-044-6704 A cylindrically-shaped headless item, having a straight smooth body and a hole through the longitudinal center. Its length must not exceed five times its diameter or 12 inches (304 mm), whichever is greater. Excludes BEARING, SLEEVE; and PIN, PISTON.
Part Alternates: 16M2157, 16M215-7, 16M2159, 16M215-9, 5315-01-044-6704, 01-044-6704, 5315010446704, 010446704
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 JUL 1977 | 01-044-6704 | 19979 ( PIN, HOLLOW ) |

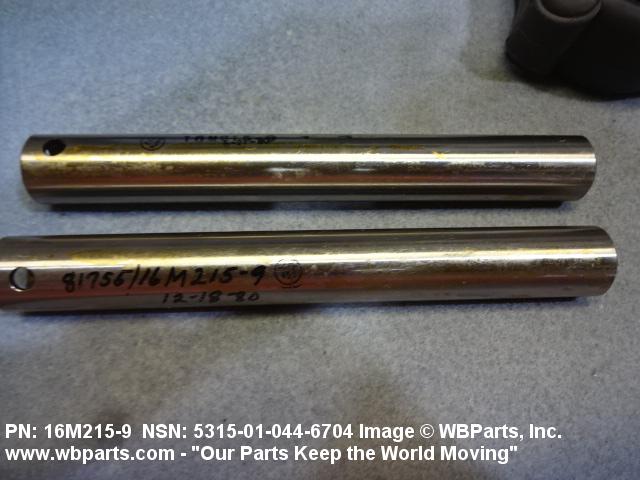

Drawings & Photos | NSN 5315-01-044-6704
Demand History | NSN 5315-01-044-6704
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-044-6704 | 2020-04-93 | 8 | DIBBS |
| 5315-01-044-6704 | 2020-02-57 | 8 | DIBBS |
| 5315-01-044-6704 | 2019-10-293 | 8 | DIBBS |
| 5315-01-044-6704 | 2019-04-98 | 8 | DIBBS |
| 5315-01-044-6704 | 2018-09-266 | 10 | DIBBS |
| 5315-01-044-6704 | 2018-09-261 | 5 | United States |
| 5315-01-044-6704 | 2018-08-228 | 14 | DIBBS |
| 5315-01-044-6704 | 2018-08-214 | 11 | DIBBS |
| 5315-01-044-6704 | 2018-07-191 | 11 | DIBBS |
| 5315-01-044-6704 | 2018-06-165 | 11 | DIBBS |
| 5315-01-044-6704 | 2018-05-140 | 34 | DIBBS |
| 5315-01-044-6704 | 2018-02-53 | 33 | DIBBS |
| 5315-01-044-6704 | 2017-09-247 | 33 | DIBBS |
| 5315-01-044-6704 | 2014-07-196 | 41 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-044-6704
Related Products | NSN 5315-01-044-6704
Technical Data | NSN 5315-01-044-6704
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5629 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| FIRST END STYLE | 1 CHAMFERED |
| FIRST END TAPER LENGTH | 0.060 INCHES NOMINAL |
| FIRST END TAPER ANGLE | 45.0 DEGREES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |

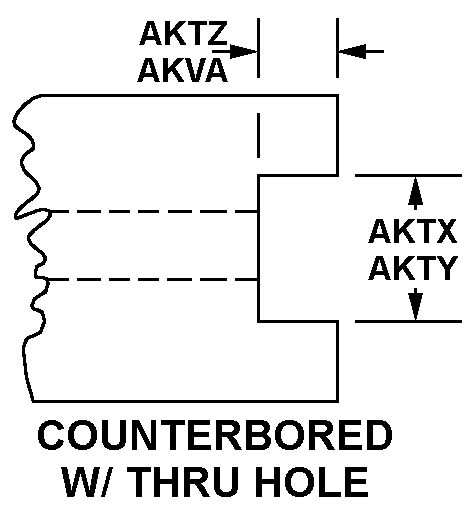

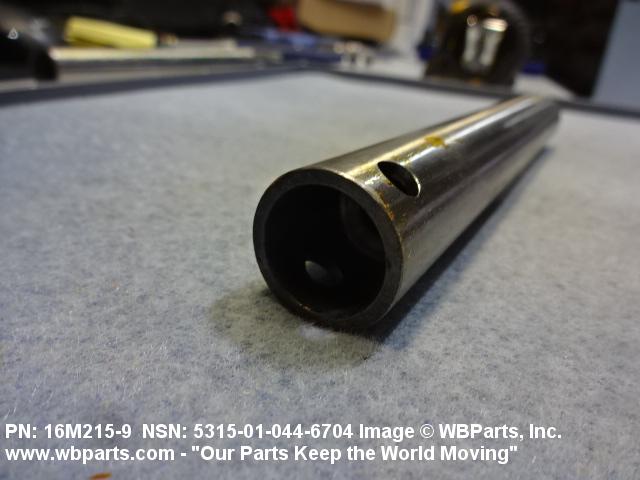

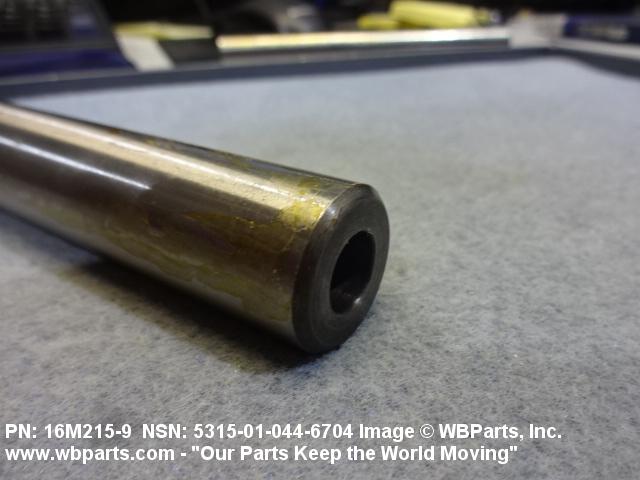

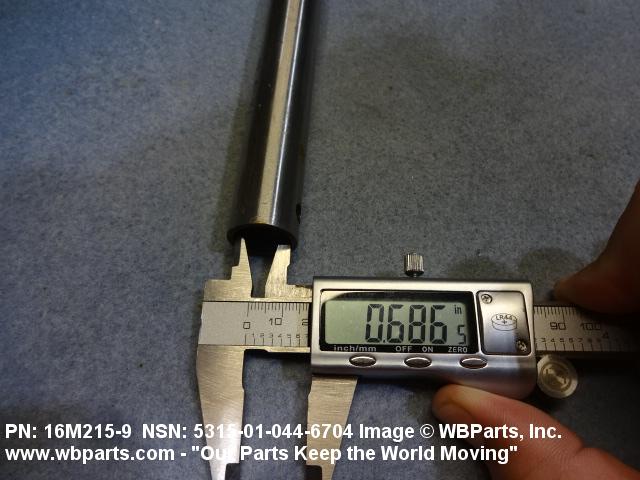

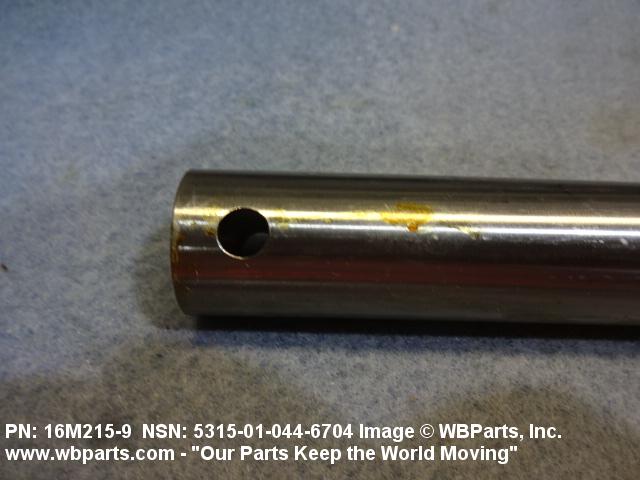

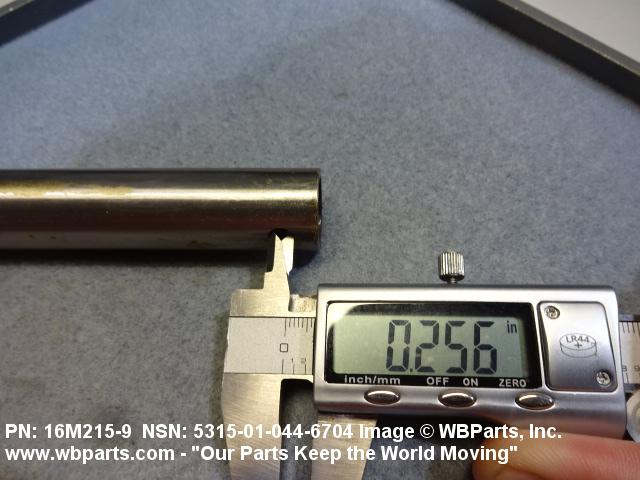

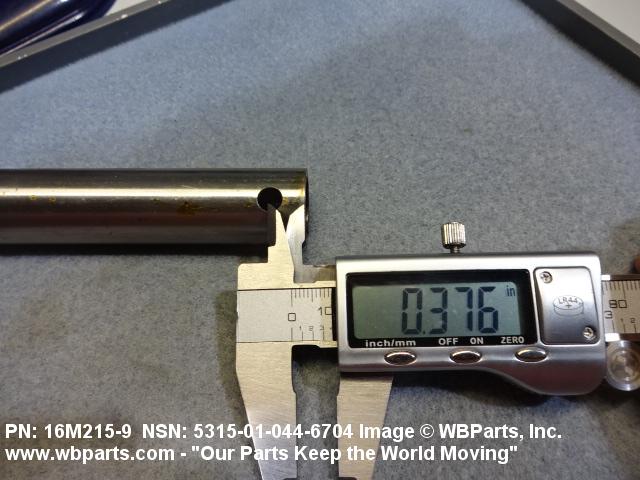

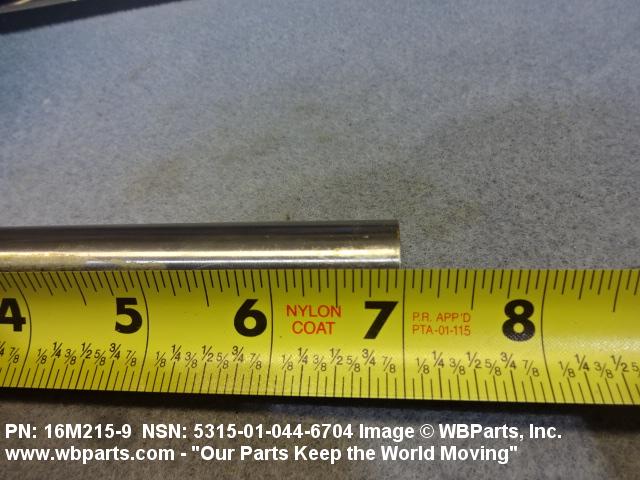

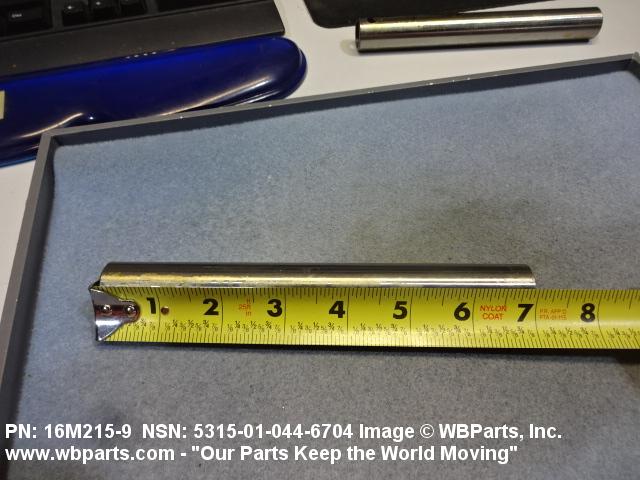

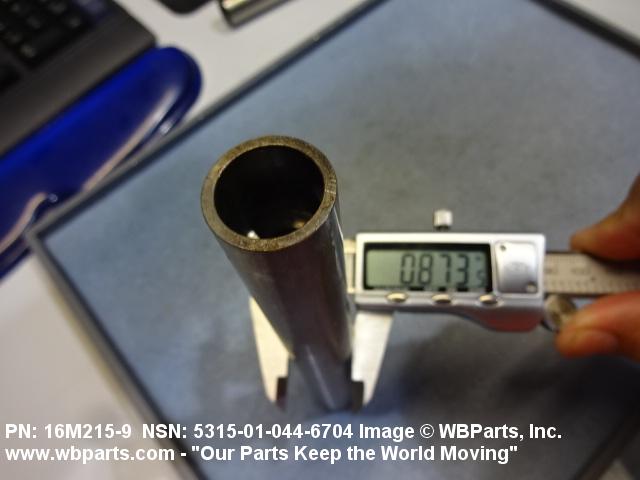

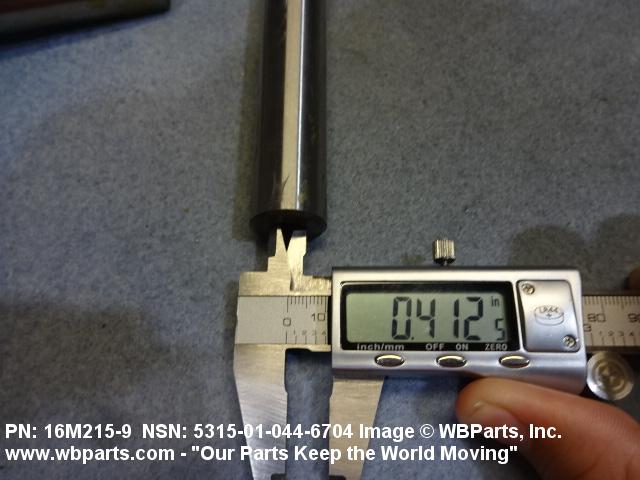

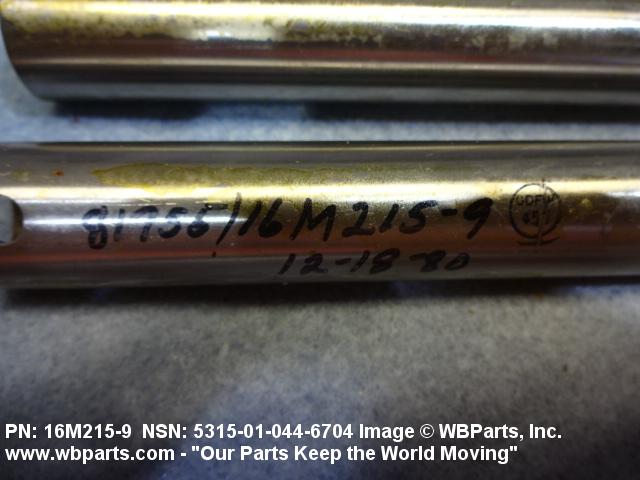

| SECOND END STYLE | 7 COUNTERBORED W/THRU HOLE |
| SECOND END COUNTERBORE DIAMETER | 0.687 INCHES NOMINAL |
| SECOND END COUNTERBORE DEPTH | 0.800 INCHES NOMINAL |
| HOLE ARRANGEMENT STYLE | 1 ONE END DRILLED |
| FIRST HOLE DIAMETER | 0.255 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.375 INCHES NOMINAL |
| PIN OVERALL LENGTH | 7.000 INCHES NOMINAL |
| PIN OVERALL DIAMETER | 0.8722 INCHES MINIMUM AND 0.8737 INCHES MAXIMUM |
| INSIDE DIAMETER | 0.406 INCHES MINIMUM AND 0.416 INCHES MAXIMUM |
| SPECIAL FEATURES | ID HAS 125.0 MICROINCH SURFACE; OD HAS 16.0 MICROINCH SURFACE FINISH |
| MANUFACTURERS CODE | 81755 |
| DESIGN CONTROL REFERENCE | 16M215-9 |
