NSN 5315-00-059-8832 MS1655511, MS16555-11, 00-059-8832
Product Details | HEADLESS STRAIGHT PIN
5315-00-059-8832 A headless, cylindrically-shaped item having a straight, smooth, solid body, with or without a drilled hole(s). It has an outside diameter equal to or less than its length. Its length must not exceed twelve inches (304 MM); for items whose length exceeds twelve inches (304 MM); see ROD, STRAIGHT, HEADLESS. It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item. See also PIN, STRAIGHT, THREADED.
Part Alternates: MS1655511, MS16555-11, 5315-00-059-8832, 00-059-8832, 5315000598832, 000598832
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-059-8832 | 02390 ( PIN, STRAIGHT, HEADLESS ) |
Drawings & Photos | NSN 5315-00-059-8832
Demand History | NSN 5315-00-059-8832
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS1655511 | 2012-05-150 | 500 | United States |
Cross Reference | NSN 5315-00-059-8832
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS16555-11 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-059-8832
Related Products | NSN 5315-00-059-8832
Technical Data | NSN 5315-00-059-8832
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| HARDNESS RATING | 40.0 ROCKWELL C MINIMUM AND 64.0 ROCKWELL C MAXIMUM OVERALL |
| FIRST END STYLE | 1 CHAMFERED |
| FIRST END TAPER LENGTH | 0.079 INCHES NOMINAL |
| FIRST END TAPER ANGLE | 4.0 DEGREES MINIMUM AND 12.0 DEGREES MAXIMUM |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |

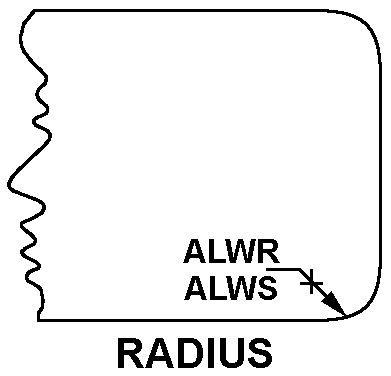

| SECOND END STYLE | 4 RADIUS |
