NSN 5315-00-032-4263 242B583H01, 00-032-4263, 000324263
Product Details | HEADED STRAIGHT PIN
5315-00-032-4263 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: 242B583H01, 5315-00-032-4263, 00-032-4263, 5315000324263, 000324263
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 OCT 1972 | 00-032-4263 | 02384 ( PIN, STRAIGHT, HEADED ) |
Drawings & Photos | NSN 5315-00-032-4263
Cross Reference | NSN 5315-00-032-4263
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 242B583H01 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-032-4263
Technical Data | NSN 5315-00-032-4263
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-736 COND A FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | L193 STRAIGHT |
| CHAMFER LENGTH | 0.030 INCHES NOMINAL |
| DIAMETER | 0.125 INCHES NOMINAL |
| UNDER HEAD LENGTH | 0.340 INCHES MINIMUM AND 0.342 INCHES MAXIMUM |
| PIN CHAMFER ANGLE | 45.0 DEGREES NOMINAL |

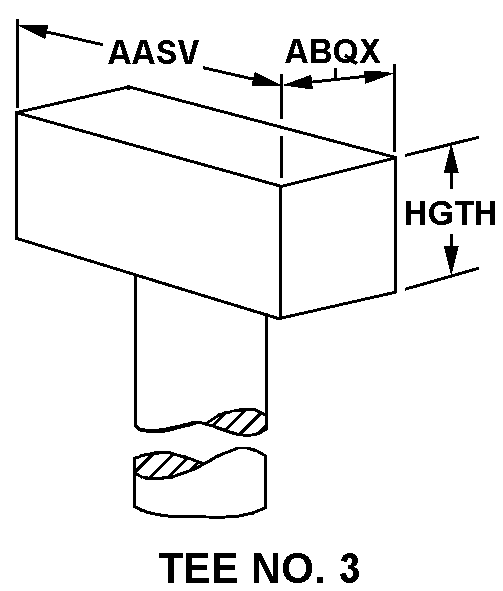

| HEAD STYLE | 65 TEE NO. 3 |
| HEAD LENGTH | 0.500 INCHES NOMINAL |
| HEAD WIDTH | ANY ACCEPTABLE |
| WIDTH ACROSS FLATS | 0.125 INCHES NOMINAL |
| HEIGHT | 0.060 INCHES NOMINAL |
| MANUFACTURERS CODE | 97942 |
| DESIGN CONTROL REFERENCE | 242B583H01 |
