NSN 5315-00-007-6103 MS17984616, MS17984-616, MS17984C616

Product Details | QUICK RELEASE PIN

5315-00-007-6103 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.

Part Alternates: MS17984616, MS17984-616, MS17984C616, NASM17984, NASM23460, SLC6AB16, SLS6B16 , BLC6B16S, BLC6B16SM, BLS6B16S , BLS6B16SM, LG6CB1600, LG6CB16M, LG6SB1600 , LG6SB16M, 5315-00-007-6103, 00-007-6103, 5315000076103, 000076103

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	09 JUL 1972	00-007-6103	08323 ( PIN, QUICK RELEASE )

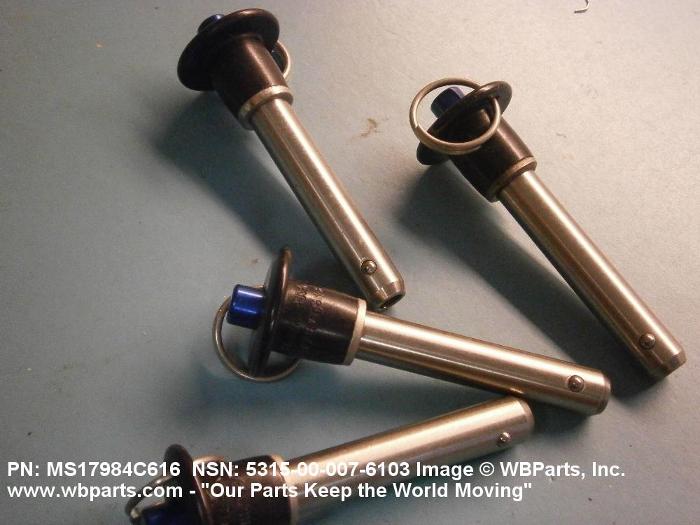

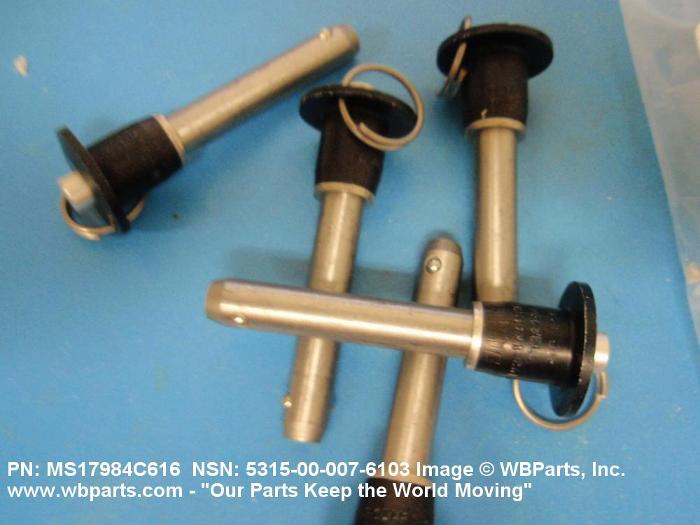

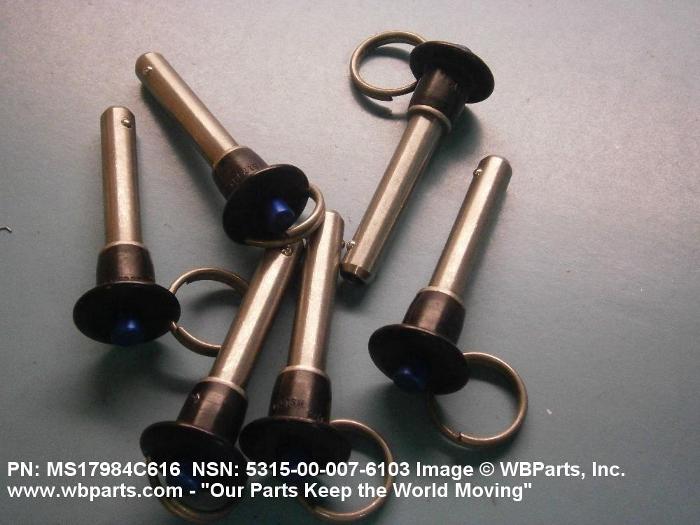

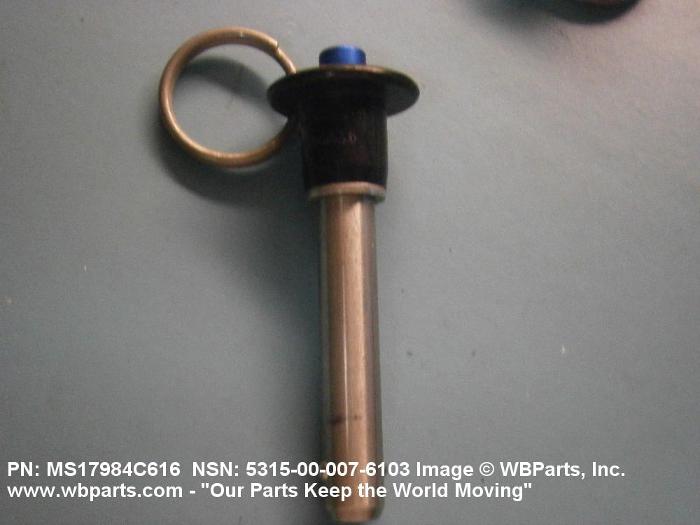

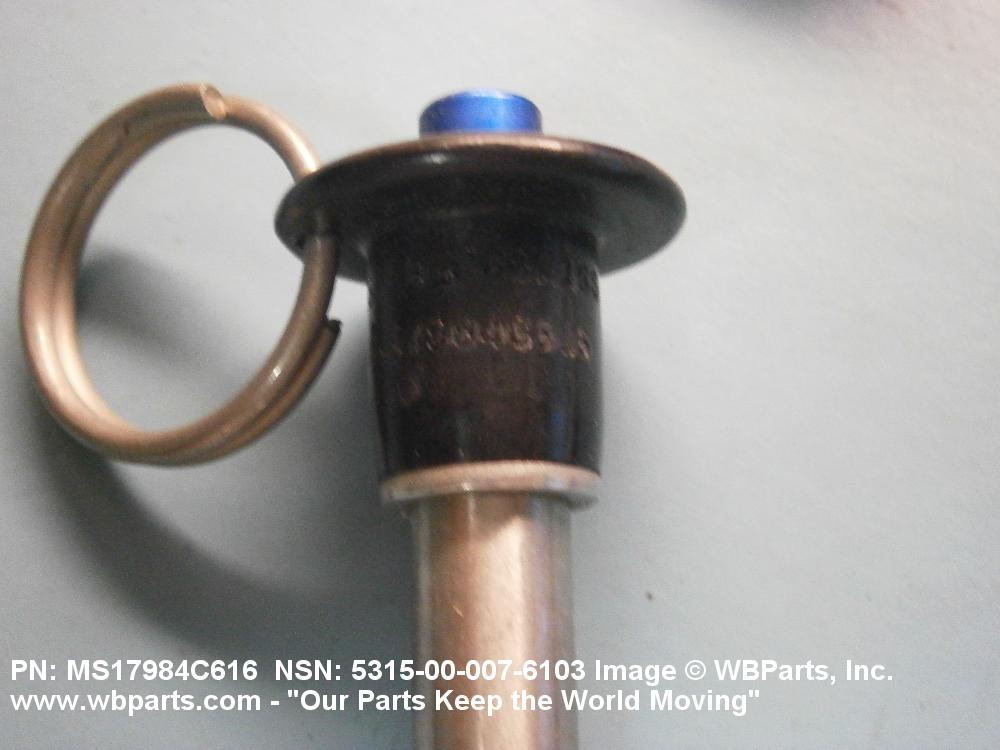

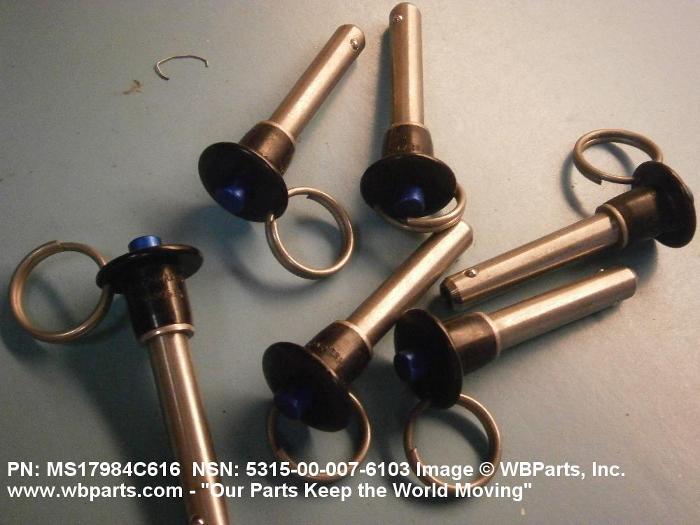

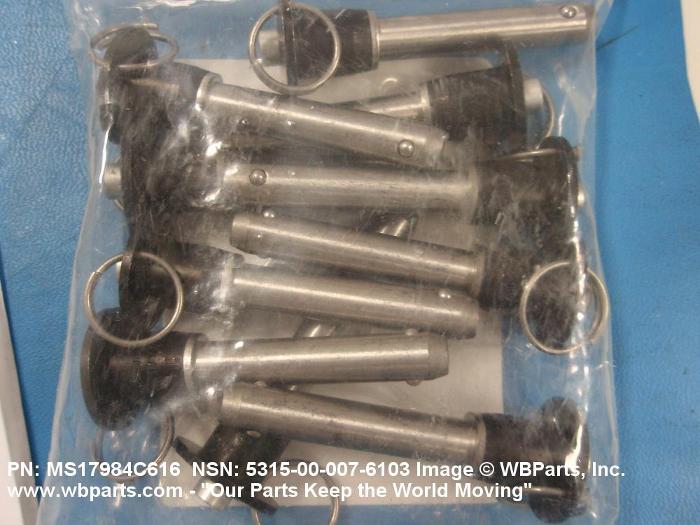

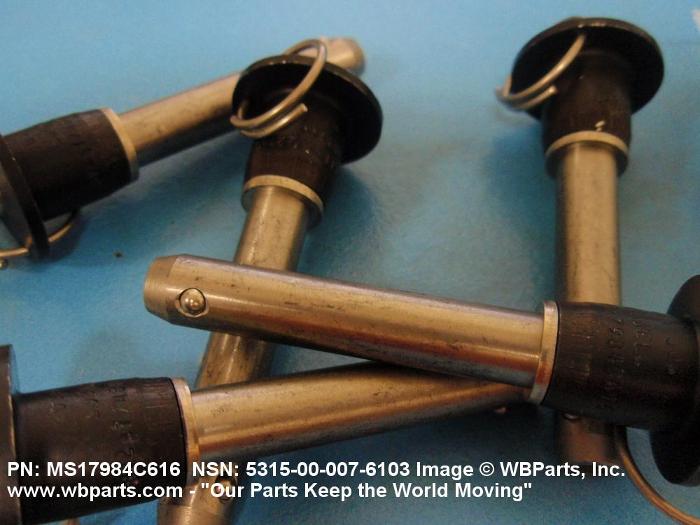

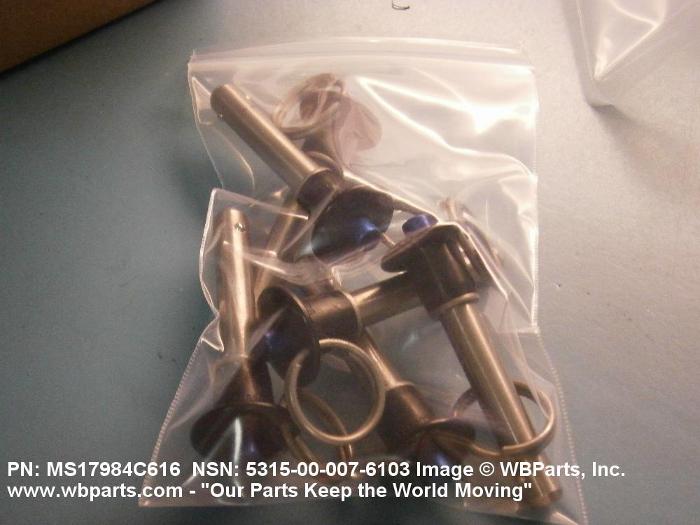

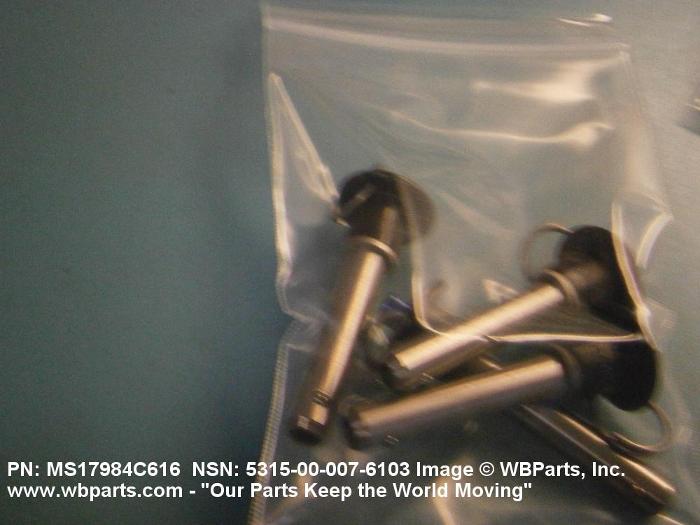

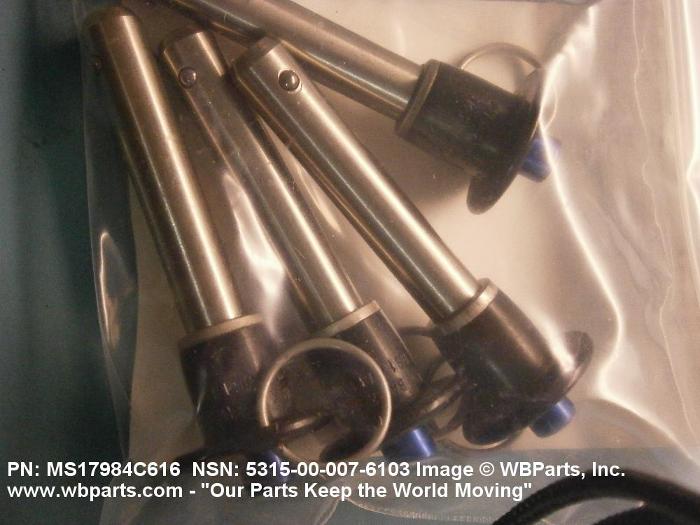

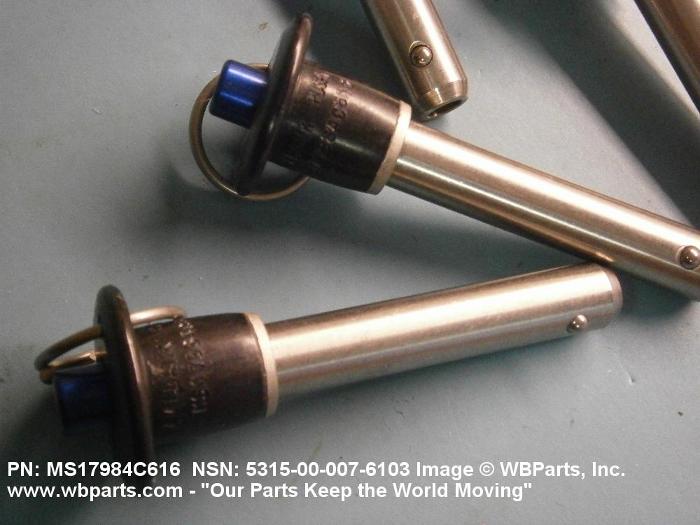

Drawings & Photos | NSN 5315-00-007-6103

Part Number	Request Date	QTY	Origin
5315-00-007-6103	2025-04-93	148	DIBBS
5315-00-007-6103	2025-03-90	47	DIBBS
5315-00-007-6103	2025-03-82	47	DIBBS
5315-00-007-6103	2025-01-21	148	DIBBS
MS17984C616	2024-10-288	2	us
5315-00-007-6103	2023-11-324	10	United States
5315-00-007-6103	2023-05-150	83	DIBBS
5315-00-007-6103	2023-05-141	83	DIBBS
NASM17984	2020-01-21	22	US
NASM17984	2020-01-16	200	US
5315-00-007-6103	2019-02-59	1	DIBBS-RFPs
MS17984C616	2018-11-318	3	Taiwan
5315-00-007-6103	2018-06-166	2	United States
MS17984C616	2018-06-165	2	United States
MS17984C616	2015-06-159	2	United States
MS17984C616	2015-01-17	12	Taiwan
5315-00-007-6103	2013-11-319	1	DIBBS-RFPs
MS17984C616	2013-04-106	33	US
MS17984C616	2012-06-153	10	Taiwan
MS17984C616	2012-06-153	10	Taiwan
MS17984C616	2012-05-132	10	US
NASM23460	2011-06-178	50	United States
5315-00-007-6103	2011-06-178	10	United States
MS17984C616	2011-02-52	5	Finland
NASM17984	2010-12-363	2	US
MS17984C616	2010-07-195	2	US
5315-00-007-6103	2009-01-30	12	US
5315-00-007-6103	2008-11-315	10	Turkey
5315-00-007-6103	2008-05-122	10	Turkey

Cross Reference | NSN 5315-00-007-6103

Part Number	Cage Code	Manufacturer
BLC6B16S	84256	AVIBANK MFG., INC.
BLC6B16SM	84256	AVIBANK MFG., INC.
BLS6B16S	84256	AVIBANK MFG., INC.
BLS6B16SM	84256	AVIBANK MFG., INC.
LG6CB1600	62060	SOUTHCO INC.
LG6CB1600	83014	HARTWELL CORPORATION
LG6CB16M	62060	SOUTHCO INC.
LG6CB16M	83014	HARTWELL CORPORATION
LG6SB1600	62060	SOUTHCO INC.
LG6SB1600	83014	HARTWELL CORPORATION
LG6SB16M	62060	SOUTHCO INC.
LG6SB16M	83014	HARTWELL CORPORATION
MS17984-616	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS17984-616	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS17984C616	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS17984C616	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NASM17984	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NASM23460	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
SLC6AB16	16258	SPACELOK INC.
SLS6B16	16258	SPACELOK INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5315-00-007-6103

Compare

Related Products | NSN 5315-00-007-6103

5315-00-007-6112, 5315-00-007-6113, 5315-00-007-6153, 5315-00-007-6154, 5315-00-007-6155

Technical Data | NSN 5315-00-007-6103

Characteristic	Specifications
MATERIAL	STEEL COMP 630 OR STEEL COMP 632 SHANK STEEL COMP 630 SPINDLE
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5643 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5657 ASSN STD 2ND MATERIAL RESPONSE SHANK AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE SPINDLE
SURFACE TREATMENT	PASSIVATE SHANK PASSIVATE SPINDLE
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SHANK QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SPINDLE
HARDNESS RATING	40.0 ROCKWELL C MINIMUM SHANK 40.0 ROCKWELL C MINIMUM SPINDLE
STYLE DESIGNATOR	Q243 BUTTON
SHANK DIAMETER	0.3720 INCHES MINIMUM AND 0.3735 INCHES MAXIMUM
BUTTON HANDLE DIAMETER	0.875 INCHES MINIMUM AND 1.135 INCHES MAXIMUM
GRIP LENGTH	1.600 INCHES MINIMUM AND 1.620 INCHES MAXIMUM
SHOULDER TO HEAD END DISTANCE	1.040 INCHES MAXIMUM
DETENT TO TAPERED END DISTANCE	0.335 INCHES MINIMUM AND 0.365 INCHES MAXIMUM
ACTUATION TYPE	PUSH
ACTUATION METHOD	PUSH BUTTON
DETENT QUANTITY	2
PIN ATTACHMENT TYPE	HOOK OR RING
SPECIAL FEATURES	COLLAR /1H/ IS USED ONLY WITH ALUMINUM HANDLE
III END ITEM IDENTIFICATION	W/S: EMORY S. LAND CLASS AS; FORRESTAL CLASS CV; GUN MOUNT, MK 75 (GM); HELICOPTER, MH-53E; SUPPORT EQUIPMENT, B-52 AIRCRAFT; OLIVER PERRY CLASS FFG; ENGINE, AIRCRAFT F110-GE-400; LOS ANGELES CLASS SSN (688); VIRGINIA CLASS SUBMARINE, SSN-774

Restrictions/Controls & Freight Information | NSN 5315-00-007-6103

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	095190	HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5315-00-007-6103

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
