NSN 5310-01-463-8943 MS212244, MS21224-4 , 01-463-8943
Product Details | MS212244, MS21224-4 , 01-463-8943
5310-01-463-8943 A nut on which has been assembled a nonremovable washer. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: MS212244, MS21224-4 , 5310-01-463-8943, 01-463-8943, 5310014638943, 014638943
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 JUL 2009 | 01-463-8943 | 29736 ( NUT, SELF-LOCKING, ASSEMBLED WASHER ) |

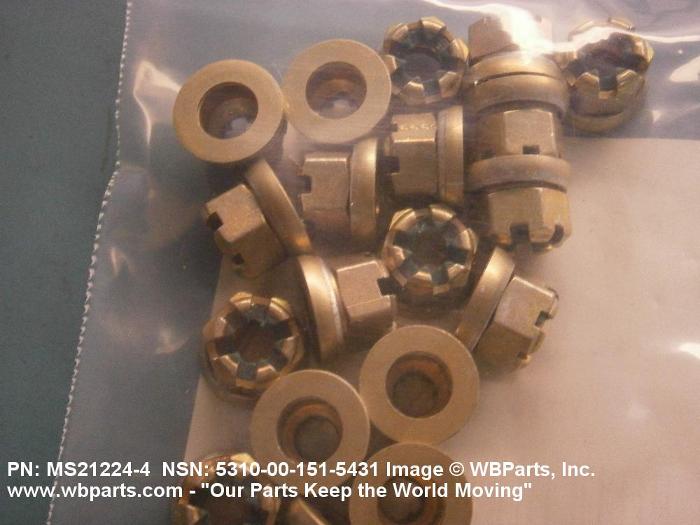

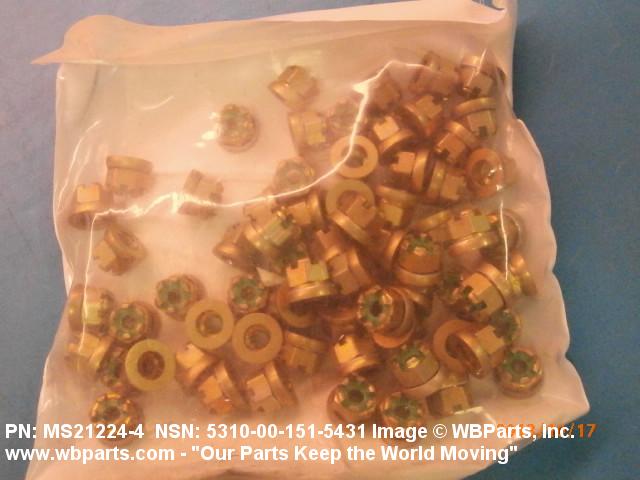

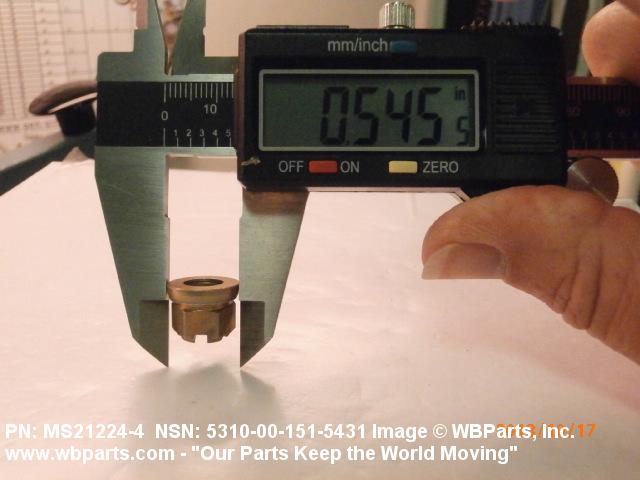

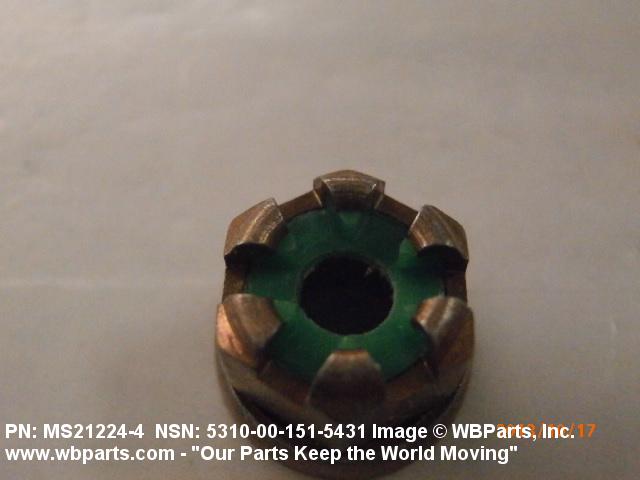

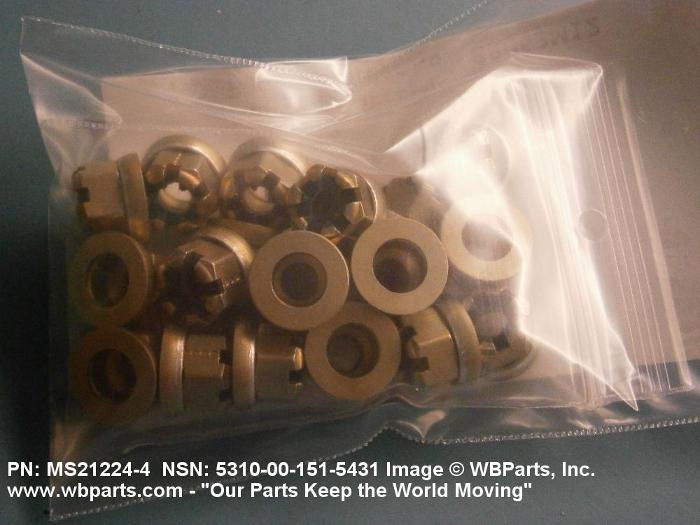

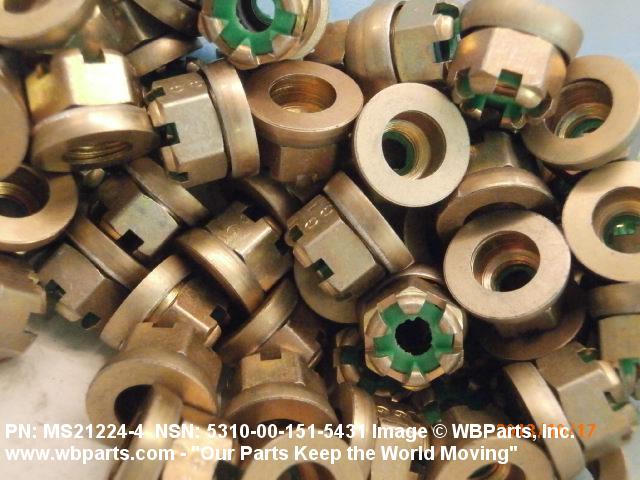

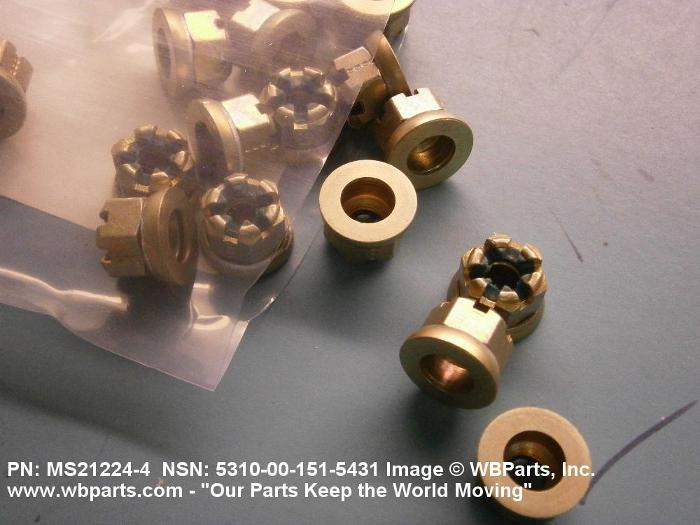

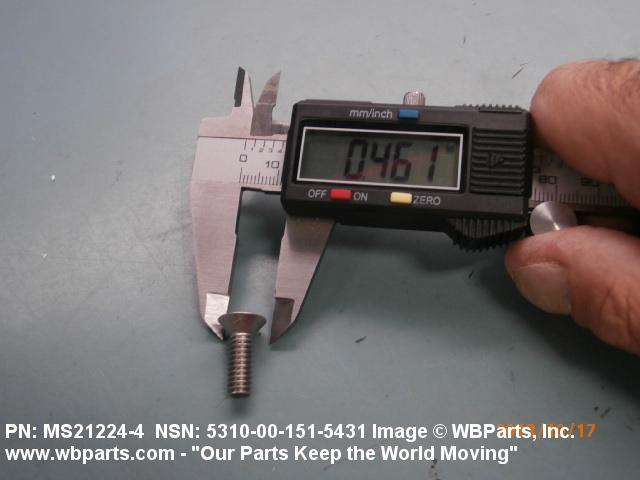

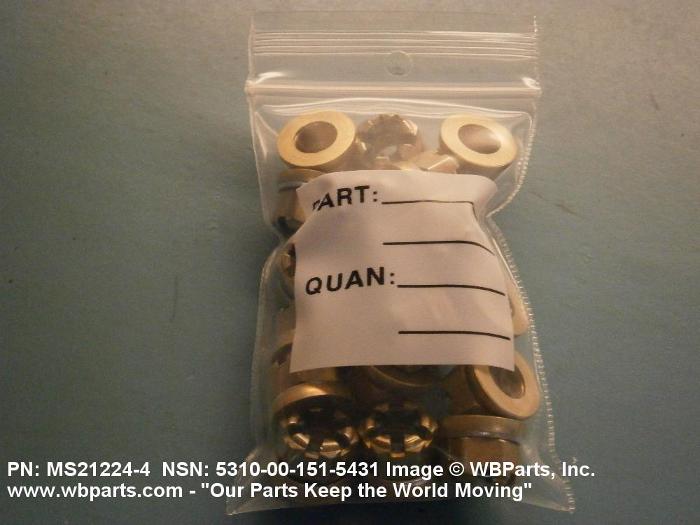

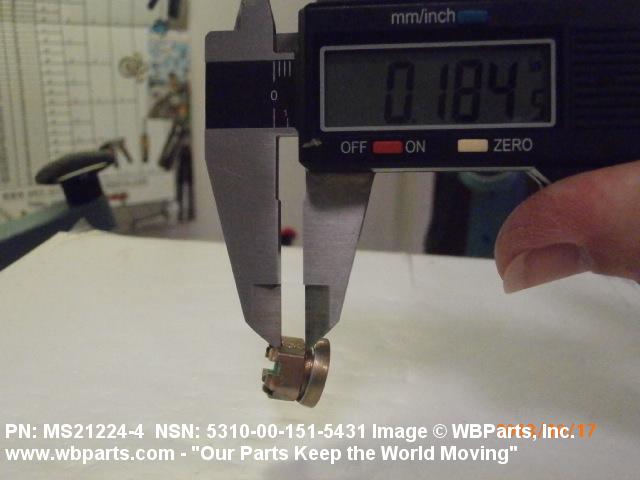

Drawings & Photos | NSN 5310-01-463-8943
Demand History | NSN 5310-01-463-8943
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS212244 | 2018-05-141 | 1 | United States |
| MS212244 | 2018-04-115 | 800 | SG |
| MS21224-4 | 2016-07-211 | 700 | JP |
| MS212244 | 2015-06-169 | 33 | Seychelles |
| MS212244 | 2013-09-261 | 67 | United States |
| MS212244 | 2012-07-205 | 100 | United States |
| MS21224-4 | 2012-07-187 | 70 | KR |
| MS212244 | 2012-05-138 | 13 | Italy |
| MS21224-4 | 2012-02-33 | 100 | US |
| MS212244 | 2009-11-309 | 100 | Taiwan |
Cross Reference | NSN 5310-01-463-8943
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS21224-4 | 1E0F1 | ROLLS ROYCE CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-463-8943
Related Products | NSN 5310-01-463-8943
Technical Data | NSN 5310-01-463-8943
| Characteristic | Specifications |
|---|---|
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | FLAT WITH TURNED BACK EDGE |
| BEARING SURFACE FINISH | 125.0 MICROINCHES |
| SURFACE TREATMENT | CADMIUM NUT AND CHROMATE NUT |
| MATERIAL | STEEL COMP 1137 NUT OR STEEL COMP 11L37 NUT OR STEEL COMP 8740 NUT |

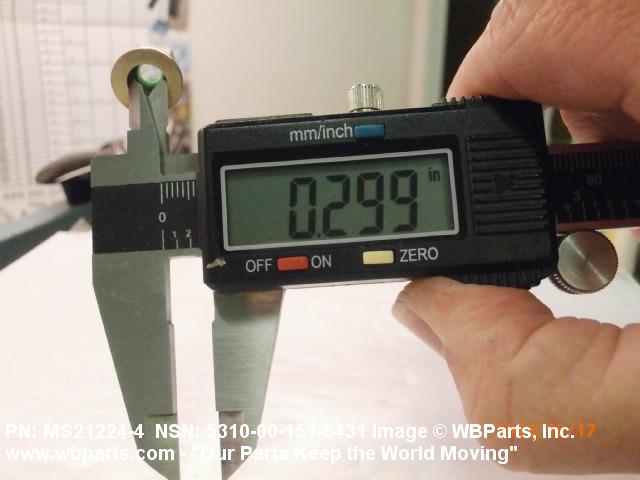

| COUNTERBORE DIAMETER | 0.299 INCHES MINIMUM NUT AND 0.309 INCHES MAXIMUM NUT |
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.250 INCHES |

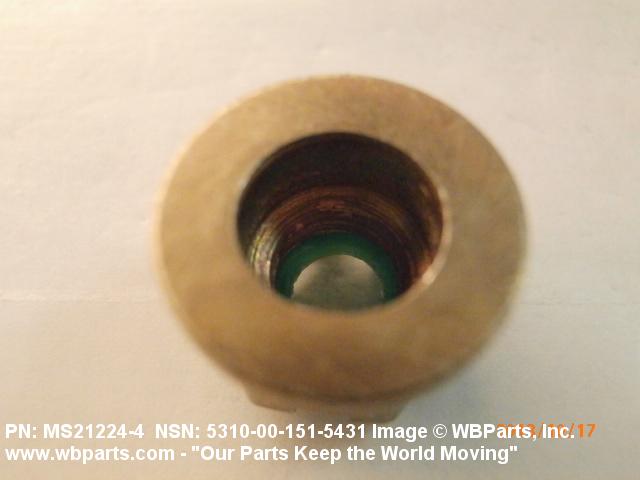

| MATERIAL | PLASTIC NYLON LOCKING INSERT |
| THREAD QUANTITY PER INCH | 28 |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY2,CL2 FED SPEC SINGLE TREATMENT RESPONSE NUT |

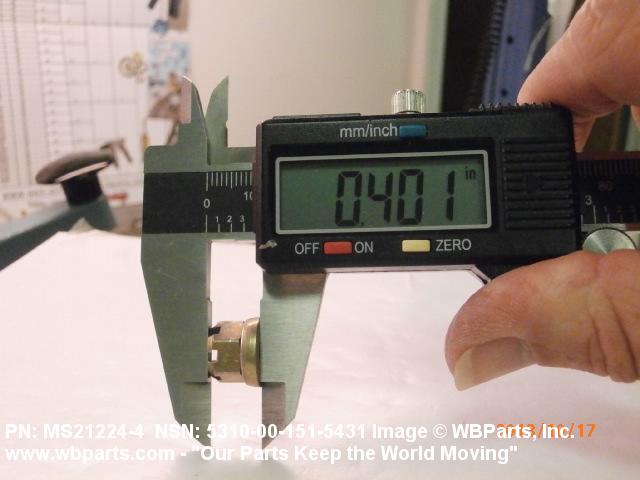

| OVERALL HEIGHT | 0.365 INCHES MINIMUM AND 0.405 INCHES MAXIMUM |
| WASHER OUTSIDE DIAMETER | 0.520 INCHES MINIMUM AND 0.562 INCHES MAXIMUM |
| TEMP RATING | 250.0 DEG FAHRENHEIT MAXIMUM |
| NUT COUNTERBORE DEPTH | 0.172 INCHES MINIMUM NUT AND 0.192 INCHES MAXIMUM NUT |
| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| SURFACE TREATMENT | CHROMATE WASHER |

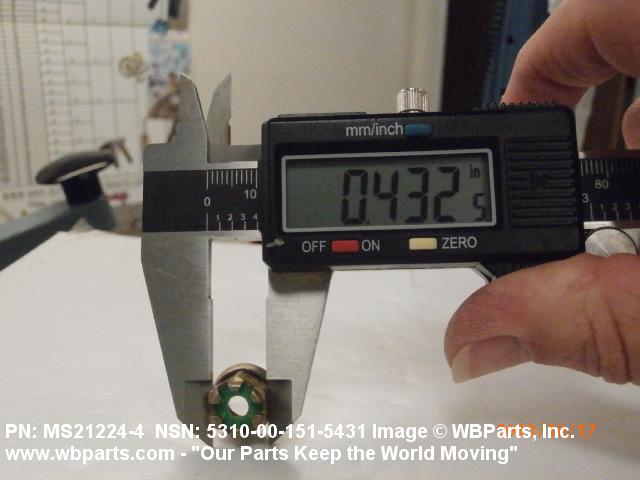

| WIDTH ACROSS FLATS | 0.430 INCHES MINIMUM AND 0.439 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5310-01-463-8943
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093490 | BOLT/NUT/SCREW/CLIPS/FASTENER/ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-463-8943
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 0Q | Contractor supported items for NAVICP PHIL Consumables (1R) Naval Inventory Control Point, Philadelphia |
| Special Material ID | CL | ALLISONENGINE(AE1107C) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | Q1J | Naval ICP Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | M | Medium Demand Velocity Items (consumables) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
