NSN 5310-00-958-8845 HW17X6, TLN10006, TLN1000-6
Product Details | ASSEMBLED WASHER SELF-LOCKING NUT
5310-00-958-8845 A nut on which has been assembled a nonremovable washer. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: HW17X6, TLN10006, TLN1000-6, 5310-00-958-8845, 00-958-8845, 5310009588845, 009588845
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 MAY 1966 | 00-958-8845 | 29736 ( NUT, SELF-LOCKING, ASSEMBLED WASHER ) |

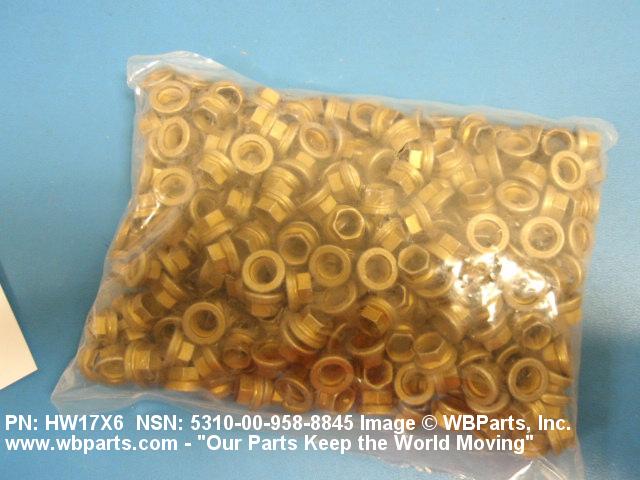

Drawings & Photos | NSN 5310-00-958-8845
Demand History | NSN 5310-00-958-8845
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| HW17X6 | 2024-11-319 | 1563 | DIBBS |
| TLN1000-6 | 2024-11-319 | 1563 | DIBBS |
| HW17X6 | 2024-07-208 | 1662 | DIBBS |
| TLN1000-6 | 2024-07-208 | 1662 | DIBBS |
| HW17X6 | 2024-07-200 | 1662 | DIBBS |
| TLN1000-6 | 2024-07-200 | 1662 | DIBBS |
| HW17X6 | 2024-04-112 | 603 | DIBBS |
| TLN1000-6 | 2024-04-112 | 603 | DIBBS |
| 5310-00-958-8845 | 2021-11-305 | 20 | Canada |
| 5310-00-958-8845 | 2021-05-140 | 100 | Taiwan |
| 5310-00-958-8845 | 2021-05-135 | 647 | Taiwan |
| HW17X6 | 2020-10-302 | 4411 | DIBBS |
| TLN1000-6 | 2020-10-302 | 4411 | DIBBS |
| 5310-00-958-8845 | 2020-06-157 | 1 | DIBBS-RFPs |
| HW17X6 | 2020-04-99 | 3431 | DIBBS |
| TLN1000-6 | 2020-04-99 | 3431 | DIBBS |
| HW17X6 | 2019-04-107 | 5300 | DIBBS |
| TLN1000-6 | 2019-04-107 | 5300 | DIBBS |
| 5310-00-958-8845 | 2018-12-359 | 1440 | DIBBS |
| 5310-00-958-8845 | 2014-12-352 | 3594 | DIBBS |
| 5310-00-958-8845 | 2014-02-34 | 3051 | DIBBS |
| HW17X6 | 2010-11-333 | 500 | |
| TLN10006 | 2009-10-282 | 300 | Canada |
| 5310-00-958-8845 | 2009-01-29 | 532 | Malaysia |
| 5310-00-958-8845 | 2009-01-25 | 532 | Malaysia |
| 5310-00-958-8845 | 2008-10-294 | 17075 | DIBBS |
| 5310-00-958-8845 | 2008-05-140 | 2969 | DIBBS |
| TLN10006 | 2007-06-155 | 120 | United States |
Cross Reference | NSN 5310-00-958-8845
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HW17X6 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| TLN1000-6 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| TLN1000-6 | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| TLN1000-6 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| TLN1000-6 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| TLN1000-6 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| TLN1000-6 | 97928 | HUCK INTL INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-958-8845
Related Products | NSN 5310-00-958-8845
Technical Data | NSN 5310-00-958-8845
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP E4340 OR STEEL COMP 4340 OR STEEL COMP 8740 NUT STEEL COMP 1050 WASHER |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5000 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-5000 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 3RD MATERIAL RESPONSE NUT ASTM A108 ASSN STD SINGLE MATERIAL RESPONSE WASHER |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM |

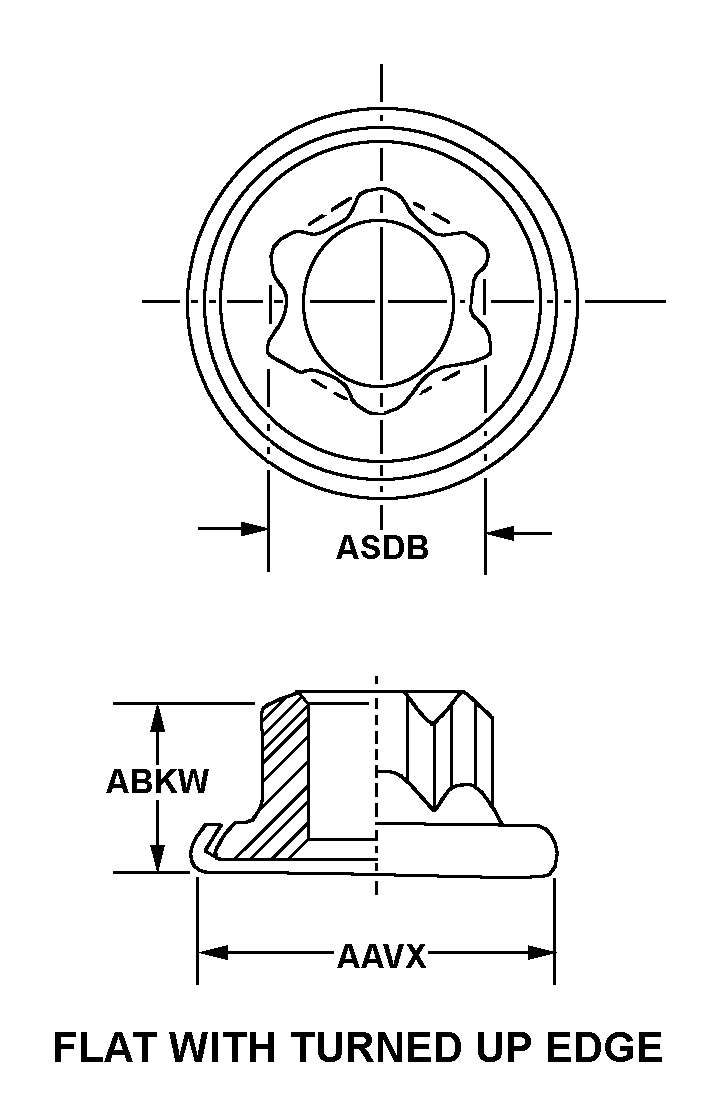

| NUT STYLE | A311 FLAT WITH TURNED UP EDGE |
| WASHER OUTSIDE DIAMETER | 0.660 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.341 INCHES MINIMUM AND 0.361 INCHES MAXIMUM |
| NUT HEIGHT | 0.188 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.430 INCHES MINIMUM AND 0.439 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT COUNTERBORE DEPTH | 0.072 INCHES MINIMUM AND 0.087 INCHES MAXIMUM NUT |
| COUNTERBORE DIAMETER | 0.407 INCHES MINIMUM AND 0.417 INCHES MAXIMUM NUT |
| TEMP RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5310-00-958-8845
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-958-8845
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
