NSN 5310-00-498-7058 N1571872, N157187-2, HW1404
Product Details | ASSEMBLED WASHER SELF-LOCKING NUT
5310-00-498-7058 A nut on which has been assembled a nonremovable washer. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: N1571872, N157187-2, HW1404, HW14-04, B99236/1, B992361, FN403574, 873763, 87376300, 873763-00, 2500741, 250074-1, 5310-00-498-7058, 00-498-7058, 5310004987058, 004987058
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 OCT 1969 | 00-498-7058 | 29736 ( NUT, SELF-LOCKING, ASSEMBLED WASHER ) |

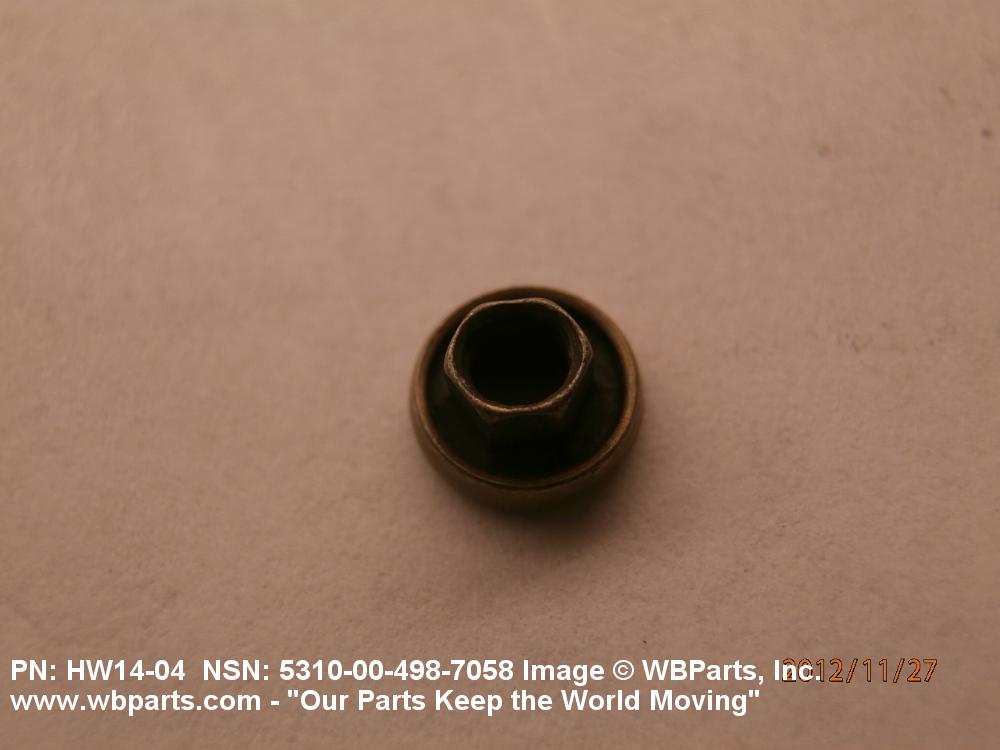

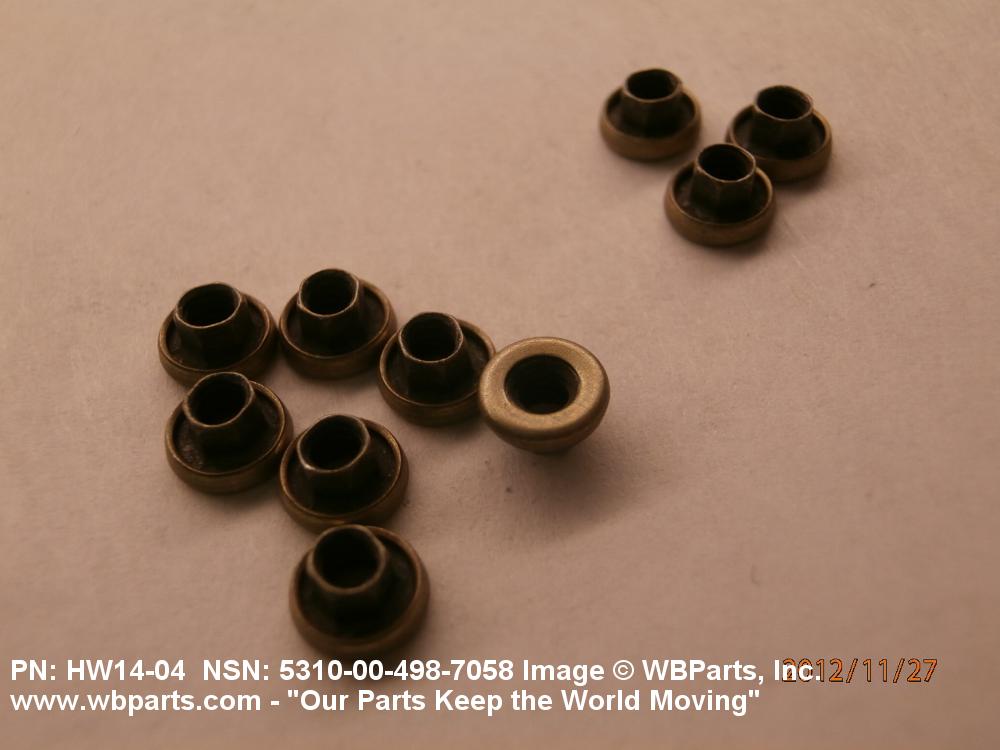

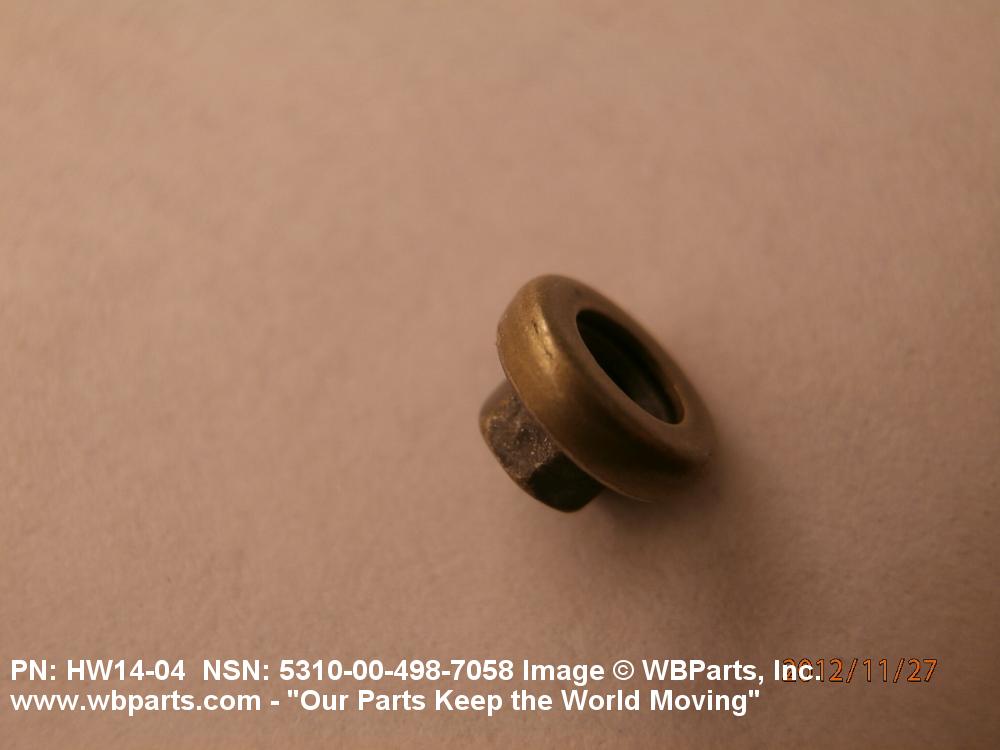

Drawings & Photos | NSN 5310-00-498-7058
Demand History | NSN 5310-00-498-7058
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-498-7058 | 2024-09-263 | 400 | US |
| 5310-00-498-7058 | 2017-05-131 | 10 | UK |
| HW1404 | 2015-01-28 | 6000 | United Kingdom |
| HW1404 | 2014-10-299 | 10000 | CN |
| 5310-00-498-7058 | 2013-09-249 | 300 | US |
| HW1404 | 2012-12-361 | 2 | United States |
| HW14-04 | 2012-11-310 | 3545 | |
| HW1404 | 2010-09-250 | 3000 | Italy |
| HW1404 | 2010-07-208 | 1000 | CN |
| HW1404 | 2010-06-181 | 100 | United States |
| HW1404 | 2009-05-132 | 430 | United Kingdom |
| HW1404 | 2008-09-270 | 2400 | Italy |
| 5310-00-498-7058 | 2008-07-198 | 1000 | US |
Cross Reference | NSN 5310-00-498-7058
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 250074-1 | 42470 | NCR CORPORATION DBA NCR |
| 873763 | 19203 | PICATINNY ARSENAL |
| 873763-00 | 32345 | DEFENSE REDUCTION AGENCY |
| B99236/1 | K0268 | RAYTHEON SYSTEMS LTD |
| FN403574 | K1057 | RACAL ACOUSTICS LIMITED |
| HW14-04 | 0WGX9 | AGILITY DEFENSE AND GOVERNMENT SERVICES, INC. |
| HW14-04 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| HW14-04 | 1DN91 | STANDARD AERO PARTS, INC. |
| HW14-04 | 2N935 | B/E AEROSPACE, INC. DBA BE AEROSPACE CONSUMABLES |
| HW14-04 | 75237 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HW14-04 | F7652 | B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS |
| HW14-04 | K1678 | FAIRCHILD FASTENERS UK LTD |
| HW14-04 | K1987 | BAE SYSTEMS PLC |
| HW14-04 | K6405 | KAYNAR MICRODOT AEROSPACE |
| HW14-04 | R1120 | SATAIR A/S |
| N157187-2 | K4358 | SAFRAN POWER UK LTD. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-498-7058
Related Products | NSN 5310-00-498-7058
Technical Data | NSN 5310-00-498-7058
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJC |
| NOMINAL THREAD SIZE | 0.112 INCHES |
| THREAD QUANTITY PER INCH | 40 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A311 FLAT WITH TURNED UP EDGE |
| WASHER OUTSIDE DIAMETER | 0.240 INCHES NOMINAL |
| OVERALL HEIGHT | 0.148 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.123 INCHES NOMINAL |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| COUNTERSINK ANGLE | ANY ACCEPTABLE NUT |
| LUBRICATION | DRY FILM LUBRICANT |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
| MANUFACTURERS CODE | 15653 |
| DESIGN CONTROL REFERENCE | HW14-04 |
Restrictions/Controls & Freight Information | NSN 5310-00-498-7058
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-498-7058
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
