NSN 5310-01-116-5452 BH00516A8, KFN5428, KFN542-8
Product Details | ASSEMBLED WASHER SELF-LOCKING NUT
5310-01-116-5452 A nut on which has been assembled a nonremovable washer. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: BH00516A8, KFN5428, KFN542-8, 5310-01-116-5452, 01-116-5452, 5310011165452, 011165452
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 JUL 1981 | 01-116-5452 | 29736 ( NUT, SELF-LOCKING, ASSEMBLED WASHER ) |

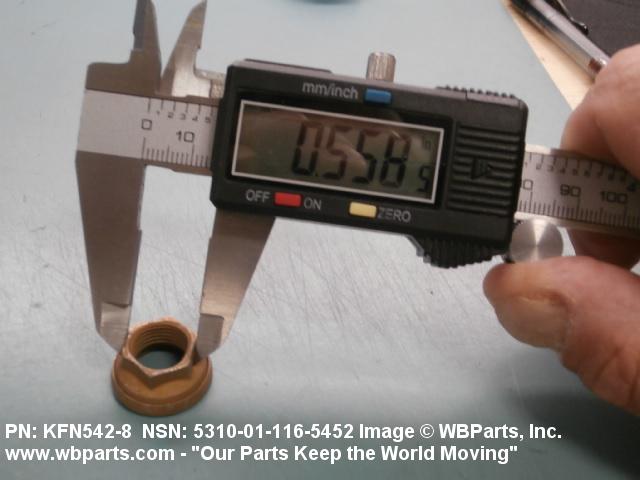

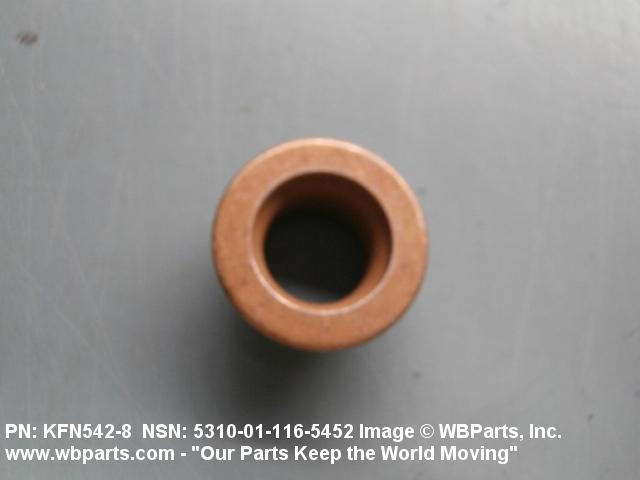

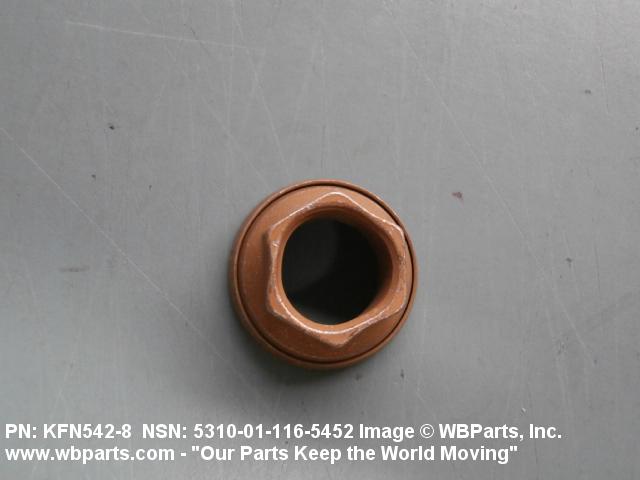

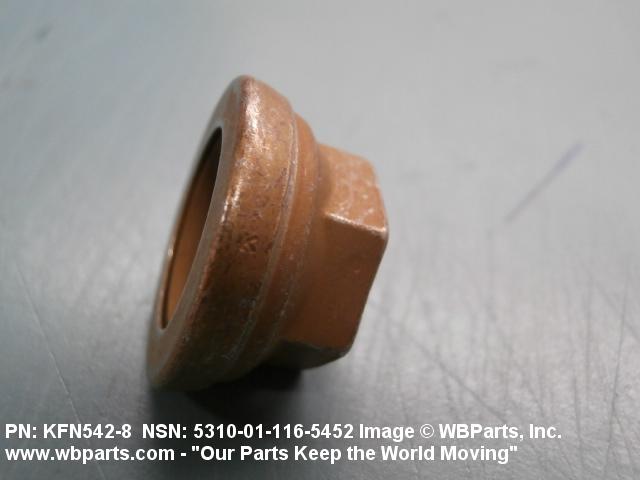

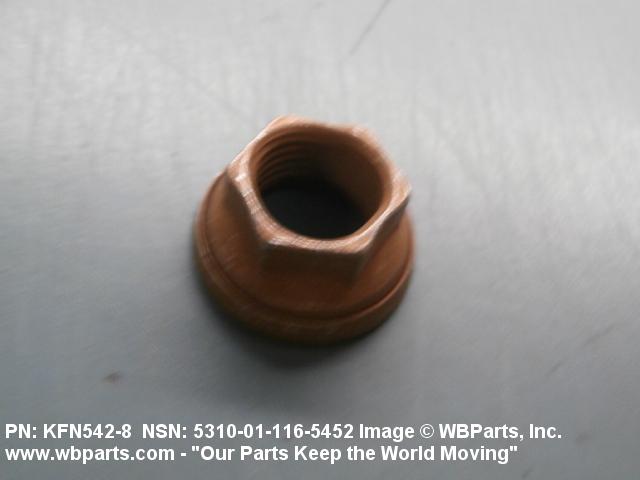

Drawings & Photos | NSN 5310-01-116-5452
Demand History | NSN 5310-01-116-5452
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-116-5452 | 2019-01-25 | 1 | DIBBS-RFPs |
| 5310-01-116-5452 | 2018-04-17 | 2 | United States |
| 5310-01-116-5452 | 2018-04-17 | 4 | United States |
| 5310-01-116-5452 | 2017-09-04 | 750 | DIBBS |
| 5310-01-116-5452 | 2017-02-12 | 335 | DIBBS |
| 5310-01-116-5452 | 2016-12-06 | 405 | DIBBS |
| 5310-01-116-5452 | 2014-03-31 | 150 | United States |
| 5310-01-116-5452 | 2013-11-11 | 20 | United States |
| 5310-01-116-5452 | 2008-11-24 | 225 | DIBBS |
| 5310-01-116-5452 | 2008-11-17 | 1000 | DIBBS |
| 5310-01-116-5452 | 2008-10-07 | 80 | DIBBS |
| 5310-01-116-5452 | 2008-09-09 | 512 | DIBBS |
| 5310-01-116-5452 | 2008-05-12 | 48 | DIBBS |
| 5310-01-116-5452 | 2008-05-07 | 514 | DIBBS |
| 5310-01-116-5452 | 2008-02-05 | 28 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-116-5452
Related Products | NSN 5310-01-116-5452
Technical Data | NSN 5310-01-116-5452
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 4140 OR STEEL COMP 4340 OR STEEL COMP 8740 NUT STEEL WASHER |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5626 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-5000 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 3RD MATERIAL RESPONSE NUT |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC ALL TREATMENT RESPONSES OVERALL |
| HARDNESS RATING | 39.0 ROCKWELL C MINIMUM AND 48.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A311 FLAT WITH TURNED UP EDGE |
| WASHER OUTSIDE DIAMETER | 0.860 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.430 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.553 INCHES MINIMUM AND 0.564 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT COUNTERBORE DEPTH | 0.087 INCHES MINIMUM AND 0.097 INCHES MAXIMUM NUT |
| COUNTERBORE DIAMETER | 0.546 INCHES MINIMUM AND 0.551 INCHES MAXIMUM NUT |
| TEMP RATING | 450.0 DEG FAHRENHEIT MAXIMUM |
| SPECIAL FEATURES | ROCKWELL C SCALE 40 MIN AND ROCKWELL C SCALE 45 MAX WASHER |
Restrictions/Controls & Freight Information | NSN 5310-01-116-5452
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-116-5452
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
