NSN 5310-01-406-6960 MS1420046, MS14200-4-6, 01-406-6960
Product Details | SPLINE SELF-LOCKING NUT
5310-01-406-6960 A nut having an externally splined sleeve, which holds it in position when forced into a hole of slightly smaller diameter. An integral feature is incorporated for locking.
Part Alternates: MS1420046, MS14200-4-6, 5310-01-406-6960, 01-406-6960, 5310014066960, 014066960
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 JAN 1995 | 01-406-6960 | 15893 ( NUT, SELF-LOCKING, SPLINE ) |

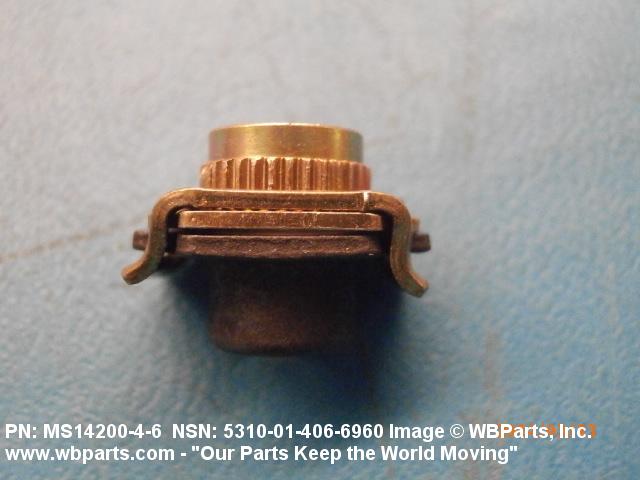

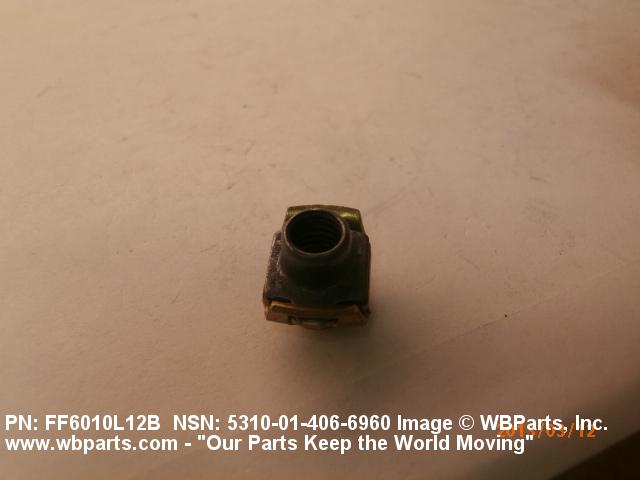

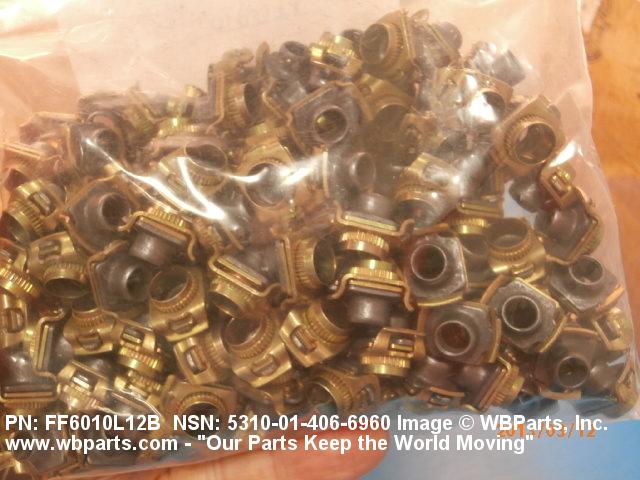

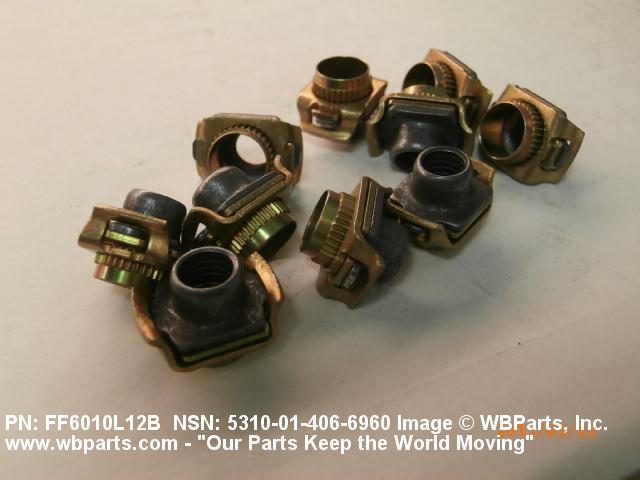

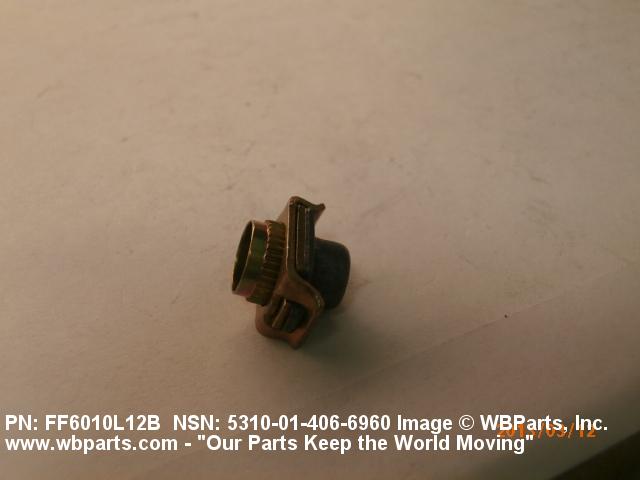

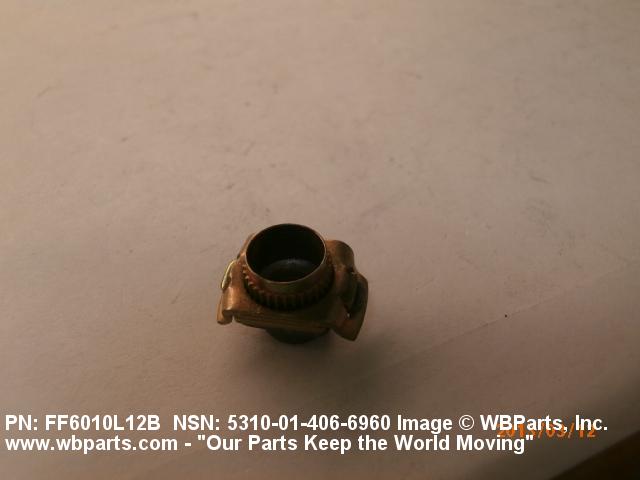

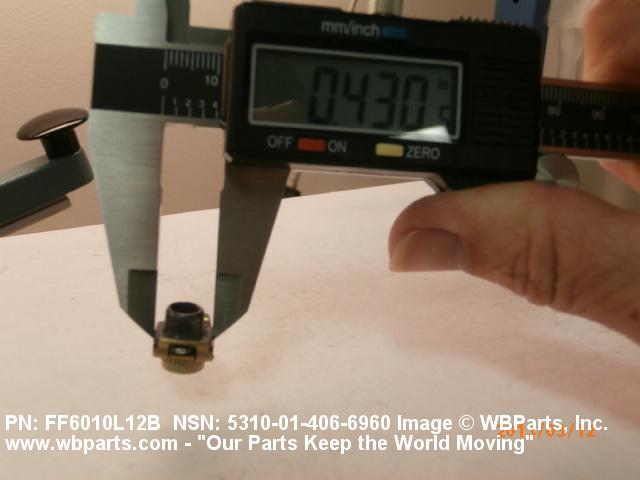

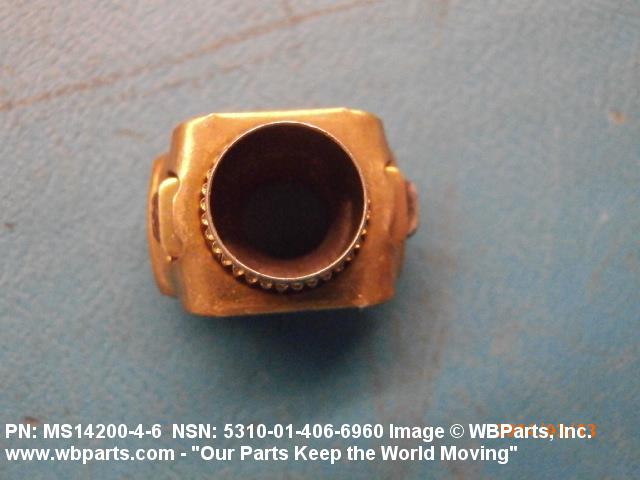

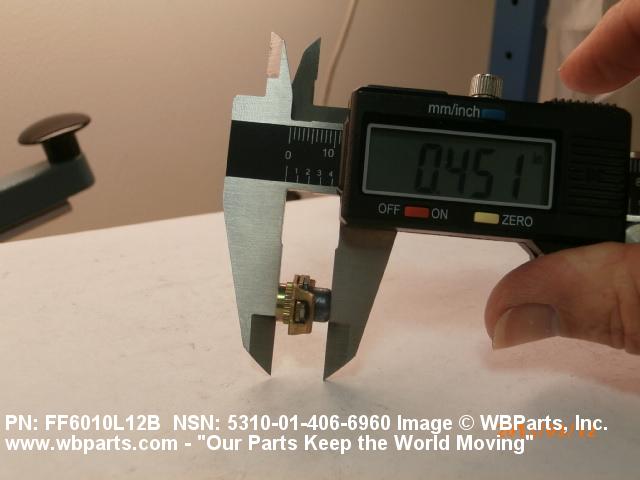

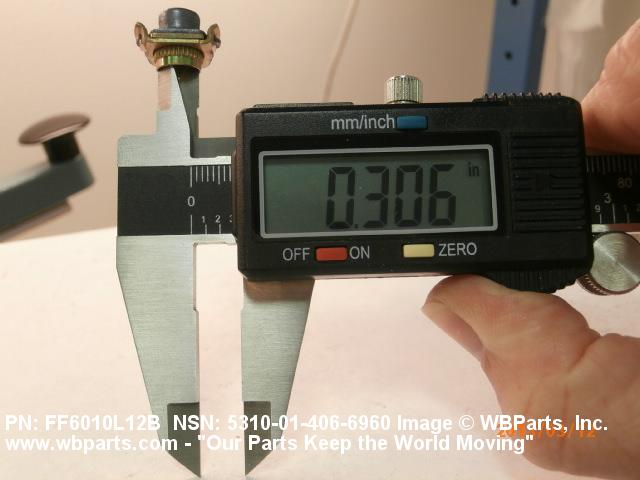

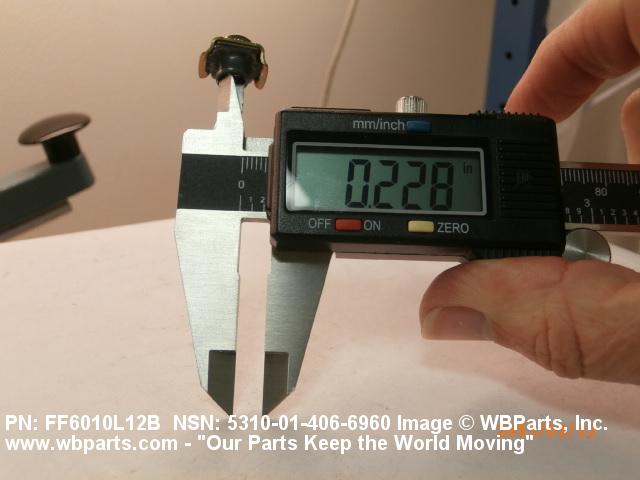

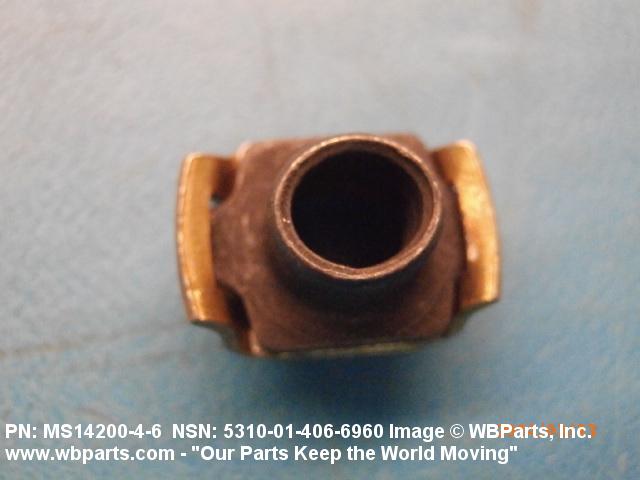

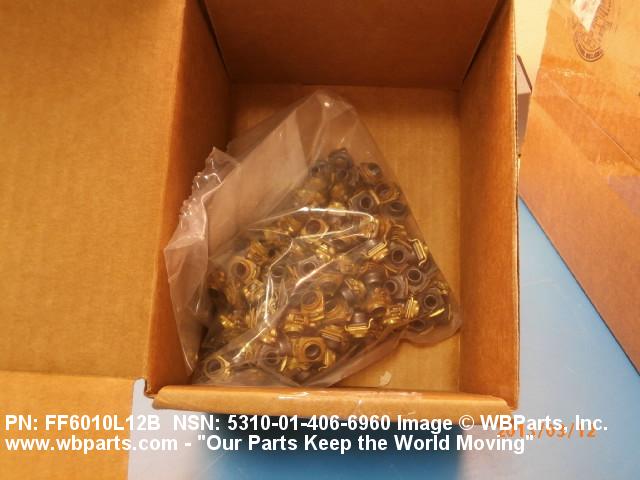

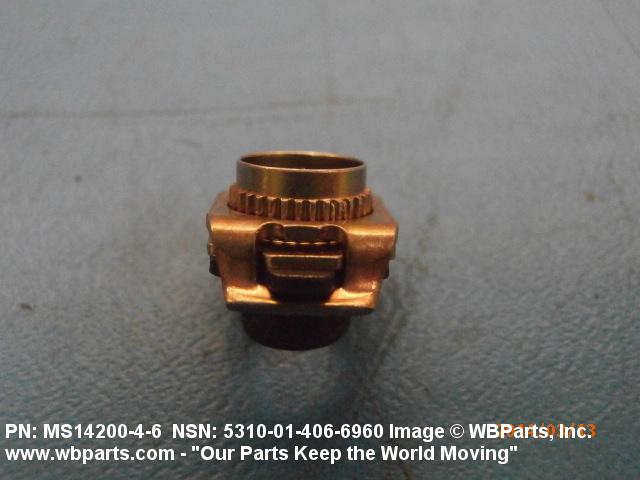

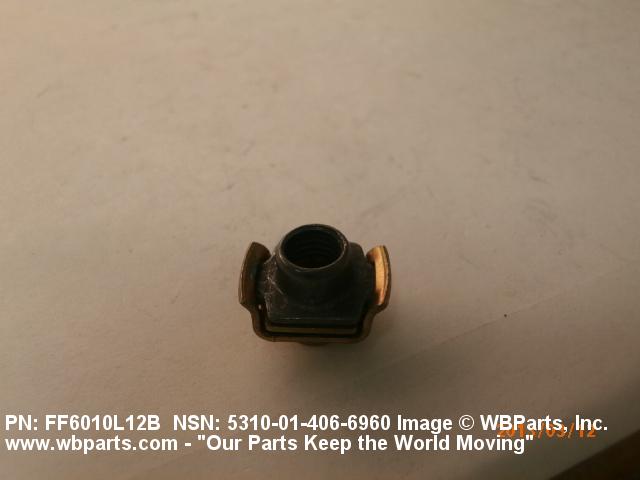

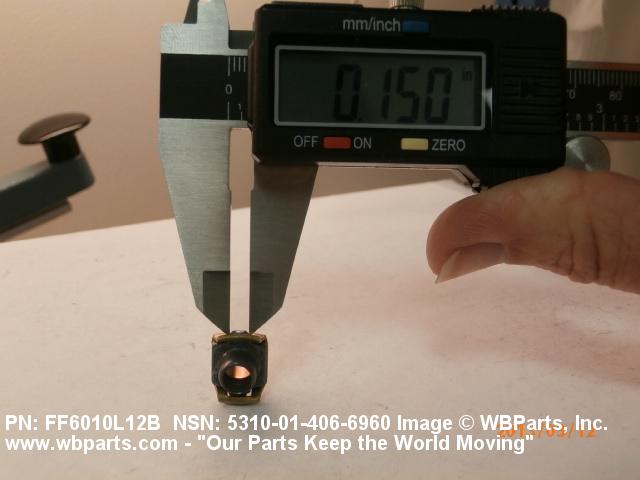

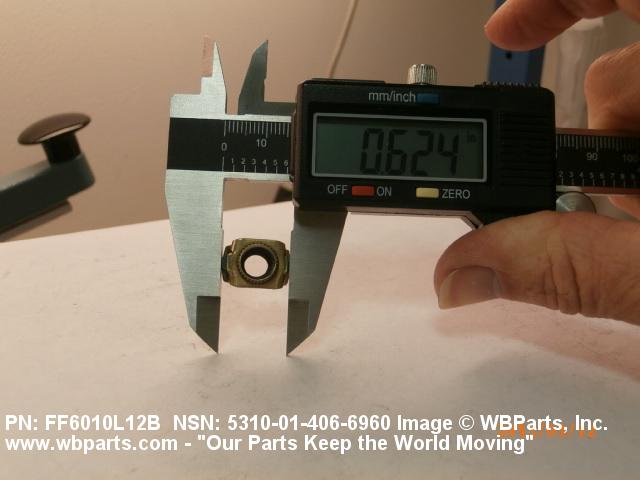

Drawings & Photos | NSN 5310-01-406-6960
Demand History | NSN 5310-01-406-6960
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-406-6960 | 2014-02-56 | 24 | United States |
| MS1420046 | 2013-03-65 | 168 | United States |
| 5310-01-406-6960 | 2013-03-64 | 168 | US |
| 5310-01-406-6960 | 2012-12-361 | 24 | US |
| 5310-01-406-6960 | 2012-04-103 | 50 | US |
| 5310-01-406-6960 | 2009-06-177 | 100 | DIBBS |
| 5310-01-406-6960 | 2009-06-177 | 200 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-406-6960
Related Products | NSN 5310-01-406-6960
Technical Data | NSN 5310-01-406-6960
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 1050 OR STEEL COMP 4130 NUT STEEL COMP 1050 SHELL STEEL COMP 304 OR STEEL COMP 305 BOSS |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5085 ASSN STD 1ST MATERIAL RESPONSE OR AMS6351 ASSN STD 2ND MATERIAL RESPONSE NUT AMS5085 ASSN STD SINGLE MATERIAL RESPONSE SHELL AMS5639 ASSN STD 1ST MATERIAL RESPONSE OR AMS5514 ASSN STD 2ND MATERIAL RESPONSE BOSS |
| SURFACE TREATMENT | CADMIUM NUT CADMIUM AND CHROMATE SHELL CADMIUM AND CHROMATE BOSS |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE NUT QQ-P-416 TY 2 CL 2 FED SPEC SINGLE TREATMENT RESPONSE SHELL QQ-P-416 TY 2 CL 2 FED SPEC SINGLE TREATMENT RESPONSE BOSS |
| HARDNESS RATING | 49.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A65A SPLINE |
| PILOT DIAMETER | 0.335 INCHES MAXIMUM |
| PILOT LENGTH | 0.130 INCHES NOMINAL |
| NUT LENGTH | 0.665 INCHES MAXIMUM |
| NUT HEIGHT | 0.455 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.465 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
| FEATURES PROVIDED | FLOATING NUT |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS14200-4-6 |
Restrictions/Controls & Freight Information | NSN 5310-01-406-6960
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-406-6960
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
