NSN 5310-00-637-8101 10086683, 1008668-3, 22FP31032
Product Details | SPLINE SELF-LOCKING NUT
5310-00-637-8101 A nut having an externally splined sleeve, which holds it in position when forced into a hole of slightly smaller diameter. An integral feature is incorporated for locking.
Part Alternates: 10086683, 1008668-3, 22FP31032, 22FP3-1032, 501333, 50133-3, 8087538, 81033, 5310-00-637-8101, 00-637-8101, 5310006378101, 006378101
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-637-8101 | 15893 ( NUT, SELF-LOCKING, SPLINE ) |

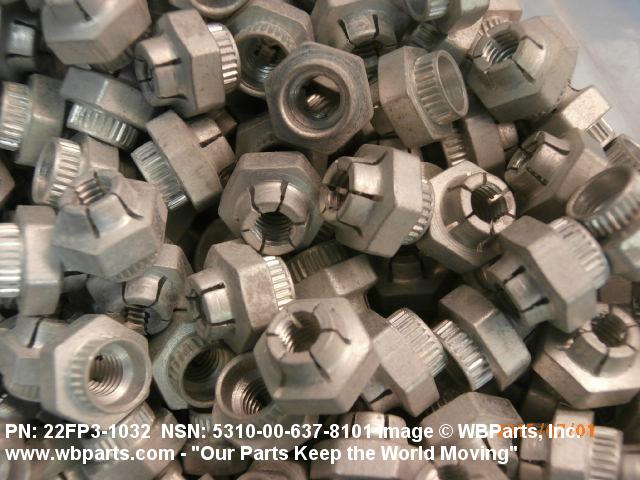

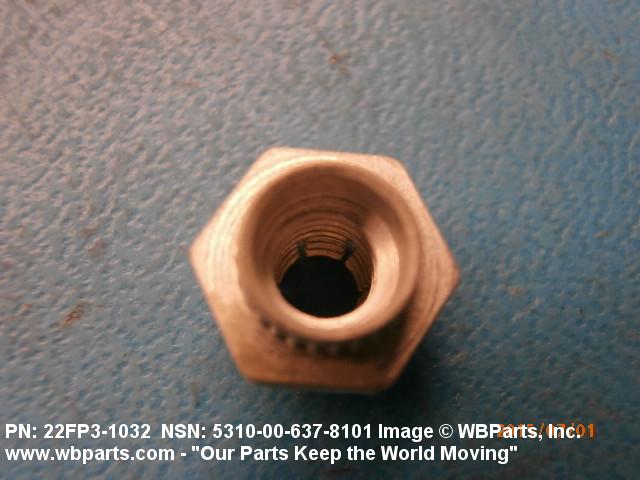

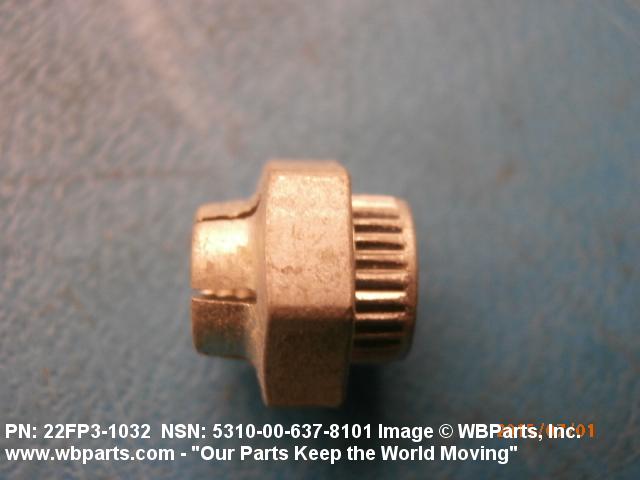

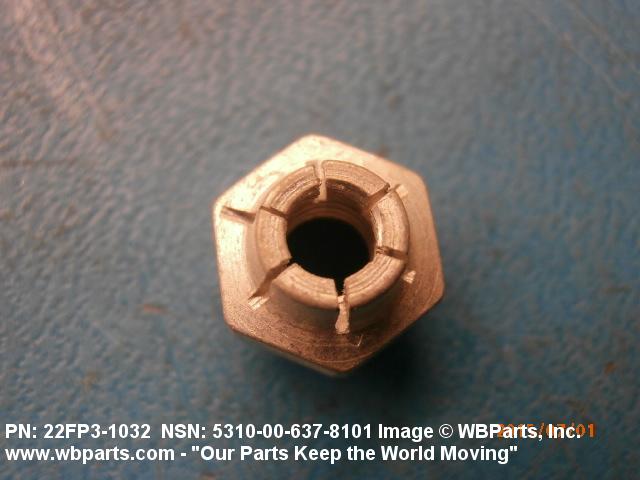

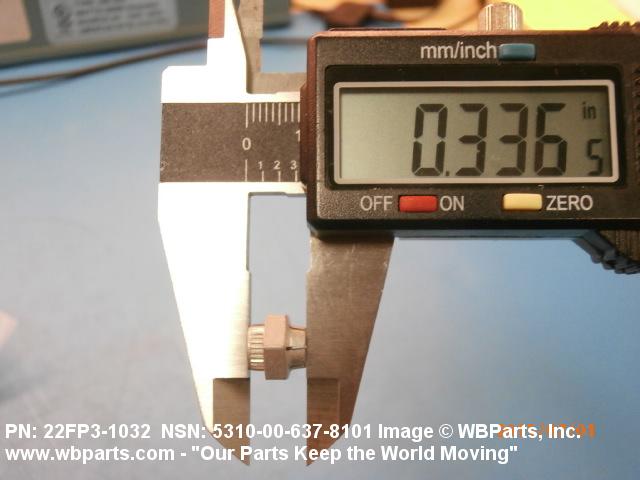

Drawings & Photos | NSN 5310-00-637-8101
Demand History | NSN 5310-00-637-8101
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 27FP3-1032 | 2023-05-151 | 309 | DIBBS |
| 5310-00-637-8101 | 2023-01-25 | 25 | US |
| 5310-00-637-8101 | 2023-01-25 | 50 | US |
| 5310-00-637-8101 | 2023-01-25 | 24 | United States |
| 5310-00-637-8101 | 2023-01-25 | 50 | United States |
| 5310-00-637-8101 | 2022-07-199 | 30 | KR |
| 5310-00-637-8101 | 2020-12-349 | 1 | US |
| 22FP3-1032 | 2019-10-290 | 344 | DIBBS |
| 5310-00-637-8101 | 2018-10-282 | 344 | DIBBS |
| 22FP31032 | 2016-11-320 | 300 | United States |
| 5310-00-637-8101 | 2015-06-169 | 500 | United States |
| 501333 | 2011-06-175 | 150 | United States |
| 5310-00-637-8101 | 2010-12-356 | 500 | United States |
| 5310-00-637-8101 | 2010-10-300 | 1937 | DIBBS |
| 5310-00-637-8101 | 2010-06-166 | 200 | US |
| 5310-00-637-8101 | 2010-06-166 | 500 | United States |
| 5310-00-637-8101 | 2010-04-109 | 322 | DIBBS |
| 5310-00-637-8101 | 2008-05-134 | 240 | US |
| 5310-00-637-8101 | 2007-02-36 | 500 | United States |
| 5310-00-637-8101 | 2006-10-304 | 300 | United States |
| 5310-00-637-8101 | 2006-10-299 | 300 | United States |
Cross Reference | NSN 5310-00-637-8101
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1008668-3 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 22FP3-1032 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| 22FP3-1032 | 72962 | HARVARD INDUSTRIES INC |
| 50133-3 | 72429 | SARGENT FLETCHER INC. |
| 8087538 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 81033 | 73734 | FEDERAL SCREW PRODUCTS INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-637-8101
Technical Data | NSN 5310-00-637-8101
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 1,CLASS A FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |

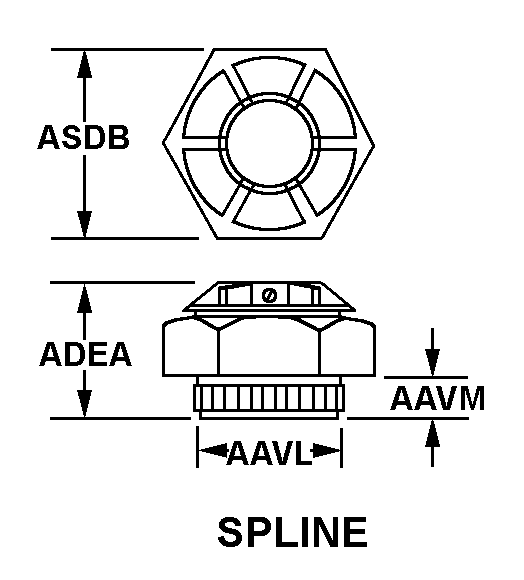

| NUT STYLE | A53 SPLINE |

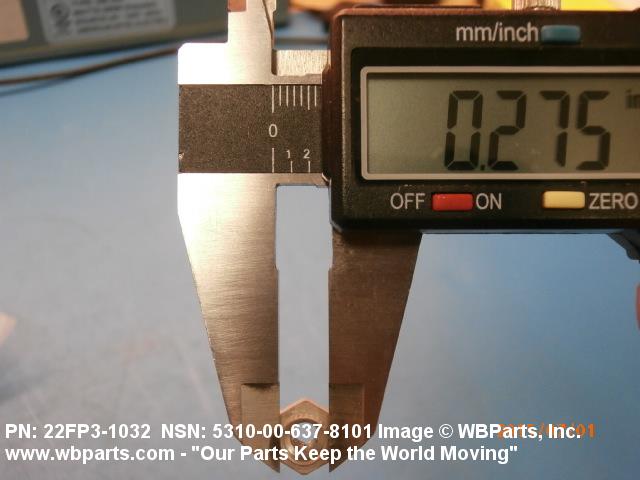

| PILOT DIAMETER | 0.277 INCHES NOMINAL |

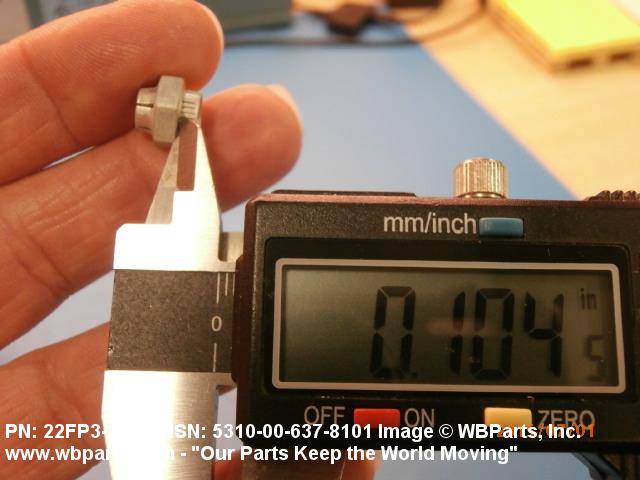

| PILOT LENGTH | 0.105 INCHES NOMINAL |
| NUT HEIGHT | 0.343 INCHES NOMINAL |

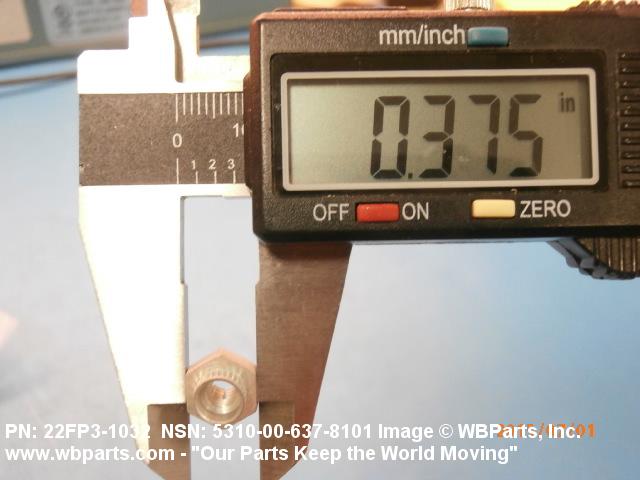

| WIDTH ACROSS FLATS | 0.375 INCHES NOMINAL |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
Restrictions/Controls & Freight Information | NSN 5310-00-637-8101
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
