Product Details | SPLINE SELF-LOCKING NUT

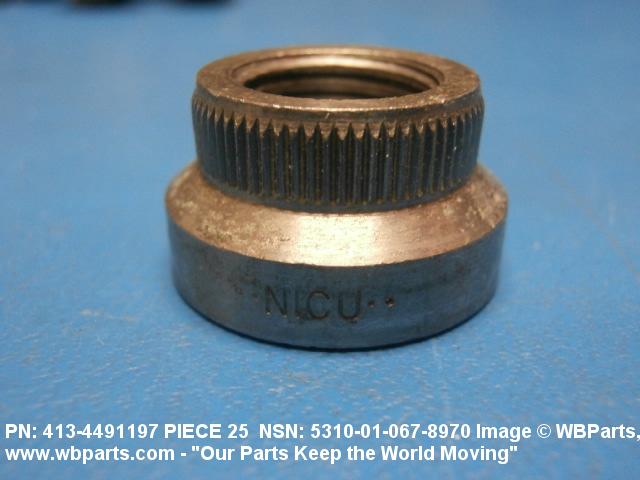

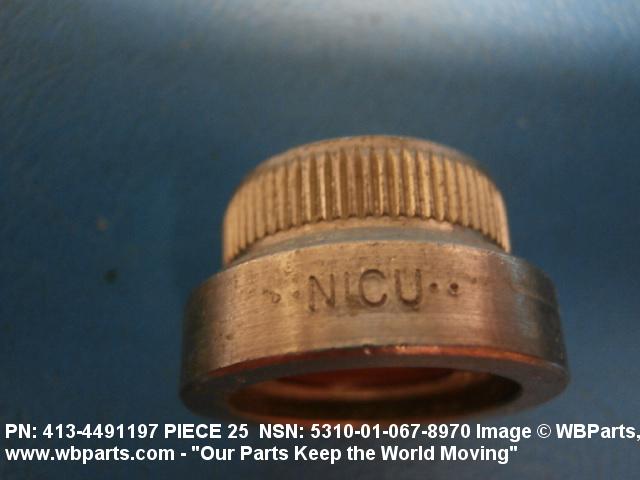

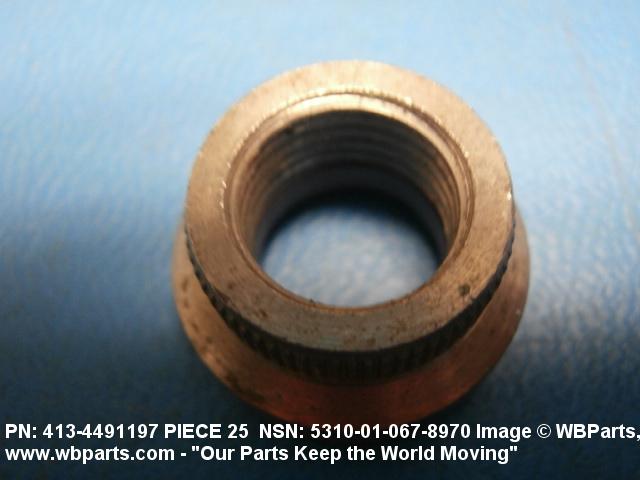

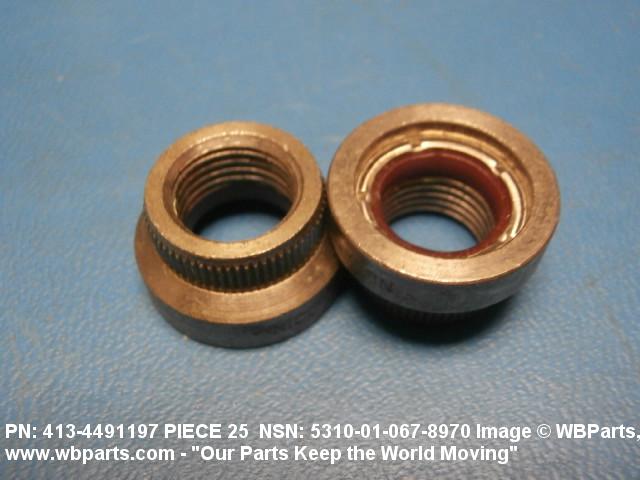

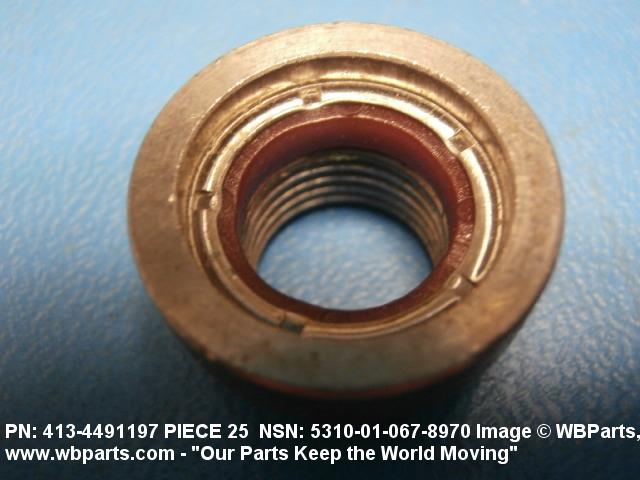

5310-01-067-8970 A nut having an externally splined sleeve, which holds it in position when forced into a hole of slightly smaller diameter. An integral feature is incorporated for locking.

Part Alternates: MWNX11037080, MWNX11037-080 , 110378, 11037-8, 413-4491197 PIECE 25, 4134491197PIECE25, 5310-01-067-8970, 01-067-8970, 5310010678970, 010678970

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG) NSN Assign. NIIN
53 10 NOV 1978 01-067-8970

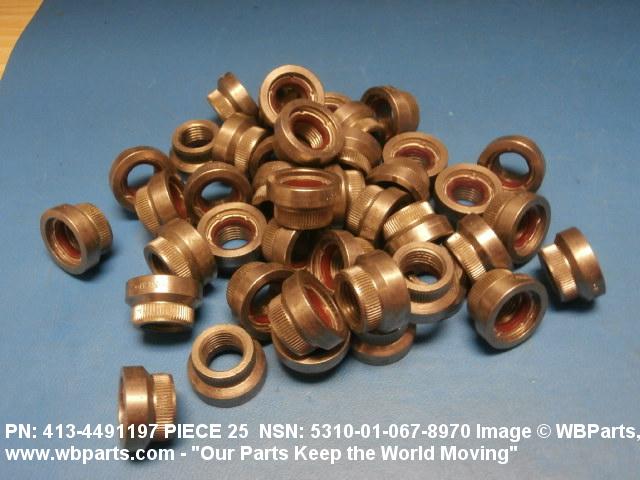

Drawings & Photos | NSN 5310-01-067-8970


Demand History | NSN 5310-01-067-8970

Part Number Request Date QTY Origin
5310-01-067-8970 2019-03-81 60 United States
5310-01-067-8970 2015-12-335 42 United States
5310-01-067-8970 2014-12-338 31 DIBBS
5310-01-067-8970 2010-09-250 7 DIBBS
5310-01-067-8970 2009-09-245 8 DIBBS
5310-01-067-8970 2009-01-13 1 DIBBS
5310-01-067-8970 2008-09-253 7 DIBBS

Cross Reference | NSN 5310-01-067-8970

Part Number Cage Code Manufacturer
11037-8 72962 HARVARD INDUSTRIES INC
413-4491197 PIECE 25 25685 NAVAL SHIP ENGINEERING CENTER PHILADELPHIA DIVISION
MWNX11037-080 019L2 MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-067-8970

Technical Data | NSN 5310-01-067-8970

Characteristic Specifications
THREAD SERIES UNJF
NOMINAL THREAD SIZE 0.500 INCHES
THREAD QUANTITY PER INCH 20
THREAD CLASS 3B
THREAD DIRECTION RIGHT-HAND
MATERIAL PLASTIC LOCKING INSERT NICKEL ALLOY OVERALL EXCEPT INSERT
MATERIAL DOCUMENT AND CLASSIFICATION R-405 FSCM 72962 MFR REF SINGLE MATERIAL RESPONSE OVERALL EXCEPT INSERT
HARDNESS RATING NOT RATED
NUT STYLE A62 SPLINE

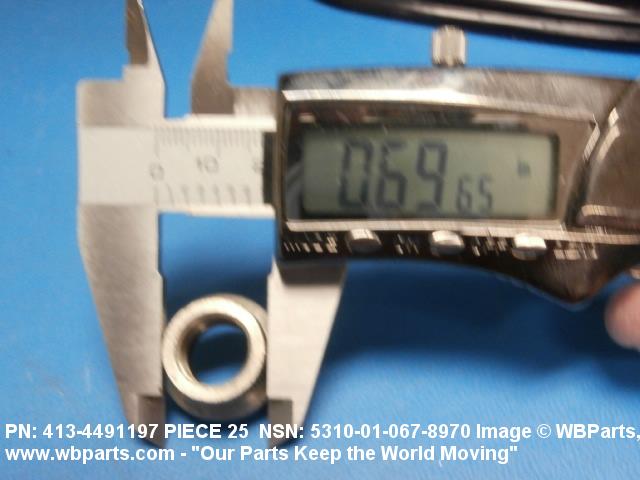

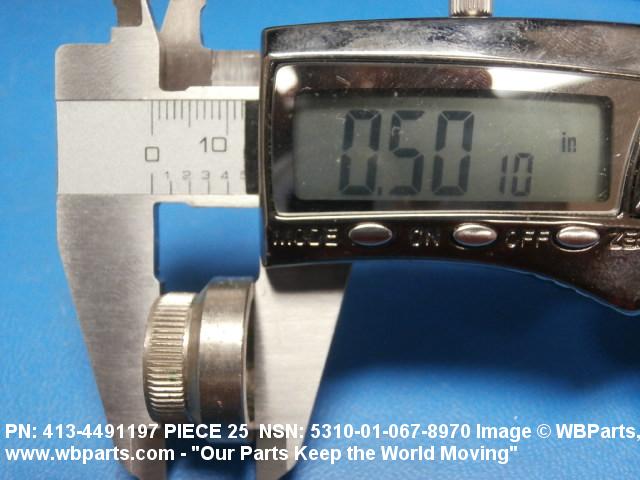

PILOT DIAMETER 0.696 INCHES MINIMUM AND 0.700 INCHES MAXIMUM
PILOT LENGTH 0.212 INCHES NOMINAL

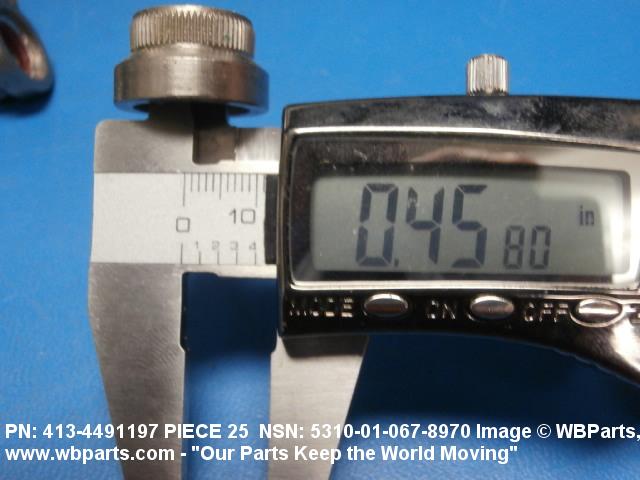

NUT DIAMETER 0.863 INCHES MINIMUM AND 0.873 INCHES MAXIMUM
NUT HEIGHT 0.495 INCHES MINIMUM AND 0.505 INCHES MAXIMUM
LOCKING FEATURE PREVAILING TORQUE WITH NONMETALLIC INSERT
TEMP RATING 250.0 DEG FAHRENHEIT MAXIMUM
MANUFACTURERS CODE 25685
DESIGN CONTROL REFERENCE 413-4491197 PIECE 25
