NSN 5310-01-374-0507 GN510C1032, 22NKM02, 22NKM-02
Product Details | CAP SELF-LOCKING NUT
5310-01-374-0507 A nut internally threaded from one end, and completely enclosed on the opposite end. The outer periphery parallel to the threaded axis may be square, cylindrical, hexagonal, octagonal, dodecagonal or the like and taper to a cone or dome shape on the closed end. An integral feature is incorporated for locking on the threads of a mating memeber. Excludes NUT (1), STAMPED.
Part Alternates: GN510C1032, 22NKM02, 22NKM-02, 5310-01-374-0507, 01-374-0507, 5310013740507, 013740507
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 APR 1993 | 01-374-0507 | 05275 ( NUT, SELF-LOCKING, CAP ) |

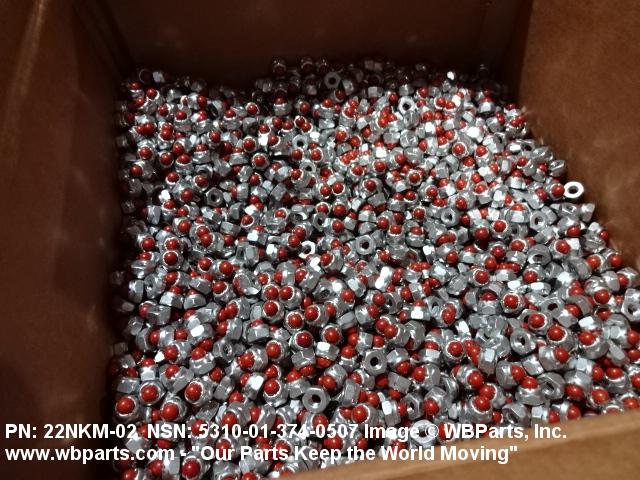

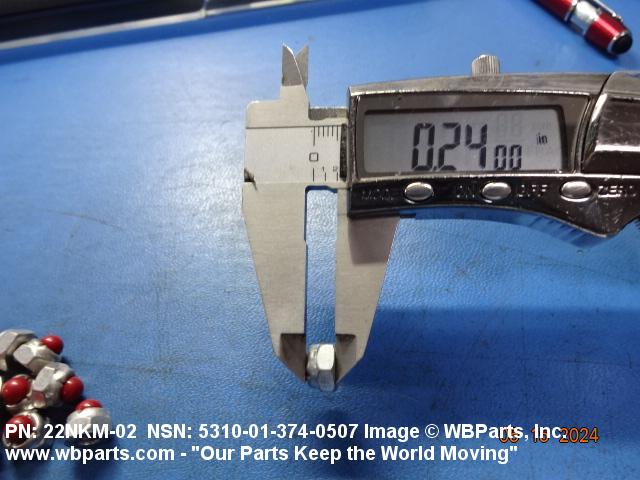

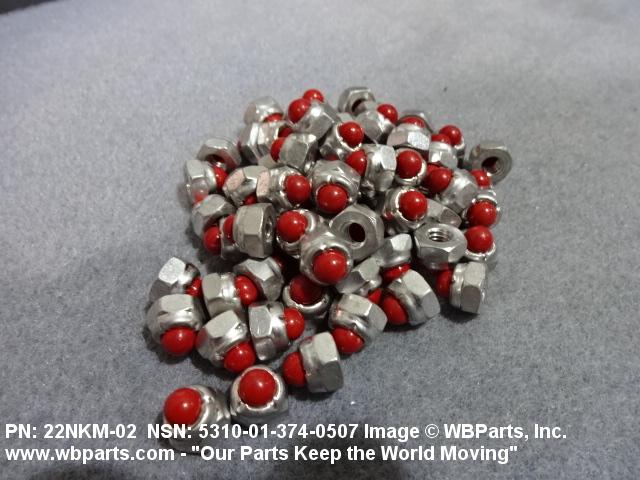

Drawings & Photos | NSN 5310-01-374-0507
Demand History | NSN 5310-01-374-0507
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-374-0507 | 2024-06-180 | 50 | us |
| 5310-01-374-0507 | 2024-05-128 | 450 | United States |
| 5310-01-374-0507 | 2024-02-45 | 250 | United States |
| 5310-01-374-0507 | 2024-02-38 | 1628 | us |
| 22NKM02 | 2023-12-349 | 32 | us |
| 22NKM02 | 2023-08-215 | 10 | US |
| 22NKM02 | 2023-05-137 | 1350 | United States |
| GN510C1032 | 2022-11-325 | 1280 | DIBBS |
| GN510C1032 | 2022-11-312 | 1280 | DIBBS |
| 5310-01-374-0507 | 2018-08-214 | 1688 | DIBBS |
| 22NKM02 | 2017-09-244 | 200 | United States |
| 5310-01-374-0507 | 2017-06-180 | 810 | DIBBS |
| 5310-01-374-0507 | 2014-07-188 | 642 | DIBBS |
| 5310-01-374-0507 | 2014-06-174 | 642 | DIBBS |
| 5310-01-374-0507 | 2012-01-10 | 21 | MX |
| 5310-01-374-0507 | 2011-08-237 | 56 | MX |
Cross Reference | NSN 5310-01-374-0507
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 22NKM-02 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| 22NKM-02 | 72962 | HARVARD INDUSTRIES INC |
| GN510C1032 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| GN510C1032 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| GN510C1032 | 26916 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-374-0507
Related Products | NSN 5310-01-374-0507
Technical Data | NSN 5310-01-374-0507
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | PLASTIC POLYAMIDE CAP PLASTIC POLYAMIDE LOCKING INSERT STEEL NUT |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM D4066 ASSN STD SINGLE MATERIAL RESPONSE CAP |
| SURFACE TREATMENT | CADMIUM AND CHROMATE NUT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 1 FED SPEC SINGLE TREATMENT RESPONSE NUT |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A10 CAP |

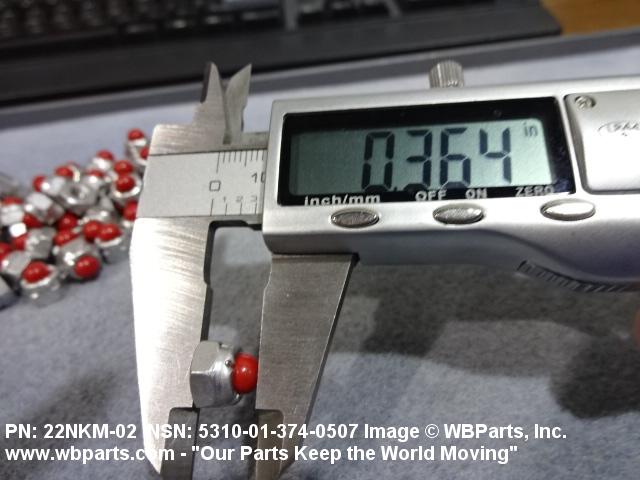

| NUT HEIGHT | 0.363 INCHES NOMINAL |

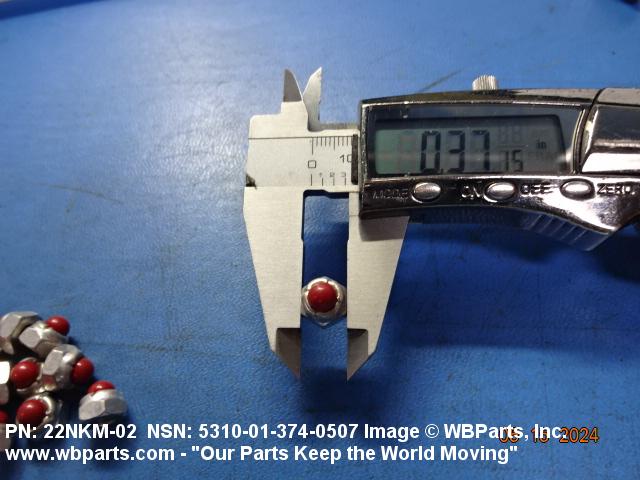

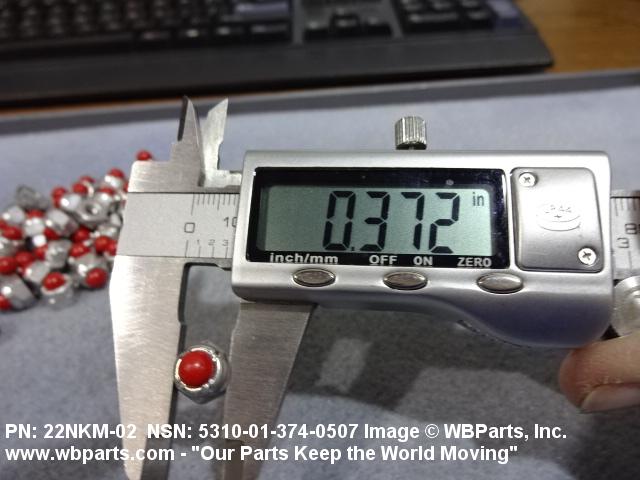

| WIDTH ACROSS FLATS | 0.365 INCHES MINIMUM AND 0.377 INCHES MAXIMUM |
| BEARING SURFACE TYPE | CHAMFERED |
| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| COUNTERSINK ANGLE | ANY ACCEPTABLE NUT |
| TEMP RATING | 250.0 DEG FAHRENHEIT MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5310-01-374-0507
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
