Product Details | CAP SELF-LOCKING NUT

5310-00-488-8566 A nut internally threaded from one end, and completely enclosed on the opposite end. The outer periphery parallel to the threaded axis may be square, cylindrical, hexagonal, octagonal, dodecagonal or the like and taper to a cone or dome shape on the closed end. An integral feature is incorporated for locking on the threads of a mating memeber. Excludes NUT (1), STAMPED.

Part Alternates: 22K2048, 22K2-048, 22K2428, 22K2-428, 9000340, 90-003-40, 5310-00-488-8566, 00-488-8566, 5310004888566, 004888566

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-488-8566

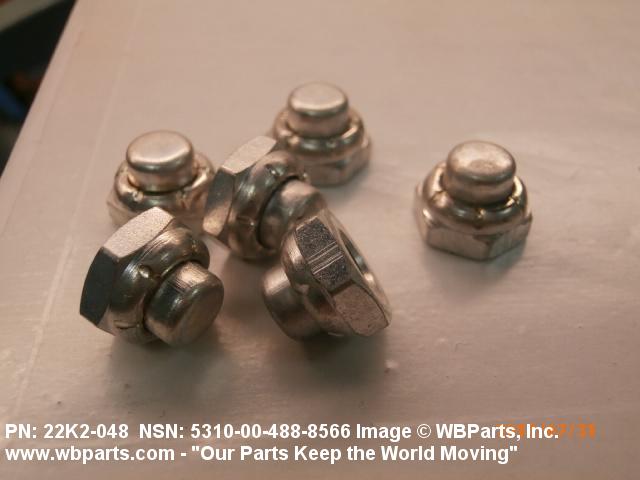

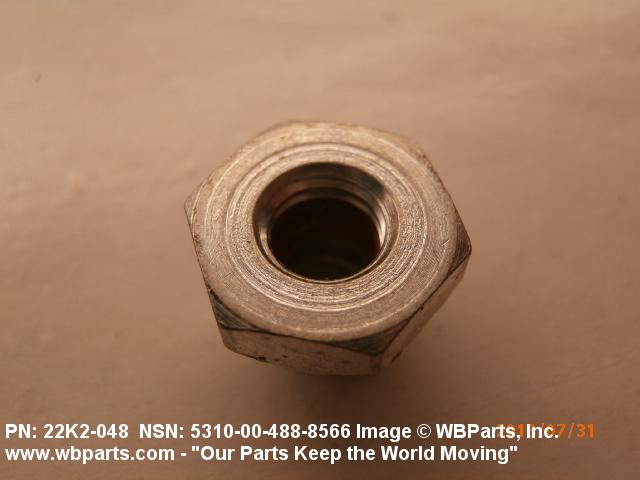

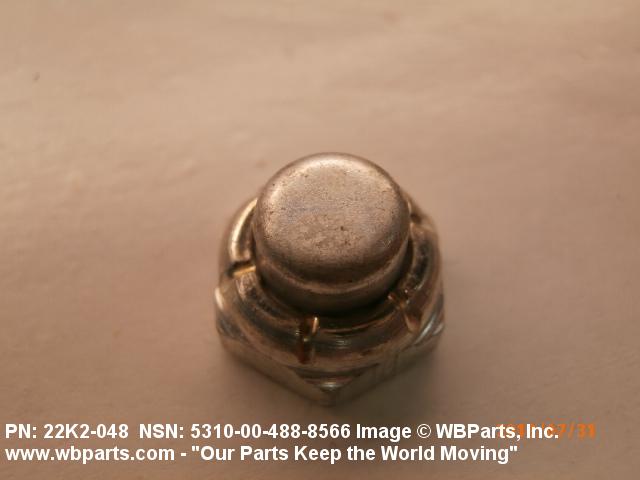

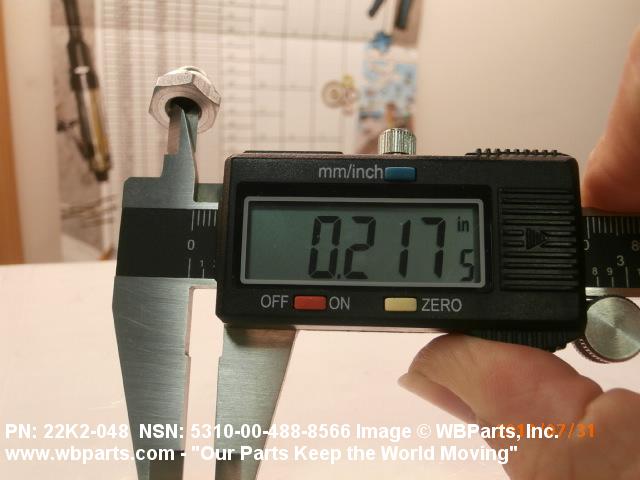

Drawings & Photos | NSN 5310-00-488-8566


Demand History | NSN 5310-00-488-8566

Part Number Request Date QTY Origin
5310-00-488-8566 2016-09-271 8 United States
22K2048 2013-10-298 4 United States
5310-00-488-8566 2013-07-207 14 United States
22K2048 2013-07-199 3 United States
22K2048 2012-02-60 100 US
5310-00-488-8566 2010-01-20 1049 DIBBS
5310-00-488-8566 2009-12-336 34 DIBBS
5310-00-488-8566 2009-11-320 104 DIBBS
5310-00-488-8566 2009-01-05 35 DIBBS
22K2048 2007-10-302 2 US

Cross Reference | NSN 5310-00-488-8566

Part Number Cage Code Manufacturer
22K2-048 019L2 MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
22K2-048 72962 HARVARD INDUSTRIES INC
22K2-428 27687 GREER STOP NUT INC.
90-003-40 97499 BELL HELICOPTER TEXTRON INC.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-488-8566

Technical Data | NSN 5310-00-488-8566

Characteristic Specifications
THREAD SERIES UNF
NOMINAL THREAD SIZE 0.250 INCHES
THREAD QUANTITY PER INCH 28
THREAD CLASS 3B
THREAD DIRECTION RIGHT-HAND
MATERIAL FIBER LOCKING INSERT STEEL OVERALL EXCEPT INSERT
SURFACE TREATMENT CADMIUM NUT
HARDNESS RATING NOT RATED
NUT STYLE A10 CAP

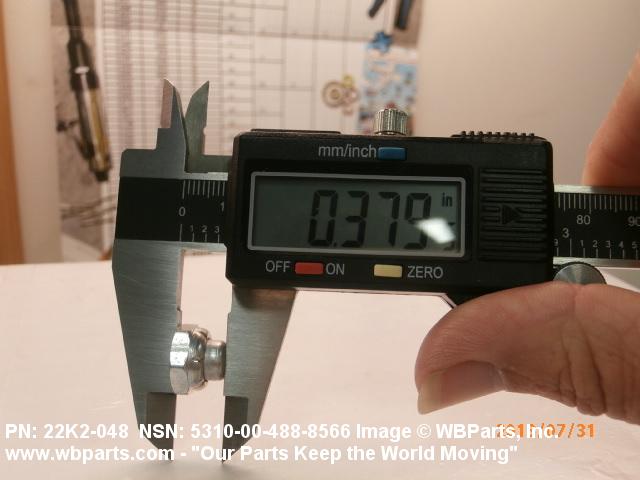

NUT HEIGHT 0.347 INCHES MINIMUM AND 0.387 INCHES MAXIMUM

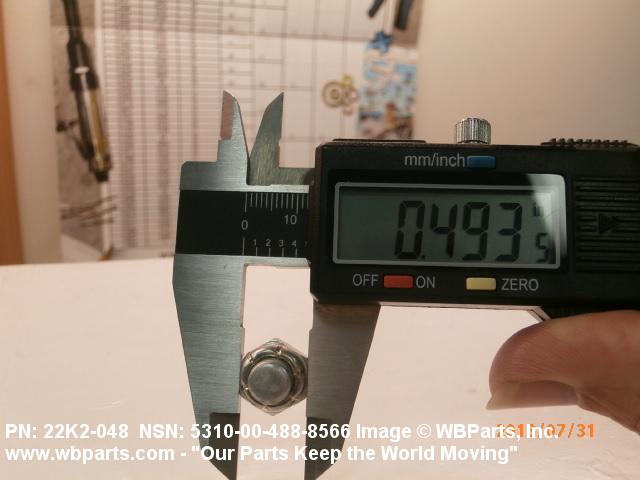

WIDTH ACROSS FLATS 0.490 INCHES MINIMUM AND 0.502 INCHES MAXIMUM
BEARING SURFACE TYPE WASHER FACED
LOCKING FEATURE PREVAILING TORQUE WITH NONMETALLIC INSERT
TEMP RATING NOT RATED

Restrictions/Controls & Freight Information | NSN 5310-00-488-8566

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 093486 BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 573 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5310-00-488-8566

Category Code Description
Materiel Category and Inventory ManagerT Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code0 Medical Materiel
Weapons Systems/End Item or Homogeneous Group00DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityZThis is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
HD : Each
Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation CodeSXSX:AF SICA RESIDUAL MMAC-OC-ALC
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
HD : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
HD : Each
