Product Details | CAP SELF-LOCKING NUT
5310-00-222-4246 A nut internally threaded from one end, and completely enclosed on the opposite end. The outer periphery parallel to the threaded axis may be square, cylindrical, hexagonal, octagonal, dodecagonal or the like and taper to a cone or dome shape on the closed end. An integral feature is incorporated for locking on the threads of a mating memeber. Excludes NUT (1), STAMPED.
Part Alternates: A436A3A1 , 11830870, 22K102, 22K1-02, 8185220, 900033, 90-003-3, 5310-00-222-4246, 00-222-4246, 5310002224246, 002224246
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-222-4246 | 05275 ( NUT, SELF-LOCKING, CAP ) |

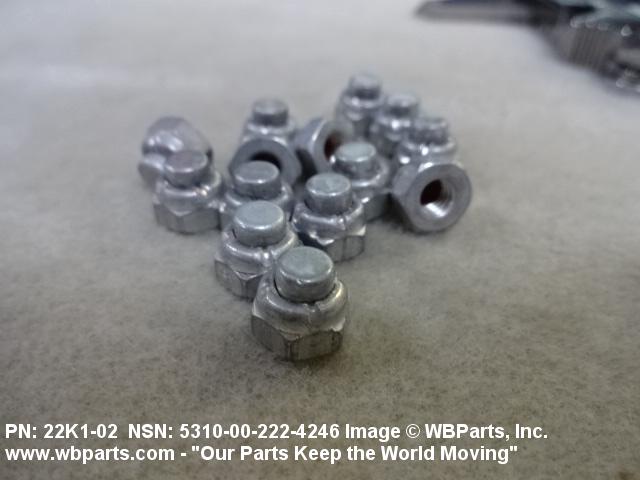

Drawings & Photos | NSN 5310-00-222-4246
Demand History | NSN 5310-00-222-4246
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-222-4246 | 2024-06-178 | 41200 | United States |
| 22K102 | 2022-11-315 | 100 | Croatia |
| 22K1-02 | 2022-01-03 | 27 | DIBBS |
| 22K1-02 | 2021-12-356 | 27 | DIBBS |
| 11830870 | 2018-02-32 | 12 | us |
| 900033 | 2014-08-226 | 20 | US |
| 22K102 | 2013-10-298 | 4 | United States |
| 5310-00-222-4246 | 2012-11-316 | 99 | DIBBS |
| 22K1-02 | 2012-04-115 | 49 | IN |
| 5310-00-222-4246 | 2009-09-271 | 79 | DIBBS |
| 5310-00-222-4246 | 2008-09-267 | 26 | DIBBS |
| 5310-00-222-4246 | 2008-09-261 | 2 | US |
| 5310-00-222-4246 | 2008-06-170 | 70 | US |
Cross Reference | NSN 5310-00-222-4246
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11830870 | 19200 | US ARMY ARDEC RDECOM |
| 22K1-02 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| 22K1-02 | 22599 | AMERACE CORP ESNA DIV |
| 22K1-02 | 72962 | HARVARD INDUSTRIES INC |
| 8185220 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 90-003-3 | 97499 | BELL HELICOPTER TEXTRON INC. |
| A436A3A1 | A0126 | AGUSTAWESTLAND SPA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-222-4246
Related Products | NSN 5310-00-222-4246
Technical Data | NSN 5310-00-222-4246
| Characteristic | Specifications |
|---|---|

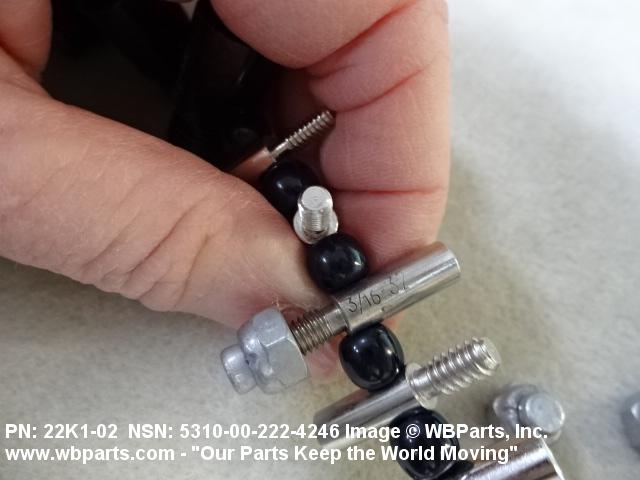

| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | PLASTIC POLYAMIDE LOCKING INSERT STEEL OVERALL EXCEPT INSERT |
| SURFACE TREATMENT | CADMIUM OVERALL EXCEPT INSERT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL EXCEPT INSERT |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A10 CAP |

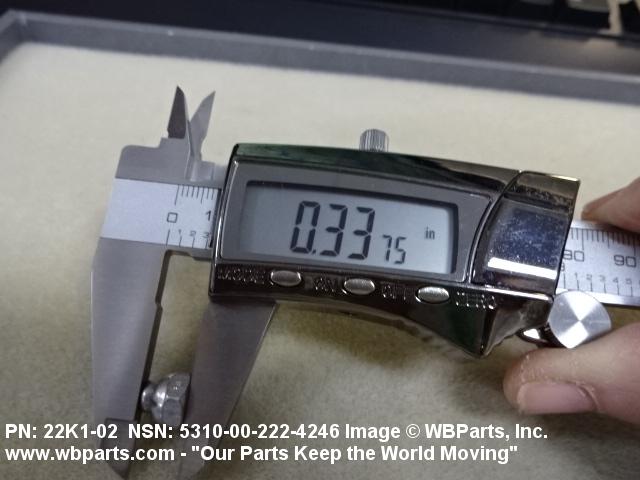

| NUT HEIGHT | 0.337 INCHES NOMINAL |
