NSN 5310-01-372-9268 M45595/6-06, M45595606, MIL-W-45595/6
Product Details | CONVEX WASHER
5310-01-372-9268 A washer which is round with a centrally located hole. One bearing surface is smooth, flat, and unbroken, the other bearing surface is smooth, unbroken, and is raised to form a curved or spherical contour. See also WASHER (1), CONCAVE. Excludes BEARING, WASHER THRUST.
Part Alternates: M45595/6-06, M45595606, MIL-W-45595/6, MILW455956, 5310-01-372-9268, 01-372-9268, 5310013729268, 013729268
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 MAR 1993 | 01-372-9268 | 15931 ( WASHER, CONVEX ) |

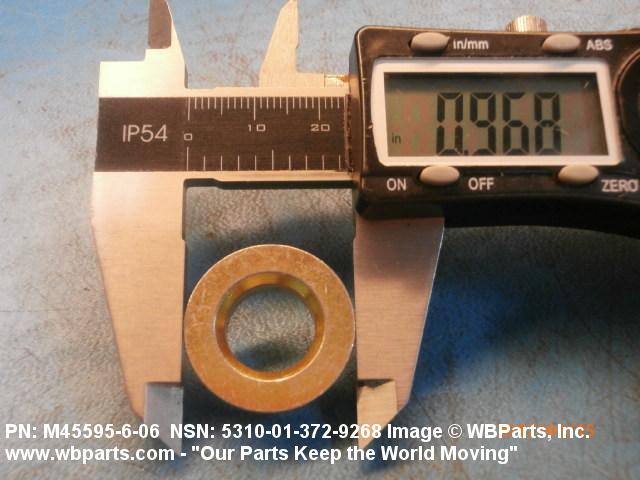

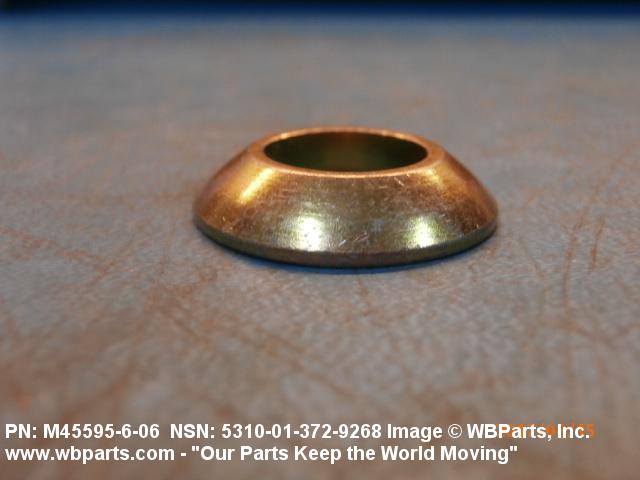

Drawings & Photos | NSN 5310-01-372-9268
Demand History | NSN 5310-01-372-9268
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-372-9268 | 2022-01-18 | 302 | DIBBS |
| 5310-01-372-9268 | 2022-01-04 | 302 | DIBBS |
| 5310-01-372-9268 | 2021-11-334 | 32 | DIBBS |
| 5310-01-372-9268 | 2017-08-222 | 35 | United States |
| M45595606 | 2011-11-315 | 1000 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-372-9268
Related Products | NSN 5310-01-372-9268
Technical Data | NSN 5310-01-372-9268
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 8740 OR STEEL COMP 4130 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6049 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6750 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-18729 MIL SPEC 2ND MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 40.0 ROCKWELL C MINIMUM AND 46.0 ROCKWELL C MAXIMUM |
| STYLE DESIGNATOR | 7 CONVEX |
| HOLE DIAMETER | 0.510 INCHES MINIMUM AND 0.520 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 0.963 INCHES MINIMUM AND 0.973 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.190 INCHES MINIMUM AND 0.210 INCHES MAXIMUM |
| SURFACE FINISH | 32.0 MICROINCHES ALL SURFACES |
| SPECIAL FEATURES | SPHERICAL RADIUS 0.590 IN. MIN 0.610 IN. MAX,COUNTERSINK DIA 0.614 IN. MIN 0.624 IN. MAX,COUNTERSINK DEPTH 0.025 IN.,RECESS ANGLE 89 DEG MIN 91 DEG MAX |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-W-45595/6 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M45595/6-06 |
Restrictions/Controls & Freight Information | NSN 5310-01-372-9268
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-372-9268
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | TG | TG:AF SICA RESIDUAL MMAC-WR-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
