NSN 5310-01-386-6434 M45595/6-01, M45595601, NASM45595/6
Product Details | CONVEX WASHER

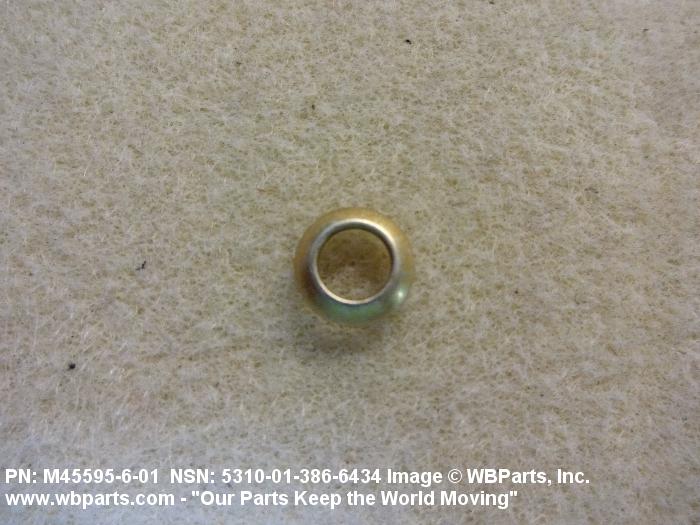

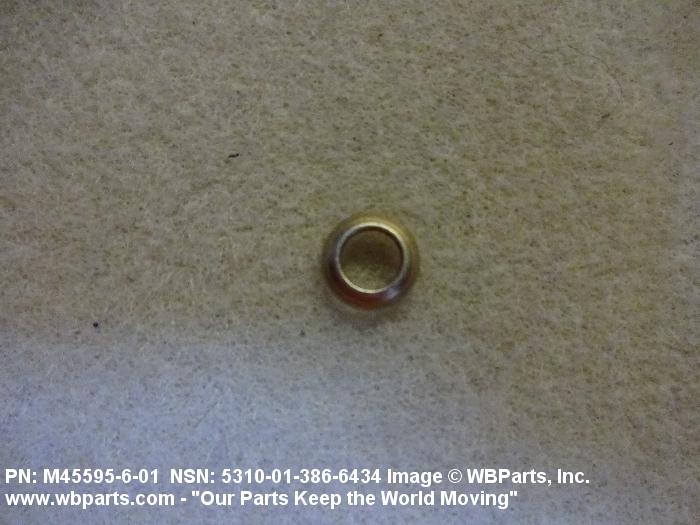

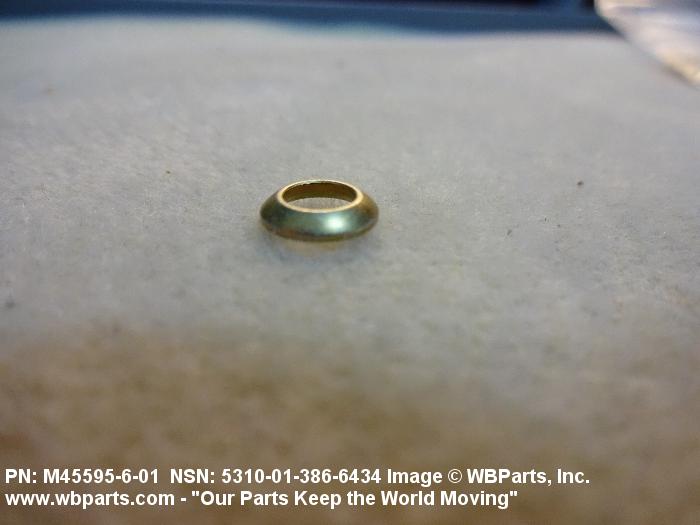

5310-01-386-6434 A washer which is round with a centrally located hole. One bearing surface is smooth, flat, and unbroken, the other bearing surface is smooth, unbroken, and is raised to form a curved or spherical contour. See also WASHER (1), CONCAVE. Excludes BEARING, WASHER THRUST.
Part Alternates: M45595/6-01, M45595601, NASM45595/6, NASM455956, MIL-W-45595/6, MILW455956, 5310-01-386-6434, 01-386-6434, 5310013866434, 013866434
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 JUL 1986 | 01-386-6434 | 15931 ( WASHER, CONVEX ) |

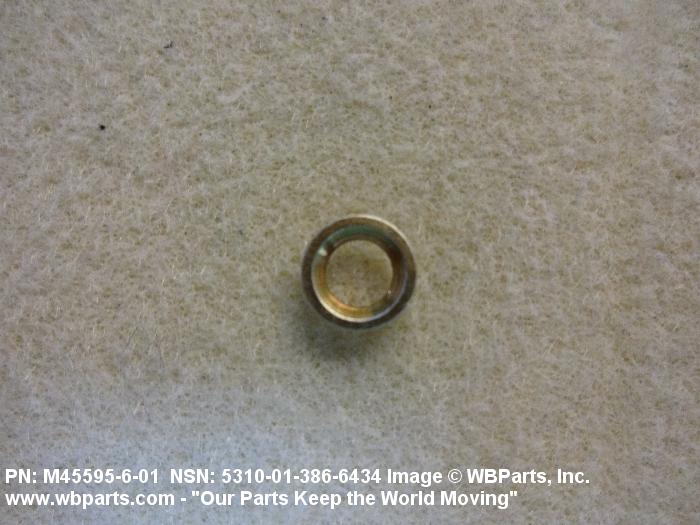

Drawings & Photos | NSN 5310-01-386-6434
Demand History | NSN 5310-01-386-6434
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-386-6434 | 2023-12-362 | 247 | DIBBS |
| 5310-01-386-6434 | 2023-12-354 | 247 | DIBBS |
| 5310-01-386-6434 | 2023-03-66 | 45 | DIBBS |
| M45595601 | 2021-10-288 | 56 | United States |
| 5310-01-386-6434 | 2017-08-215 | 106 | DIBBS |
| 5310-01-386-6434 | 2017-07-207 | 13 | United States |
| 5310-01-386-6434 | 2017-07-198 | 26 | DIBBS |
| 5310-01-386-6434 | 2017-06-164 | 13 | DIBBS |
| 5310-01-386-6434 | 2017-05-151 | 13 | DIBBS |
| 5310-01-386-6434 | 2017-05-124 | 8 | DIBBS |
| 5310-01-386-6434 | 2017-04-108 | 6 | DIBBS |
| M45595601 | 2014-03-64 | 2629 | US |
| 5310-01-386-6434 | 2011-09-256 | 19 | DIBBS |
| 5310-01-386-6434 | 2011-08-213 | 4 | DIBBS |
| 5310-01-386-6434 | 2011-07-206 | 1 | DIBBS |
| 5310-01-386-6434 | 2011-02-41 | 4 | DIBBS |
| 5310-01-386-6434 | 2010-09-262 | 7 | DIBBS |
| 5310-01-386-6434 | 2010-06-176 | 7 | DIBBS |
| M45595601 | 2008-11-330 | 1000 | US |
| 5310-01-386-6434 | 2008-03-86 | 49 | DIBBS |
| 5310-01-386-6434 | 2008-02-56 | 20 | US |
Cross Reference | NSN 5310-01-386-6434
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M45595/6-01 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| M45595/6-01 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-W-45595/6 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| NASM45595/6 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NASM45595/6 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-386-6434
Related Products | NSN 5310-01-386-6434
Technical Data | NSN 5310-01-386-6434
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 8740 OR STEEL COMP 4130 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6049 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-18729 MIL SPEC 2ND MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 40.0 ROCKWELL C MINIMUM AND 46.0 ROCKWELL C MAXIMUM |
| STYLE DESIGNATOR | 7 CONVEX |

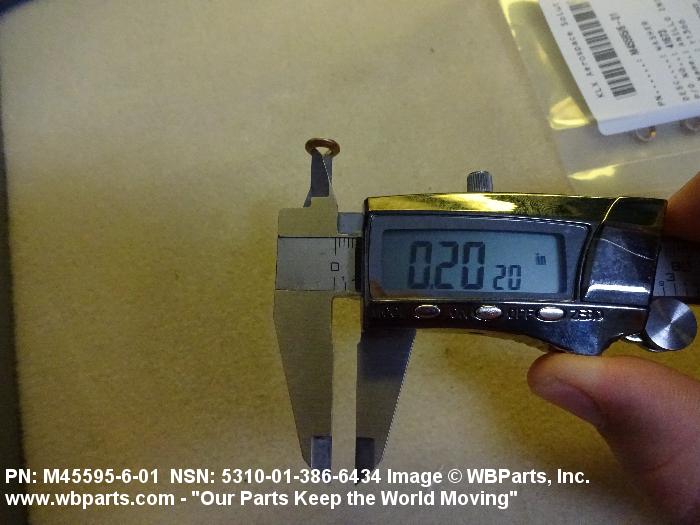

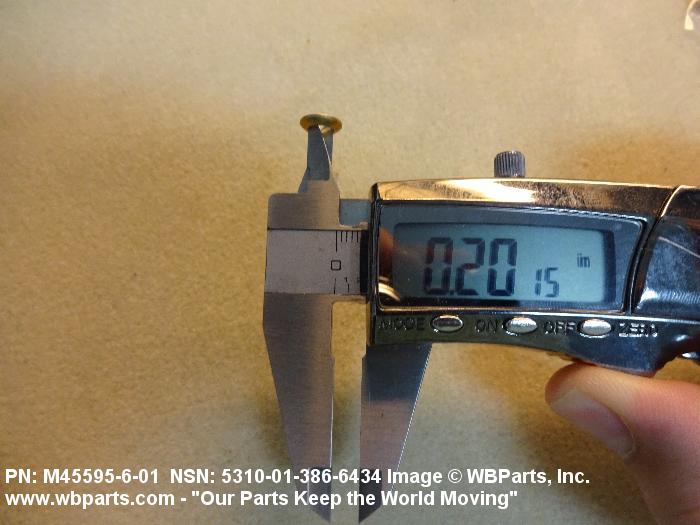

| HOLE DIAMETER | 0.200 INCHES MINIMUM AND 0.210 INCHES MAXIMUM |

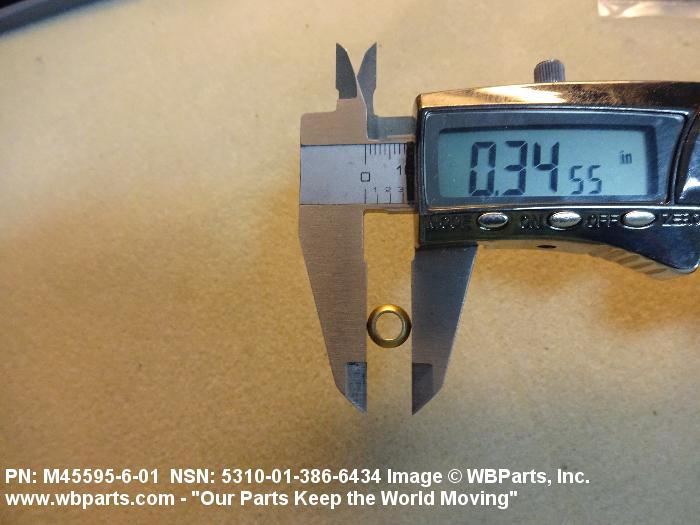

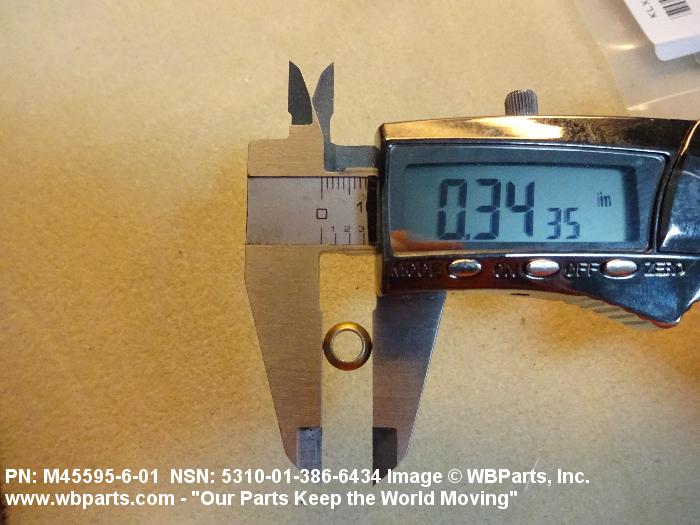

| OUTSIDE DIAMETER | 0.339 INCHES MINIMUM AND 0.349 INCHES MAXIMUM |

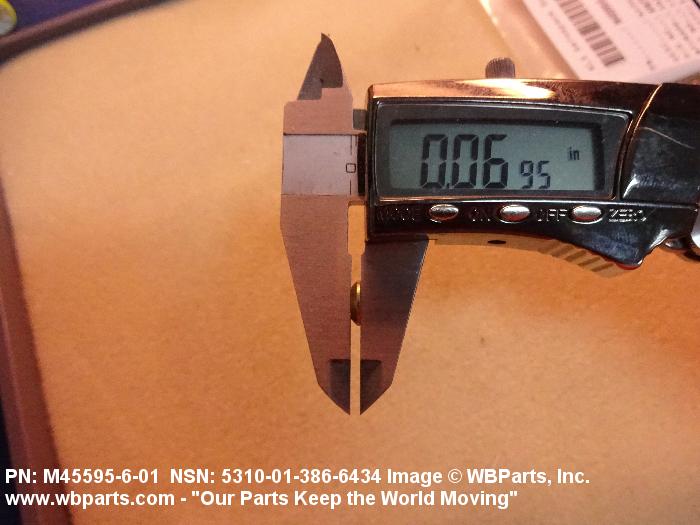

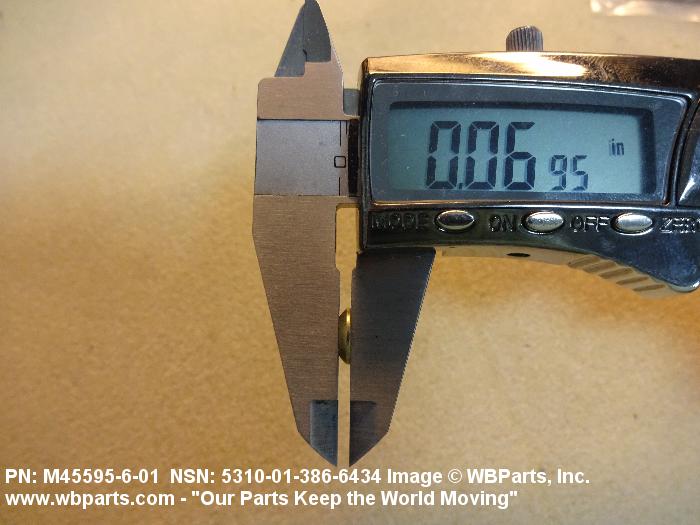

| MATERIAL THICKNESS | 0.058 INCHES MINIMUM AND 0.074 INCHES MAXIMUM |
