NSN 5310-01-372-9269 M45595/7-06, M45595706, MIL-W-45595/7

Product Details | CONCAVE WASHER

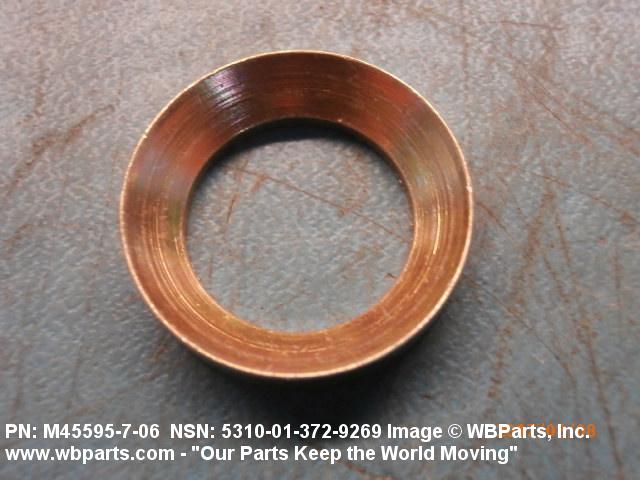

5310-01-372-9269 A washer which is round with a centrally located hole. One bearing surface is smooth, flat, and unbroken, the other bearing surface is smooth, unbroken, and is recessed to form a curved or spherical contour. See also WASHER (1), CONVEX. Excludes WASHER (1), RECESSED and BEARING, WASHER, THRUST.

Part Alternates: M45595/7-06, M45595706, MIL-W-45595/7, MILW455957, 5310-01-372-9269, 01-372-9269, 5310013729269, 013729269

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	23 MAR 1993	01-372-9269	15930 ( WASHER, CONCAVE )

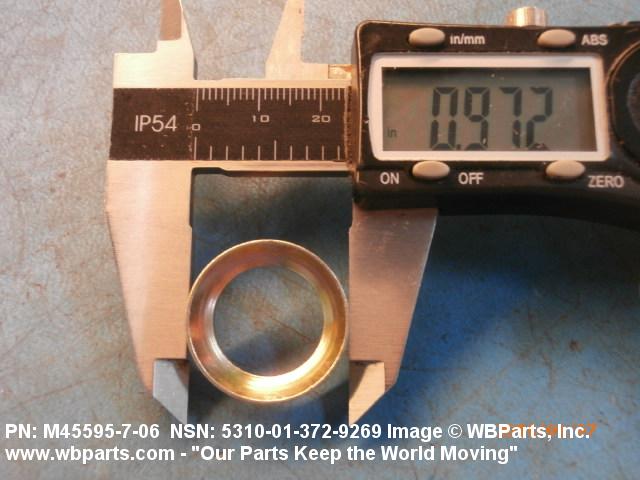

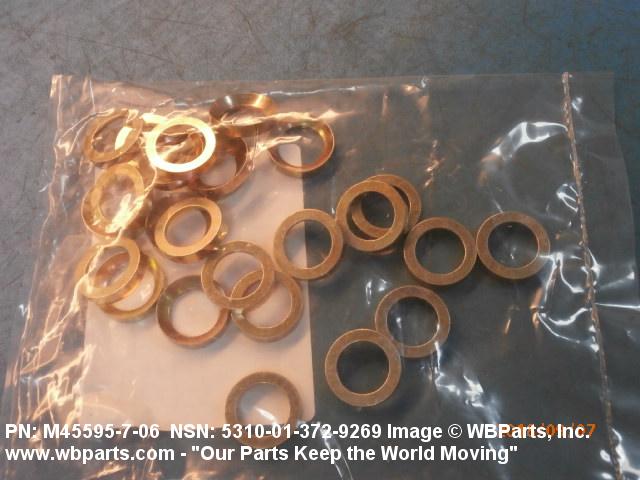

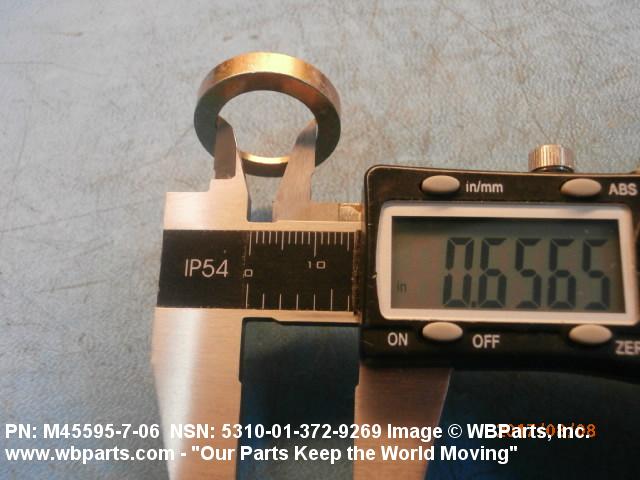

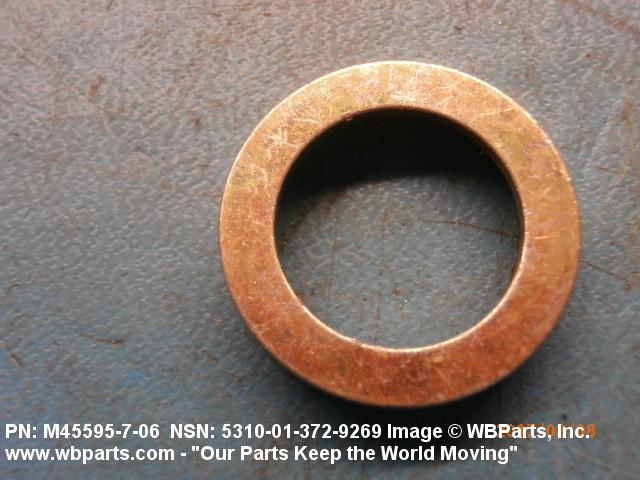

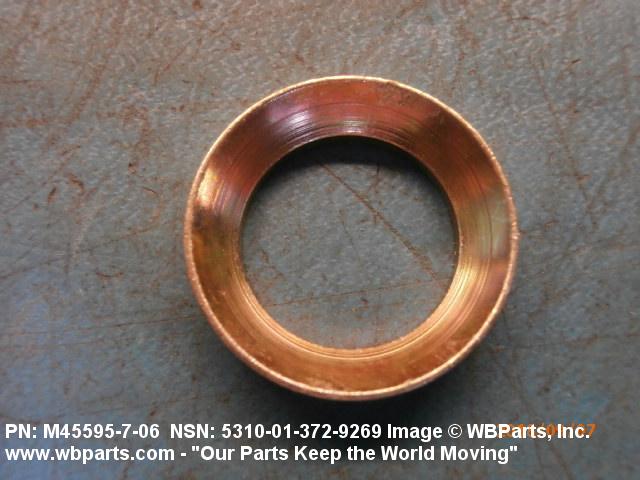

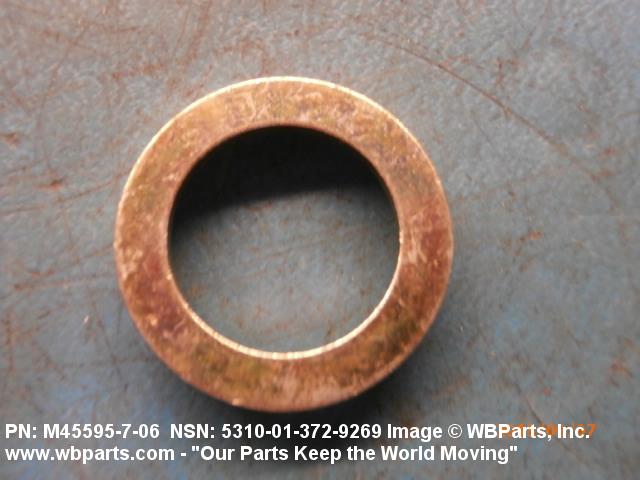

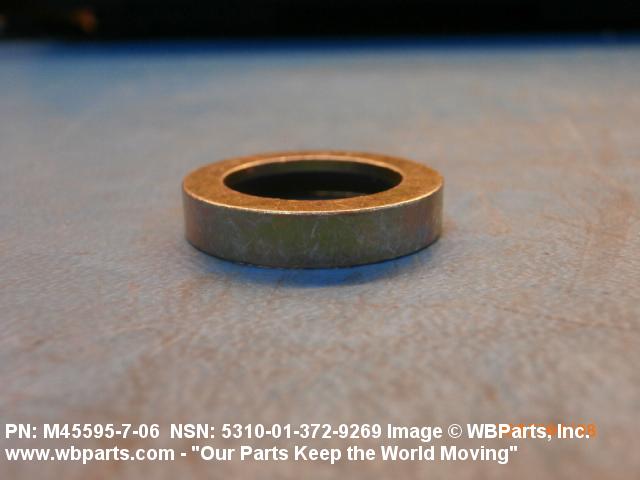

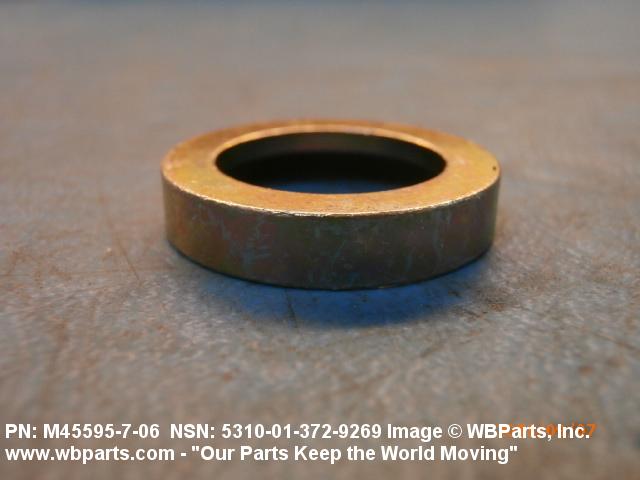

Drawings & Photos | NSN 5310-01-372-9269

Part Number	Request Date	QTY	Origin
5310-01-372-9269	2021-11-307	399	DIBBS
5310-01-372-9269	2018-09-247	25	United States
5310-01-372-9269	2017-07-207	13	United States
5310-01-372-9269	2015-08-235	260	DIBBS
5310-01-372-9269	2011-01-07	112	DIBBS
5310-01-372-9269	2010-11-314	247	DIBBS
5310-01-372-9269	2010-09-266	68	DIBBS
5310-01-372-9269	2010-09-253	30	DIBBS
5310-01-372-9269	2010-03-84	94	DIBBS
5310-01-372-9269	2009-11-306	60	DIBBS
5310-01-372-9269	2009-09-252	8	DIBBS
5310-01-372-9269	2009-08-227	100	DIBBS
5310-01-372-9269	2009-06-166	10	DIBBS
5310-01-372-9269	2009-06-166	54	DIBBS

Cross Reference | NSN 5310-01-372-9269

Part Number	Cage Code	Manufacturer
M45595/7-06	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-W-45595/7	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-372-9269

Compare

Related Products | NSN 5310-01-372-9269

5310-01-372-9276, 5310-01-372-9277, 5310-01-372-9278, 5310-01-372-9338, 5310-01-372-9339

Technical Data | NSN 5310-01-372-9269

Characteristic	Specifications
MATERIAL	STEEL COMP 4130 OR STEEL COMP 8740 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-6758 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-18729 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	40.0 ROCKWELL C MINIMUM AND 46.0 ROCKWELL C MAXIMUM

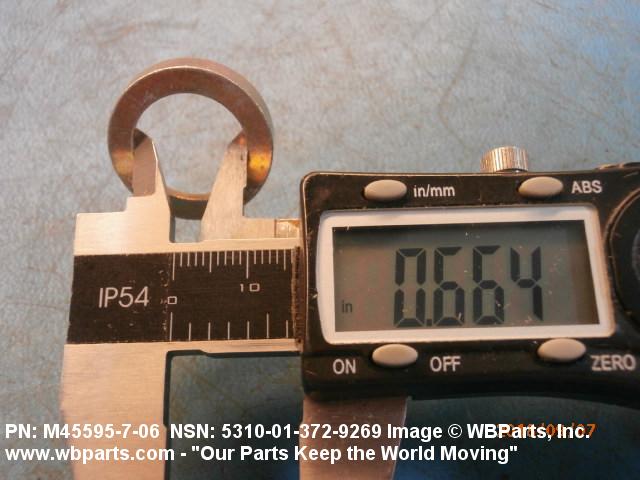

HOLE DIAMETER	0.664 INCHES MINIMUM AND 0.674 INCHES MAXIMUM
RADIUS	0.590 INCHES MINIMUM AND 0.610 INCHES MAXIMUM

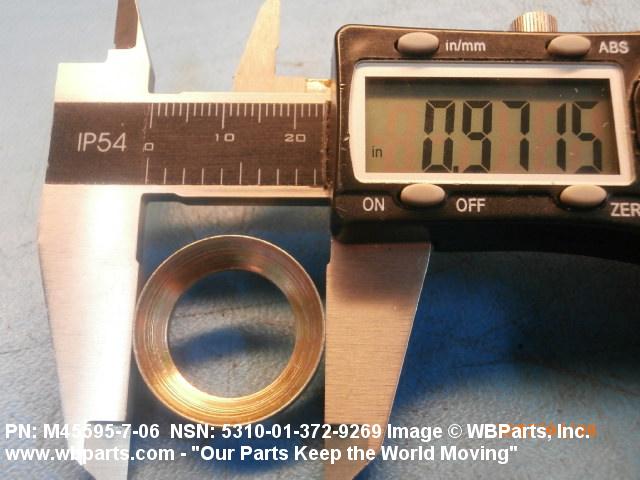

OUTSIDE DIAMETER	0.967 INCHES MINIMUM AND 0.977 INCHES MAXIMUM

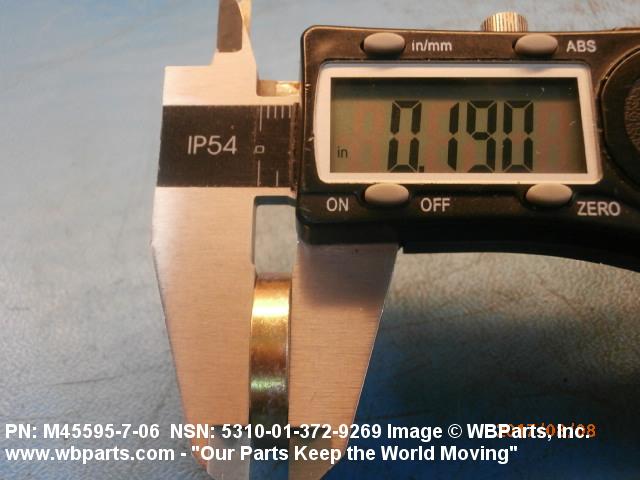

MATERIAL THICKNESS	0.183 INCHES MINIMUM AND 0.203 INCHES MAXIMUM
SURFACE FINISH	32.0 MICROINCHES COUNTERBORE FACE
SPECIAL FEATURES	RADIUS OFFSET 0.572 IN.MIN 0.582 IN.MAX;WASHER STYLE:NO.37;
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-W-45595/7
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M45595/7-06

Restrictions/Controls & Freight Information | NSN 5310-01-372-9269

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	576	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-01-372-9269

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each
