NSN 5310-01-368-2563 NAS17354L8P, NAS1735-4L8P, 01-368-2563
Product Details | BLIND RIVET SELF-LOCKING NUT
5310-01-368-2563 A metallic headed fastener having internal threads for a portion of the full length. It may have a smooth, hexagon or splined shank with an open or closed end. It is designed to be expanded tightly against the material it is being installed in by means of a special tool. The item must have a specified grip range. The grip range is the thickness of the material the item is being installed in. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NAS17354L8P, NAS1735-4L8P, 5310-01-368-2563, 01-368-2563, 5310013682563, 013682563
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 NOV 1992 | 01-368-2563 | 29724 ( NUT, SELF-LOCKING, BLIND RIVET ) |
Drawings & Photos | NSN 5310-01-368-2563
Demand History | NSN 5310-01-368-2563
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-368-2563 | 2024-05-140 | 103 | DIBBS |
| 5310-01-368-2563 | 2024-02-46 | 74 | DIBBS |
| 5310-01-368-2563 | 2016-09-251 | 114 | DIBBS |
| 5310-01-368-2563 | 2015-04-120 | 142 | DIBBS |
Cross Reference | NSN 5310-01-368-2563
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1735-4L8P | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-368-2563
Related Products | NSN 5310-01-368-2563
Technical Data | NSN 5310-01-368-2563
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 304 OR STEEL COMP 305 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763,COND A FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT GRIP RANGE | 0.460 TO 0.520 INCHES |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |

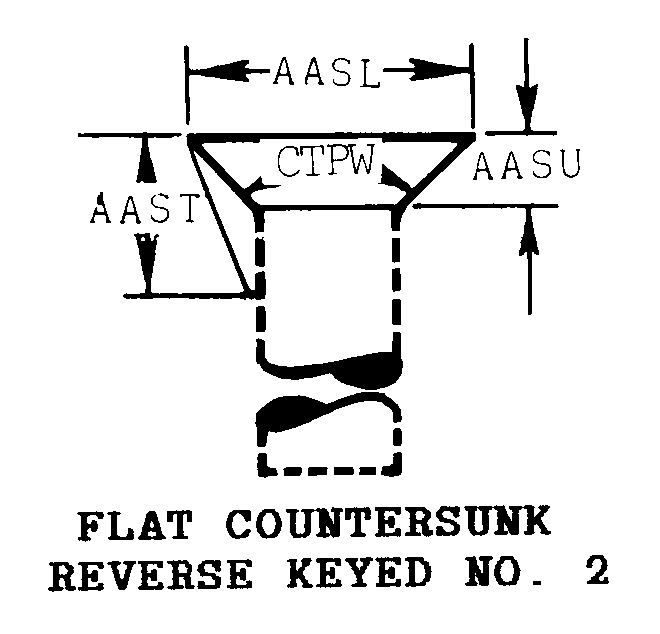

| HEAD STYLE | D17 FLAT COUNTERSUNK REVERSE KEYED NO.2 |
