NSN 5310-01-354-4241 NAS1731063P, NAS1731-06-3P, 01-354-4241
Product Details | BLIND RIVET SELF-LOCKING NUT
5310-01-354-4241 A metallic headed fastener having internal threads for a portion of the full length. It may have a smooth, hexagon or splined shank with an open or closed end. It is designed to be expanded tightly against the material it is being installed in by means of a special tool. The item must have a specified grip range. The grip range is the thickness of the material the item is being installed in. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NAS1731063P, NAS1731-06-3P, 5310-01-354-4241, 01-354-4241, 5310013544241, 013544241
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 FEB 1992 | 01-354-4241 | 29724 ( NUT, SELF-LOCKING, BLIND RIVET ) |

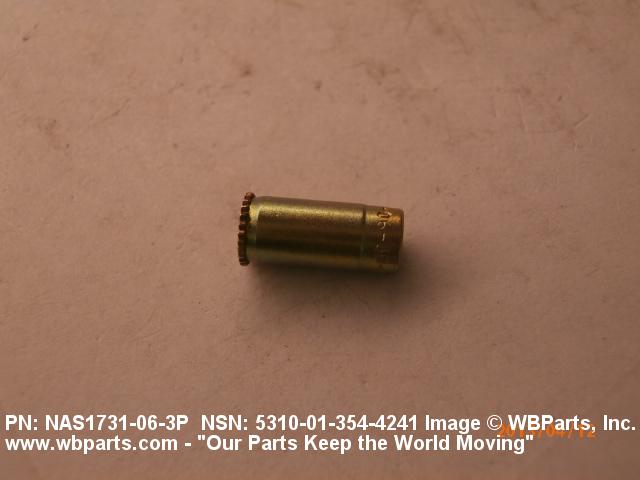

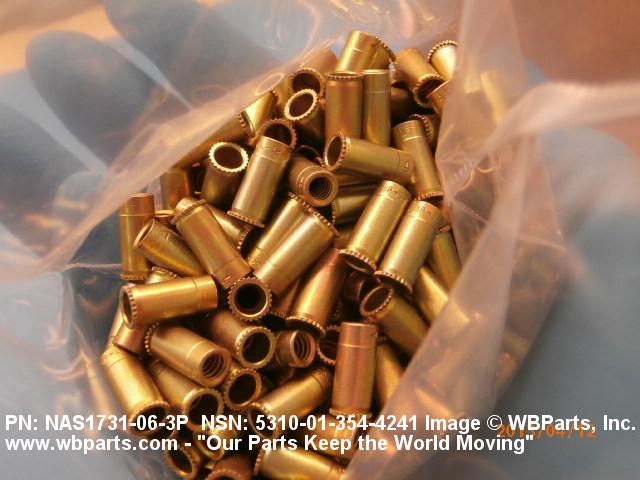

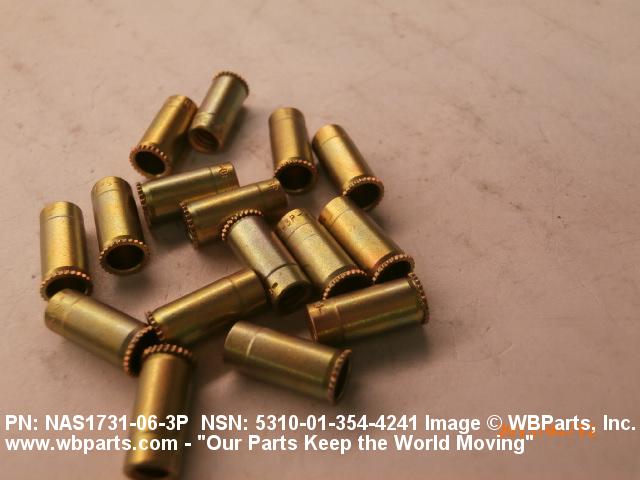

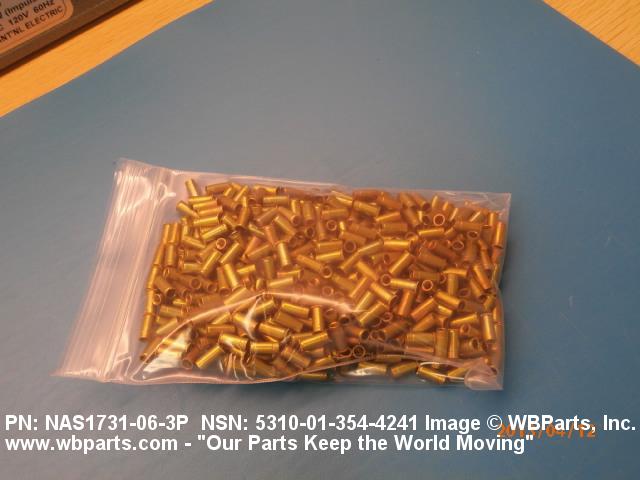

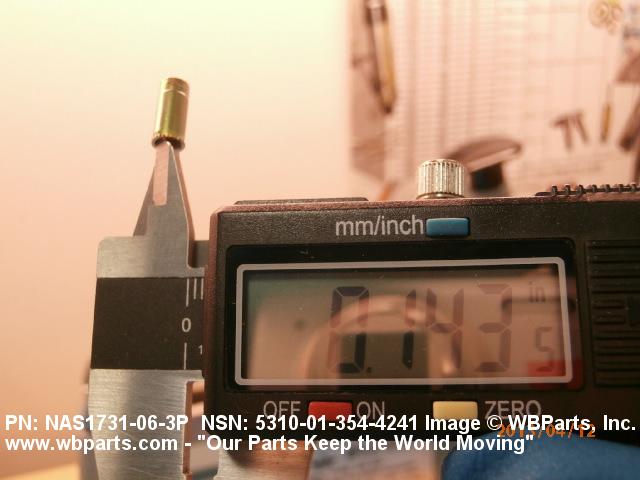

Drawings & Photos | NSN 5310-01-354-4241
Demand History | NSN 5310-01-354-4241
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-354-4241 | 2024-05-137 | 125 | US |
| NAS1731063P | 2022-03-63 | 115 | United States |
| 5310-01-354-4241 | 2021-09-264 | 200 | US |
| 5310-01-354-4241 | 2021-09-260 | 200 | US |
| NAS1731063P | 2021-02-34 | 115 | United States |
| 5310-01-354-4241 | 2018-06-169 | 85 | us |
| NAS1731063P | 2012-12-354 | 500 | us |
| 5310-01-354-4241 | 2012-11-320 | 272 | us |
| NAS1731063P | 2008-11-319 | 175 | United States |
| NAS1731063P | 2008-06-162 | 170 | US |
Cross Reference | NSN 5310-01-354-4241
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1731-06-3P | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-354-4241
Related Products | NSN 5310-01-354-4241
Technical Data | NSN 5310-01-354-4241
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | AAL |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 304 OR STEEL COMP 305 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-P-763 MIL SPEC ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | PASSIVATE OR CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 MIL SPEC 1ST TREATMENT RESPONSE OR QQ-P-416 TY2 CL2 MIL SPEC 2ND TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A22 BLIND RIVET W/SMOOTH ROUND SHANK |

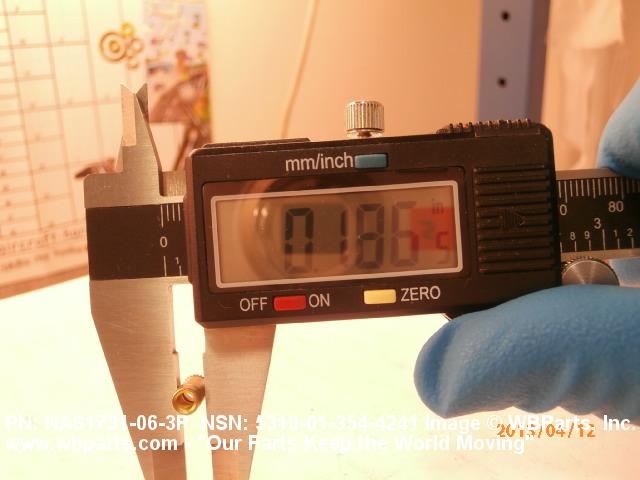

| NUT DIAMETER | 0.186 INCHES MINIMUM AND 0.188 INCHES MAXIMUM |

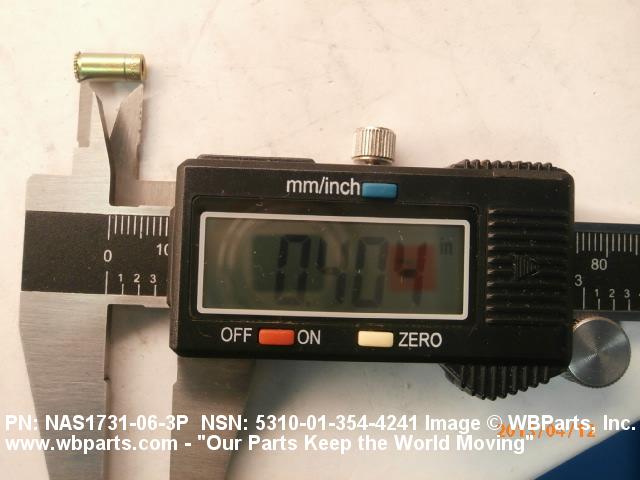

| NUT LENGTH | 0.400 INCHES MINIMUM AND 0.419 INCHES MAXIMUM |
| NUT GRIP RANGE | 0.090 TO 0.120 INCHES |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| HEAD STYLE | D22 SERRATED WITH PILOT |

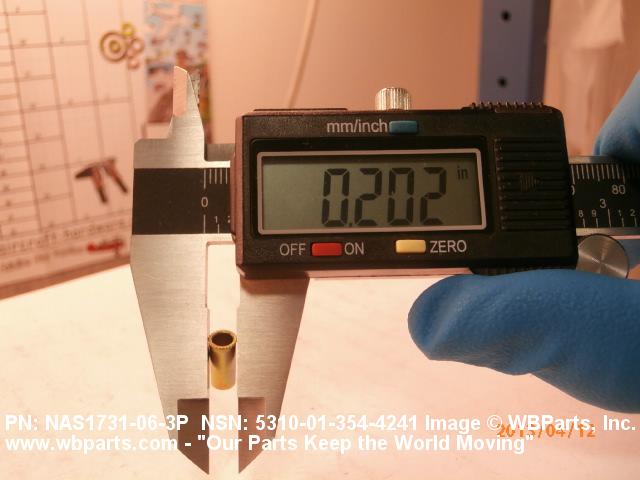

| HEAD DIAMETER | 0.208 INCHES NOMINAL |

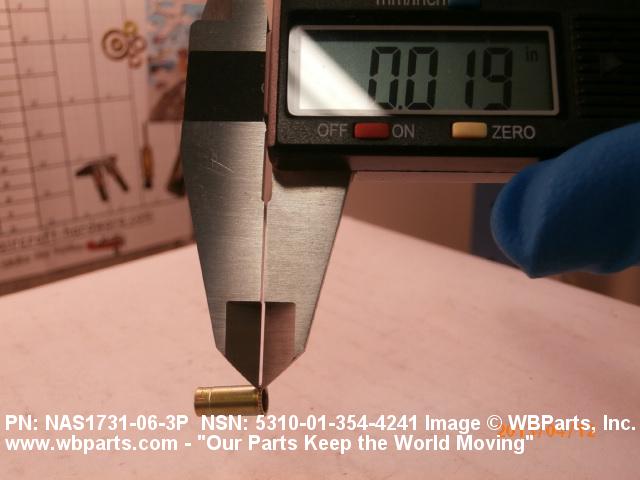

| HEAD HEIGHT | 0.010 INCHES MINIMUM AND 0.021 INCHES MAXIMUM |
| HEAD PILOT DIAMETER | 0.141 INCHES MINIMUM AND 0.146 INCHES MAXIMUM |
| SHANK END TYPE | OPEN |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
| SPECIFICATION/STANDARD DATA | 80205-NAS1731 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5310-01-354-4241
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
