NSN 5310-01-260-0451 NAS57714A, NAS577-14A, NAS577B14A
Product Details | BARREL SELF-LOCKING NUT

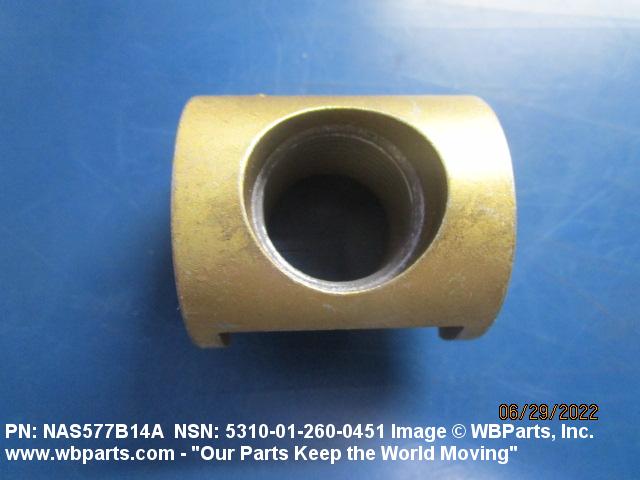

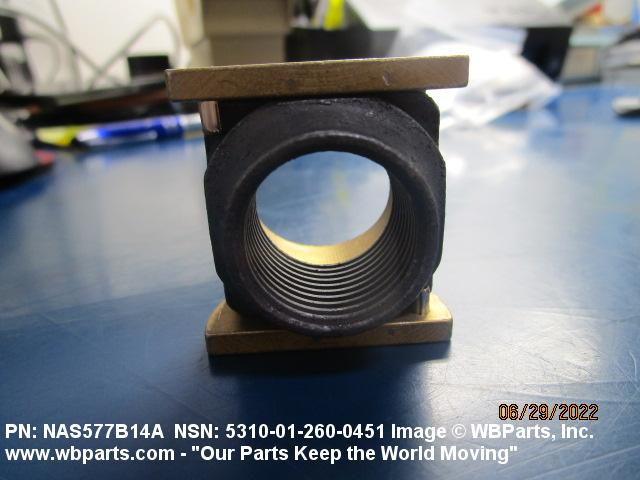

5310-01-260-0451 A nut of cylindrical or partly cylindrical cross-section with integral threads perpendicular to the axial centerline. Ends may be flat or flanged. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, ROUND.
Part Alternates: NAS57714A, NAS577-14A, NAS577B14A, 5310-01-260-0451, 01-260-0451, 5310012600451, 012600451
Hardware and Abrasives | Nuts and Washers
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 24 JUL 1987 | 01-260-0451 | 15891 ( NUT, SELF-LOCKING, BARREL ) |
Demand History | NSN 5310-01-260-0451
Part Number | Request Date | QTY | Origin |
---|---|---|---|
5310-01-260-0451 | 2024-06-170 | 8 | United Kingdom |
5310-01-260-0451 | 2022-06-172 | 8 | us |
NAS577B14A | 2019-03-72 | 4 | United States |
NAS577B14A | 2019-03-66 | 4 | United States |
NAS577B14A | 2019-03-64 | 4 | United States |
NAS577B14A | 2017-09-264 | 80 | JO |
5310-01-260-0451 | 2016-04-108 | 12 | DIBBS |
5310-01-260-0451 | 2015-12-364 | 29 | DIBBS |
5310-01-260-0451 | 2014-12-351 | 25 | DIBBS |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-260-0451
Related Products | NSN 5310-01-260-0451
Technical Data | NSN 5310-01-260-0451
Characteristic | Specifications |
---|---|
THREAD SERIES | UNJF |
NOMINAL THREAD SIZE | 0.875 INCHES |
THREAD QUANTITY PER INCH | 14 |
THREAD CLASS | 3B |
THREAD DIRECTION | RIGHT-HAND |
MATERIAL | STEEL COMP 8740 OR STEEL COMP 4340 OVERALL |
MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6049 MIL SPEC 1ST MATERIAL RESPONSE OR AMS 6322 ASSN STD 1ST MATERIAL RESPONSE OR MIL-S-8844,CL 1 MIL SPEC 2ND MATERIAL RESPONSE OVERALL |
SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
HARDNESS RATING | 34.0 ROCKWELL C MINIMUM AND 41.0 ROCKWELL C MAXIMUM |
NUT STYLE | A40 FLOATING SELF-LOCKING BARREL |

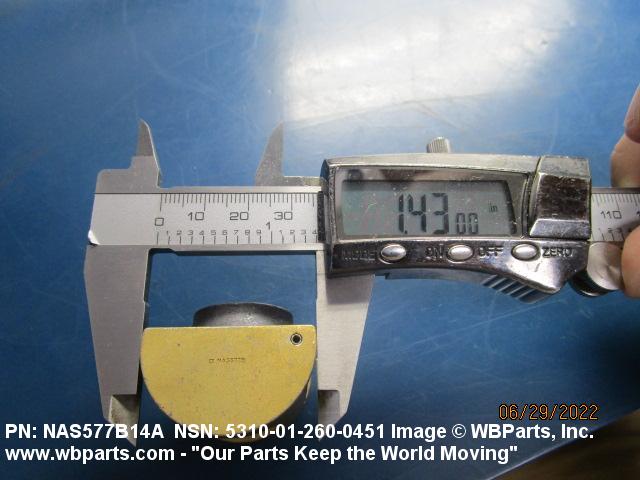

NUT DIAMETER | 1.430 INCHES MINIMUM AND 1.433 INCHES MAXIMUM |

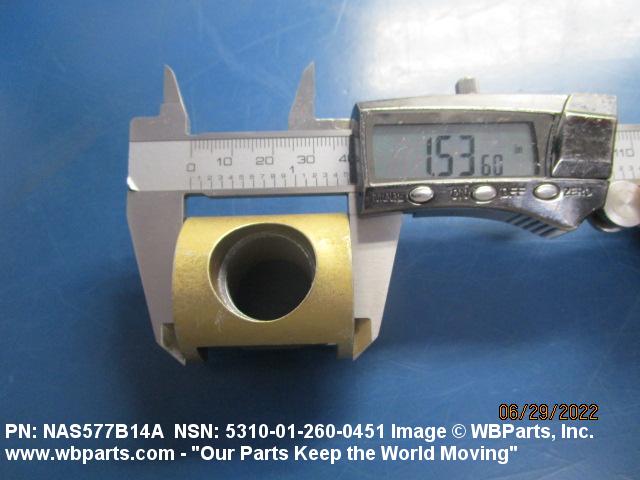

NUT LENGTH | 1.521 INCHES MINIMUM AND 1.541 INCHES MAXIMUM |
BARREL HEIGHT | 0.840 INCHES MINIMUM AND 0.850 INCHES MAXIMUM |

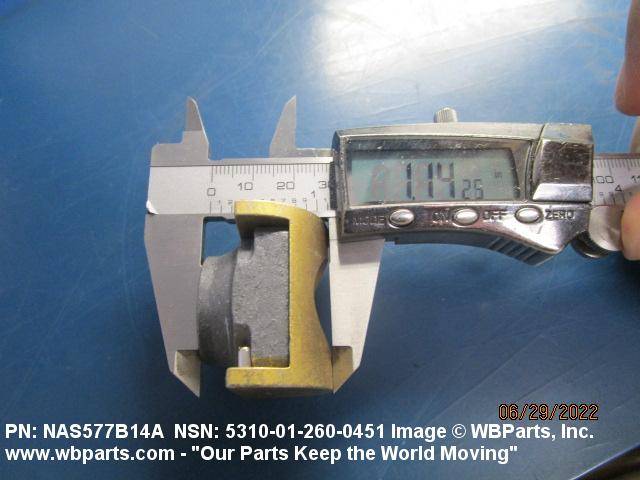

NUT HEIGHT | 1.156 INCHES MAXIMUM |
LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
LUBRICATION | DRY FILM LUBRICANT |
TEMP RATING | NOT RATED |
FEATURES PROVIDED | FLOATING NUT |
SPECIFICATION/STANDARD DATA | 80205-NAS577 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5310-01-260-0451
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
Category | Code | Description |
---|---|---|
NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
Less than car load rating | ||
Less than truck load rating | W | Rating Variable |
Water commodity Code | 573 | unknown |
Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-260-0451
Category | Code | Description |
---|---|---|
Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
Price Validation | V | The current standard price has been validated.
|
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DF | Department of the Air Force |
Service Organization | F | U.S. Air Force |
Reparability | N | Stock Fund (except Munitions) |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
