NSN 5310-01-194-0699 10110122 , 4M3121, 4M312-1
Product Details | CONVEX WASHER
5310-01-194-0699 A washer which is round with a centrally located hole. One bearing surface is smooth, flat, and unbroken, the other bearing surface is smooth, unbroken, and is raised to form a curved or spherical contour. See also WASHER (1), CONCAVE. Excludes BEARING, WASHER THRUST.
Part Alternates: 10110122 , 4M3121, 4M312-1, 5310-01-194-0699, 01-194-0699, 5310011940699, 011940699
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 NOV 1984 | 01-194-0699 | 15931 ( WASHER, CONVEX ) |

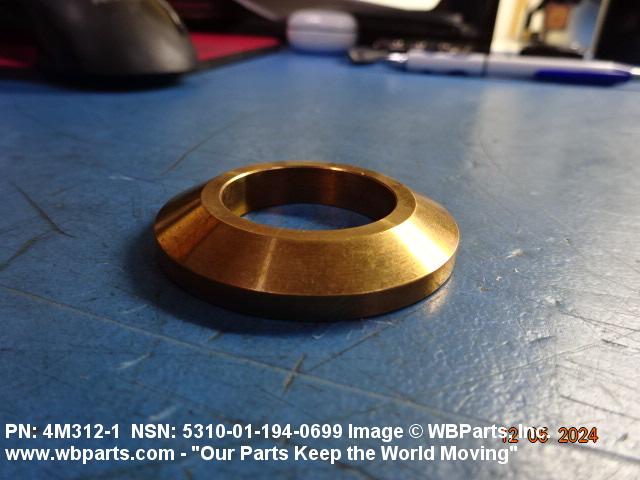

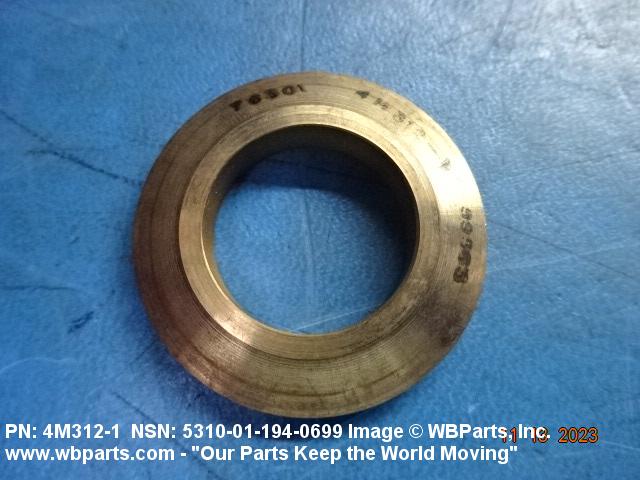

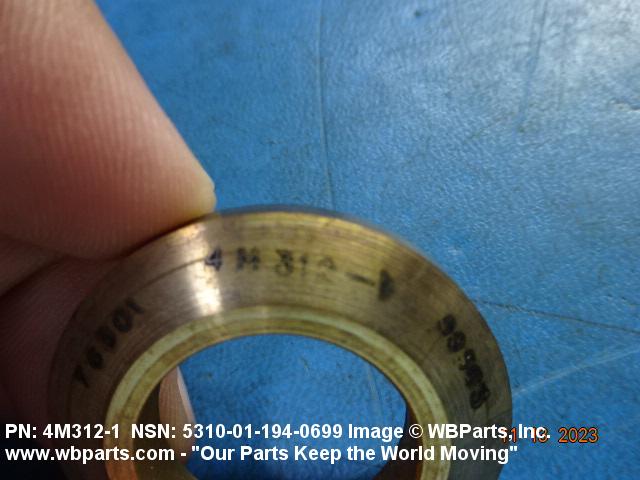

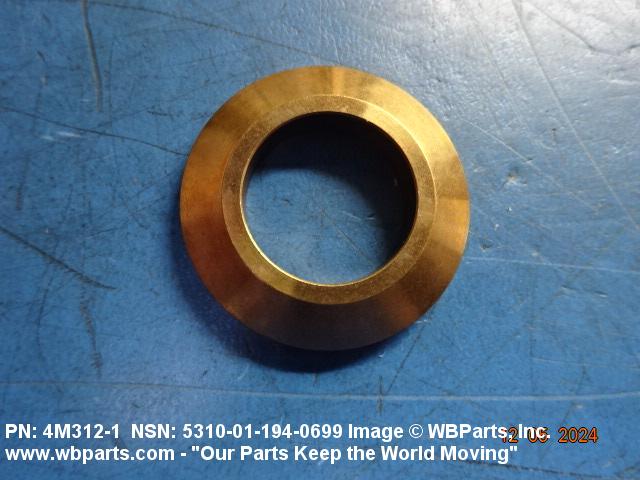

Drawings & Photos | NSN 5310-01-194-0699
Demand History | NSN 5310-01-194-0699
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4M3121 | 2024-10-303 | 4 | us |
| 4M3121 | 2024-08-229 | 4 | us |
| 5310-01-194-0699 | 2023-10-283 | 5 | us |
| 5310-01-194-0699 | 2022-10-299 | 31 | DIBBS |
| 5310-01-194-0699 | 2022-08-235 | 55 | DIBBS |
| 5310-01-194-0699 | 2020-01-30 | 41 | DIBBS |
| 5310-01-194-0699 | 2018-02-56 | 112 | DIBBS |
| 5310-01-194-0699 | 2017-12-356 | 58 | DIBBS |
| 5310-01-194-0699 | 2017-12-355 | 58 | DIBBS |
| 5310-01-194-0699 | 2017-12-346 | 58 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-194-0699
Technical Data | NSN 5310-01-194-0699
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 172 OR COPPER ALLOY 173 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-530 FED SPEC ALL MATERIAL RESPONSES OVERALL |
| STYLE DESIGNATOR | 7 CONVEX |

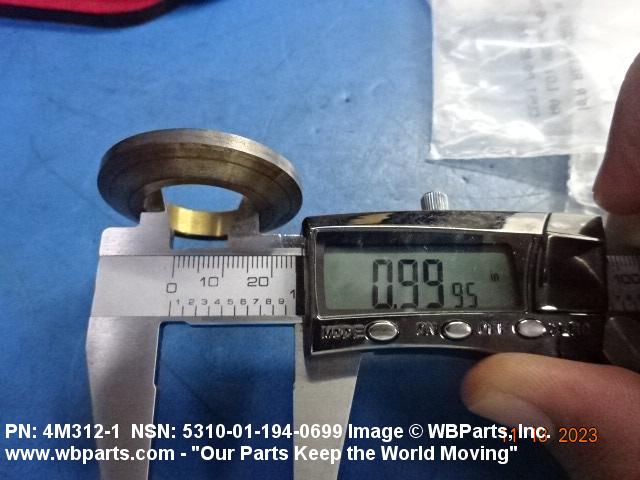

| HOLE DIAMETER | 0.9995 INCHES MINIMUM AND 1.0005 INCHES MAXIMUM |

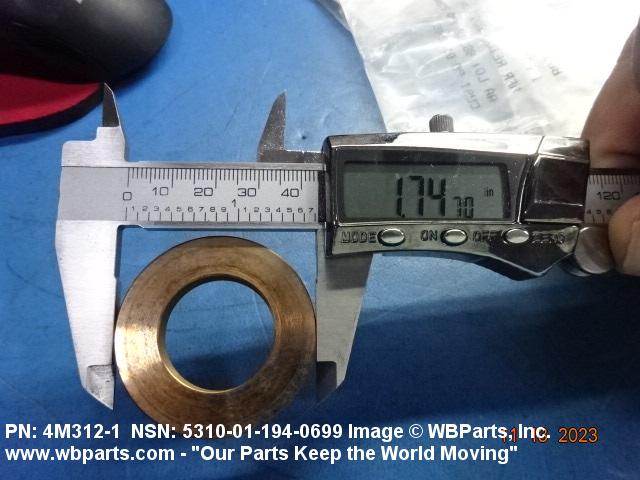

| OUTSIDE DIAMETER | 1.750 INCHES NOMINAL |

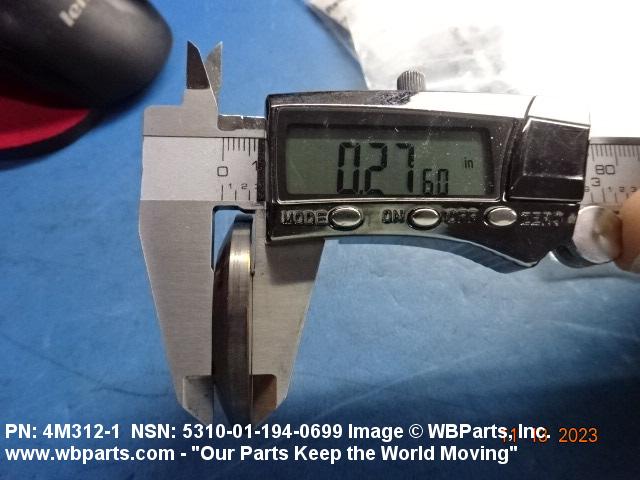

| MATERIAL THICKNESS | 0.270 INCHES MINIMUM AND 0.280 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5310-01-194-0699
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-194-0699
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
