NSN 5310-01-149-0743 3340135000, 334-0135-000, 01-149-0743
Product Details | SHEET SPRING NUT
5310-01-149-0743 A nut formed from sheet spring material, usually steel, into varying flat, concave, bent or curved designs, having apertures with suitable boss or bosses usually on the upper side capable of securely gripping a mating threaded member. Excludes NUT (1), STAMPED.
Part Alternates: 3340135000, 334-0135-000, 5310-01-149-0743, 01-149-0743, 5310011490743, 011490743
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 MAR 1983 | 01-149-0743 | 01865 ( NUT, SHEET SPRING ) |

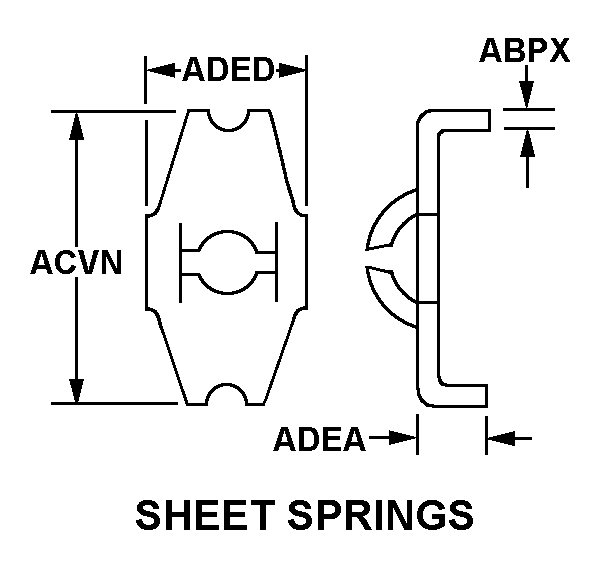

Drawings & Photos | NSN 5310-01-149-0743
Cross Reference | NSN 5310-01-149-0743
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 334-0135-000 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-149-0743
Technical Data | NSN 5310-01-149-0743
| Characteristic | Specifications |
|---|---|
| MATING MEMBER DIAMETER ACCOMMODATED | 0.164 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | PHOSPHATE OVERALL |
| NUT STYLE | A166 SHEET SPRING |
| MATERIAL THICKNESS | 0.012 INCHES NOMINAL |
| NUT LENGTH | 0.750 INCHES NOMINAL |
| NUT HEIGHT | 0.063 INCHES NOMINAL |
| NUT WIDTH | 0.500 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5310-01-149-0743
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
