NSN 5310-01-361-5329 MDRC500103, MDRC500-10-3, NS1037391002
Product Details | SHEET SPRING NUT
5310-01-361-5329 A nut formed from sheet spring material, usually steel, into varying flat, concave, bent or curved designs, having apertures with suitable boss or bosses usually on the upper side capable of securely gripping a mating threaded member. Excludes NUT (1), STAMPED.
Part Alternates: MDRC500103, MDRC500-10-3, NS1037391002, NS103739-10-02, A49721002, A4972-10-02, SL23131625, SL231-3-1-625, 13100000103, 13100000-10-3, 13100000-5, 3D003920, 3D0039-20, 5310-01-361-5329, 01-361-5329, 5310013615329, 013615329, 131000005
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 JUL 1992 | 01-361-5329 | 01865 ( NUT, SHEET SPRING ) |

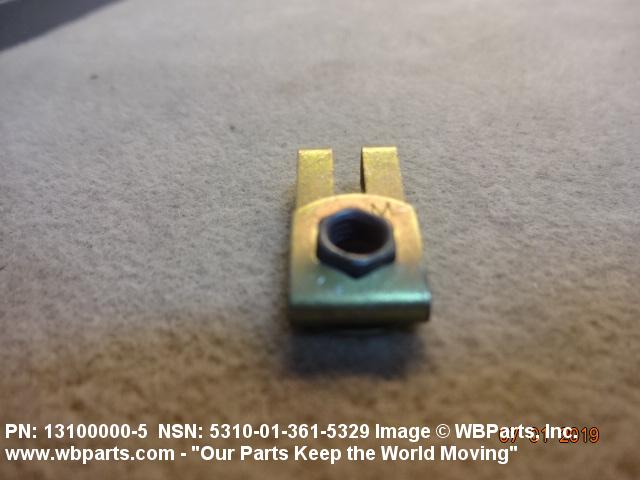

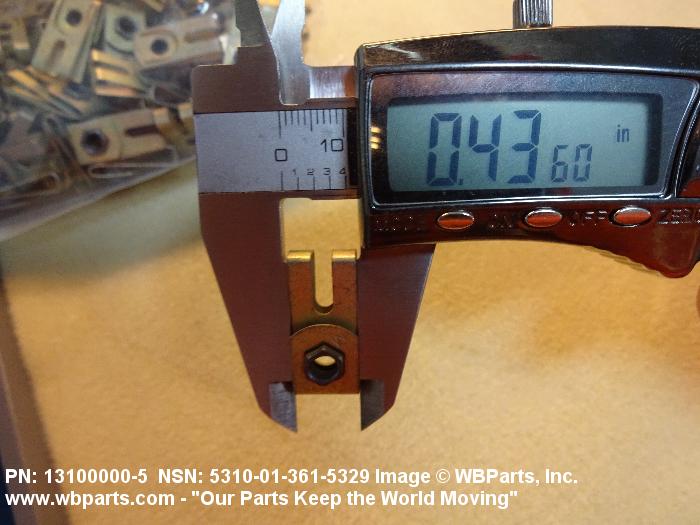

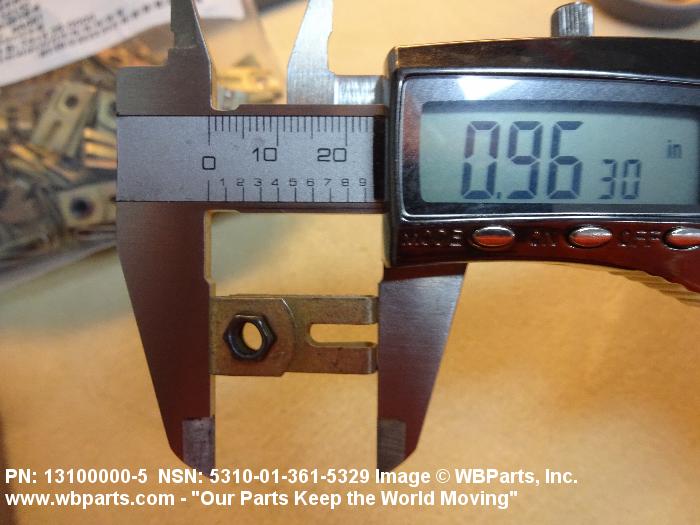

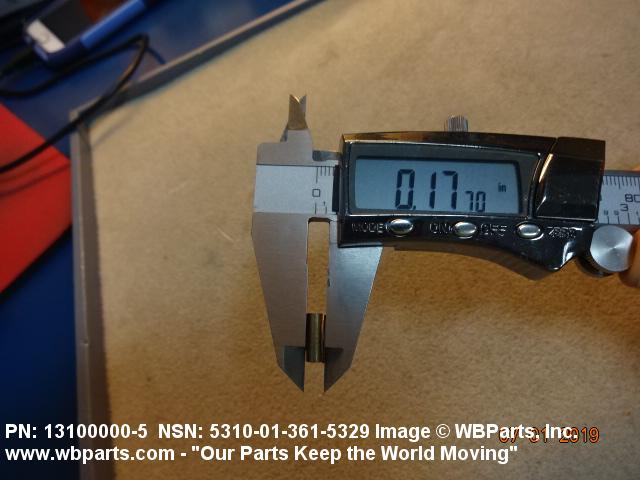

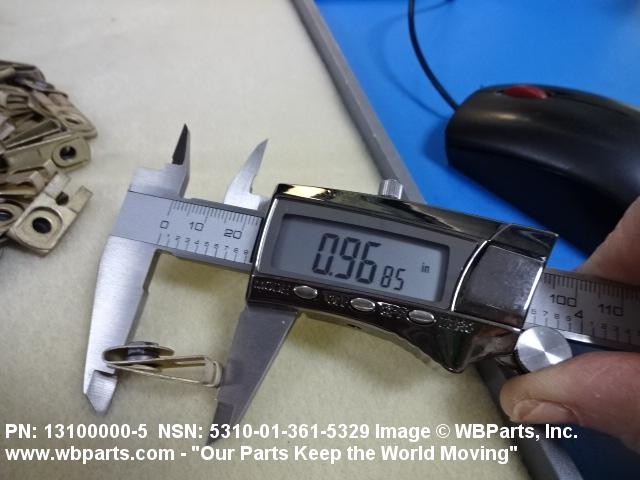

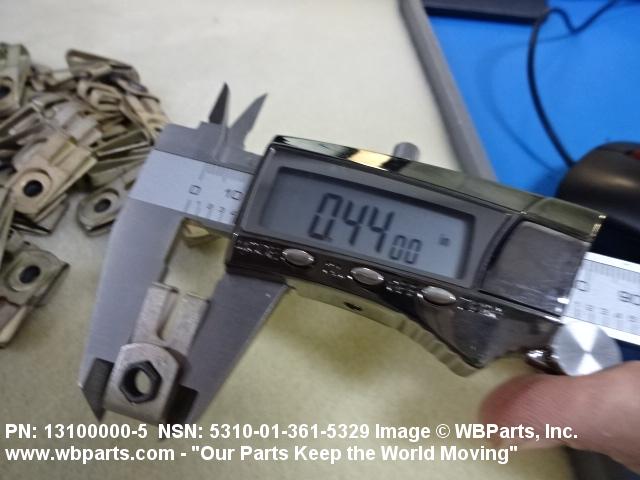

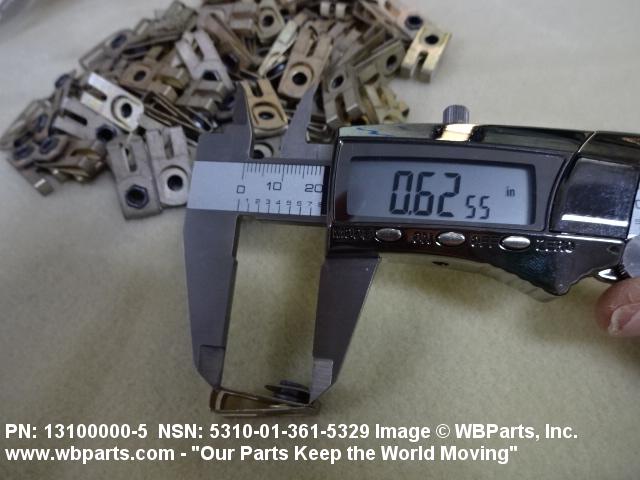

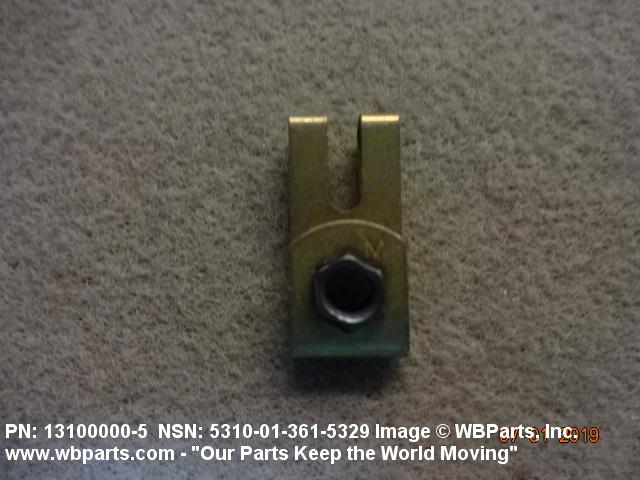

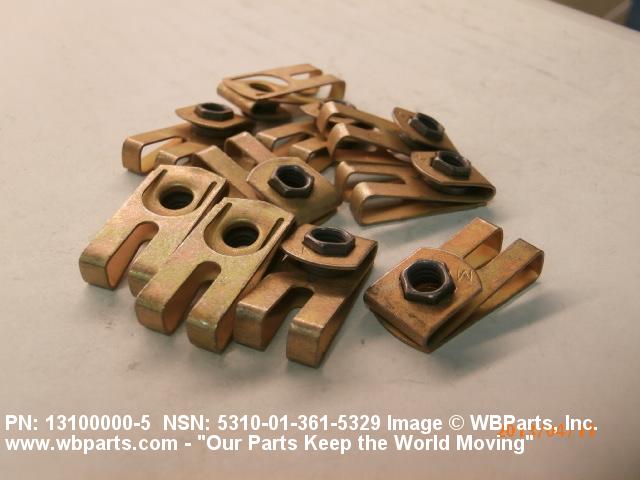

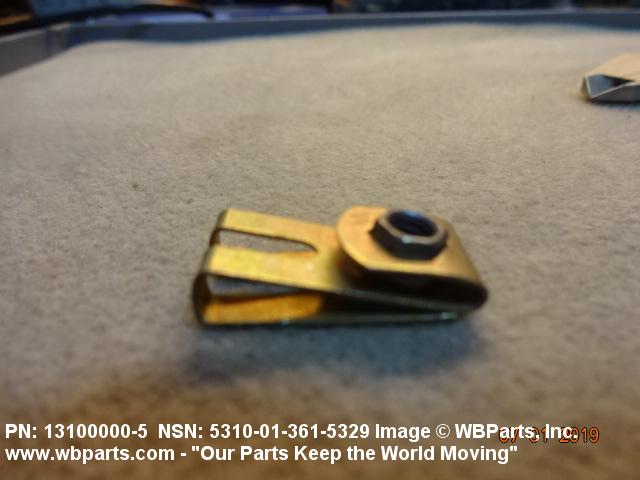

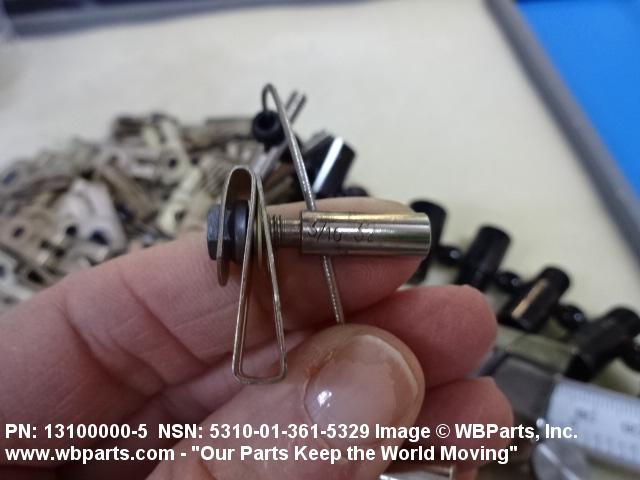

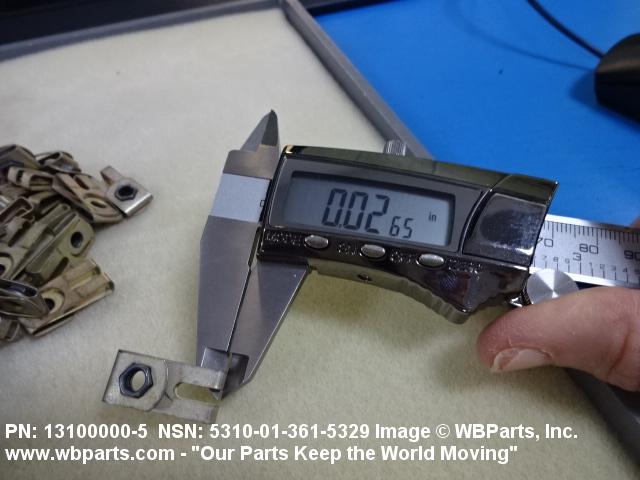

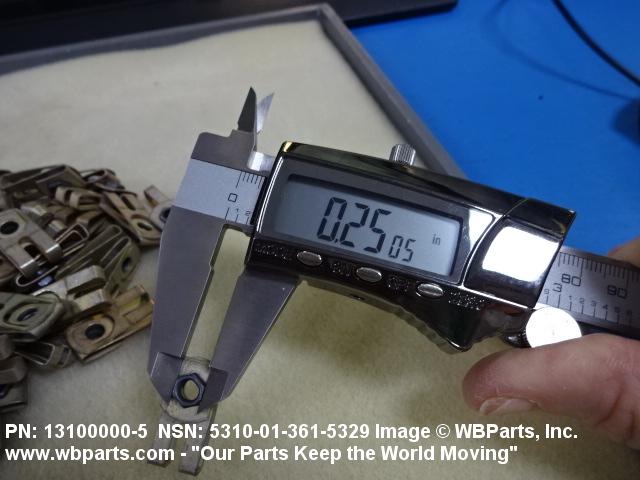

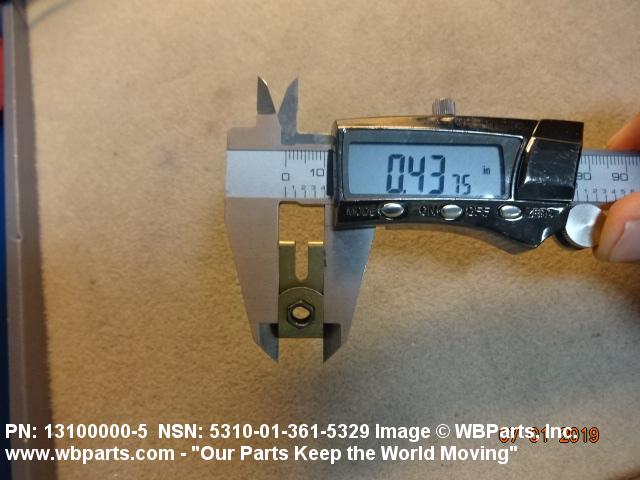

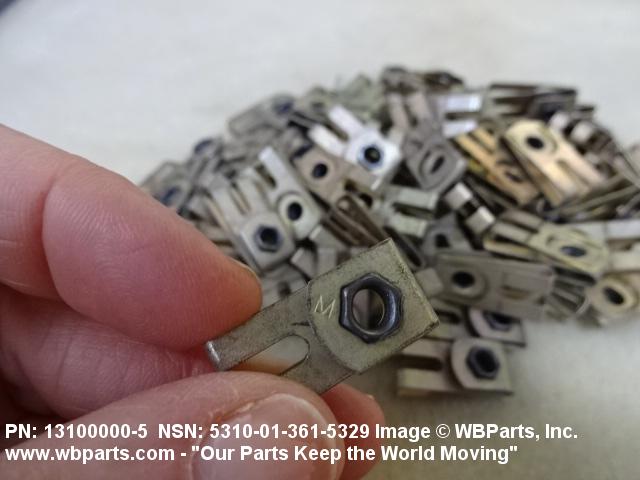

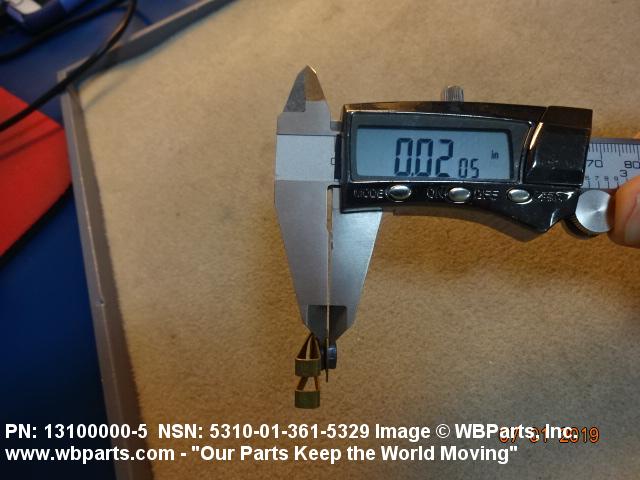

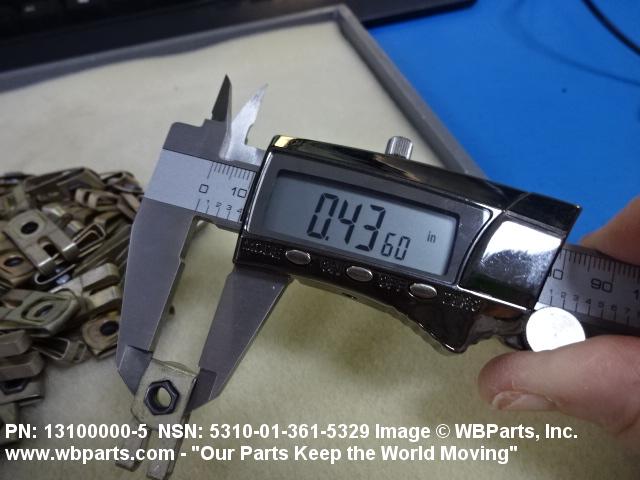

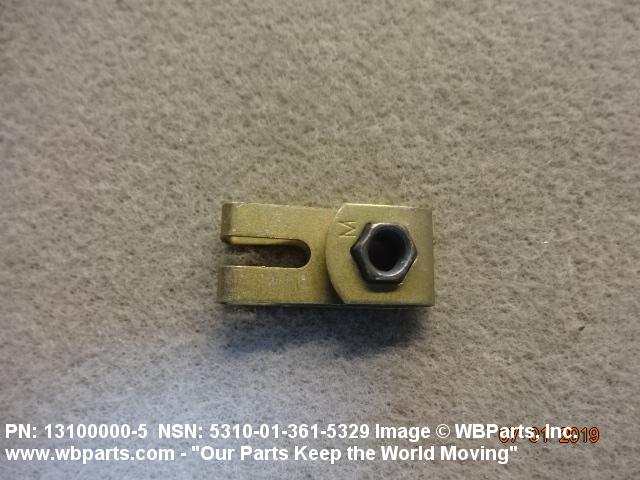

Drawings & Photos | NSN 5310-01-361-5329
Demand History | NSN 5310-01-361-5329
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 131000005 | 2023-07-205 | 1 | US |
| 131000005 | 2023-07-205 | 1 | US |
| 13100000-5 | 2019-09-258 | 534 | DIBBS |
| 3D0039-20 | 2019-09-258 | 534 | DIBBS |
| MDRC500-10-3 | 2019-09-258 | 534 | DIBBS |
| NS103739-10-02 | 2019-09-258 | 534 | DIBBS |
| SL231-3-1-625 | 2019-09-258 | 534 | DIBBS |
| 131000005 | 2014-04-113 | 1000 | US |
| A49721002 | 2013-10-296 | 5 | United States |
| 131000005 | 2013-04-91 | 100 | Germany |
| 5310-01-361-5329 | 2012-04-116 | 5 | United States |
| 131000005 | 2011-06-166 | 50 | Germany |
| 131000005 | 2011-01-10 | 300 | United States |
| A49721002 | 2010-03-77 | 15 | us |
| A49721002 | 2009-03-84 | 110 | US |
| A49721002 | 2009-03-84 | 110 | US |
| A49721002 | 2009-03-84 | 110 | US |
| A49721002 | 2008-08-217 | 290 | United States |
| 5310-01-361-5329 | 2008-02-46 | 11977 | DIBBS |
Cross Reference | NSN 5310-01-361-5329
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13100000-10-3 | 60119 | MONADNOCK COMPANY THE DBA LISI AEROSPACE |
| 13100000-5 | 60119 | MONADNOCK COMPANY THE DBA LISI AEROSPACE |
| 3D0039-20 | 88277 | BOEING COMPANY, THE DBA BOEING |
| A4972-10-02 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| A4972-10-02 | 72962 | HARVARD INDUSTRIES INC |
| MDRC500-10-3 | 52828 | REPUBLIC FASTENER MFG. CORP. |
| NS103739-10-02 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| SL231-3-1-625 | 97393 | SHUR-LOK CORPORATION DBA SPS FASTENER DIVISION, A PCC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-361-5329
Related Products | NSN 5310-01-361-5329
Technical Data | NSN 5310-01-361-5329
| Characteristic | Specifications |
|---|---|
| MATING MEMBER DIAMETER ACCOMMODATED | 0.220 INCHES MINIMUM AND 0.230 INCHES MAXIMUM |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416, TY 2, CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MATERIAL THICKNESS | 0.023 INCHES NOMINAL |
| NUT WIDTH | 0.406 INCHES MAXIMUM |
| PANEL THICKNESS | 0.175 INCHES MINIMUM AND 0.205 INCHES MAXIMUM |
| FEATURES PROVIDED | FLOATING NUT |
Restrictions/Controls & Freight Information | NSN 5310-01-361-5329
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-361-5329
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
