NSN 5310-00-806-7198 1509685, 294667, 00-806-7198
Product Details | SHEET SPRING NUT

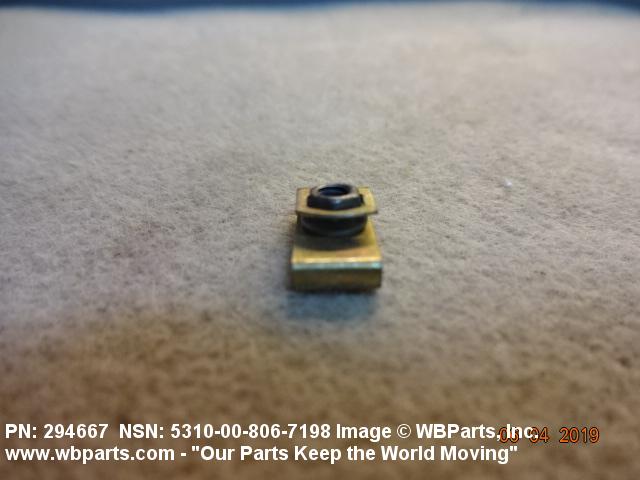

5310-00-806-7198 A nut formed from sheet spring material, usually steel, into varying flat, concave, bent or curved designs, having apertures with suitable boss or bosses usually on the upper side capable of securely gripping a mating threaded member. Excludes NUT (1), STAMPED.
Part Alternates: 1509685, 294667, 5310-00-806-7198, 00-806-7198, 5310008067198, 008067198
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-806-7198 | 01865 ( NUT, SHEET SPRING ) |

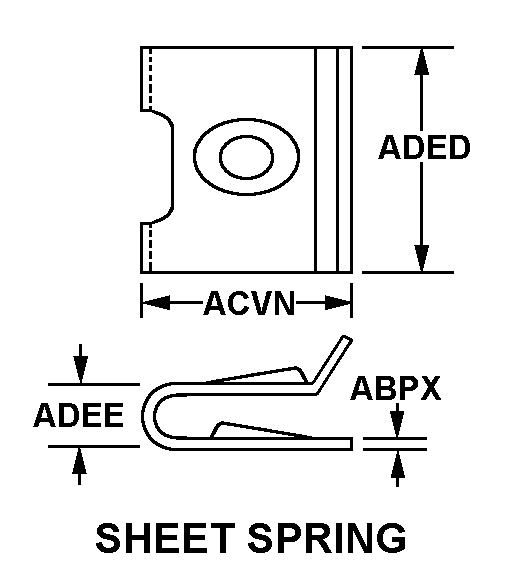

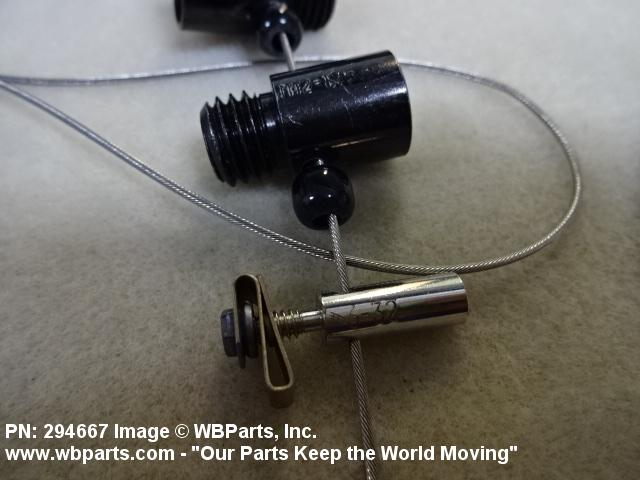

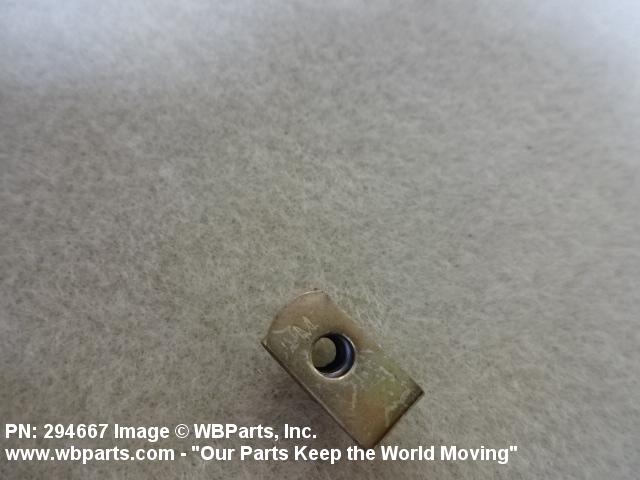

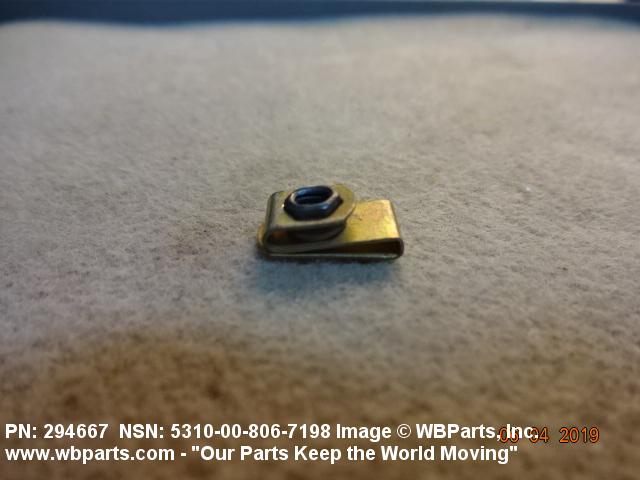

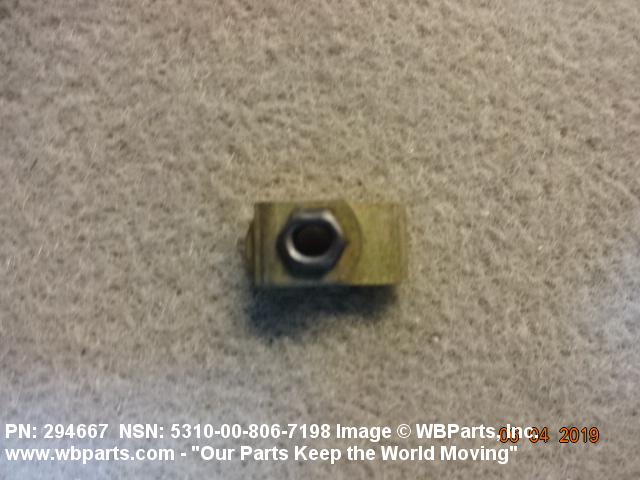

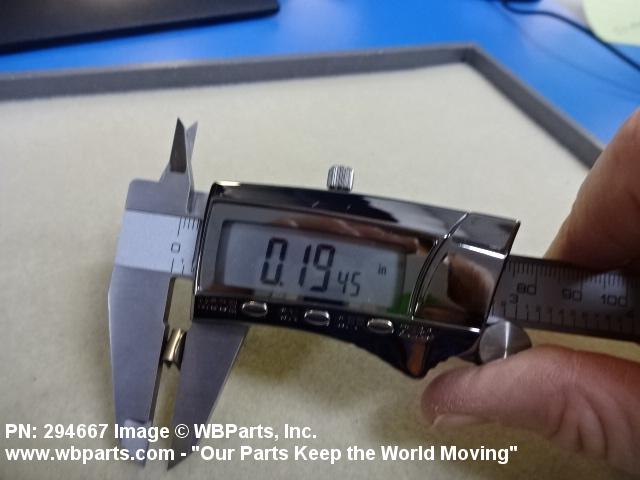

Drawings & Photos | NSN 5310-00-806-7198
Demand History | NSN 5310-00-806-7198
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 294667 | 2024-06-177 | 10 | us |
| 5310-00-806-7198 | 2016-11-307 | 468 | DIBBS |
| 294667 | 2014-06-157 | 50 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-806-7198
Related Products | NSN 5310-00-806-7198
Technical Data | NSN 5310-00-806-7198

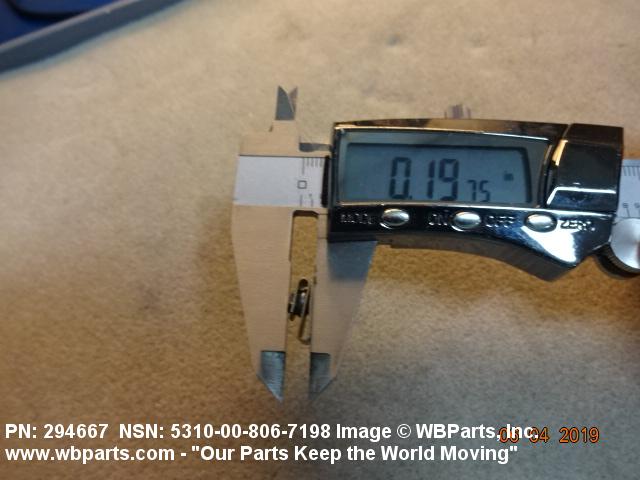

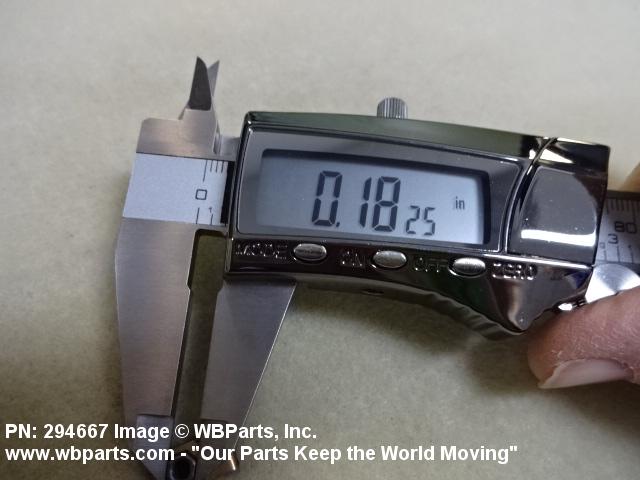

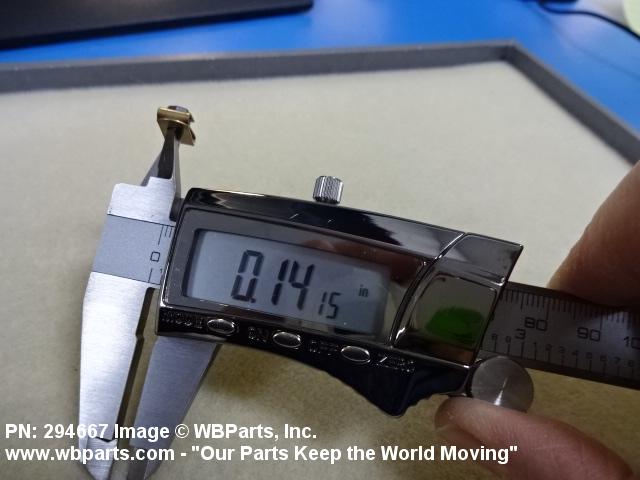

| Characteristic | Specifications |
|---|---|
| MATING MEMBER DIAMETER ACCOMMODATED | 0.170 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 1050 OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2 CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| NUT STYLE | A178 SHEET SPRING |

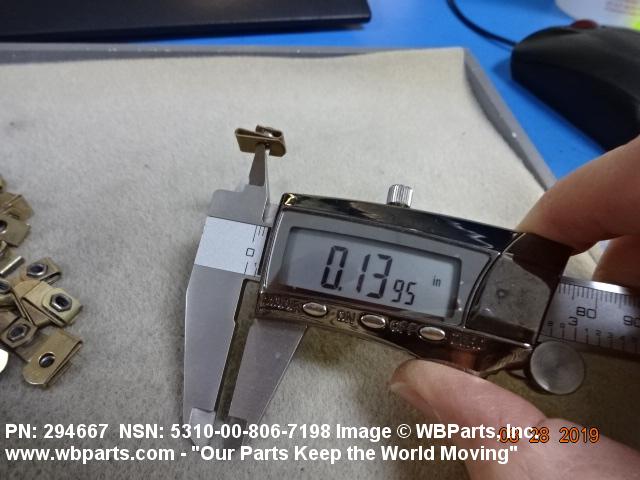

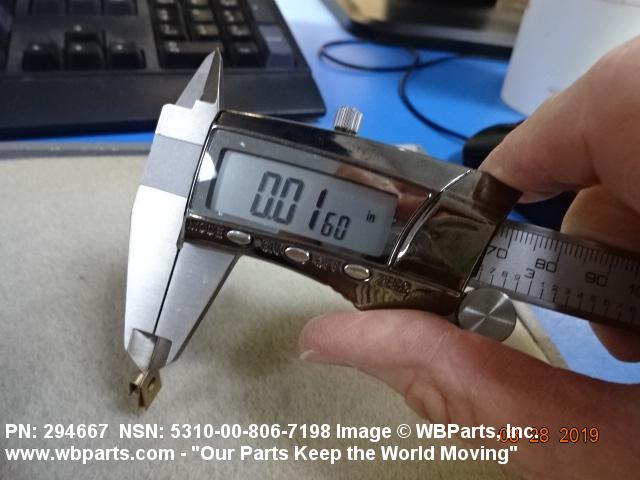

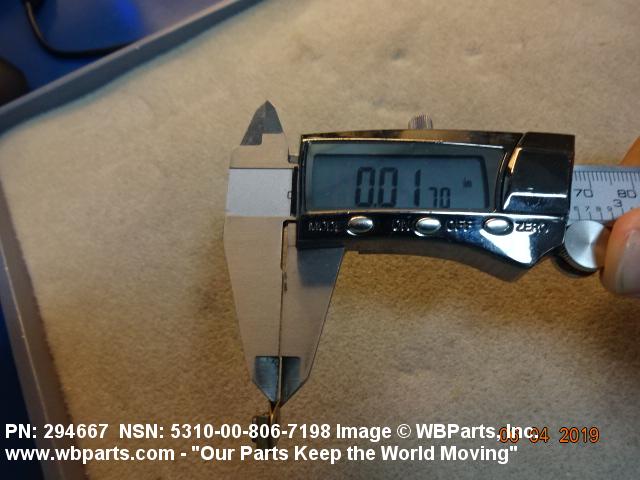

| MATERIAL THICKNESS | 0.015 INCHES NOMINAL |

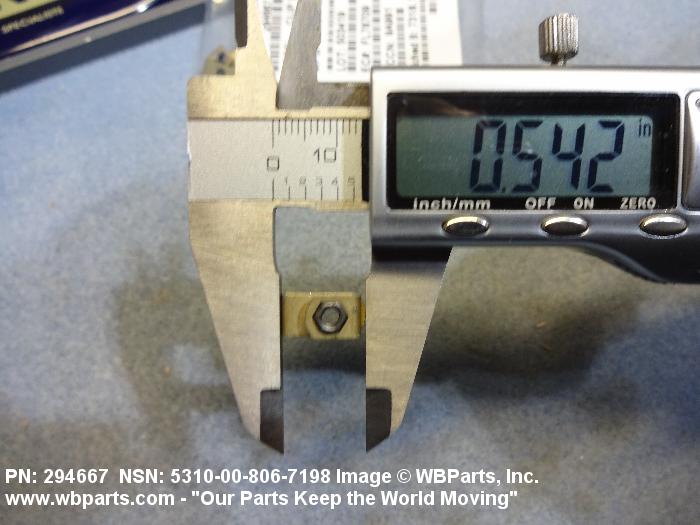

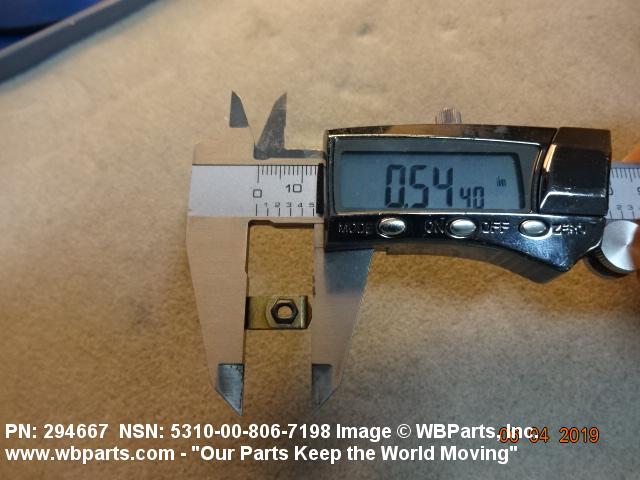

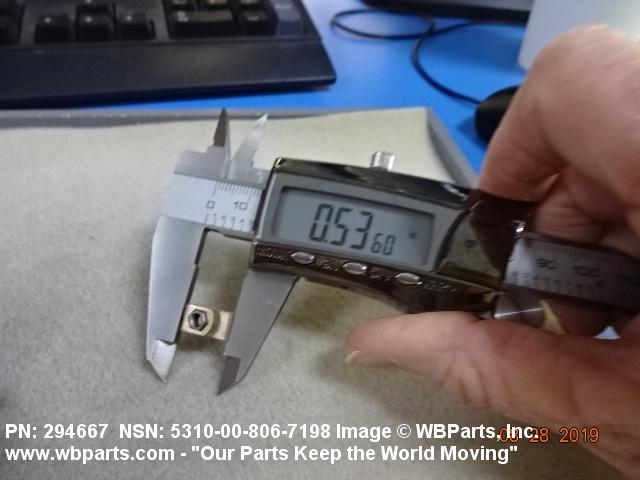

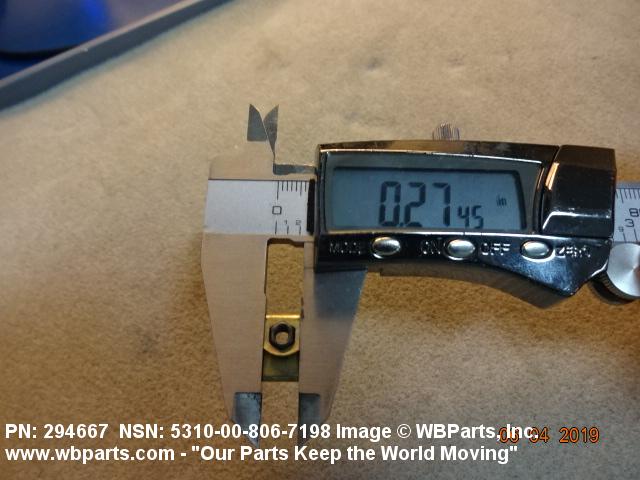

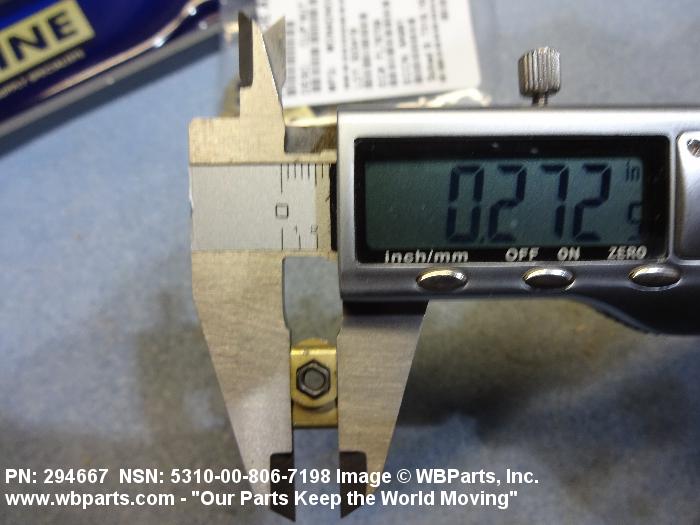

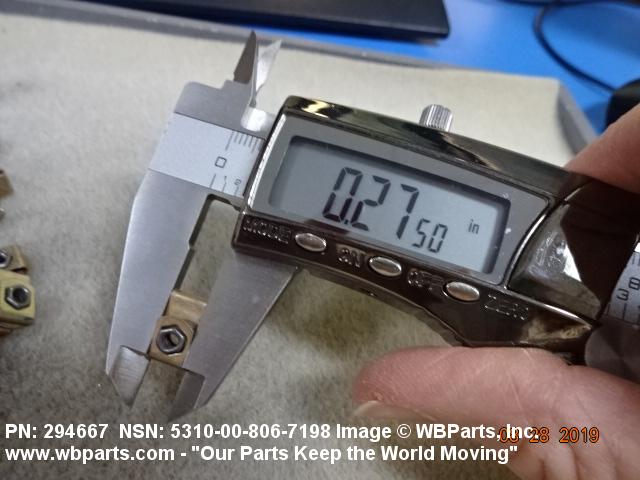

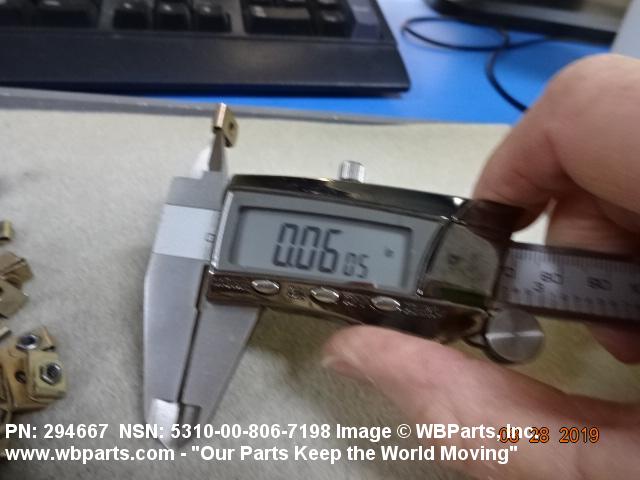

| NUT LENGTH | 0.544 INCHES NOMINAL |
| NUT WIDTH | 0.270 INCHES NOMINAL |
| PANEL THICKNESS | 0.055 INCHES NOMINAL |
| MANUFACTURERS CODE | 60119 |
| DESIGN CONTROL REFERENCE | 294667 |
Restrictions/Controls & Freight Information | NSN 5310-00-806-7198
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
