NSN 5310-01-114-5174 BH00516A6, G3837875, G383787-5
Product Details | ASSEMBLED WASHER SELF-LOCKING NUT
5310-01-114-5174 A nut on which has been assembled a nonremovable washer. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: BH00516A6, G3837875, G383787-5 , KFN5426, KFN542-6, 703971MG6, 717751211002, 717751211-002, 5310-01-114-5174, 01-114-5174, 70-397-1MG6 , 5310011145174, 011145174
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 JUN 1981 | 01-114-5174 | 29736 ( NUT, SELF-LOCKING, ASSEMBLED WASHER ) |

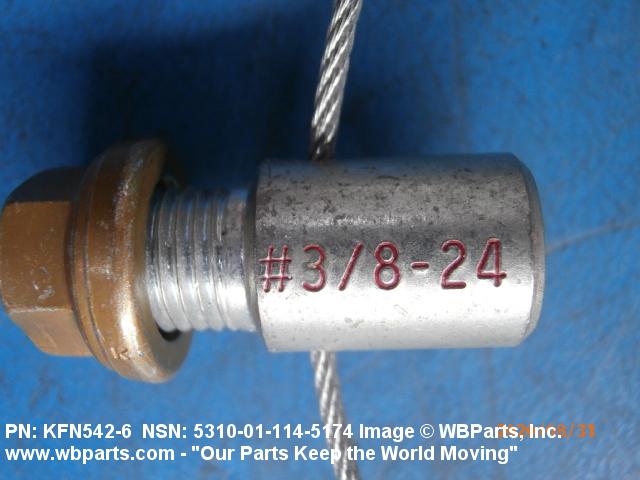

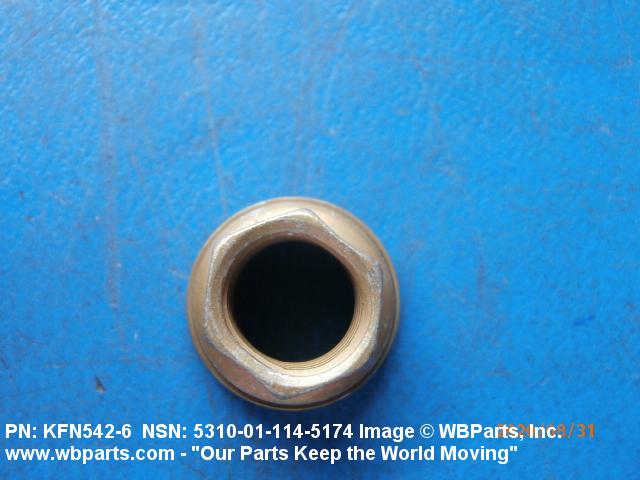

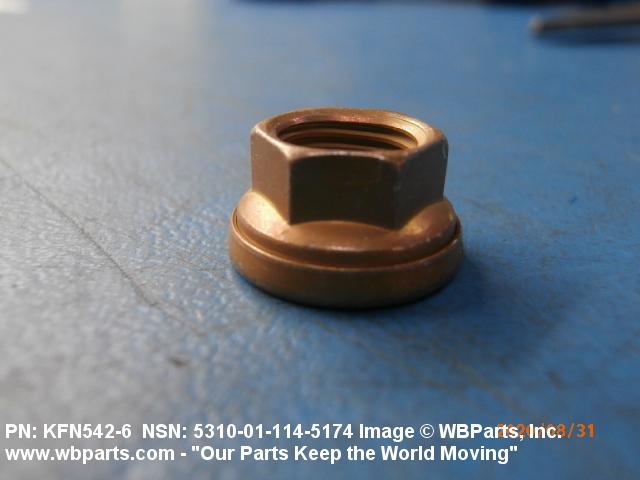

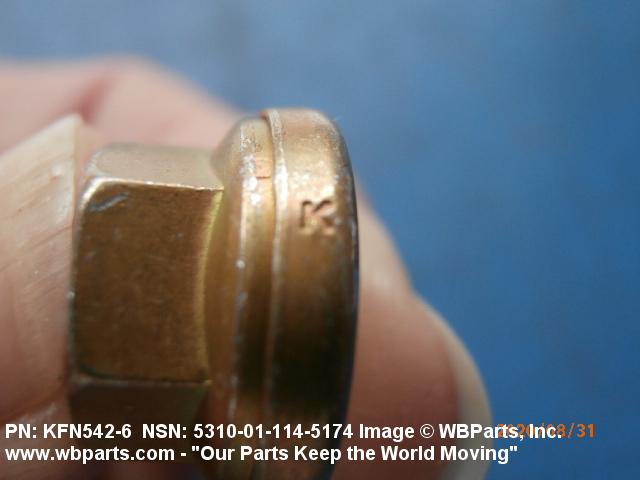

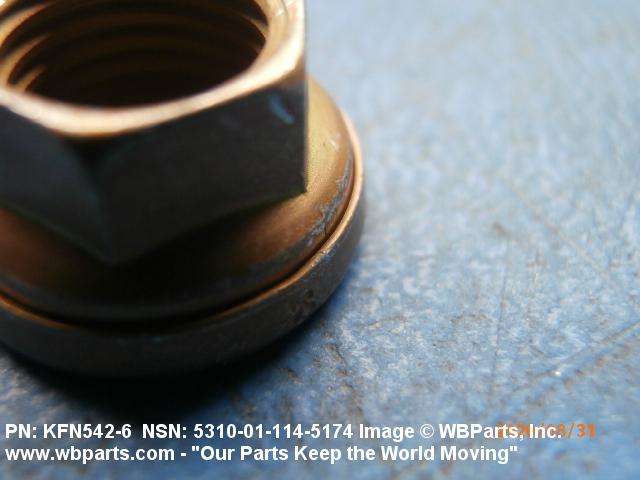

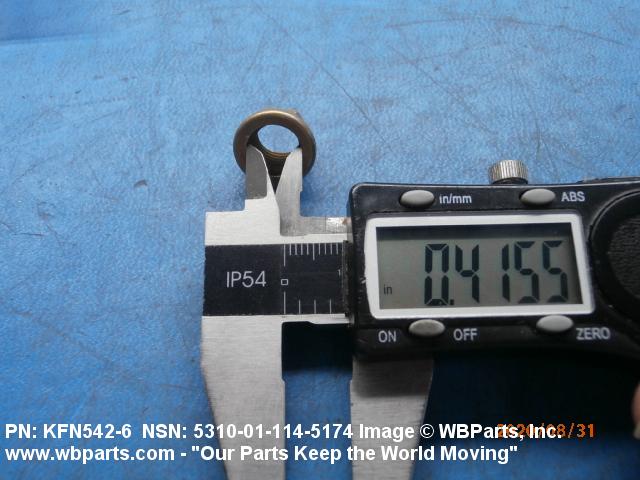

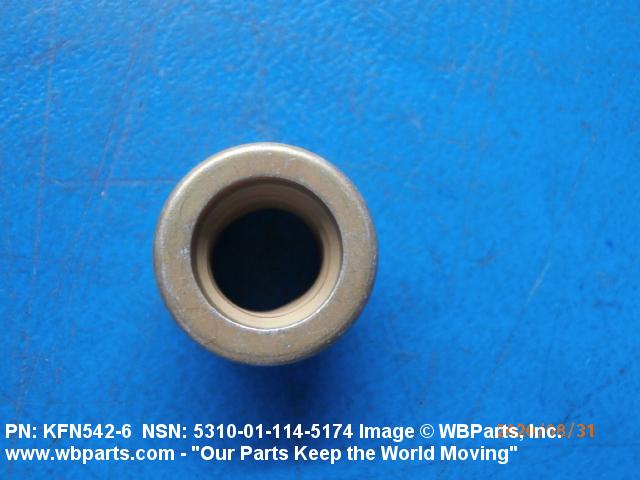

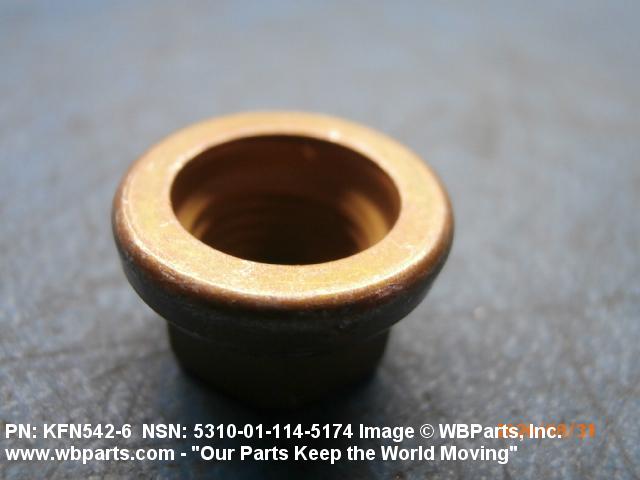

Drawings & Photos | NSN 5310-01-114-5174
Demand History | NSN 5310-01-114-5174
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| KFN5426 | 2023-11-318 | 16 | LV |
| 717751211-002 | 2022-07-187 | 338 | DIBBS |
| BH00516A6 | 2022-07-187 | 338 | DIBBS |
| GHN10009-8 | 2022-07-187 | 338 | DIBBS |
| KFN542-6 | 2022-07-187 | 338 | DIBBS |
| 717751211-002 | 2021-11-313 | 898 | DIBBS |
| BH00516A6 | 2021-11-313 | 898 | DIBBS |
| GHN10009-8 | 2021-11-313 | 898 | DIBBS |
| KFN542-6 | 2021-11-313 | 898 | DIBBS |
| 717751211-002 | 2021-10-280 | 3158 | DIBBS |
| BH00516A6 | 2021-10-280 | 3158 | DIBBS |
| GHN10009-8 | 2021-10-280 | 3158 | DIBBS |
| KFN542-6 | 2021-10-280 | 3158 | DIBBS |
| KFN5426 | 2020-10-304 | 160 | US |
| KFN5426 | 2020-08-240 | 20 | United States |
| KFN5426 | 2018-02-59 | 80 | IN |
| 5310-01-114-5174 | 2017-07-200 | 15 | AU |
| 5310-01-114-5174 | 2016-08-235 | 24 | United States |
| 5310-01-114-5174 | 2015-07-182 | 11992 | DIBBS |
| 5310-01-114-5174 | 2015-03-67 | 4343 | DIBBS |
| 5310-01-114-5174 | 2014-11-310 | 414 | United States |
| 5310-01-114-5174 | 2014-09-267 | 5489 | DIBBS |
| KFN5426 | 2014-07-211 | 30 | LK |
| 5310-01-114-5174 | 2014-04-108 | 1 | DIBBS-RFPs |
| 5310-01-114-5174 | 2010-01-20 | 100 | US |
| KFN5426 | 2009-01-07 | 16 | Malaysia |
| 5310-01-114-5174 | 2008-05-150 | 2970 | DIBBS |
| KFN5426 | 2008-05-139 | 230 | us |
| 5310-01-114-5174 | 2008-05-135 | 2970 | DIBBS |
| 5310-01-114-5174 | 2008-04-93 | 1760 | DIBBS |
| 5310-01-114-5174 | 2007-02-36 | 1 | US |
Cross Reference | NSN 5310-01-114-5174
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 717751211-002 | 04939 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| BH00516A6 | 27238 | BRISTOL INDUSTRIES |
| KFN542-6 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| KFN542-6 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| KFN542-6 | 27238 | BRISTOL INDUSTRIES |
| KFN542-6 | 75237 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| KFN542-6 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-114-5174
Related Products | NSN 5310-01-114-5174
Technical Data | NSN 5310-01-114-5174
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 4140 OR STEEL COMP 4340 OR STEEL COMP 8740 NUT STEEL WASHER |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5626 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-5000 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 3RD MATERIAL RESPONSE NUT |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC ALL TREATMENT RESPONSES OVERALL |
| HARDNESS RATING | 39.0 ROCKWELL C MINIMUM AND 48.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A311 FLAT WITH TURNED UP EDGE |

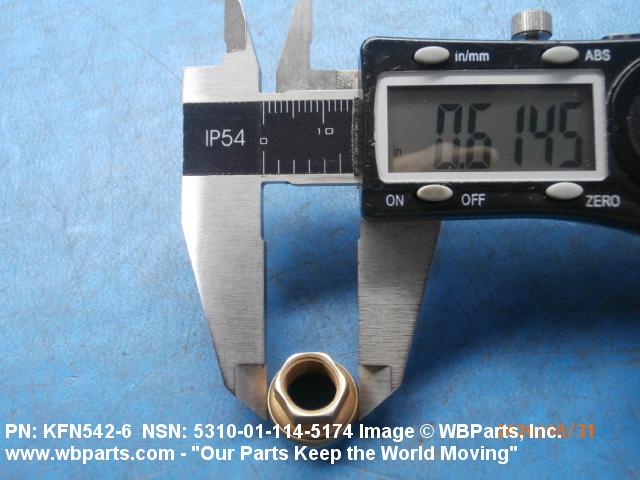

| WASHER OUTSIDE DIAMETER | 0.660 INCHES MAXIMUM |

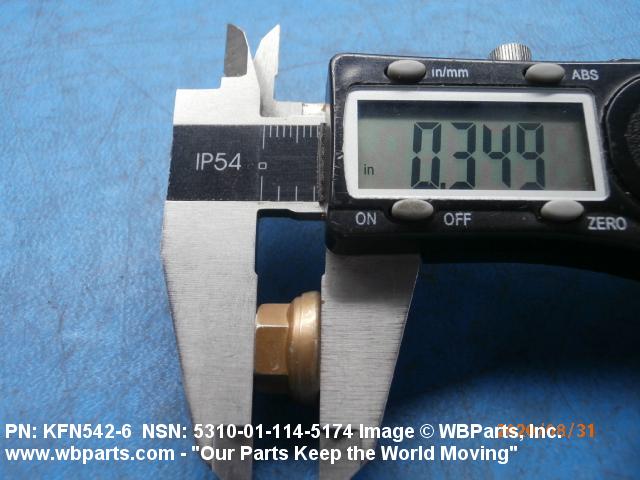

| OVERALL HEIGHT | 0.355 INCHES MAXIMUM |

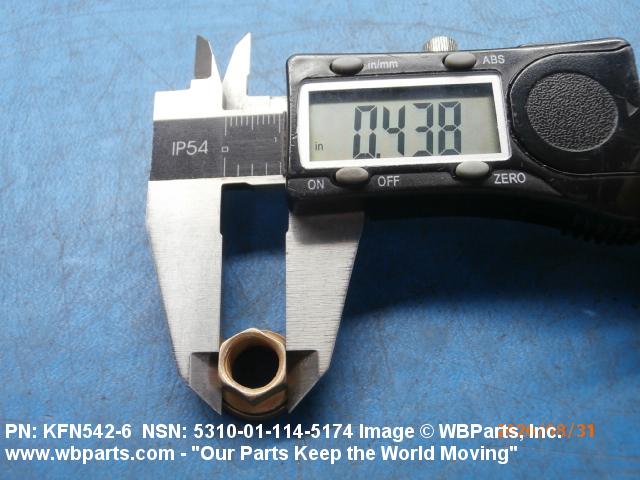

| WIDTH ACROSS FLATS | 0.430 INCHES MINIMUM AND 0.439 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT COUNTERBORE DEPTH | 0.087 INCHES MINIMUM AND 0.097 INCHES MAXIMUM NUT |
| COUNTERBORE DIAMETER | 0.412 INCHES MINIMUM AND 0.417 INCHES MAXIMUM NUT |
| TEMP RATING | 450.0 DEG FAHRENHEIT MAXIMUM |
| SPECIAL FEATURES | ROCKWELL C SCALE 40 MIN AND ROCKWELL C SCALE 45 MAX WASHER |
Restrictions/Controls & Freight Information | NSN 5310-01-114-5174
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-114-5174
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
