NSN 5310-01-081-2516 BACN10C401, F42ND8048, F42ND8-048
Product Details | SPLINE SELF-LOCKING NUT
5310-01-081-2516 A nut having an externally splined sleeve, which holds it in position when forced into a hole of slightly smaller diameter. An integral feature is incorporated for locking.
Part Alternates: BACN10C401, F42ND8048, F42ND8-048, 5310-01-081-2516, 01-081-2516, 5310010812516, 010812516
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 AUG 1979 | 01-081-2516 | 15893 ( NUT, SELF-LOCKING, SPLINE ) |

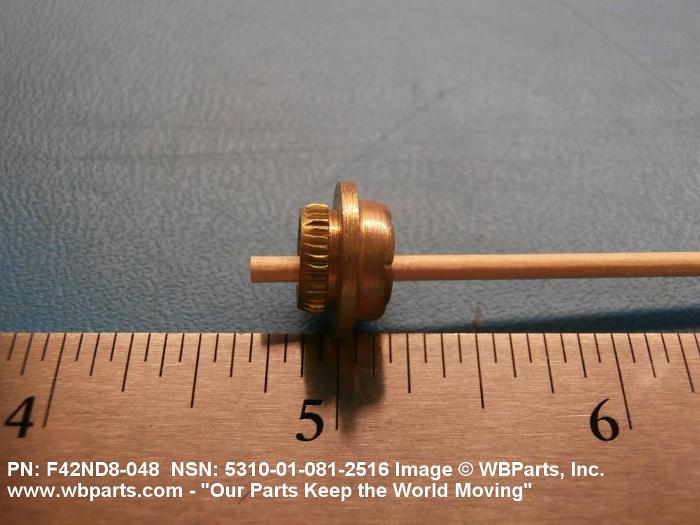

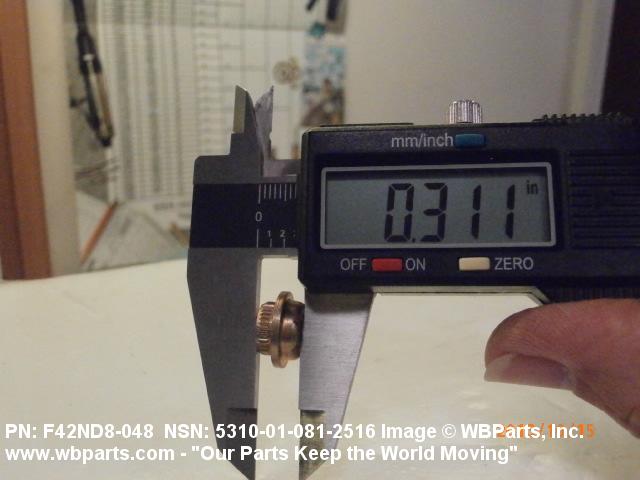

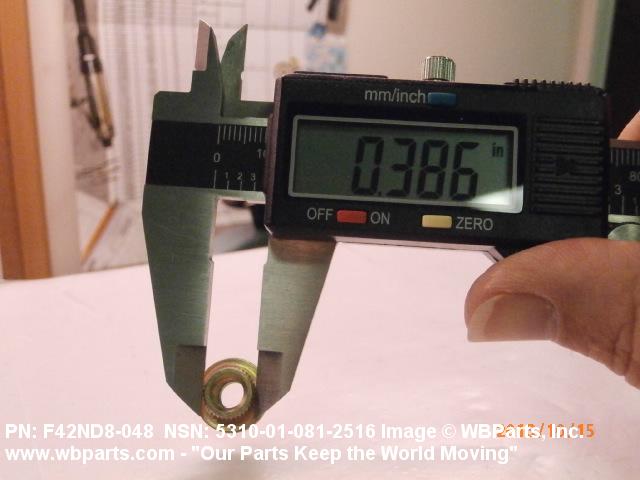

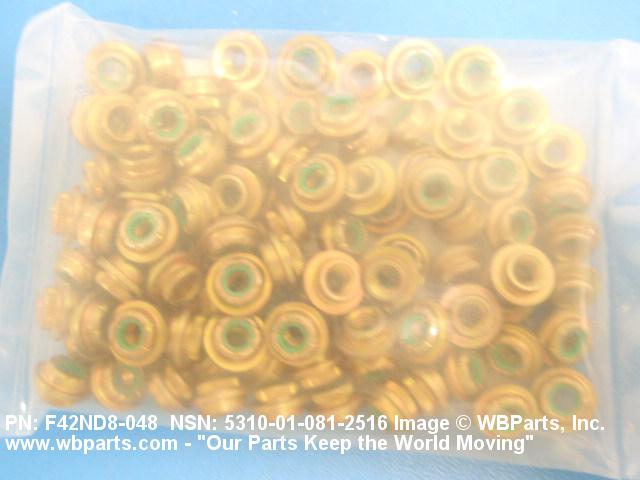

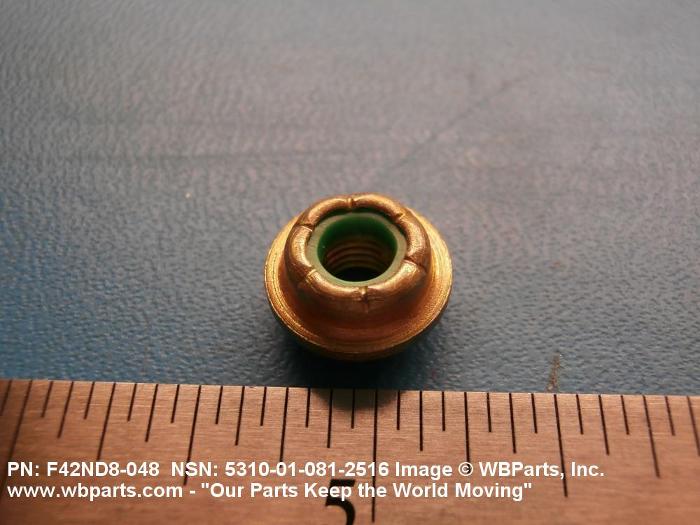

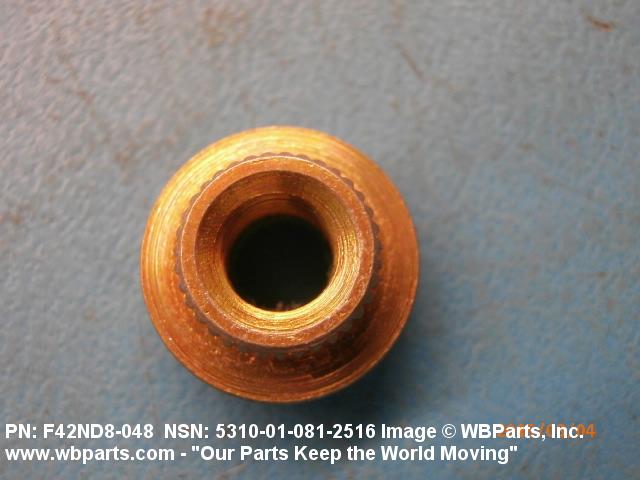

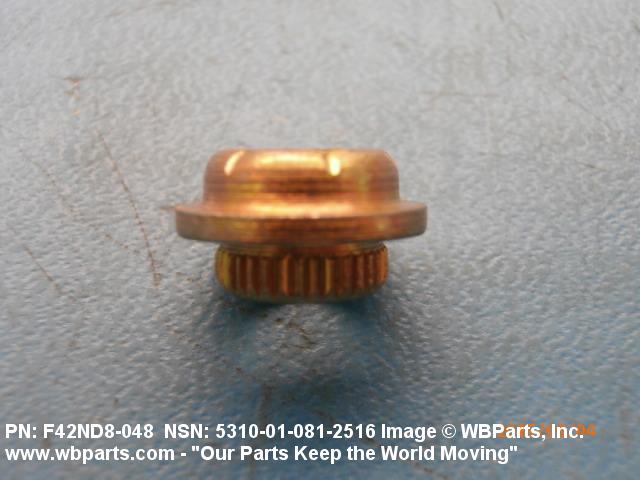

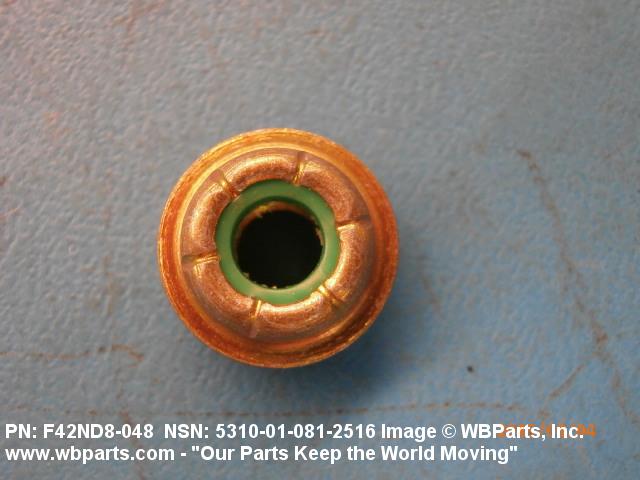

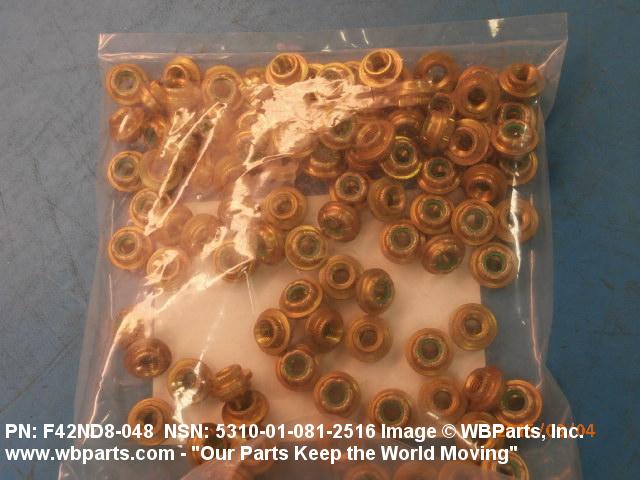

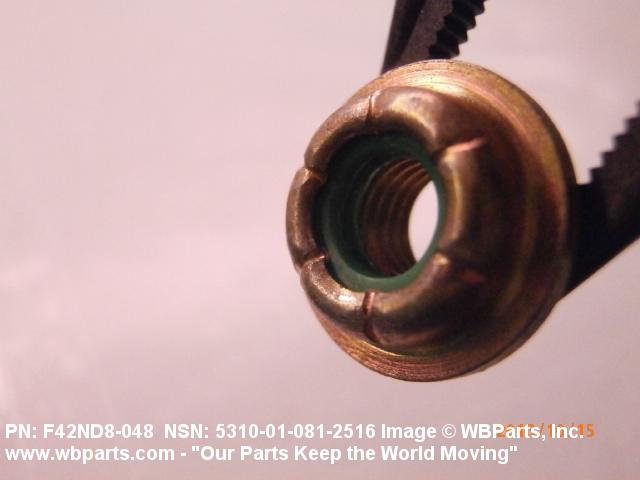

Drawings & Photos | NSN 5310-01-081-2516
Demand History | NSN 5310-01-081-2516
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-081-2516 | 2024-06-162 | 800 | US |
| BACN10C401 | 2021-01-06 | 175 | DIBBS |
| BACN10C401 | 2020-10-281 | 125 | DIBBS |
| BACN10C401 | 2020-07-211 | 50 | DIBBS |
| BACN10C401 | 2020-02-57 | 275 | DIBBS |
| BACN10C401 | 2019-05-142 | 275 | DIBBS |
| BACN10C401 | 2019-03-83 | 50 | DIBBS |
| F42ND8048 | 2015-02-57 | 100 | United States |
| F42ND8048 | 2013-10-283 | 100 | United States |
| F42ND8048 | 2012-10-298 | 100 | United States |
| 5310-01-081-2516 | 2011-08-243 | 100 | United States |
| F42ND8048 | 2010-02-35 | 100 | United States |
| F42ND8048 | 2008-05-144 | 100 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-081-2516
Related Products | NSN 5310-01-081-2516
Technical Data | NSN 5310-01-081-2516
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | PLASTIC POLYAMIDE LOCKING INSERT STEEL COMP 1117 OR STEEL COMP 1118 NUT |
| SURFACE TREATMENT | CADMIUM OR CADMIUM AND CHROMATE OVERALL EXCEPT INSERT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 1,CLASS 3 FED SPEC 1ST TREATMENT RESPONSE OR QQ-P-416,TYPE 2,CLASS 3 FED SPEC 2ND TREATMENT RESPONSE OVERALL EXCEPT INSERT |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A52 SPLINE |

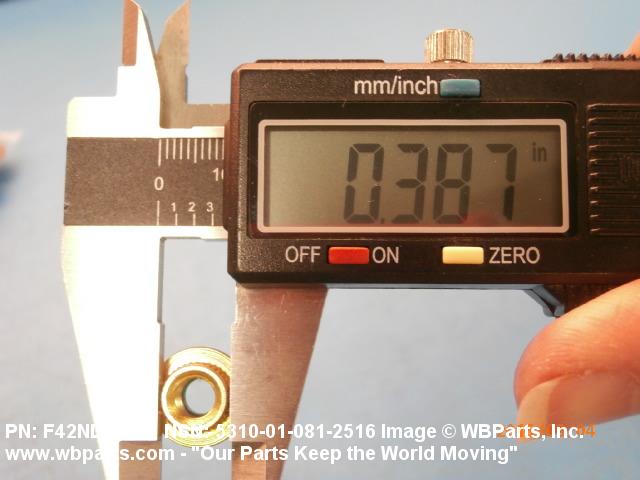

| PILOT DIAMETER | 0.384 INCHES MINIMUM AND 0.388 INCHES MAXIMUM |
| PILOT LENGTH | 0.125 INCHES NOMINAL |
| NUT DIAMETER | 0.563 INCHES NOMINAL |
| NUT HEIGHT | 0.313 INCHES NOMINAL |
| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| TEMP RATING | 250.0 DEG FAHRENHEIT MAXIMUM |
| MANUFACTURERS CODE | 72962 |
| DESIGN CONTROL REFERENCE | F42ND8-048 |
Restrictions/Controls & Freight Information | NSN 5310-01-081-2516
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-081-2516
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
