NSN 5310-01-059-7520 NAS17263D, NAS1726-3D, 01-059-7520
Product Details | ASSEMBLED WASHER SELF-LOCKING NUT

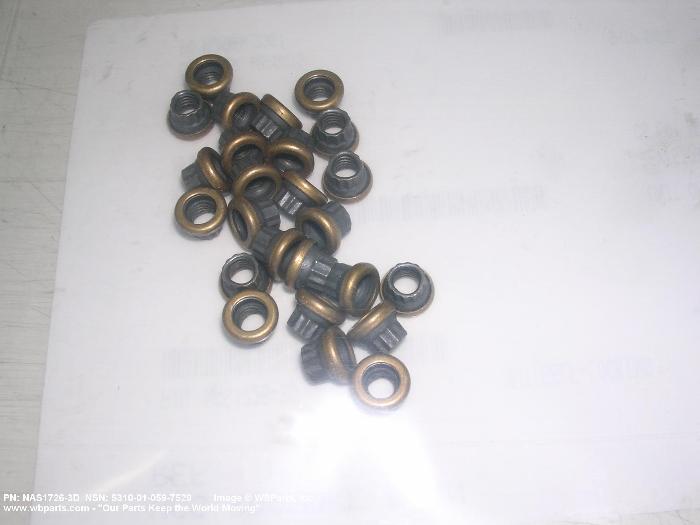

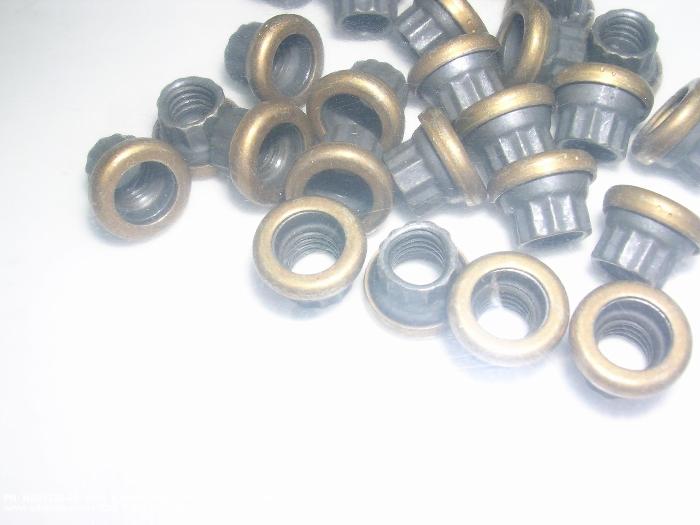

5310-01-059-7520 A nut on which has been assembled a nonremovable washer. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NAS17263D, NAS1726-3D, 5310-01-059-7520, 01-059-7520, 5310010597520, 010597520
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 APR 1978 | 01-059-7520 | 29736 ( NUT, SELF-LOCKING, ASSEMBLED WASHER ) |
Drawings & Photos | NSN 5310-01-059-7520
Demand History | NSN 5310-01-059-7520
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-059-7520 | 2017-02-53 | 4 | MANUAL |
| 5310-01-059-7520 | 2011-03-70 | 100 | US |
| NAS17263D | 2007-12-339 | 25 | United States |
| 5310-01-059-7520 | 2007-11-331 | 50 | us |
Cross Reference | NSN 5310-01-059-7520
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1726-3D | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-059-7520
Related Products | NSN 5310-01-059-7520
Technical Data | NSN 5310-01-059-7520
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 4340 OR STEEL COMP 8740 NUT STEEL COMP 1050 WASHER |
| SURFACE TREATMENT | CADMIUM AND CHROMATE NUT CADMIUM AND CHROMATE WASHER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TYPE 2 CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE NUT QQ-P-416 TYPE 2 CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE WASHER |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A311 FLAT WITH TURNED UP EDGE |
| WASHER OUTSIDE DIAMETER | 0.380 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.223 INCHES MINIMUM AND 0.243 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.213 INCHES MINIMUM AND 0.221 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| COUNTERBORE DIAMETER | 0.211 INCHES MINIMUM AND 0.221 INCHES MAXIMUM NUT |
| LUBRICATION | DRY FILM LUBRICANT |
| TEMP RATING | 450.0 DEG FAHRENHEIT MAXIMUM |
| SPECIAL FEATURES | WASHER ROCKWELL C SCALE 40 MIN AND ROCKWELL C SCALE 45 MAX |
| SPECIFICATION/STANDARD DATA | 80205-NAS1726 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| III BEARING SURFACE FINISH | 125.0 MICROINCHES |
Restrictions/Controls & Freight Information | NSN 5310-01-059-7520
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-059-7520
