NSN 5310-01-044-5371 ABE81315201, ABE8-1-315-201, 19505981
Product Details | SHEET SPRING NUT
5310-01-044-5371 A nut formed from sheet spring material, usually steel, into varying flat, concave, bent or curved designs, having apertures with suitable boss or bosses usually on the upper side capable of securely gripping a mating threaded member. Excludes NUT (1), STAMPED.
Part Alternates: ABE81315201, ABE8-1-315-201, 19505981, 1950598-1, 5310-01-044-5371, 01-044-5371, 5310010445371, 010445371
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01-044-5371 | 01865 ( NUT, SHEET SPRING ) |
Drawings & Photos | NSN 5310-01-044-5371
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-044-5371
Technical Data | NSN 5310-01-044-5371
| Characteristic | Specifications |
|---|---|
| MATING MEMBER DIAMETER ACCOMMODATED | ANY ACCEPTABLE |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |

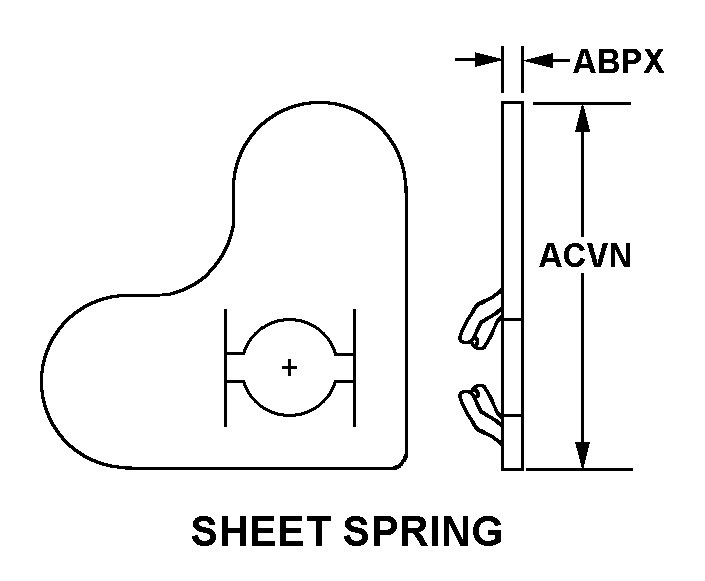

| NUT STYLE | A159 SHEET SPRING |
| MATERIAL THICKNESS | 0.020 INCHES MINIMUM AND 0.025 INCHES MAXIMUM |
| NUT LENGTH | 0.673 INCHES NOMINAL |
| NUT MOUNTING PROVISION | DIMPLED HOLES |

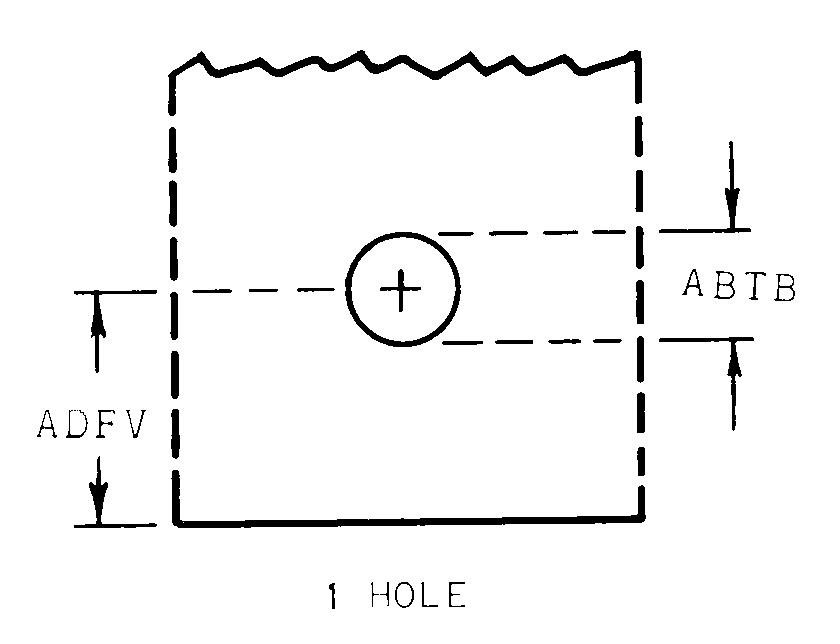

| MOUNTING HOLE ARRANGEMENT STYLE | F1 1 HOLE |
| MOUNTING HOLE DIAMETER | 0.195 INCHES MINIMUM AND 0.198 INCHES MAXIMUM |
| DISTANCE FROM MOUNTING HOLE CENTER TO BASE | 0.190 INCHES MINIMUM AND 0.200 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5310-01-044-5371
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
