NSN 5310-00-934-9757 MS203418S, MS20341-8S, MS25649282

Product Details | HEXAGON PLAIN NUT

5310-00-934-9757 A nut, flat on top and bottom having 6 flat sides. For items which have internal tapered or straight (parallel) pipe threads, specific electrical conduit size designation, and which when installed, provide a method of tightening to lock the connection, see LOCKNUT, ELECTRICAL CONDUIT. See also LOCKNUT, TUBE FITTING. For items having a thickness (or height) exceeding two times the width across the flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. (When height or thickness and/or width across the flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.

Part Alternates: MS203418S, MS20341-8S, MS25649282, MS25649-282, MS35649282, MS35649-282, MS3564982, MS35649-82, ME11001, ME11-001, AN3408, AN340-8, HN832, HN-8-32, HNW561, HNW-561, JHE11001, JHE11-001, EE42150, FFN836, FF-N-836, TU3266, VBE616F1, 1036, 106435, 134535, 188302, 2041HX, 21A4C8, 400197, 41111582, 411115-82, 4157400-30, 500K334340, 500K3343-40, 520641, 52-06-41, 002003990013, 002-003990-013, 525152-000, 607F489 GR2 PC 34, 607F489GR2PC34, 71141282, 71141-282, 728, 80007200, 800072-00, 8007, 81328586, 832, 8-32, 852409, 85240900, 852409-00, 901819K36, 911C2084, 911C208-4, 5310-00-934-9757, 00-934-9757, 5310009349757, 009349757, 525152000, 415740030

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	08 MAR 1967	00-934-9757	01857 ( NUT, PLAIN, HEXAGON )

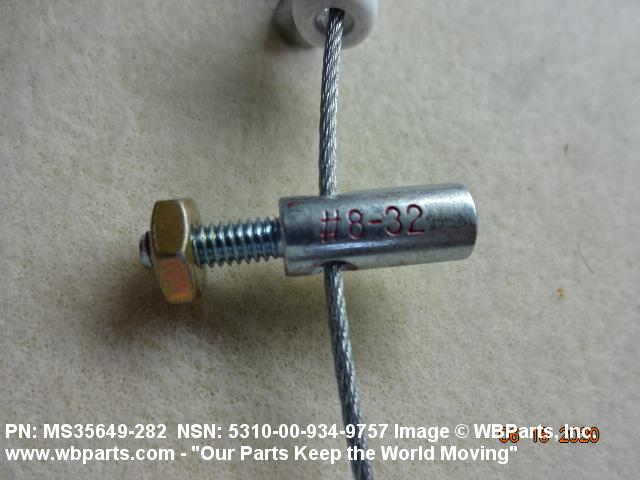

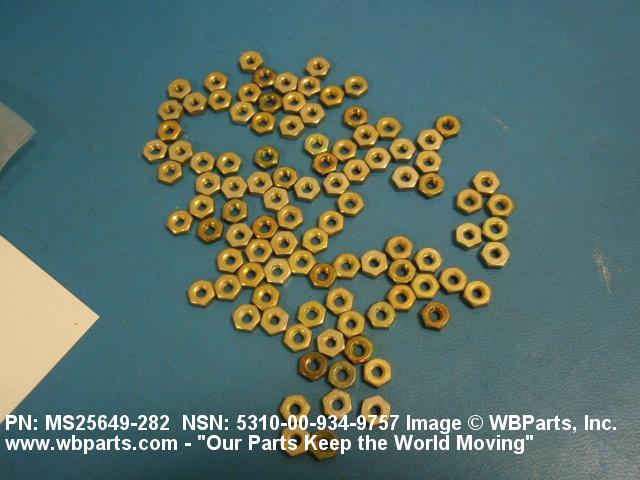

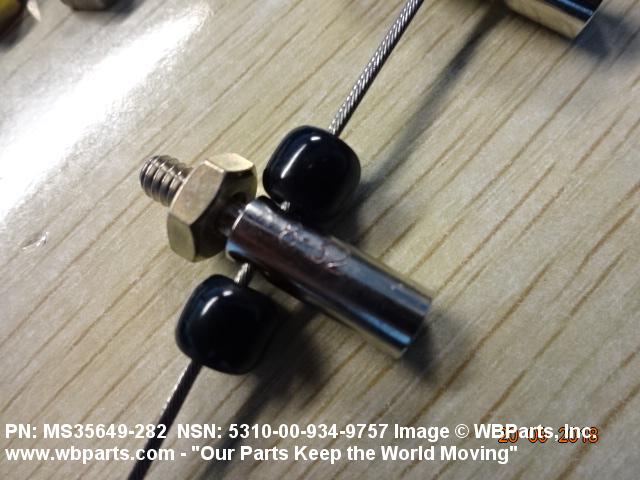

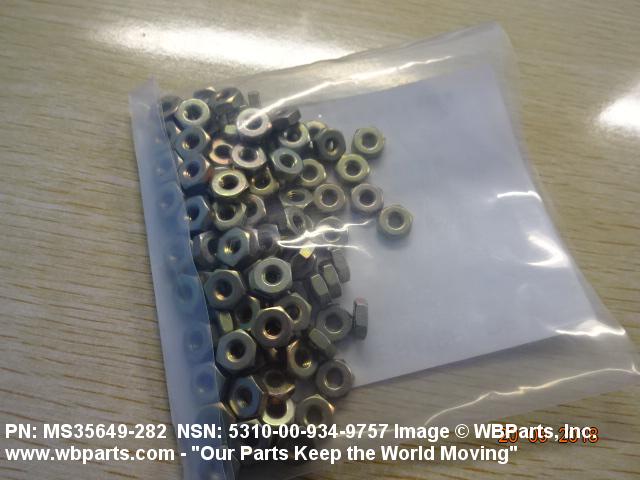

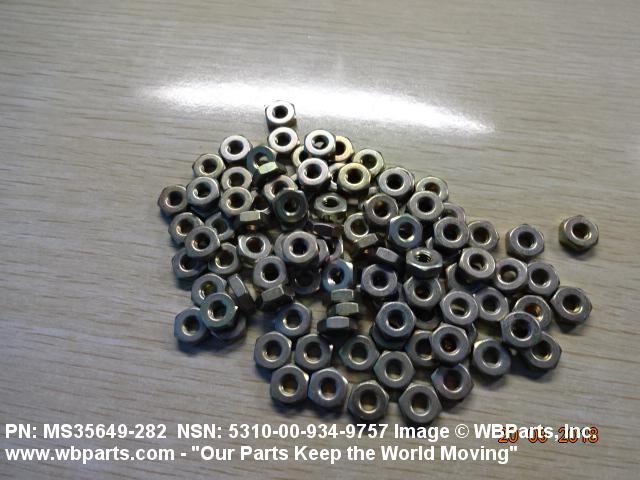

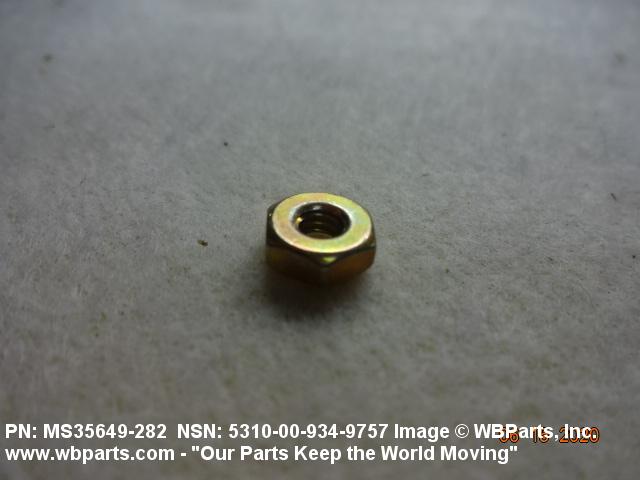

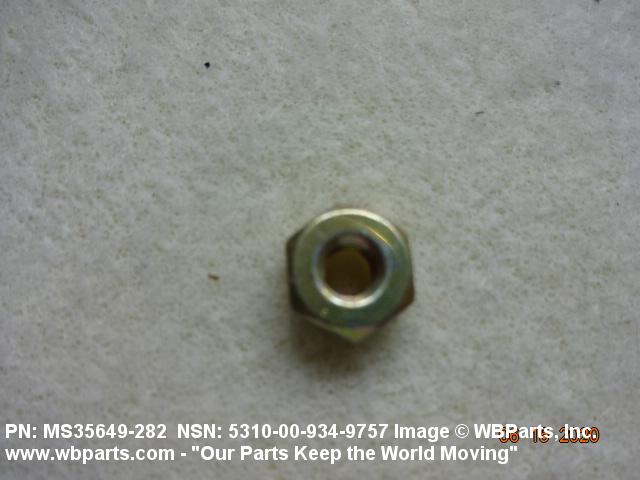

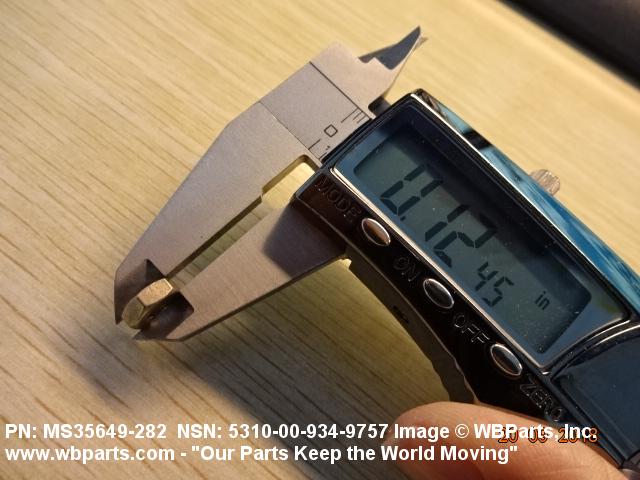

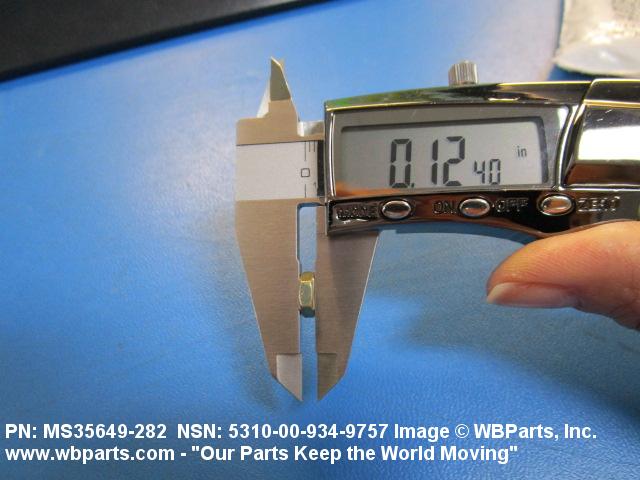

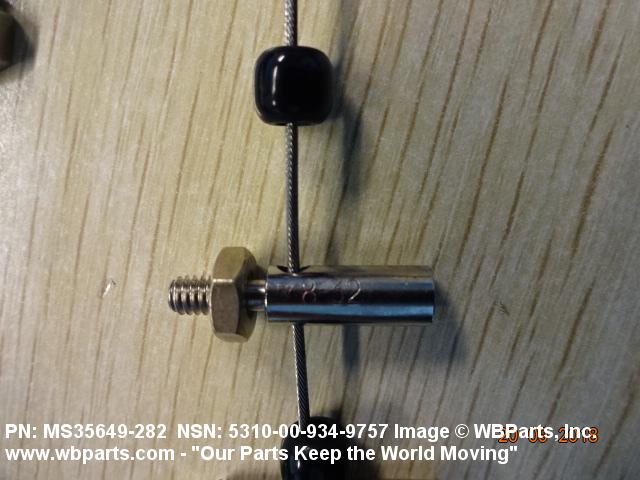

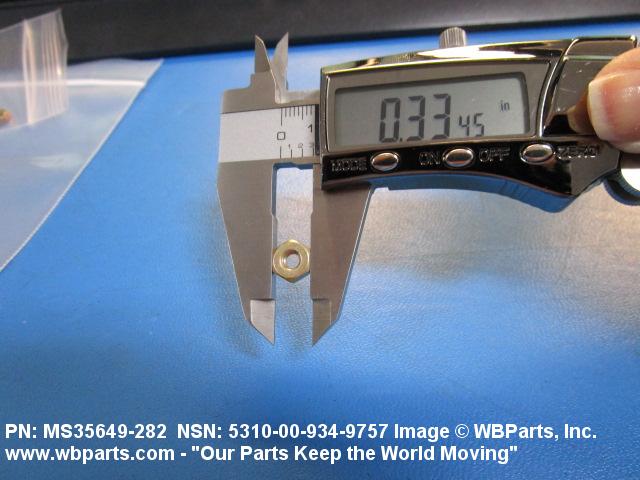

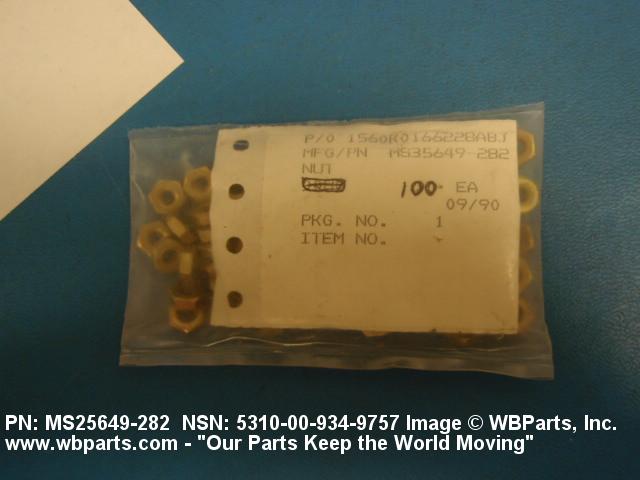

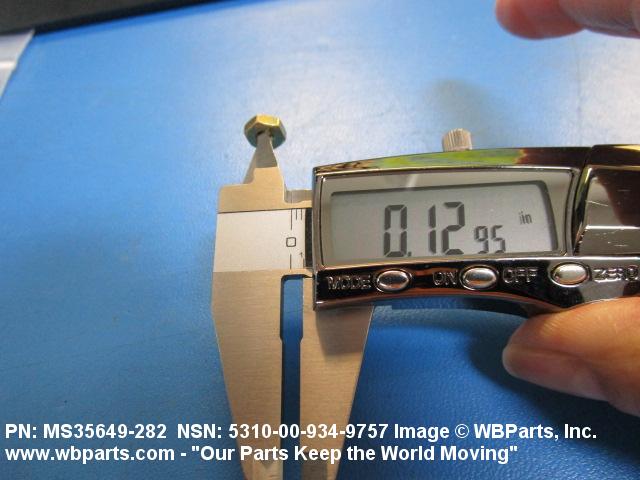

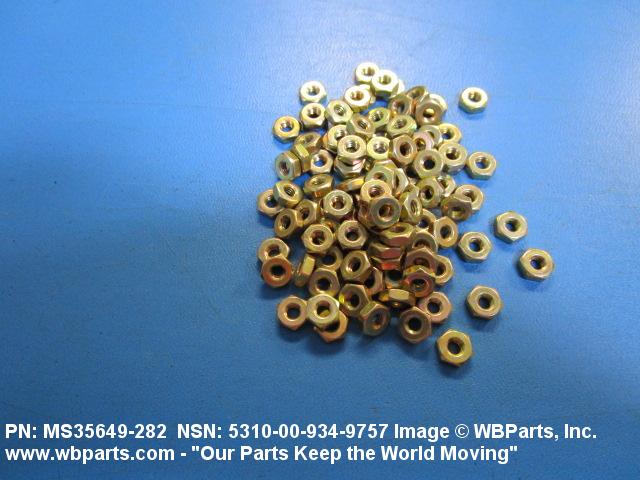

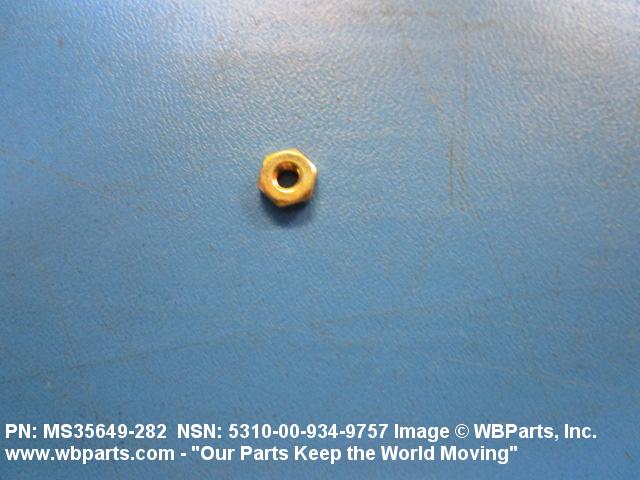

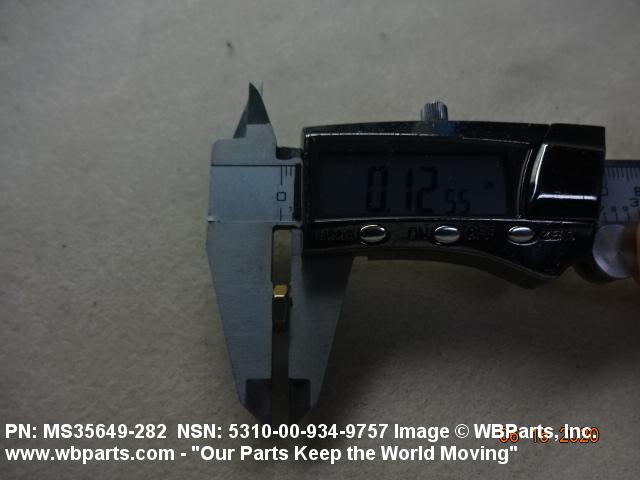

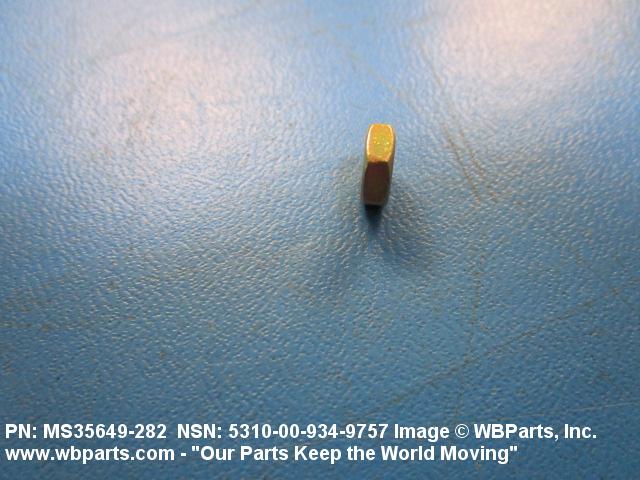

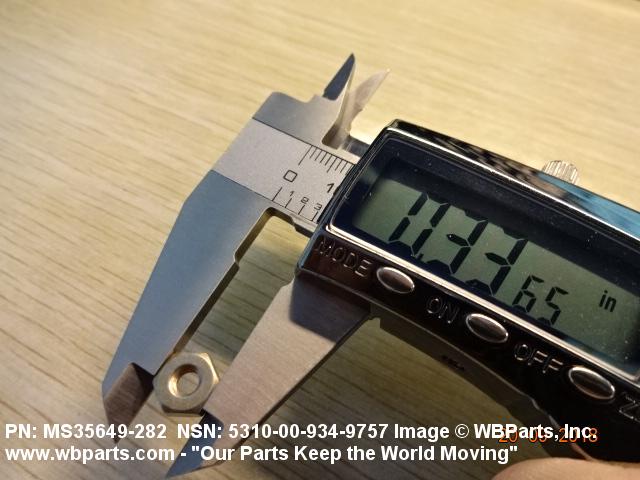

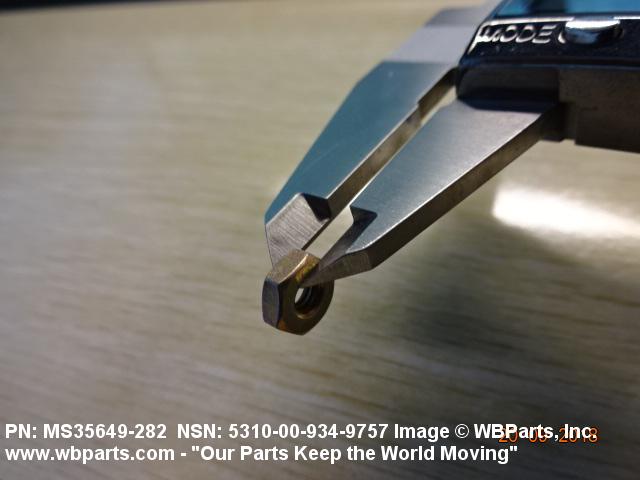

Drawings & Photos | NSN 5310-00-934-9757

Part Number	Request Date	QTY	Origin
FFN836	2024-10-291	190	US
MS35649282	2024-03-78	20	United States
FFN836	2023-09-258	100	TR
832	2023-06-178	26	us
5310-00-934-9757	2022-01-10	2	CA
MS35649282	2021-11-314	32	United States
FFN836	2021-11-307	200	United States
FFN836	2021-08-228	100	United States
8007	2020-12-342	1	United States
MS35649282	2020-03-66	33	US
MS35649282	2019-08-232	128	United States
FFN836	2019-02-44	288	US
AN340-8	2019-01-02	9
MS35649-282	2018-12-353	4
FFN836	2018-02-32	2	US
FFN836	2017-05-123	25	United States
FF-N-836	2016-05-145	48	Spain
MS35649-282	2014-03-71	281	United States
MS35649-282	2014-02-59	150	United States
FFN836	2012-12-341	1	US
AN3408	2012-03-73	60	US
5310-00-934-9757	2011-05-137	3	Italy
5310-00-934-9757	2011-05-137	100	Italy
FFN836	2010-11-322	100	United Kingdom
5310-00-934-9757	2010-10-278	24	us
5310-00-934-9757	2010-08-228	100	MX
FFN836	2010-08-218	1	US
FFN836	2010-08-218	1	US
FFN836	2010-08-218	1	US
FFN836	2010-08-218	1	US
MS35649282	2010-04-118	520	India
FFN836	2010-03-90	4	us
FFN836	2010-03-81	50	United States
8007	2010-03-70	1	US
FFN836	2010-02-46	50	United States
5310-00-934-9757	2009-10-292	100	Turkey
FFN836	2009-07-183	1000	US
FFN836	2009-05-141	580	US
5310-00-934-9757	2008-12-351	24	US
MS35649282	2008-11-323	10000	US
MS35649282	2008-10-291	100	China
FFN836	2008-07-195	20	US
FFN836	2008-06-171	200	US
MS35649282	2008-03-81	500	United States
FFN836	2008-02-39	1	US
FFN836	2007-10-298	100	US
5310-00-934-9757	2006-05-150	5000	Malaysia

Cross Reference | NSN 5310-00-934-9757

Part Number	Cage Code	Manufacturer
002-003990-013	26916	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE
1036	92878	HDT EXPEDITIONARY SYSTEMS, INC.
106435	34355	LOCKHEED MARTIN SIPPICAN, INC. DBA SIPPICAN USE CAGE CODE 16848 FOR
120622	338X5	NAVISTAR DEFENSE LLC
134535	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
134535	24617	GENERAL MOTORS CORP
134535	7X677	GENERAL MOTORS LLC DBA GENERAL MOTORS
188302	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
2041HX	45152	OSHKOSH CORPORATION
2041HX	75Q65	OSHKOSH DEFENSE, LLC
21A4C8	33968	CLARK EQUIPMENT COMPANY DBA DOOSAN INFRACORE PORTABLE POWER
400197	5X050	CRYSTEEL MANUFACTURING, INC. DBA TBEI-CRYSTEEL
411115-82	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
4157400-30	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
500K3343-40	94833	KECO INDUSTRIES INC.
52-06-41	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
525152-000	14100	STROMBERG-CARLSON CORP A PLESSEY TELECOMMUNICATIONS CO
5310009349757	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5310PL0725188	9009H	INSPEKTORAT WSPARCIA SIL ZBROJNYCH
594264	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
607F489 GR2 PC 34	90099	NORTHROP GRUMMAN SYSTEMS CORPORATION DBA NORTHROP GRUMMAN MARINE SYSTEMS
71141-282	95097	LITTLE GIANT CRANE AND SHOVEL INC
728	94223	SPAENAUR INC DBA SPAENAUR INC.
8-32	73734	FEDERAL SCREW PRODUCTS INC.
800072-00	32345	DEFENSE REDUCTION AGENCY
8007	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
81328586	82796	COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE
852409	19203	PICATINNY ARSENAL
852409-00	32345	DEFENSE REDUCTION AGENCY
901819K36	06848	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
911C208-4	83843	SUNDSTRAND CORP ELECTRIC POWER SYSTEMS DIV
911C208-4	99167	HAMILTON SUNDSTRAND CORPORATION
AN340-8	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
EE42150	45152	OSHKOSH CORPORATION
FF-N-836	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
HN-8-32	08289	THE DELBERT BLINN CO INC
HNW-561	08289	THE DELBERT BLINN CO INC
JHE11-001	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
ME11-001	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS20341-8S	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS25649-282	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS35649-282	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS35649-282	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS35649-82	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS35649282	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
TU3266	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
VBE616F1	H0203	THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-934-9757

Compare

Related Products | NSN 5310-00-934-9757

5310-00-934-9758, 5310-00-934-9759, 5310-00-934-9760, 5310-00-934-9761, 5310-00-934-9762

Technical Data | NSN 5310-00-934-9757

Characteristic	Specifications
THREAD SERIES	UNC
NOMINAL THREAD SIZE	0.164 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	2B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A12 HEXAGON
NUT HEIGHT	0.117 INCHES MINIMUM AND 0.130 INCHES MAXIMUM

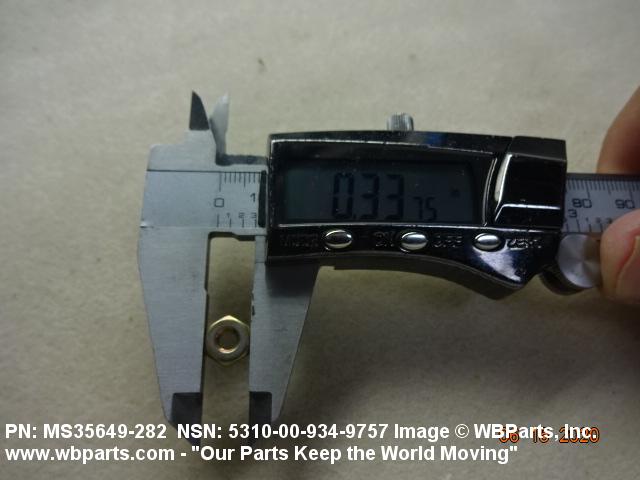

WIDTH ACROSS FLATS	0.332 INCHES MINIMUM AND 0.344 INCHES MAXIMUM
BEARING SURFACE TYPE	CHAMFERED
TEMP RATING	NOT RATED
NONDEFINITIVE SPEC/STD DATA	2 TYPE AND 13 STYLE
III END ITEM IDENTIFICATION	W/S:MISSILE, ADVANCED MEDIUM RANGE AIR-TO-AIR (AMRAAM)/AIM120A; SUPPORT EQUIPMENT, B-1 AIRCRAFT; AIRBORNE MOBILE DIR AIR SPT CTL (2ID),(02M JUL83)(AN/UYQ-3A); SENTINEL RADAR SYSTEM; TACTICAL DATA SYSTEM, AN/UYA-4(V); VEHICLE, AIRCRAFT REFUELER R-14; TEST STATION, OQ-290(V)MSM: BOILERS, 1200 PSI; FIRE PUMPS; L.P.COMPRESSORS; NSN 4210-01-486-1035 TFFT (TACTICAL FIRE FIGHTING TRUCK)
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FF-N-836

Restrictions/Controls & Freight Information | NSN 5310-00-934-9757

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-934-9757

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BJ	AH-64 Airframe
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
