NSN 5310-00-934-9762 MS203418S, MS20341-8S , MS25649282

Product Details | HEXAGON PLAIN NUT

5310-00-934-9762 A nut, flat on top and bottom having 6 flat sides. For items which have internal tapered or straight (parallel) pipe threads, specific electrical conduit size designation, and which when installed, provide a method of tightening to lock the connection, see LOCKNUT, ELECTRICAL CONDUIT. See also LOCKNUT, TUBE FITTING. For items having a thickness (or height) exceeding two times the width across the flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. (When height or thickness and/or width across the flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.

Part Alternates: MS203418S, MS20341-8S , MS25649282, MS25649-282 , MS35649282, MS35649-282 , MS35649286, MS35649-286, MS35649286B, MS35649-286B, MS3564982, MS35649-82 , MS3564985, MS35649-85, ME11001, ME11-001 , AN3408, AN340-8 , AN340B8, N207P15C11, HN832, HN-8-32 , HNW561, HNW-561 , JHE11001, JHE11-001 , EE42150, FFN836, FF-N-836, TU3266 , VBE616F1, 10121086 , 1036, 106435 , 120622, 134535 , 152P6, 152-P-6, 188302 , 2041HX, 21A4C8 , 400197, 41111582, 411115-82 , 4157400-30 , 500K334340, 500K3343-40 , 520641, 52-06-41 , 002003990013, 002-003990-013 , 525152-000 , 5310PL0725188, 594264 , 607F489 GR2 PC 34 , 607F489GR2PC34, 71141282, 71141-282 , 728 , 7537512, 7537-5-12, 80007200, 800072-00 , 8007 , 81328586, 832, 8-32 , 852409 , 85240900, 852409-00 , 901819K36 , 911C2084, 911C208-4 , 91604, 5310-00-934-9762, 00-934-9762, 5310009349757 , 5310009349762, 009349762, 525152000, 415740030

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	08 MAR 1967	00-934-9762	01857 ( NUT, PLAIN, HEXAGON )

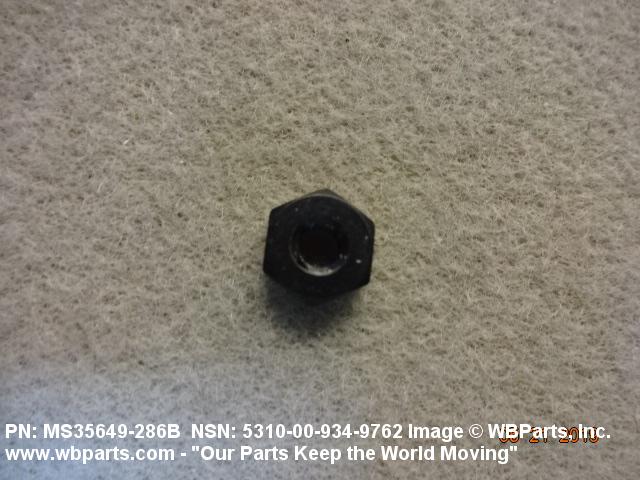

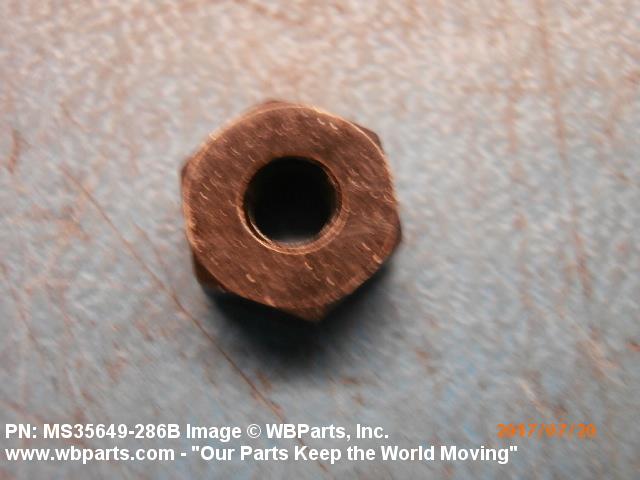

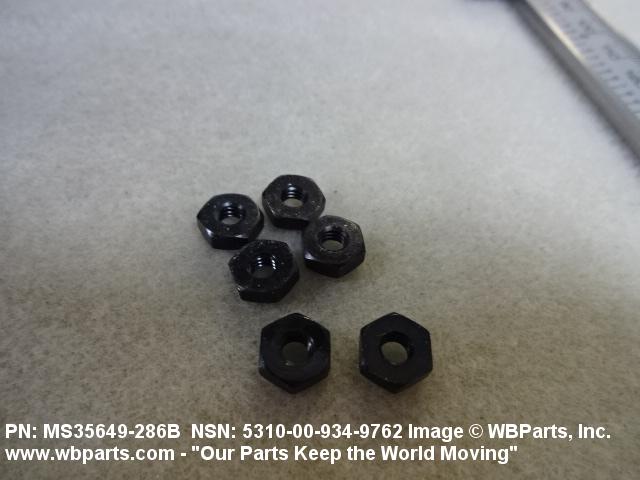

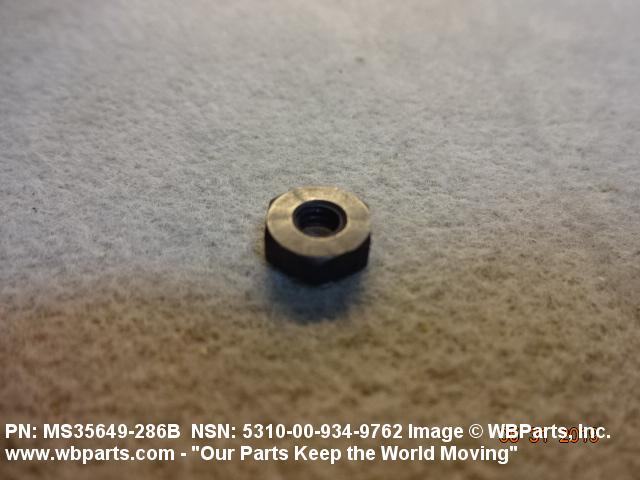

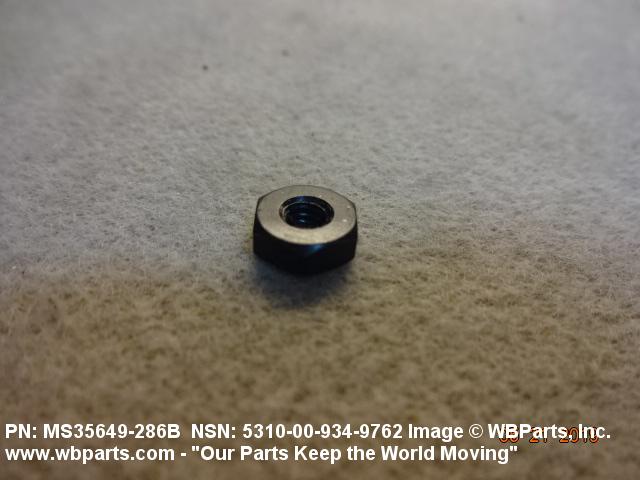

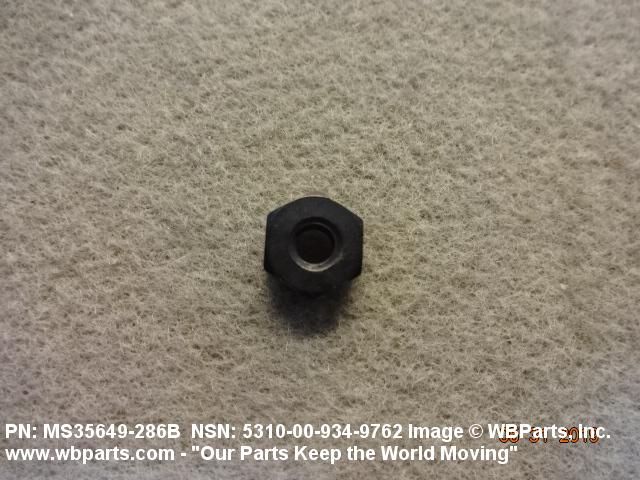

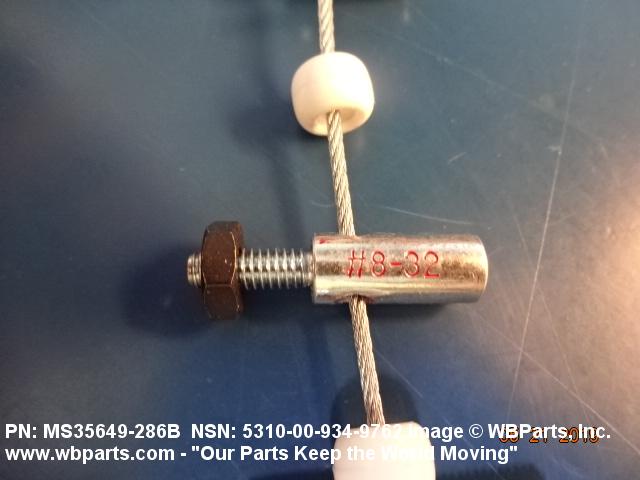

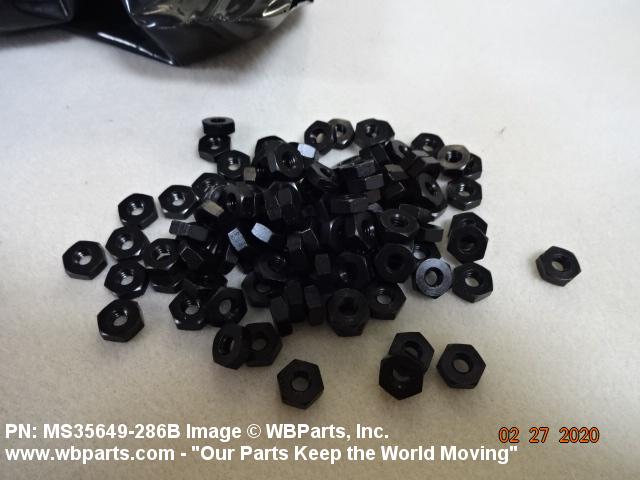

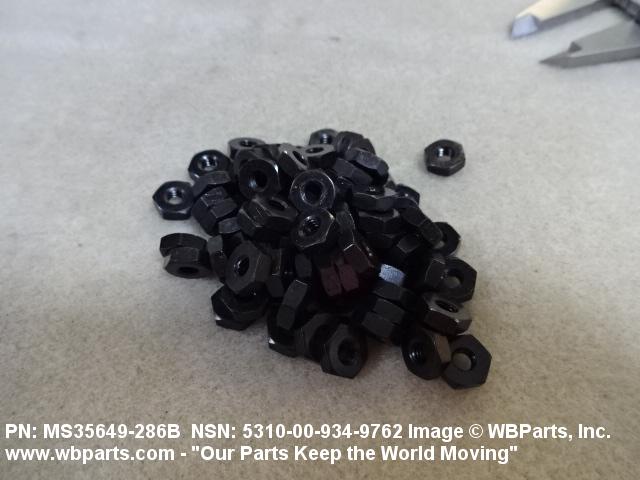

Drawings & Photos | NSN 5310-00-934-9762

Part Number	Request Date	QTY	Origin
FFN836	2024-10-291	190	US
MS35649282	2024-03-78	20	United States
FFN836	2023-09-258	100	TR
832	2023-06-178	26	us
MS35649282	2021-11-314	32	United States
FFN836	2021-11-307	200	United States
FFN836	2021-08-228	100	United States
8007	2020-12-342	1	United States
MS35649282	2020-03-66	33	US
MS35649282	2019-08-232	128	United States
FFN836	2019-02-44	288	US
AN340-8	2019-01-02	9
MS35649-282	2018-12-353	4
FFN836	2018-02-32	2	US
FFN836	2017-05-123	25	United States
FF-N-836	2016-05-145	48	Spain
MS35649-282	2014-03-71	281	United States
MS35649-282	2014-02-59	150	United States
FFN836	2012-12-341	1	US
AN3408	2012-03-73	60	US
5310-00-934-9762	2011-02-59	12	MX
5310-00-934-9762	2010-12-350	6	CN
FFN836	2010-11-322	100	United Kingdom
FFN836	2010-08-218	1	US
FFN836	2010-08-218	1	US
FFN836	2010-08-218	1	US
FFN836	2010-08-218	1	US
MS35649282	2010-04-118	520	India
FFN836	2010-03-90	4	us
FFN836	2010-03-81	50	United States
8007	2010-03-70	1	US
FFN836	2010-02-46	50	United States
5310-00-934-9762	2009-09-261	156	DIBBS
FFN836	2009-07-183	1000	US
FFN836	2009-05-141	580	US
MS35649282	2008-11-323	10000	US
MS35649282	2008-10-291	100	China
FFN836	2008-07-195	20	US
FFN836	2008-06-171	200	US
MS35649282	2008-03-81	500	United States
FFN836	2008-02-39	1	US
FFN836	2007-10-298	100	US

Cross Reference | NSN 5310-00-934-9762

Part Number	Cage Code	Manufacturer
152-P-6	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
2530009349762	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
7537-5-12	97403	CECOM LR CENTER
85-6003	62143	NORTHERN TELECOM INC TELECOM DISTRIBUTION DIV
91604	05573	BARNES GROUP INC. DBA BARNES DISTRIBUTION
AN340B8	81352	AIR FORCE-NAVY AERONAUTICAL SPECIFICATIONS
FF-N-836	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
FFN836	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
MS35649-286	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS35649-286B	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS35649-85	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
N207P15C11	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-934-9762

Compare

Related Products | NSN 5310-00-934-9762

5310-00-934-9763, 5310-00-934-9764, 5310-00-934-9765, 5310-00-934-9766, 5310-00-934-9782

Technical Data | NSN 5310-00-934-9762

Characteristic	Specifications
THREAD SERIES	UNC

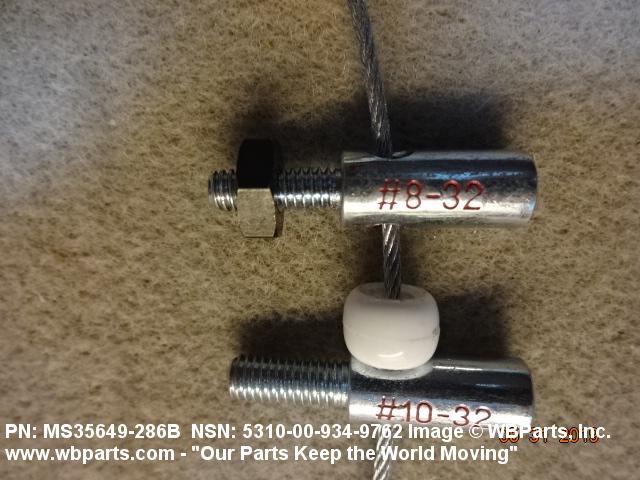

NOMINAL THREAD SIZE	0.164 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	2B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	COPPER ALLOY 462 OR COPPER ALLOY 464 OR COPPER ALLOY 360 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-B-637 FED SPEC 1ST MATERIAL RESPONSE OR QQ-B-637 FED SPEC 2ND MATERIAL RESPONSE OR QQ-B-626 FED SPEC 3RD MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	OXIDE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-F-495 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A12 HEXAGON

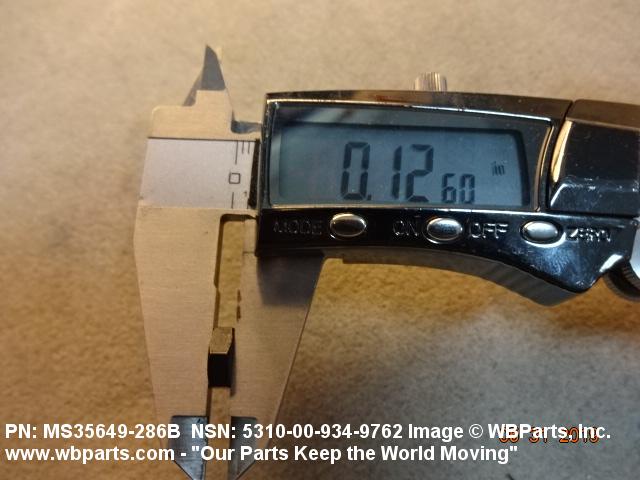

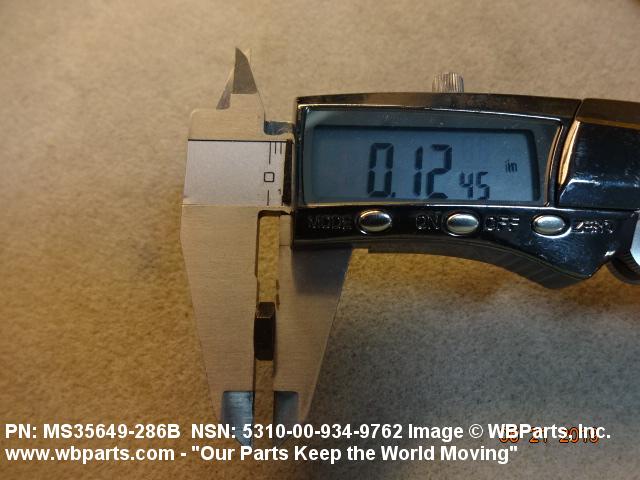

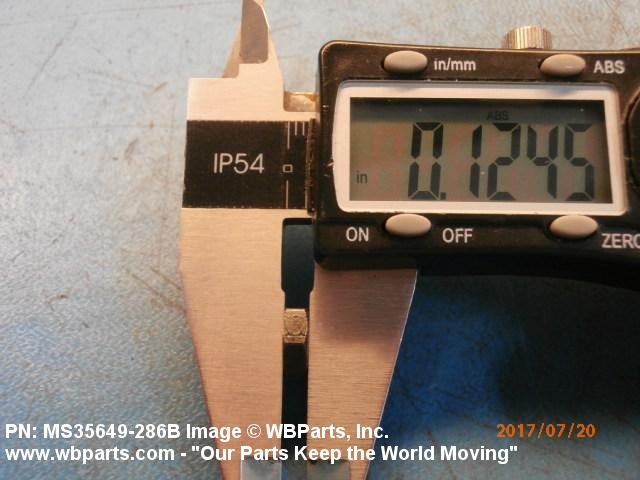

NUT HEIGHT	0.117 INCHES MINIMUM AND 0.130 INCHES MAXIMUM

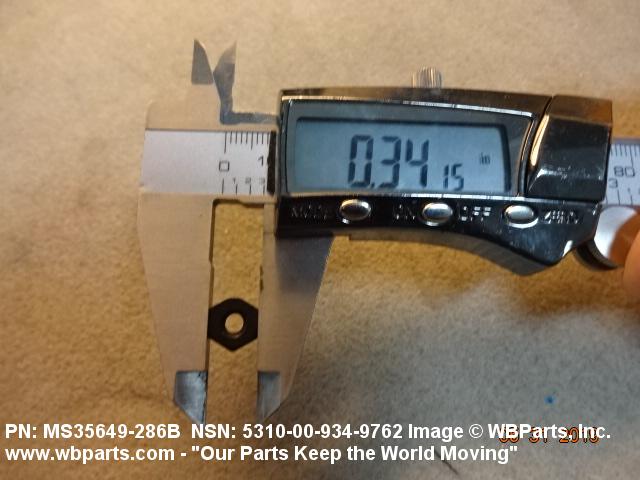

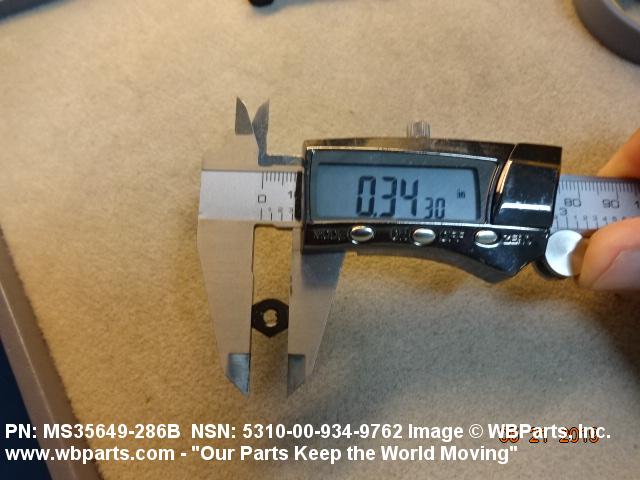

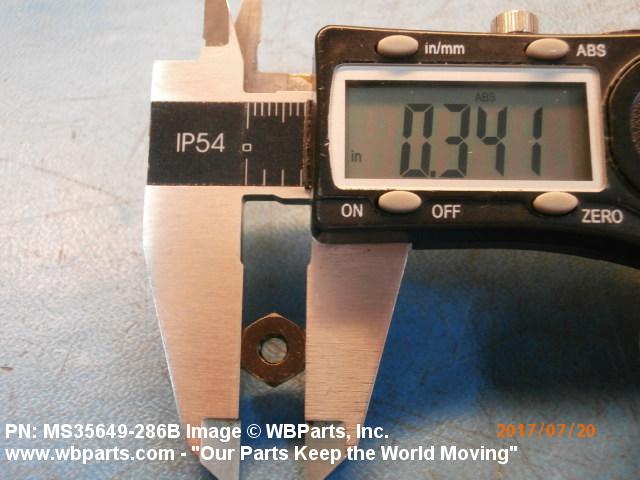

WIDTH ACROSS FLATS	0.322 INCHES MINIMUM AND 0.344 INCHES MAXIMUM
BEARING SURFACE TYPE	CHAMFERED
TEMP RATING	NOT RATED
NONDEFINITIVE SPEC/STD DATA	2 TYPE AND 13 STYLE
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FF-N-836

Restrictions/Controls & Freight Information | NSN 5310-00-934-9762

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-934-9762

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
