NSN 5310-00-934-9758 MS35649202, MS35649-202, M29-00288 PC NO 188

Product Details | HEXAGON PLAIN NUT

5310-00-934-9758 A nut, flat on top and bottom having 6 flat sides. For items which have internal tapered or straight (parallel) pipe threads, specific electrical conduit size designation, and which when installed, provide a method of tightening to lock the connection, see LOCKNUT, ELECTRICAL CONDUIT. See also LOCKNUT, TUBE FITTING. For items having a thickness (or height) exceeding two times the width across the flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. (When height or thickness and/or width across the flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.

Part Alternates: MS35649202, MS35649-202, M29-00288 PC NO 188, M2900288PCNO188, SK140039, SK-14003-9, TIP01383, FFN836, FF-N-836, 5310PL0567748, 56001001, 560-01-001 , 5M.3113.222.27 , 5M311322227, 70D301100480, 714990002113, 714-990002-113 , 8012, 901820, 901820K7, 901820-K7, 90356, 911C20837, 911C208-37, 938.03.28.005, 9380328005, 9411807, 06436, 0716831, 0N311, 10121851, 10-24 UNC HEX N UT, 1024UNCHEXNUT, 106436, 110633, 120361, 200497, 274737, 33310000, 333-10000, 373982, 401240, 411116-304 , 4157402-20 , 4575601, 457-5601 , 47371, 4912542-00 , 500K25379, 500K2537-9, 5010407, 501-04-07, 501040744009, 501-04-07-44009, 50501032 , 5310-00-934-9758, 00-934-9758, 5310009349758, 5310009349765 , 009349758, 415740220, 491254200, 411116304

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	08 MAR 1967	00-934-9758	01857 ( NUT, PLAIN, HEXAGON )

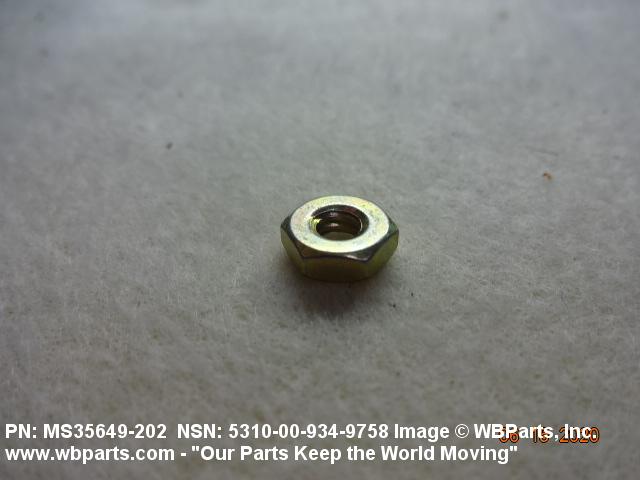

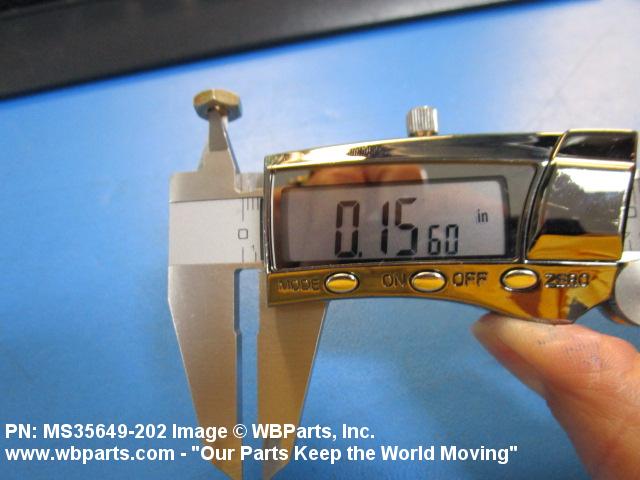

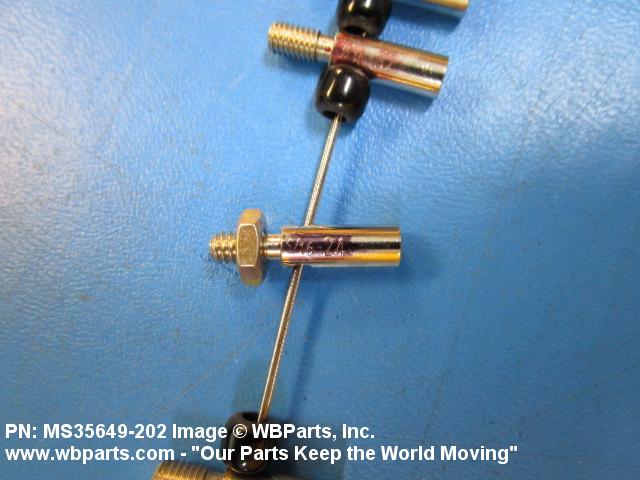

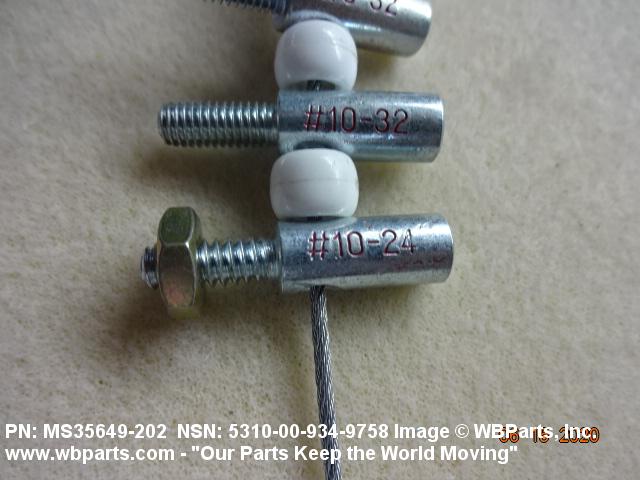

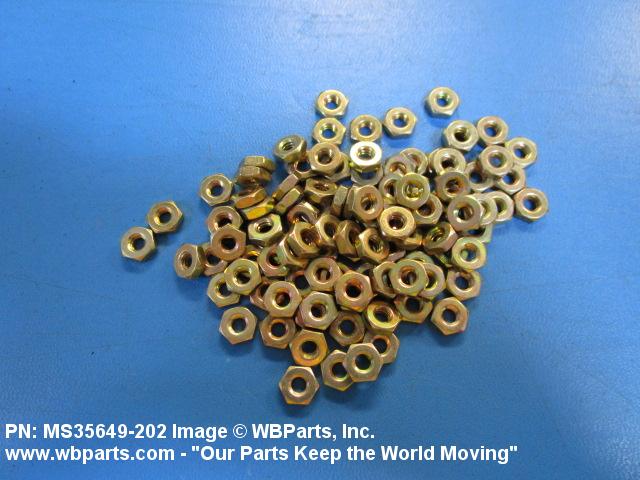

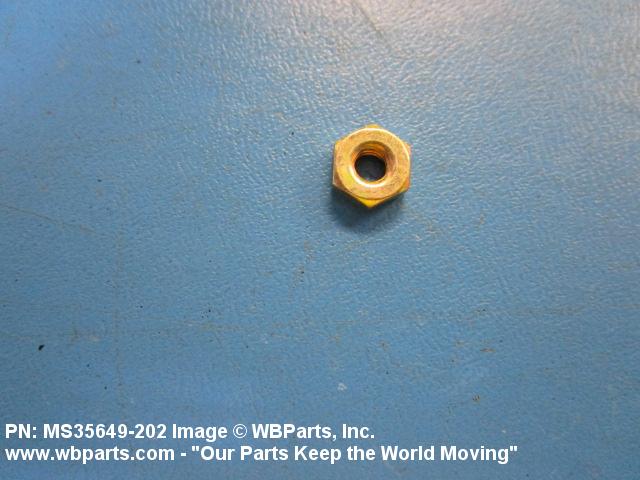

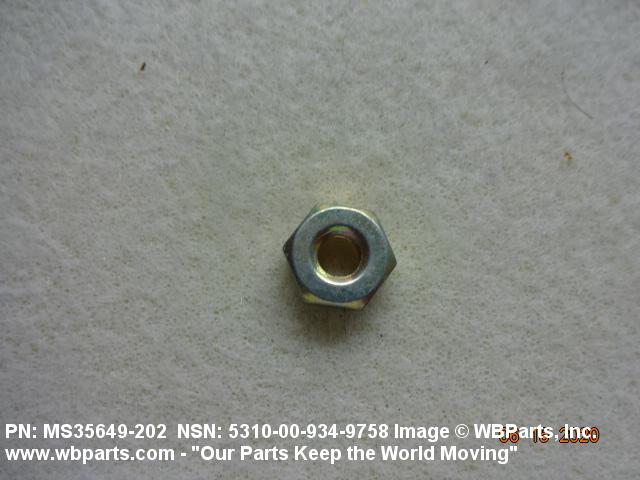

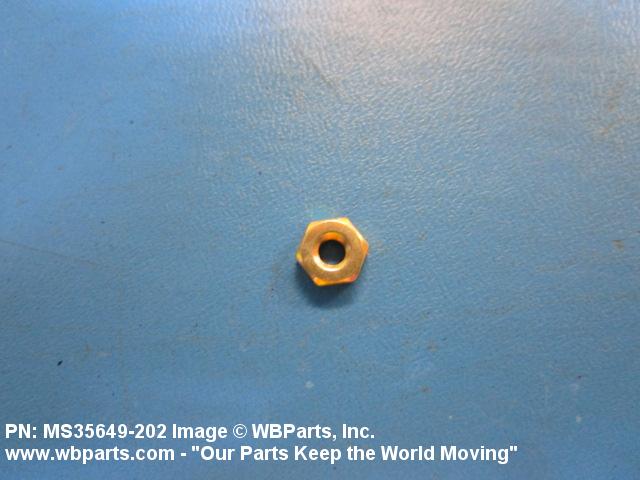

Drawings & Photos | NSN 5310-00-934-9758

Part Number	Request Date	QTY	Origin
FFN836	2024-10-291	190	US
FFN836	2023-09-258	100	TR
MS35649202	2023-06-159	4	United States
5310-00-934-9758	2023-05-128	1812	DIBBS
5310-00-934-9758	2023-03-61	1812	DIBBS
5310-00-934-9758	2022-07-192	964	DIBBS
5310-00-934-9758	2022-06-180	964	DIBBS
FFN836	2021-11-307	200	United States
FFN836	2021-08-228	100	United States
5310-00-934-9765	2021-05-147	3	US
5310-00-934-9758	2021-02-54	2312	DIBBS
5310-00-934-9758	2021-01-27	2253	DIBBS
5310-00-934-9758	2020-06-182	329	MANUAL
5310-00-934-9765	2020-02-48	2	US
MS35649202	2020-01-06	50	United States
MS35649202	2020-01-06	50	United States
FFN836	2019-02-44	288	US
5310-00-934-9765	2019-01-08	100	France
5310-00-934-9765	2018-06-180	3	United States
FFN836	2018-02-32	2	US
FFN836	2017-05-123	25	United States
5310-00-934-9765	2017-04-102	22	United States
5310-00-934-9765	2016-07-195	1	United States
FF-N-836	2016-05-145	48	Spain
MS35649-202	2014-03-71	690	United States
5310-00-934-9758	2013-05-121	1	US
MS35649202	2012-12-352	32	US
FFN836	2012-12-341	1	US
5310-00-934-9765	2011-11-314	160	CA
5310-00-934-9765	2011-01-27	450	United States
5310-00-934-9758	2010-12-342	2000	us
FFN836	2010-11-322	100	United Kingdom
5310-00-934-9765	2010-10-278	898	us
5310-00-934-9758	2010-08-242	6000	DIBBS
FFN836	2010-08-218	1	US
FFN836	2010-08-218	1	US
FFN836	2010-08-218	1	US
FFN836	2010-08-218	1	US
5310-00-934-9758	2010-06-173	900	DIBBS
5310-00-934-9765	2010-06-159	5000	US
5310-00-934-9765	2010-04-105	1	Canada
FFN836	2010-03-90	4	us
FFN836	2010-03-81	50	United States
FFN836	2010-02-46	50	United States
FFN836	2009-07-183	1000	US
FFN836	2009-05-141	580	US
5310-00-934-9758	2009-03-86	4200	DIBBS
5310-00-934-9758	2009-01-29	3257	DIBBS
56001001	2008-12-350	5	US
5310-00-934-9765	2008-10-288	5	United States
5310-00-934-9765	2008-09-250	50	India
FFN836	2008-07-195	20	US
5310-00-934-9758	2008-06-172	2650	DIBBS
FFN836	2008-06-171	200	US
FFN836	2008-02-39	1	US
MS35649202	2008-01-07	400	United States
FFN836	2007-10-298	100	US

Cross Reference | NSN 5310-00-934-9758

Part Number	Cage Code	Manufacturer
06436	43551	P-K PHARMACY AND SICKROOM SERVICE
0716831	S3002	GENERAL DYNAMICS EUROPEAN,LAND-SYSTEMS-MOWAG GMBH
0N311	03670	TYCO FIRE PRODUCTS, LP DBA TYCO FIRE SUPPRESSION & BUILDING
10-24 UNC HEX N UT	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
106436	34355	LOCKHEED MARTIN SIPPICAN, INC. DBA SIPPICAN USE CAGE CODE 16848 FOR
110633	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
110633	21450	ARMY WEAPONS COMMAND ATTN AMSWE-REE-S
120361	16004	DAVEY COMPRESSOR CO DIV OF KECO INDUSTRIES INC
120361	29215	JENNY PRODUCTS, INC.
200497	94533	ACE HOSE REEL CO DEPT OF WILLIAM M WILSONS SONS INC
274737	16764	GENERAL MOTORS CORP DELCO REMY DIV
274737	1LW55	REMY, INC.
333-10000	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
373982	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
401240	5X050	CRYSTEEL MANUFACTURING, INC. DBA TBEI-CRYSTEEL
47371	13841	TIFFIN PARTS, L.L.C. DIV SUBSIDIARY OF PETTIBONE CORP.
500K2537-9	94833	KECO INDUSTRIES INC.
501-04-07	44009	FIVES NORTH AMERICAN COMBUSTION, INC.
501-04-07-44009	19422	DEMARKUS CORP REFRIGERATION ENGINEERING CORP
5310009349758	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5310PL0567748	9009H	INSPEKTORAT WSPARCIA SIL ZBROJNYCH
8012	73734	FEDERAL SCREW PRODUCTS INC.
901820	90005	PUROLATOR FACET, INC.
901820-K7	90005	PUROLATOR FACET, INC.
90356	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
911C208-37	83843	SUNDSTRAND CORP ELECTRIC POWER SYSTEMS DIV
911C208-37	99167	HAMILTON SUNDSTRAND CORPORATION
938.03.28.005	S4080	PILATUS AIRCRAFT LTD
9411807	3M915	GENERAL FASTENERS COMPANY
FF-N-836	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
M29-00288 PC NO 188	9F512	PARKER-HANNIFIN CORPORATION DBA HYDRAULIC PUMP DIVISION
MS35649-202	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS35649-202	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
SK-14003-9	0EAK3	GSE MANAGEMENT CO
TIP01383	97403	CECOM LR CENTER

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-934-9758

Compare

Related Products | NSN 5310-00-934-9758

5310-00-934-9759, 5310-00-934-9760, 5310-00-934-9761, 5310-00-934-9762, 5310-00-934-9763

Technical Data | NSN 5310-00-934-9758

Characteristic	Specifications
THREAD SERIES	UNC
NOMINAL THREAD SIZE	0.190 INCHES

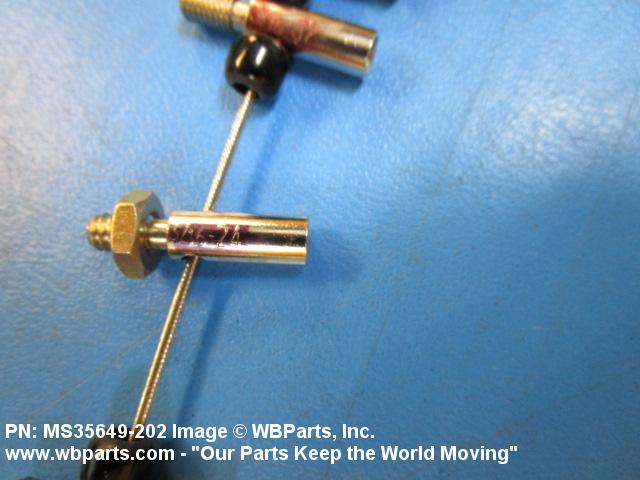

THREAD QUANTITY PER INCH	24
THREAD CLASS	2B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A12 HEXAGON

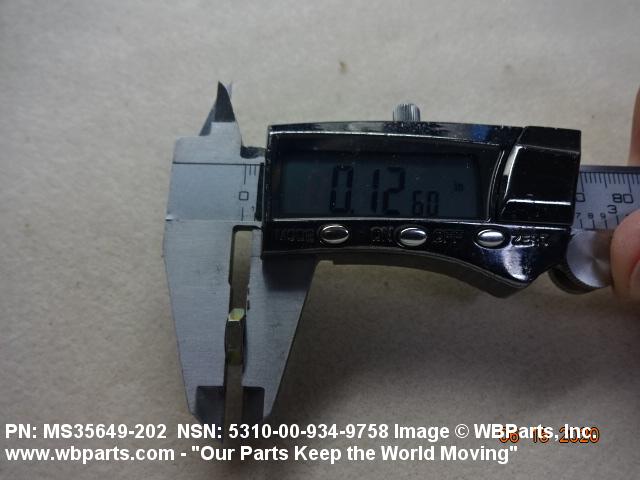

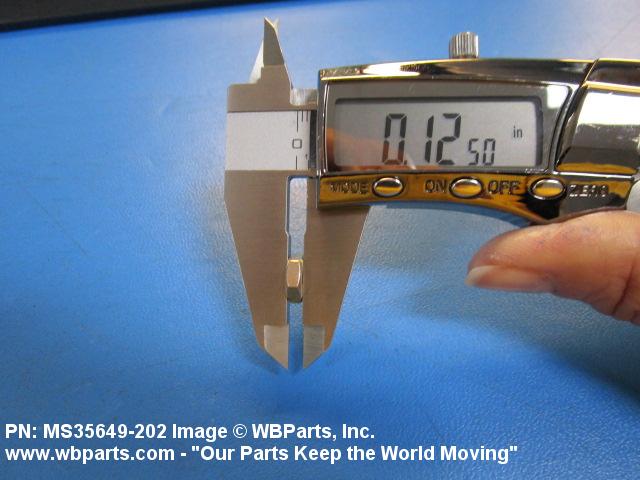

NUT HEIGHT	0.117 INCHES MINIMUM AND 0.130 INCHES MAXIMUM

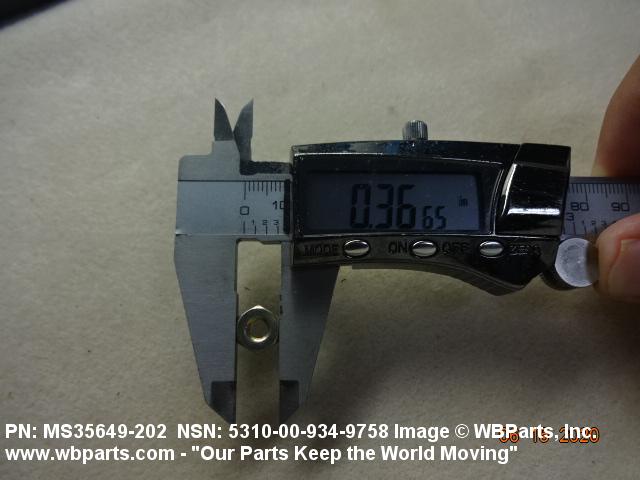

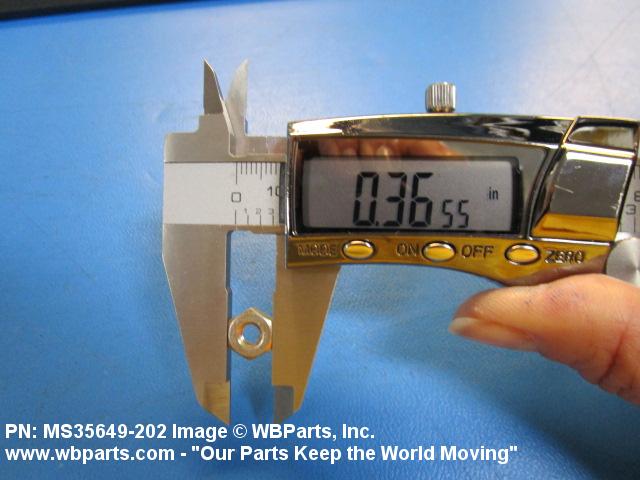

WIDTH ACROSS FLATS	0.362 INCHES MINIMUM AND 0.375 INCHES MAXIMUM
BEARING SURFACE TYPE	CHAMFERED
TEMP RATING	NOT RATED
NONDEFINITIVE SPEC/STD DATA	2 TYPE AND 13 STYLE
III END ITEM IDENTIFICATION	W/S:AIRBORNE MOBILE DIR AIR SPT CTL (2ID),(02M JUL83)(AN/UYQ-3A); SHIPBOARD MATERIAL HANDLING EQUIPMENT (MHE); STREAM (STD. TENSIONED REPLENISHMENT AT SEA METHOD); L.P. COMPRESSORS; FIRE PUMPS; BOILERS, 1200 PSI; VEHICLE, AIRCRAFT REFUELER R-14; AIRCRAFT, (AC-130H, MC-130H, EC-130E, HC-130); SUPPORT EQUIPMENT, B-1 AIRCRAFT; 2420-66-148-7692, HMEE (HIGH MOBILITY ENGINEER EXCAVATOR)
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FF-N-836

Restrictions/Controls & Freight Information | NSN 5310-00-934-9758

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-934-9758

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SO	TG:SPECIAL OPERATIONAL FORCES (SOF) PECULIAR
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Physical Category Code	1	Bin
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
