NSN 5310-00-905-5113 1400075042C5, 140-007-50-42C5, 00-905-5113
Product Details | RECESSED WASHER
5310-00-905-5113 A washer of any peripheral shape having a centrally located hole. Both bearing surfaces are parallel and flat, but one or both of the bearing surfaces must be broken by a counterbore, countersink, or similarly shaped recess. The thickness must not exceed 25 per cent of the outside diameter or the largest outside dimension. The maximum limit of the tolerance or range applied to the thickness and/or largest outside dimension must be used to determine compliance. Excludes WASHER, CONCAVE, RETAINER, PACKING, and thrust type washers. See also SPACER, SLEEVE; and SPACER, STEPPED.
Part Alternates: 1400075042C5, 140-007-50-42C5, 5310-00-905-5113, 00-905-5113, 5310009055113, 009055113
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-905-5113 | 15933 ( WASHER, RECESSED ) |

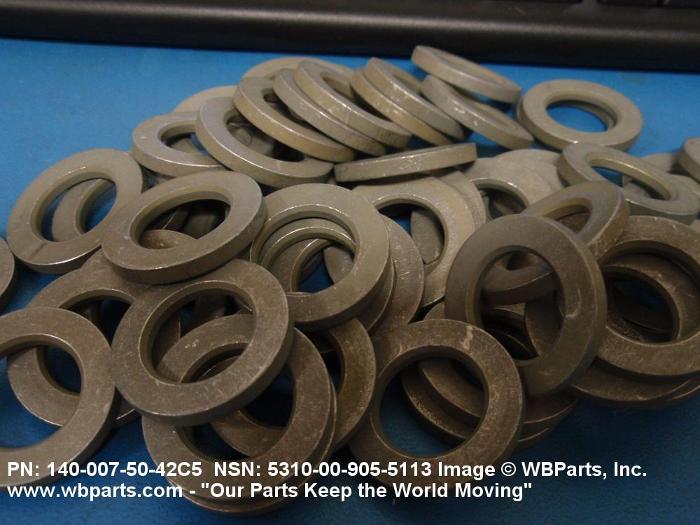

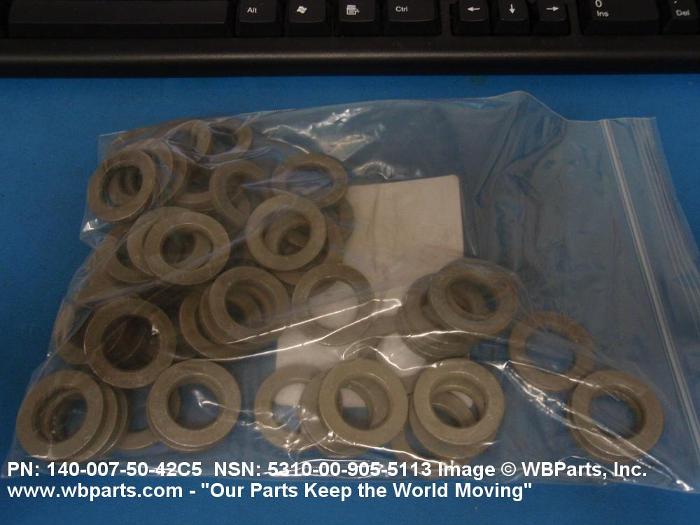

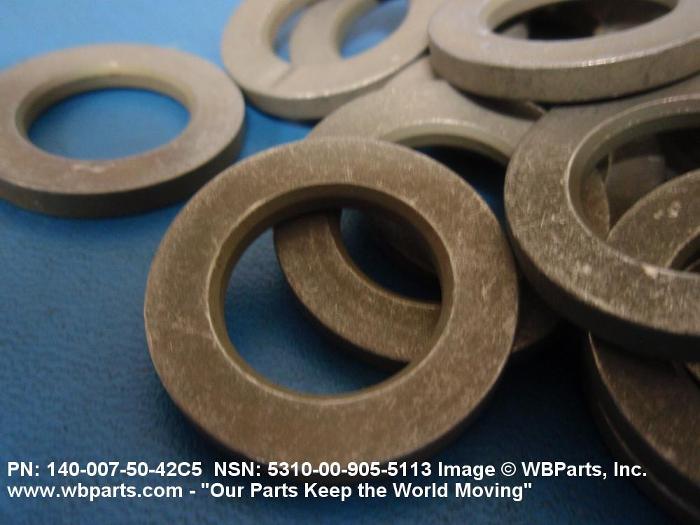

Drawings & Photos | NSN 5310-00-905-5113
Demand History | NSN 5310-00-905-5113
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-905-5113 | 2022-05-142 | 50 | DIBBS |
| 5310-00-905-5113 | 2021-10-298 | 35 | DIBBS |
| 5310-00-905-5113 | 2021-10-285 | 35 | DIBBS |
| 5310-00-905-5113 | 2020-10-290 | 35 | DIBBS |
| 5310-00-905-5113 | 2020-10-281 | 35 | DIBBS |
| 5310-00-905-5113 | 2018-09-261 | 100 | DIBBS |
| 5310-00-905-5113 | 2015-08-237 | 59 | DIBBS |
| 5310-00-905-5113 | 2013-03-83 | 18 | DIBBS |
| 5310-00-905-5113 | 2011-04-94 | 55 | United States |
| 5310-00-905-5113 | 2011-01-25 | 9 | DIBBS |
| 5310-00-905-5113 | 2010-12-364 | 9 | DIBBS |
| 5310-00-905-5113 | 2010-10-286 | 46 | DIBBS |
| 5310-00-905-5113 | 2010-03-83 | 46 | DIBBS |
| 5310-00-905-5113 | 2009-12-354 | 46 | DIBBS |
| 5310-00-905-5113 | 2009-11-312 | 8 | DIBBS |
| 5310-00-905-5113 | 2009-06-175 | 46 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-905-5113
Related Products | NSN 5310-00-905-5113
Technical Data | NSN 5310-00-905-5113
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 601 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6458 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 28 RECESSED BOTH SIDES |
| HOLE DIAMETER | 0.771 INCHES MINIMUM AND 0.791 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 1.302 INCHES MINIMUM AND 1.322 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.146 INCHES MINIMUM AND 0.166 INCHES MAXIMUM |
| TOP RECESS DIAMETER | 0.851 INCHES MINIMUM AND 0.861 INCHES MAXIMUM |
| BOTTOM RECESS DIAMETER | 0.851 INCHES MINIMUM AND 0.861 INCHES MAXIMUM |
| BOTTOM RECESS ANGLE | 90.0 DEGREES NOMINAL |
| TOP RECESS ANGLE | 90.0 DEGREES NOMINAL |
| SURFACE FINISH | 63.0 MICROINCHES ALL SURFACES |
| III MINIMUM TENSILE STRENGTH | 240000 POUNDS PER SQUARE INCH |
| MANUFACTURERS CODE | 97499 |
| DESIGN CONTROL REFERENCE | 140-007-50-42C5 |
Restrictions/Controls & Freight Information | NSN 5310-00-905-5113
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-905-5113
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
