Product Details | RECESSED WASHER

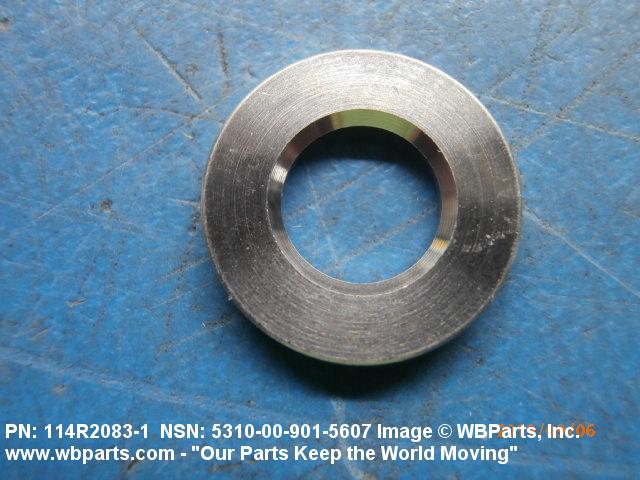

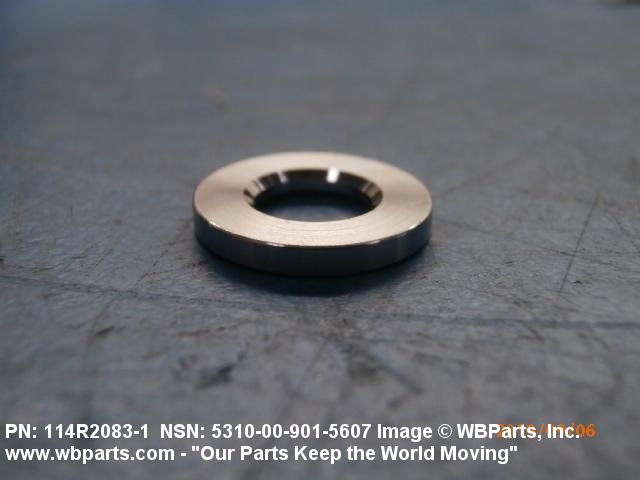

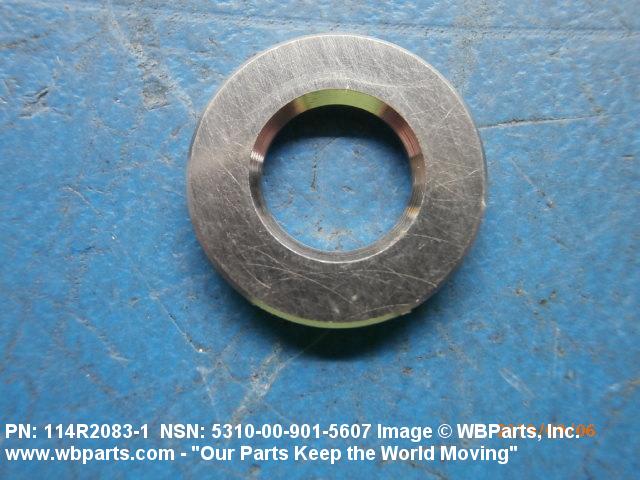

5310-00-901-5607 A washer of any peripheral shape having a centrally located hole. Both bearing surfaces are parallel and flat, but one or both of the bearing surfaces must be broken by a counterbore, countersink, or similarly shaped recess. The thickness must not exceed 25 per cent of the outside diameter or the largest outside dimension. The maximum limit of the tolerance or range applied to the thickness and/or largest outside dimension must be used to determine compliance. Excludes WASHER, CONCAVE, RETAINER, PACKING, and thrust type washers. See also SPACER, SLEEVE; and SPACER, STEPPED.

Part Alternates: 114R20831, 114R2083-1, 5310-00-901-5607, 00-901-5607, 5310009015607, 009015607

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1960 00-901-5607

Drawings & Photos | NSN 5310-00-901-5607


Demand History | NSN 5310-00-901-5607

Part Number Request Date QTY Origin
5310-00-901-5607 2021-04-113 24 US
114R20831 2021-02-55 1 United States
114R20831 2021-02-55 4 United States
5310-00-901-5607 2020-12-337 618 DIBBS
114R20831 2020-09-248 12 United States
114R20831 2020-05-126 12 US
114R20831 2020-05-122 12 United States
114R20831 2020-03-69 12 United States
114R20831 2019-10-301 84 United States
5310-00-901-5607 2019-09-261 1019 DIBBS
114R20831 2019-08-241 12 United States
114R20831 2019-08-228 4 United States
114R20831 2019-08-225 4 United States
114R20831 2019-08-220 4 United States
114R20831 2018-02-44 36 United States
5310-00-901-5607 2015-06-166 100 DIBBS
5310-00-901-5607 2015-06-155 100 DIBBS
5310-00-901-5607 2014-03-84 1142 DIBBS
5310-00-901-5607 2013-01-03 1043 DIBBS
5310-00-901-5607 2012-04-97 612 DIBBS
5310-00-901-5607 2010-05-124 569 DIBBS
5310-00-901-5607 2009-09-267 511 DIBBS
5310-00-901-5607 2008-10-283 118 DIBBS
5310-00-901-5607 2008-08-224 312 DIBBS
5310-00-901-5607 2008-07-189 372 DIBBS
5310-00-901-5607 2008-06-168 245 DIBBS
5310-00-901-5607 2008-05-150 331 DIBBS

Cross Reference | NSN 5310-00-901-5607

Part Number Cage Code Manufacturer
114R2083-1 77272 THE BOEING COMPANY DBA BOEING
114R2083-1 81205 THE BOEING COMPANY DBA BOEING

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-901-5607

Technical Data | NSN 5310-00-901-5607

Characteristic Specifications
MATERIAL STEEL OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION AMS5643 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT PASSIVATE OVERALL
STYLE DESIGNATOR 28 RECESSED BOTH SIDES

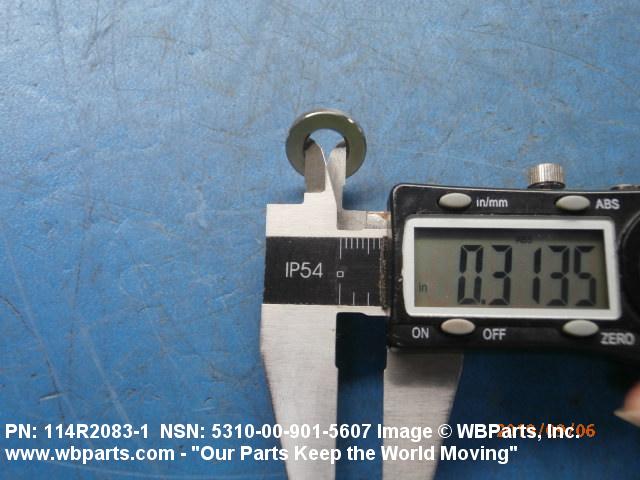

HOLE DIAMETER 0.313 INCHES MINIMUM AND 0.314 INCHES MAXIMUM

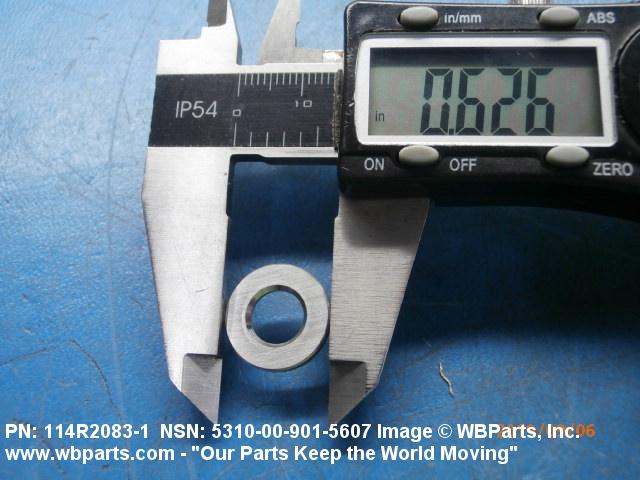

OUTSIDE DIAMETER 0.615 INCHES MINIMUM AND 0.635 INCHES MAXIMUM

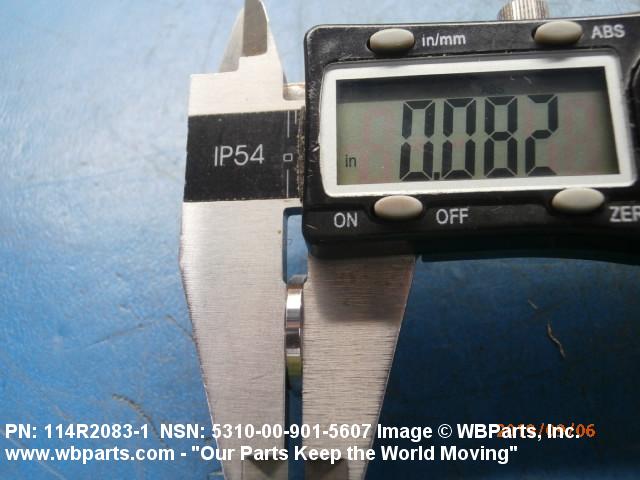

MATERIAL THICKNESS 0.081 INCHES MINIMUM AND 0.083 INCHES MAXIMUM

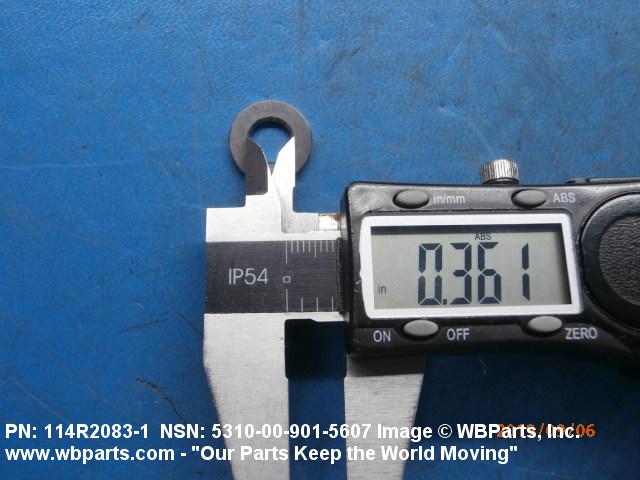

TOP RECESS DIAMETER 0.361 INCHES MINIMUM AND 0.371 INCHES MAXIMUM
BOTTOM RECESS DIAMETER 0.361 INCHES MINIMUM AND 0.371 INCHES MAXIMUM
BOTTOM RECESS ANGLE 90.0 DEGREES NOMINAL
TOP RECESS ANGLE 90.0 DEGREES NOMINAL
III MINIMUM TENSILE STRENGTH 190000 POUNDS PER SQUARE INCH
MANUFACTURERS CODE 77272
DESIGN CONTROL REFERENCE 114R2083-1

Restrictions/Controls & Freight Information | NSN 5310-00-901-5607

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 194160 WASHER OR GASKETS, IRON OR STEEL,
Less than car load rating
Less than truck load rating U 50.0
Water commodity Code 713 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
