NSN 5310-01-048-2641 14000717S16D5, 140-007-17S16D5, 01-048-2641
Product Details | RECESSED WASHER
5310-01-048-2641 A washer of any peripheral shape having a centrally located hole. Both bearing surfaces are parallel and flat, but one or both of the bearing surfaces must be broken by a counterbore, countersink, or similarly shaped recess. The thickness must not exceed 25 per cent of the outside diameter or the largest outside dimension. The maximum limit of the tolerance or range applied to the thickness and/or largest outside dimension must be used to determine compliance. Excludes WASHER, CONCAVE, RETAINER, PACKING, and thrust type washers. See also SPACER, SLEEVE; and SPACER, STEPPED.
Part Alternates: 14000717S16D5, 140-007-17S16D5, 5310-01-048-2641, 01-048-2641, 5310010482641, 010482641
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 SEP 1977 | 01-048-2641 | 15933 ( WASHER, RECESSED ) |

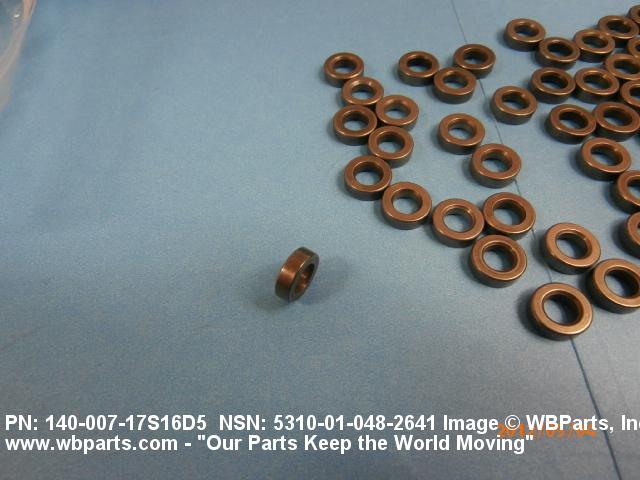

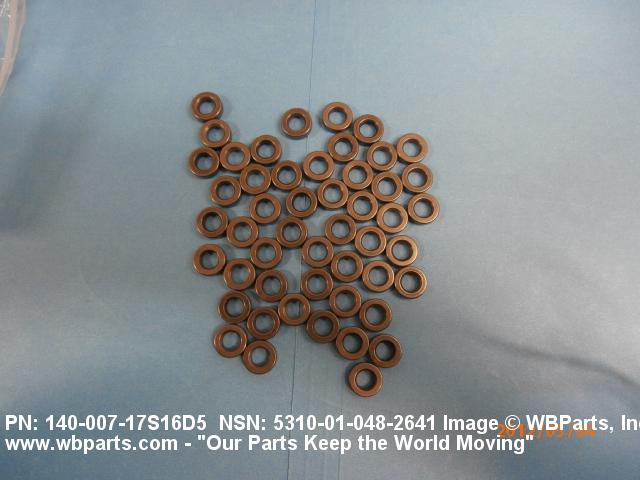

Drawings & Photos | NSN 5310-01-048-2641
Demand History | NSN 5310-01-048-2641
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-048-2641 | 2014-07-204 | 110 | TW |
| 14000717S16D5 | 2012-04-111 | 50 | Taiwan |
| 14000717S16D5 | 2012-04-108 | 48 | Taiwan |
| 140-007-17S16D5 | 2012-03-72 | 28 | TW |
| 5310-01-048-2641 | 2012-03-72 | 28 | MANUAL |
| 5310-01-048-2641 | 2011-07-188 | 9011 | DIBBS |
| 5310-01-048-2641 | 2010-12-335 | 3573 | DIBBS |
| 5310-01-048-2641 | 2010-05-139 | 3304 | DIBBS |
| 5310-01-048-2641 | 2009-12-362 | 2074 | DIBBS |
| 5310-01-048-2641 | 2008-01-23 | 4117 | DIBBS |
Cross Reference | NSN 5310-01-048-2641
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 140-007-17S16D5 | 97499 | BELL HELICOPTER TEXTRON INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-048-2641
Related Products | NSN 5310-01-048-2641
Technical Data | NSN 5310-01-048-2641
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 630 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5604 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 28 RECESSED BOTH SIDES |

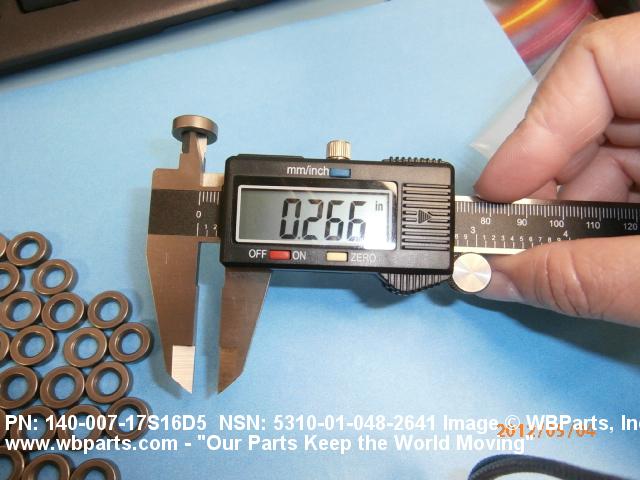

| HOLE DIAMETER | 0.266 INCHES NOMINAL |

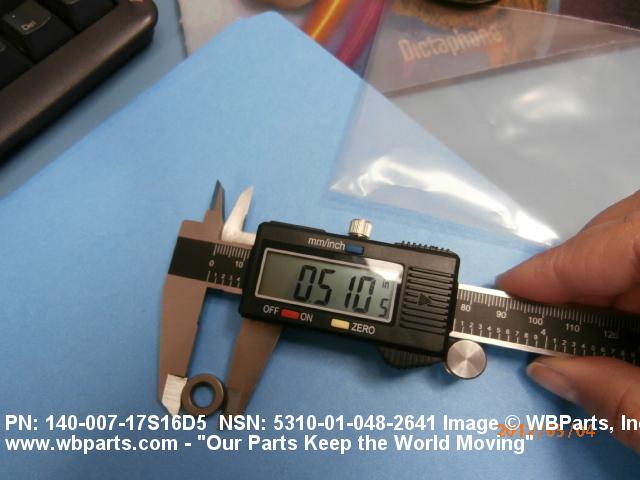

| OUTSIDE DIAMETER | 0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.156 INCHES NOMINAL |
| TOP RECESS DIAMETER | 0.356 INCHES MINIMUM AND 0.366 INCHES MAXIMUM |
| BOTTOM RECESS DIAMETER | 0.356 INCHES MINIMUM AND 0.366 INCHES MAXIMUM |
| BOTTOM RECESS ANGLE | 89.5 DEGREES MINIMUM AND 90.5 DEGREES MAXIMUM |
| TOP RECESS ANGLE | 89.5 DEGREES MINIMUM AND 90.5 DEGREES MAXIMUM |
| SURFACE FINISH | 63.0 MICROINCHES TOP 63.0 MICROINCHES BOTTOM |
| III MINIMUM TENSILE STRENGTH | 170000 POUNDS PER SQUARE INCH |
| MANUFACTURERS CODE | 97499 |
| DESIGN CONTROL REFERENCE | 140-007-17S16D5 |
Restrictions/Controls & Freight Information | NSN 5310-01-048-2641
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-048-2641
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BX | OH-58D Army Helicopter Improvement Program (AHIP) |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
