NSN 5310-00-905-5473 MF19683, MF1968-3, NAS1474A3

Product Details | PLATE SELF-LOCKING NUT

5310-00-905-5473 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MF19683, MF1968-3, NAS1474A3, NAS1474AD3, A250602, A2506-02, GHN100413, GHN10041-3 , 3331451040, 333-1451-040, 5310-00-905-5473, 00-905-5473, 5310009055473, 009055473

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1960	00-905-5473	05280 ( NUT, SELF-LOCKING, PLATE )

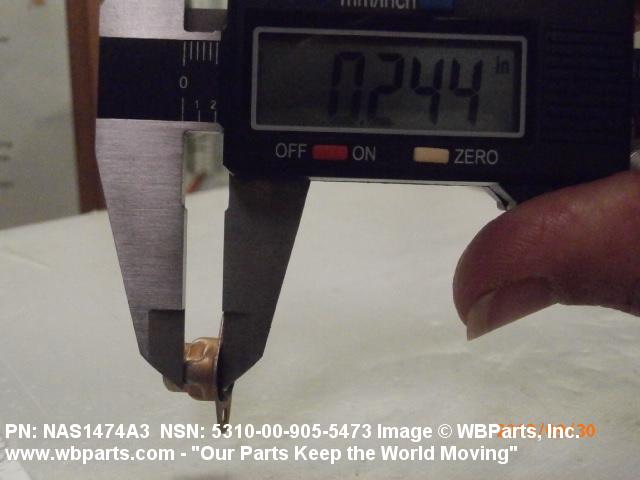

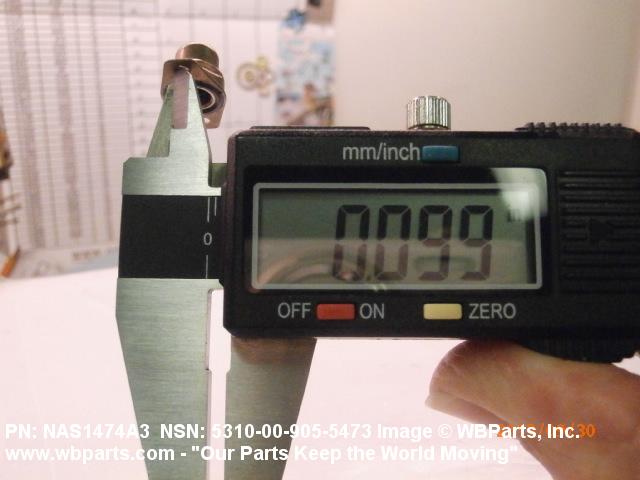

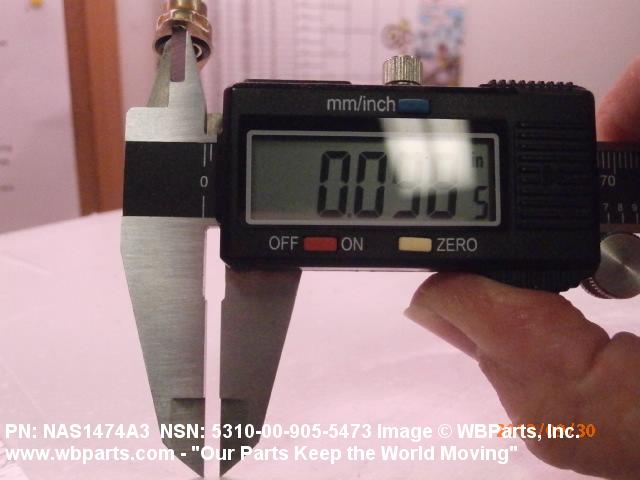

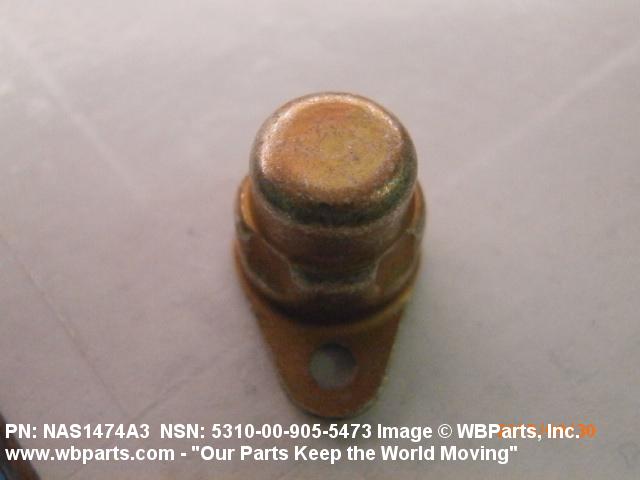

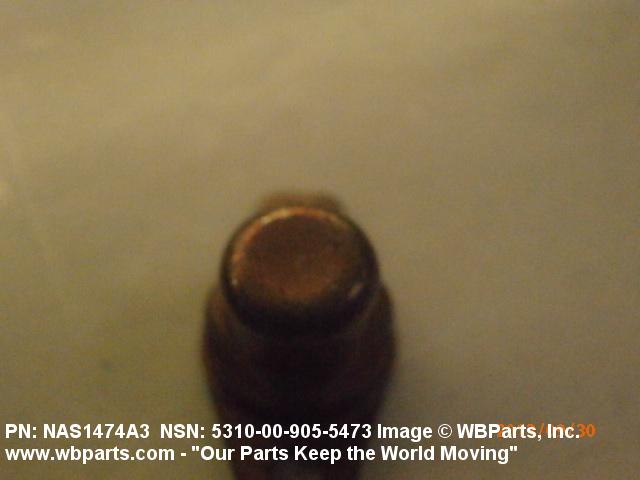

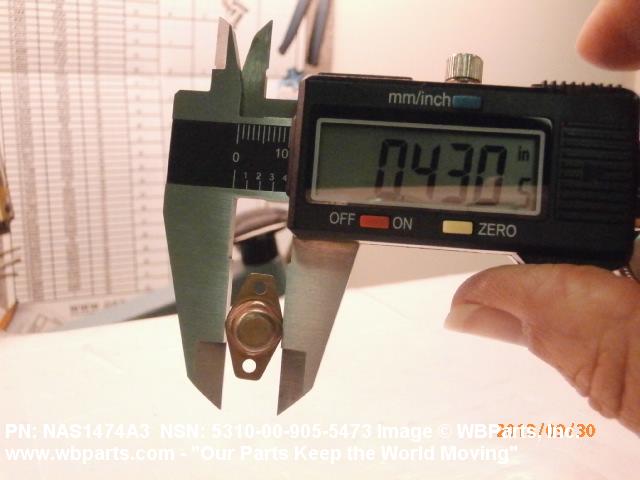

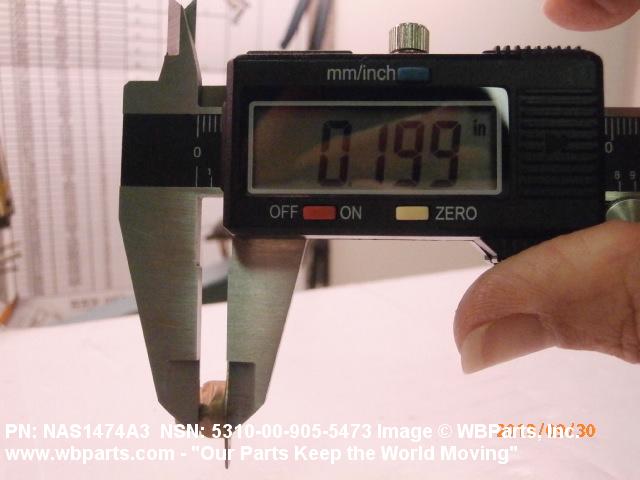

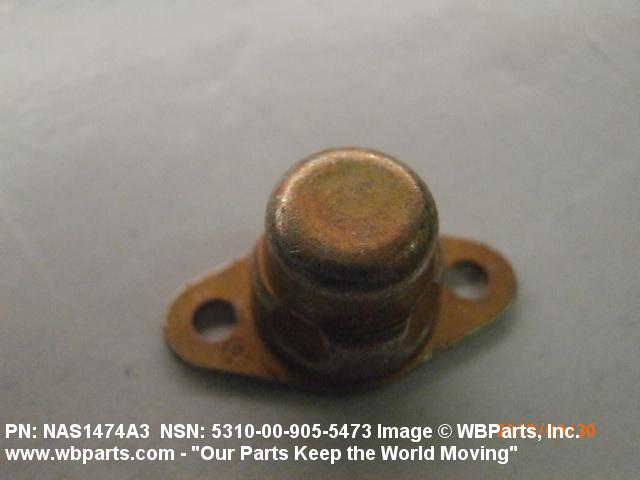

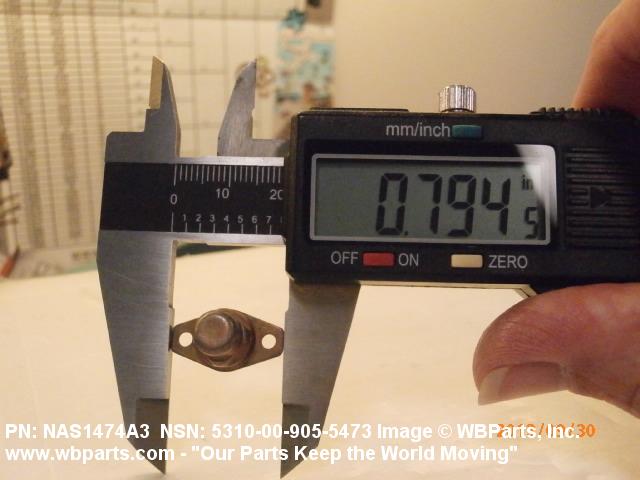

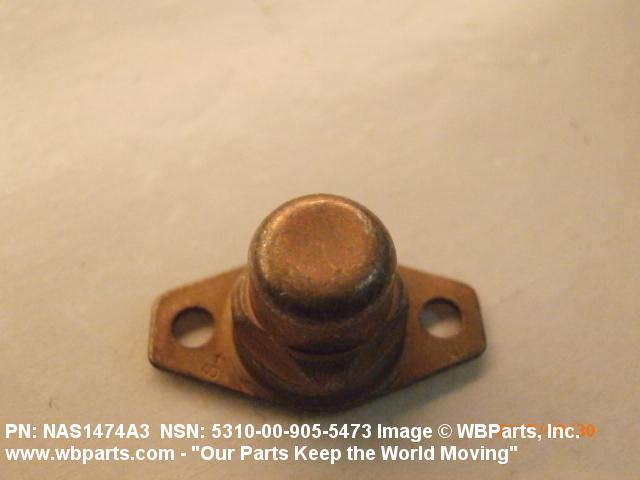

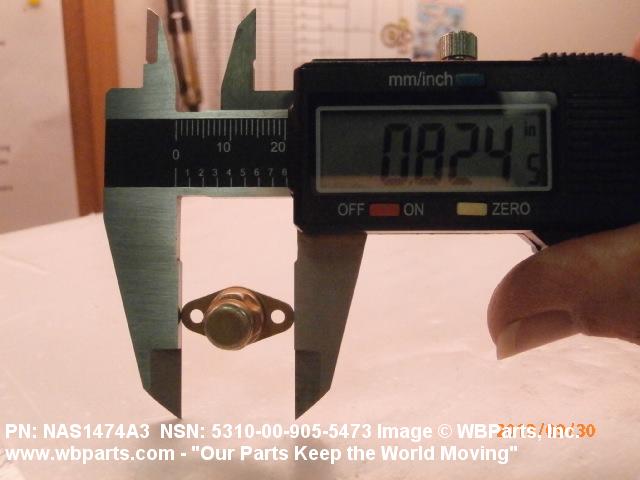

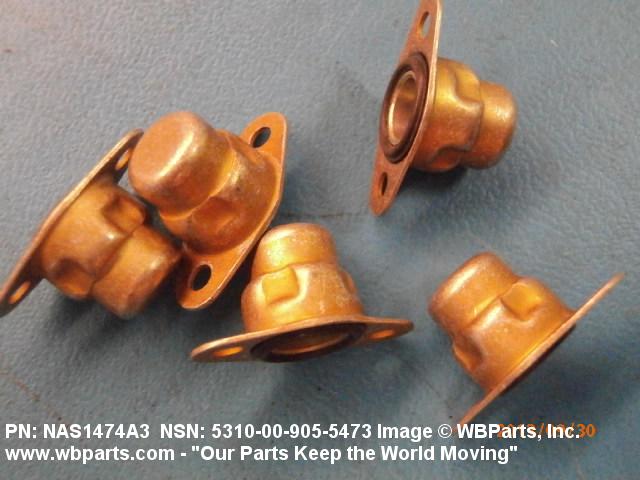

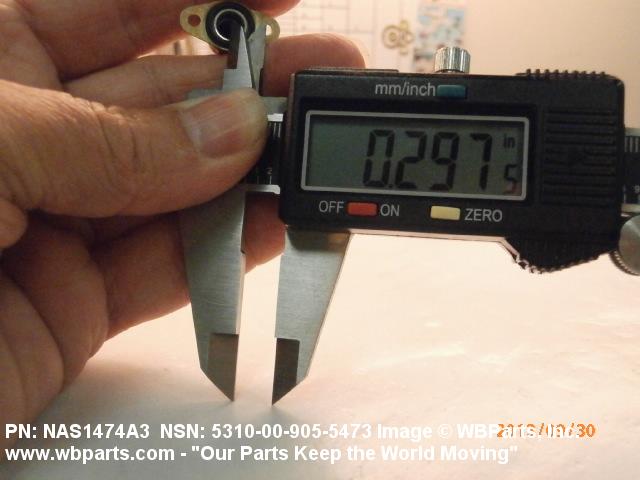

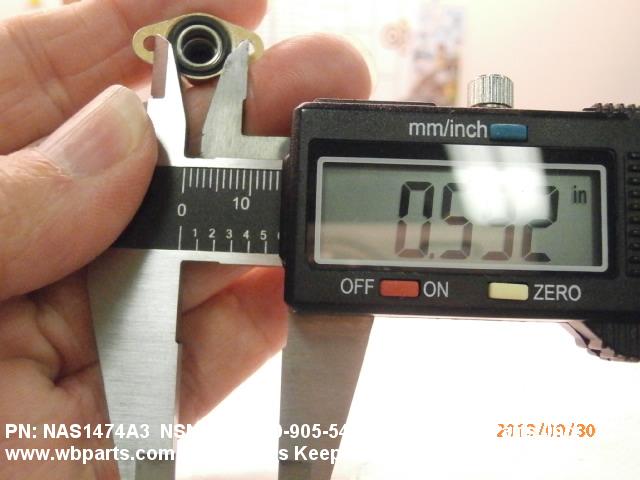

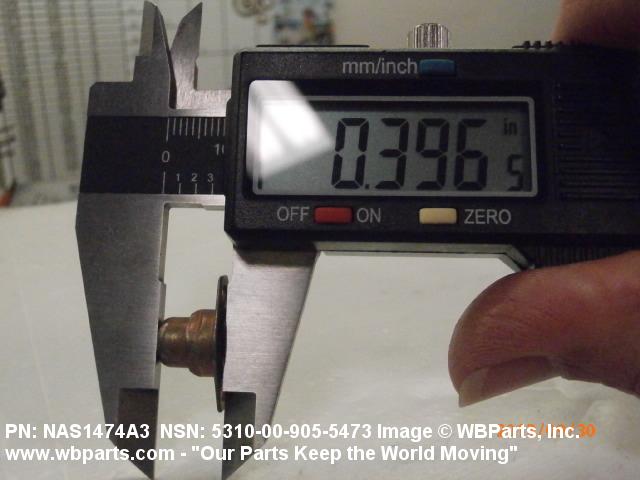

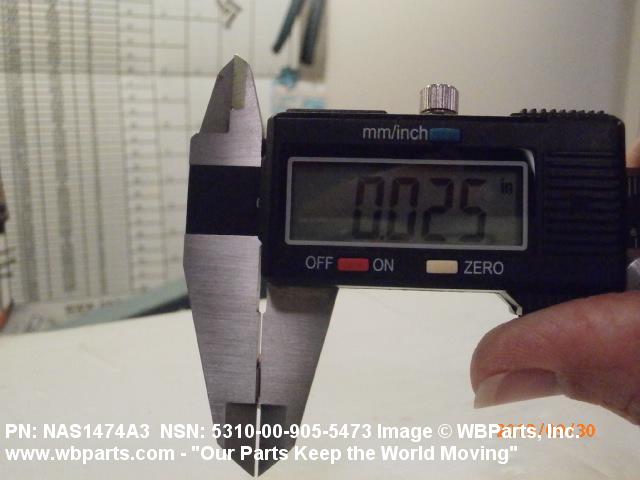

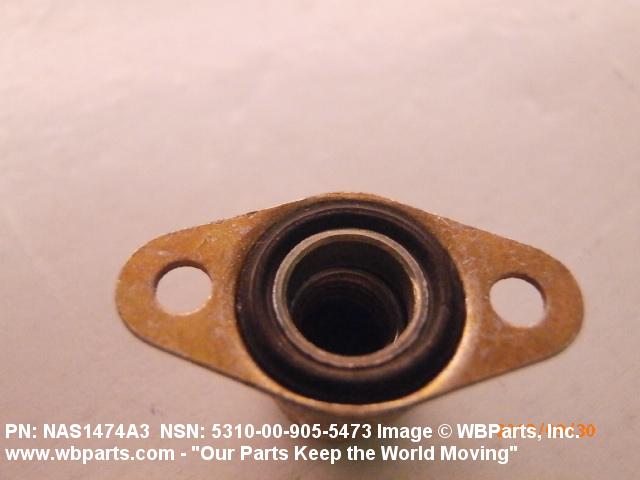

Drawings & Photos | NSN 5310-00-905-5473

Part Number	Request Date	QTY	Origin
MF19683	2024-03-86	250	us
5310-00-905-5473	2020-04-105	4430	US
5310-00-905-5473	2020-04-98	4430	DIBBS
5310-00-905-5473	2020-04-97	4430	US
5310-00-905-5473	2020-03-83	4430	DIBBS
5310-00-905-5473	2020-03-74	25	US
5310-00-905-5473	2020-02-33	17959	DIBBS
5310-00-905-5473	2019-12-335	32469	DIBBS
NAS1474A3	2018-08-234	630	US
NAS1474A3	2018-02-47	16950	us
5310-00-905-5473	2017-02-53	9	MANUAL
NAS1474A3	2017-01-06	50	South Africa
NAS1474A3	2016-10-284	100	South Africa
NAS1474A3	2016-08-229	20	South Africa
NAS1474A3	2016-03-67	100	Thailand
NAS1474A3	2016-02-42	84	Turkey
NAS1474A3	2016-01-28	100	MX
NAS1474A3	2015-03-61	2	US
NAS1474A3	2014-11-331	6	Malaysia
NAS1474A3	2014-11-328	6	Malaysia
A2506-02	2013-11-322	50	Belgium
NAS1474A3	2013-11-318	200	United States
NAS1474A3	2013-07-190	50	Hong Kong
NAS1474A3	2012-12-341	50	US
NAS1474A3	2012-11-310	60
NAS1474A3	2012-08-229	50	MY
NAS1474A3	2012-01-25	600	IL
5310-00-905-5473	2011-12-348	20	US
NAS1474A3	2011-01-31	225	US
NAS1474A3	2011-01-12	24	US
NAS1474A3	2009-01-28	30000	PL
NAS1474A3	2008-09-252	10	US
NAS1474A3	2008-05-137	60	us
NAS1474A3	2008-04-119	200	United States
5310-00-905-5473	2007-02-57	310	US

Cross Reference | NSN 5310-00-905-5473

Part Number	Cage Code	Manufacturer
333-1451-040	95105	ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS
A2506-02	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
A2506-02	72962	HARVARD INDUSTRIES INC
MF1968-3	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
MF1968-3	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
NAS1474A3	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NAS1474AD3	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-905-5473

Compare

Related Products | NSN 5310-00-905-5473

5310-00-905-5536, 5310-00-905-5559, 5310-00-905-6440, 5310-00-905-6541, 5310-00-905-6596

Technical Data | NSN 5310-00-905-5473

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TYPE 2,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A116 PLATE

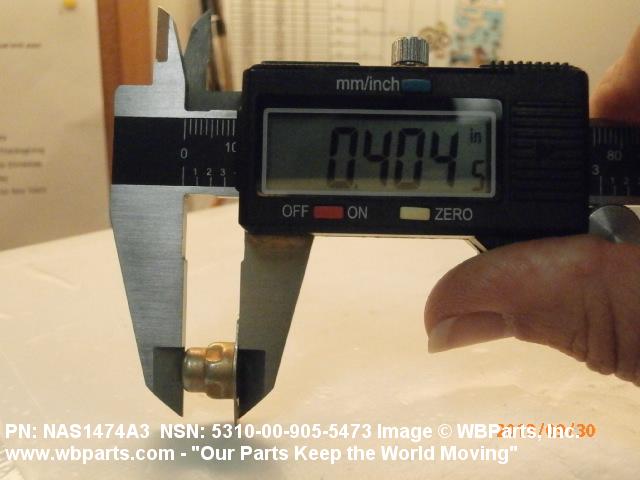

OVERALL HEIGHT	0.405 INCHES MAXIMUM
NUT LENGTH	0.840 INCHES MAXIMUM
NUT HEIGHT	0.268 INCHES MAXIMUM

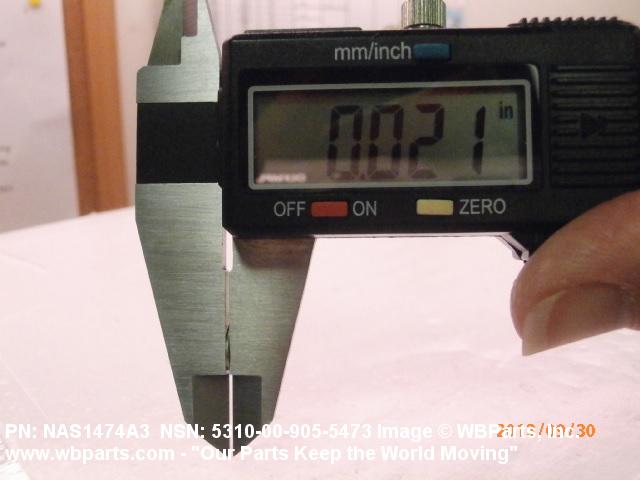

PLATE THICKNESS	0.030 INCHES MAXIMUM

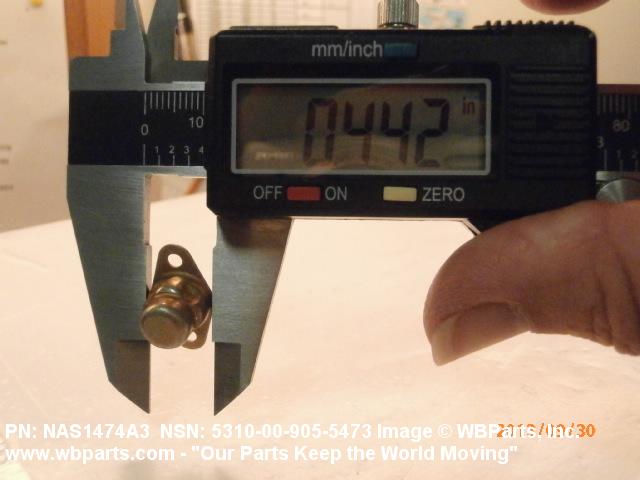

PLATE WIDTH	0.443 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION	DRY FILM LUBRICANT
NUT MOUNTING PROVISION	STRAIGHT HOLES
MOUNTING HOLE ARRANGEMENT STYLE	F38 2 HOLES
MOUNTING HOLE DIAMETER	0.098 INCHES NOMINAL
DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER	0.290 INCHES MINIMUM AND 0.300 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH	0.588 INCHES MINIMUM AND 0.592 INCHES MAXIMUM
TEMP RATING	225.0 DEG FAHRENHEIT NOMINAL
FEATURES PROVIDED	FLOATING NUT

Restrictions/Controls & Freight Information | NSN 5310-00-905-5473

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-905-5473

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BJ	AH-64 Airframe
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each
