NSN 5310-00-879-2350 C810061, C8100-6-1, 00-879-2350
Product Details | SHEET SPRING NUT
5310-00-879-2350 A nut formed from sheet spring material, usually steel, into varying flat, concave, bent or curved designs, having apertures with suitable boss or bosses usually on the upper side capable of securely gripping a mating threaded member. Excludes NUT (1), STAMPED.
Part Alternates: C810061, C8100-6-1, 5310-00-879-2350, 00-879-2350, 5310008792350, 008792350
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-879-2350 | 01865 ( NUT, SHEET SPRING ) |

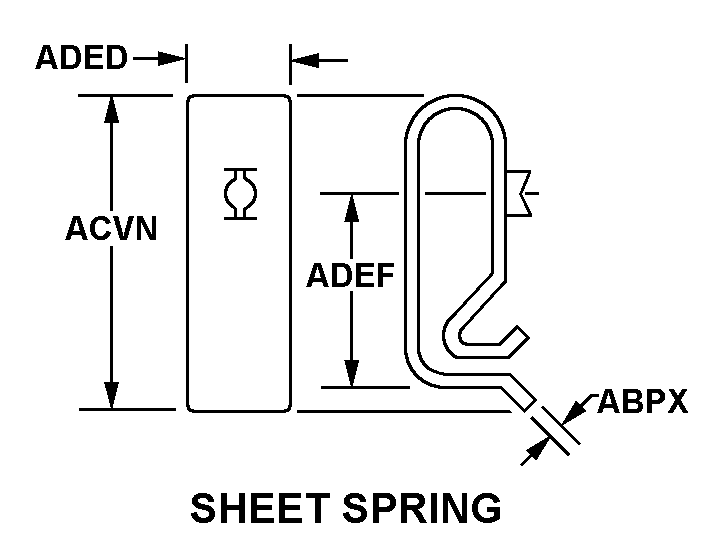

Drawings & Photos | NSN 5310-00-879-2350
Cross Reference | NSN 5310-00-879-2350
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C8100-6-1 | 78553 | TINNERMAN PALNUT ENGINEERED PRODUCTS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-879-2350
Technical Data | NSN 5310-00-879-2350
| Characteristic | Specifications |
|---|---|
| MATING MEMBER DIAMETER ACCOMMODATED | 0.138 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | PHOSPHATE AND CHROMATE OVERALL |
| NUT STYLE | A175 SHEET SPRING |
| MATERIAL THICKNESS | 0.025 INCHES NOMINAL |
| NUT LENGTH | 0.810 INCHES NOMINAL |
| NUT WIDTH | 0.312 INCHES NOMINAL |
| DISTANCE FROM CENTER OF APERATURE TO END | ANY ACCEPTABLE |
| MANUFACTURERS CODE | 78553 |
| DESIGN CONTROL REFERENCE | C8100-6-1 |
Restrictions/Controls & Freight Information | NSN 5310-00-879-2350
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
