NSN 5310-00-777-5786 MS21059L06K, RF200A06K, RM52LHTA52162BC
Product Details | PLATE SELF-LOCKING NUT
5310-00-777-5786 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: MS21059L06K, RF200A06K, RM52LHTA52162BC, RM52LHTA521-62BC, T65S632SBC, F500006BC, F5000-06BC, 1360562BC, 13605-62BC, 5310-00-777-5786, 00-777-5786, 5310007775786, 007775786
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-777-5786 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

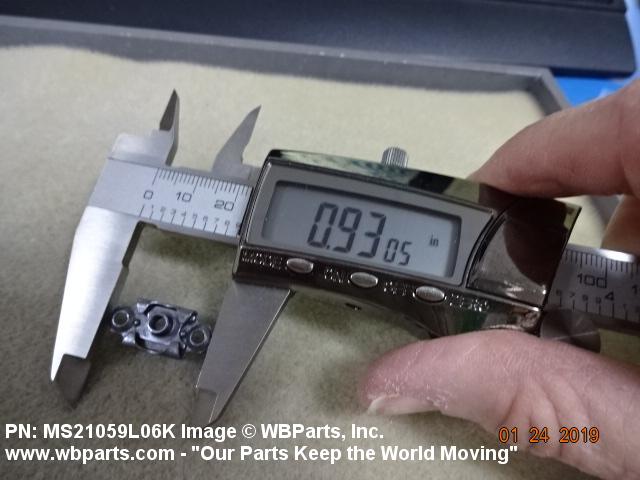

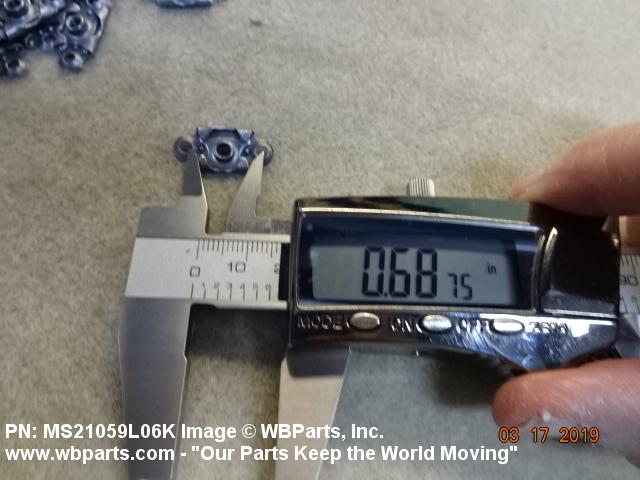

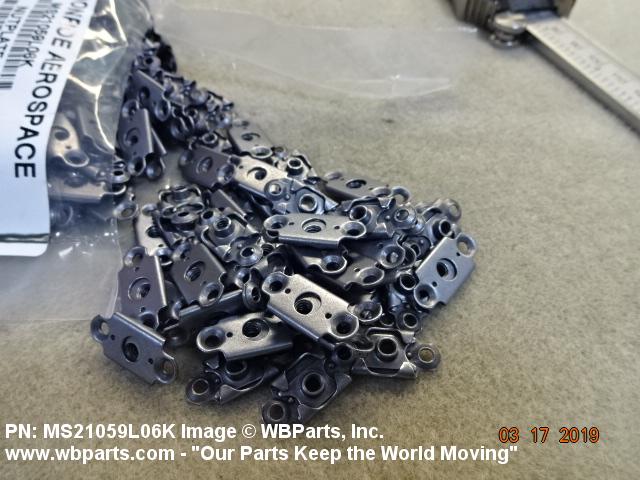

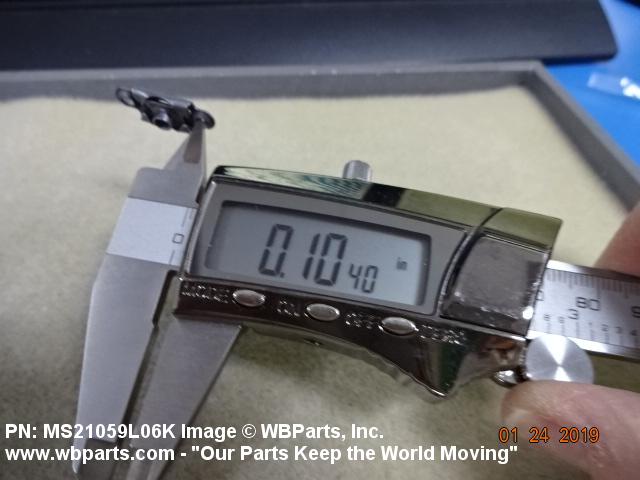

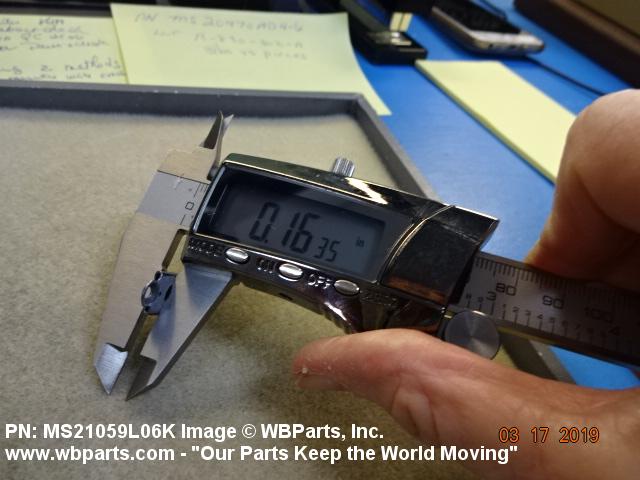

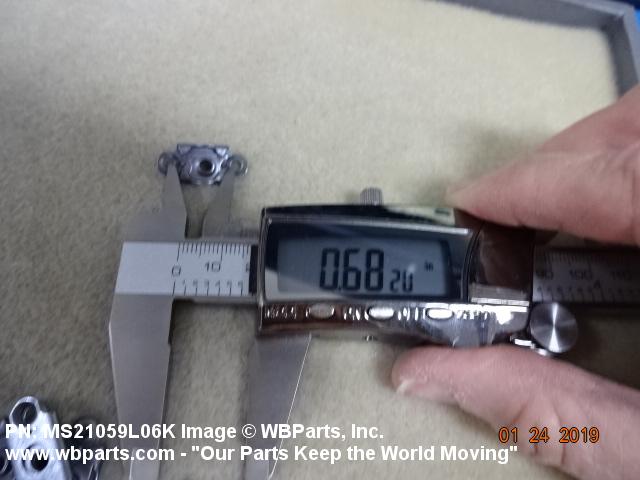

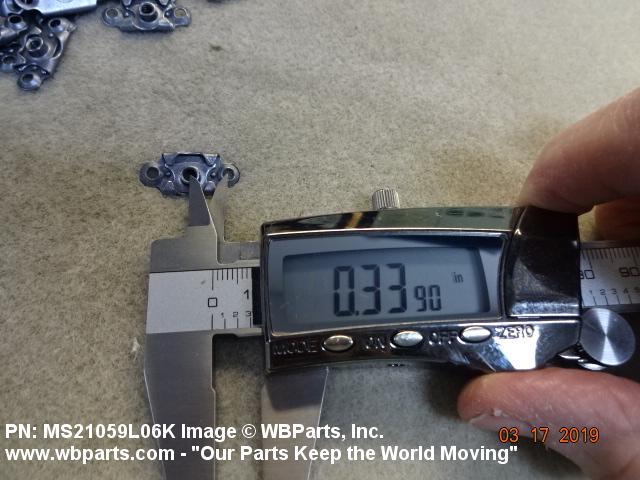

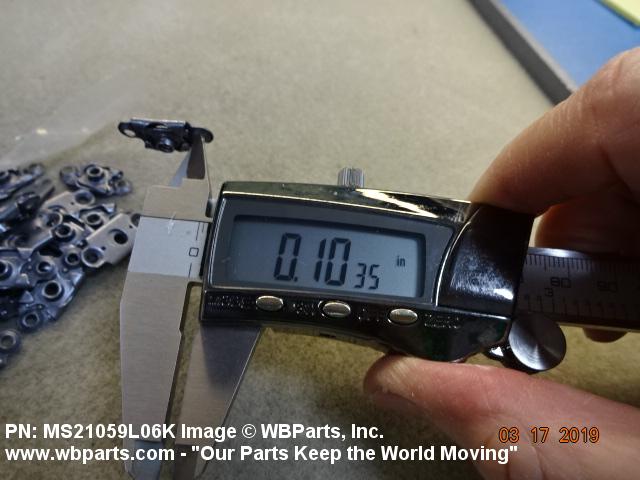

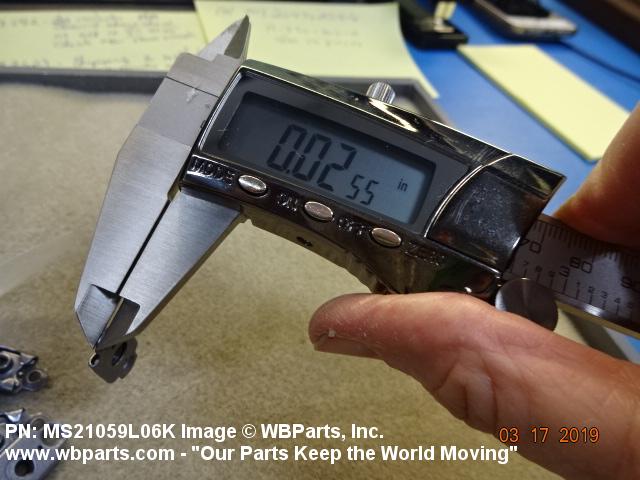

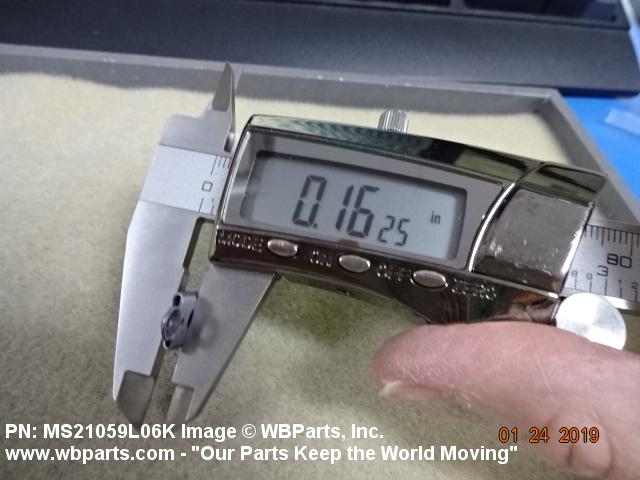

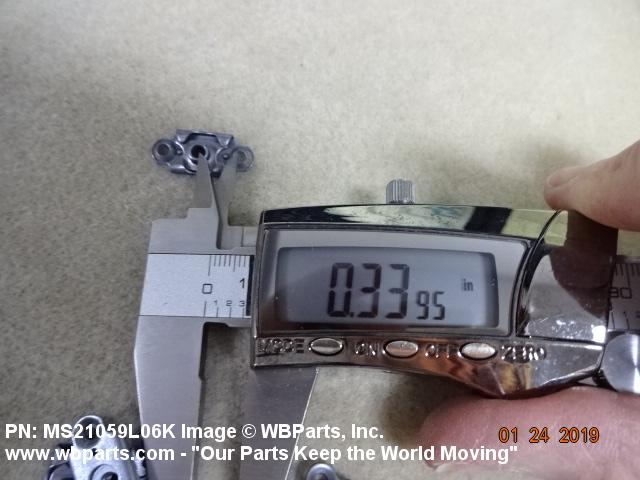

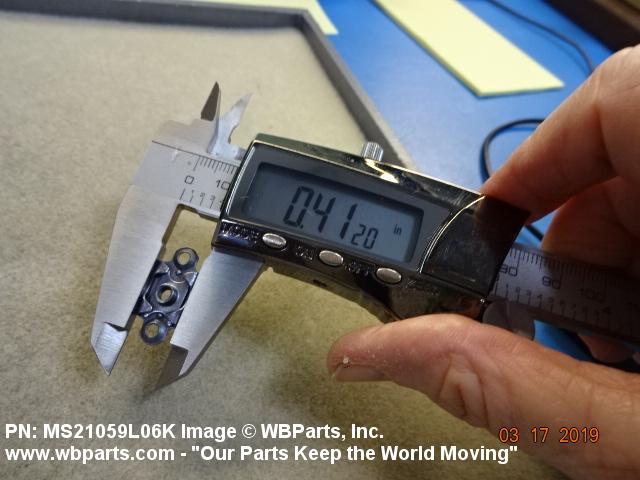

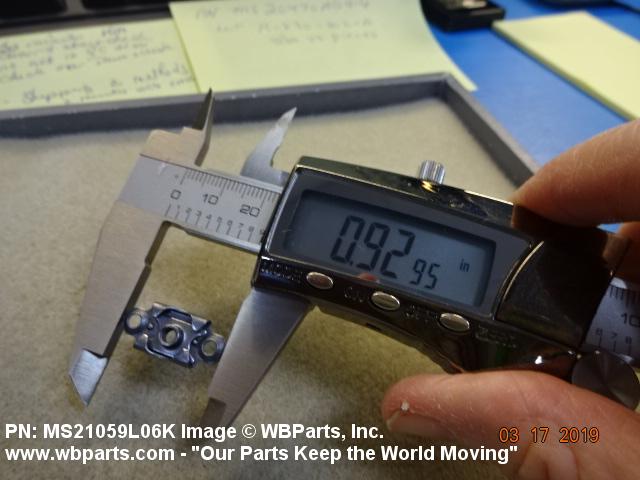

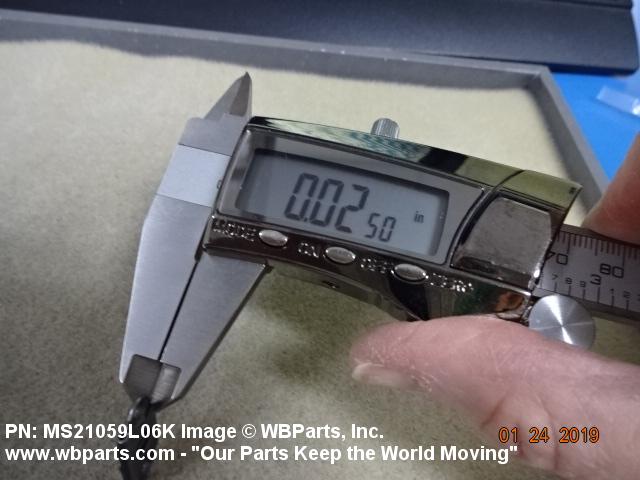

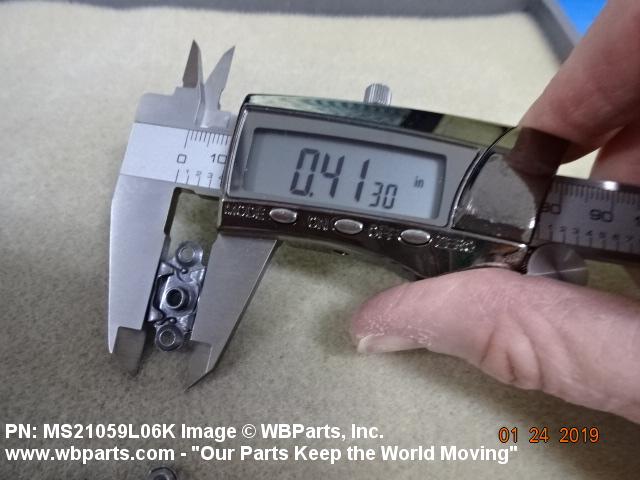

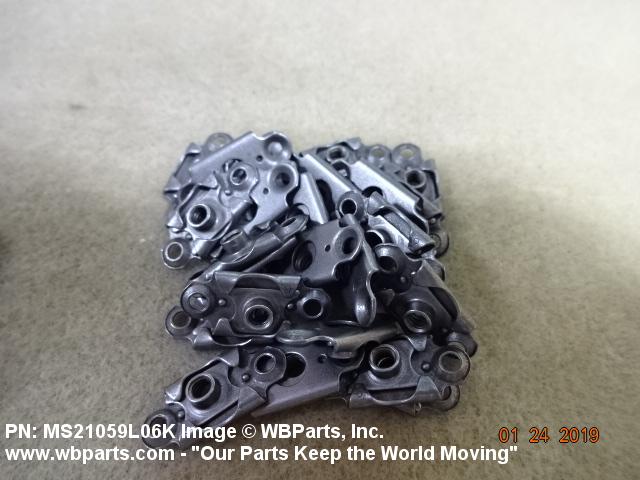

Drawings & Photos | NSN 5310-00-777-5786
Demand History | NSN 5310-00-777-5786
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS21059L06K | 2023-12-348 | 524 | United States |
| MS21059L06K | 2012-04-94 | 100 | United States |
| MS21059L06K | 2010-04-95 | 25 | Canada |
| MS21059L06K | 2008-05-149 | 650 | US |
Cross Reference | NSN 5310-00-777-5786
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13605-62BC | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| 13605-62BC | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| F5000-06BC | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| F5000-06BC | 75237 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| F5000-06BC | B1395 | TECHNICAL AIRBORNE COMPONENTS SPRL |
| F5000-06BC | F6033 | TECNOTEC SARL |
| MS21059L06K | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS21059L06K | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| RF200A06K | 52828 | REPUBLIC FASTENER MFG. CORP. |
| RM52LHTA521-62BC | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| RM52LHTA521-62BC | 72962 | HARVARD INDUSTRIES INC |
| T65S632SBC | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-777-5786
Related Products | NSN 5310-00-777-5786
Technical Data | NSN 5310-00-777-5786
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 49.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A116 PLATE |
| NUT LENGTH | 0.948 INCHES MAXIMUM |
| NUT HEIGHT | 0.203 INCHES MAXIMUM |
| PLATE THICKNESS | 0.032 INCHES MAXIMUM |
| PLATE WIDTH | 0.290 INCHES MINIMUM AND 0.416 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| LUBRICATION | SOLUBLE LUBRICANT |
| NUT MOUNTING PROVISION | COUNTERSUNK HOLES |
| MOUNTING HOLE COUNTERSINK ANGLE | 98.0 DEGREES MINIMUM AND 102.0 DEGREES MAXIMUM |
| MOUNTING PROVISION LOCATION | OPPOSITE NUT PROJECTION SIDE |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.339 INCHES MINIMUM AND 0.349 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.686 INCHES MINIMUM AND 0.690 INCHES MAXIMUM |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
| FEATURES PROVIDED | FLOATING NUT |
