NSN 5310-00-777-5793 MS21059L4, MS21059L4K, MF100004BAC

Product Details | PLATE SELF-LOCKING NUT

5310-00-777-5793 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS21059L4, MS21059L4K, MF100004BAC, MF1000-04BAC, NAS686A4, NS103203048, NS103203-048, NS103203048BC, NS103203-048BC , NS10321840, NS103218-40, BACN10JN04, BACN10JR4F, BACN10JR4FR, BRF200A4, BRF200A4K, F50004BAC, F5000-4BAC, F50004BCBAC, F5000-4BCBAC , RF200A4, RF200A4K, RM52LHTA521048BC, RM52LHTA521-048BC , RM52LHTA521B048, RM52LHTA521B-048, RMF92014, RMF9201-4, RMF92014BC, RMF9201-4BC , RMF9201M40, T65S428SBC, T8091S4, T8091S428, T8091S428BC , T8124S04S, VN152A1048, VN152A1-048, VN152A2048, VN152A2-048 , VN252A40L, Z00.N5425387305, Z00.N5426387305 , Z00N5425387305, Z00N5426387305, C , 8830091, 10121675 , 1360348, 13603-48, 13605048, 13605-048, 13605048BC, 13605-048BC , 41584015, 4158401-5, 5310-00-777-5793, 00-777-5793, 5310007775793, 007775793

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1960	00-777-5793	05280 ( NUT, SELF-LOCKING, PLATE )

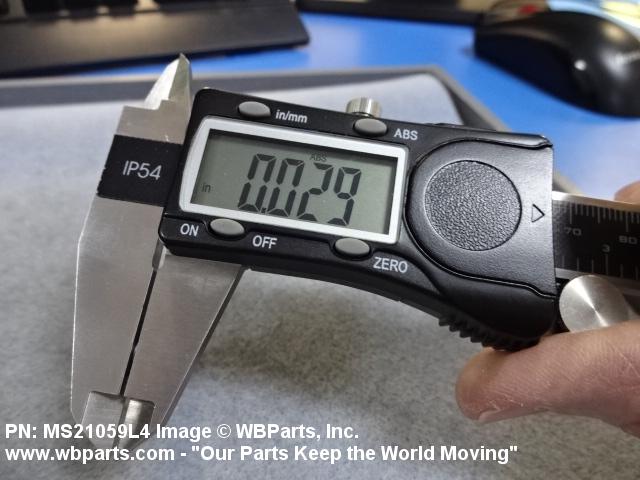

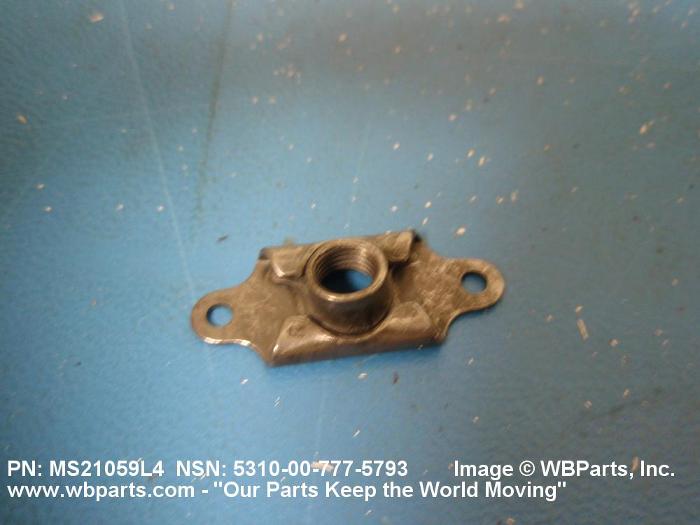

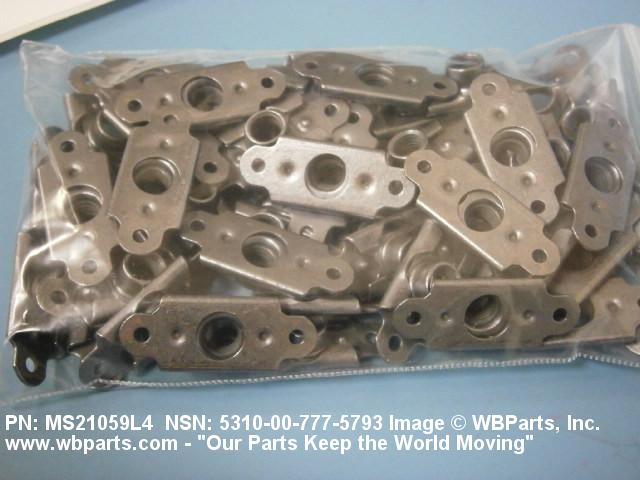

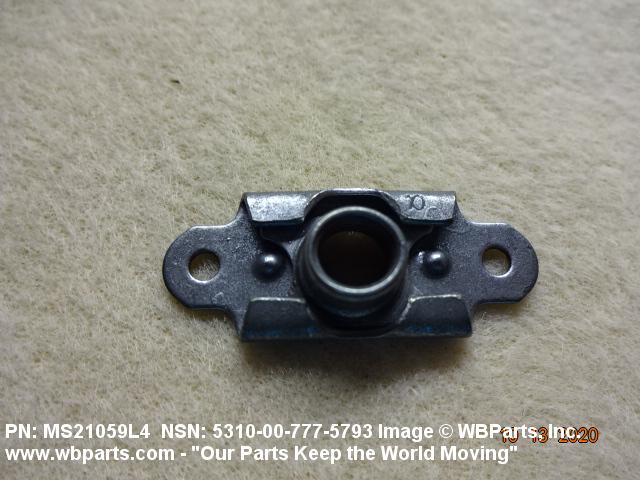

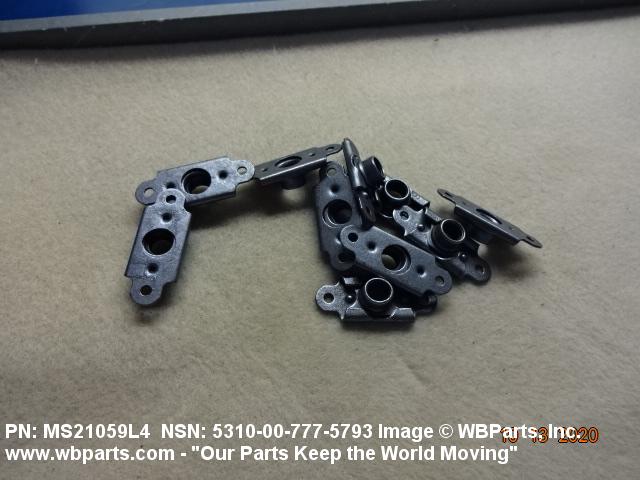

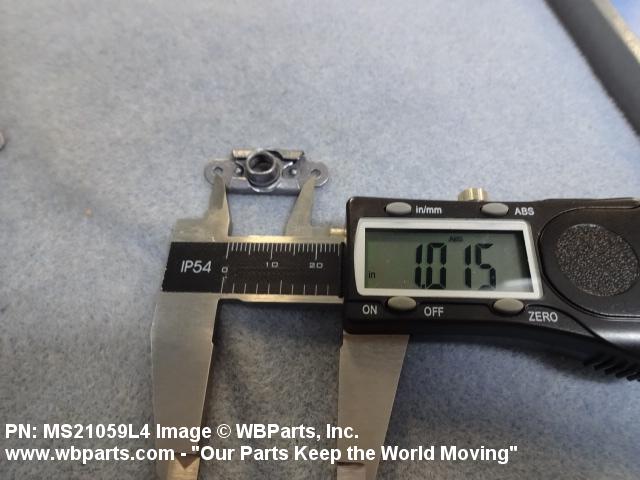

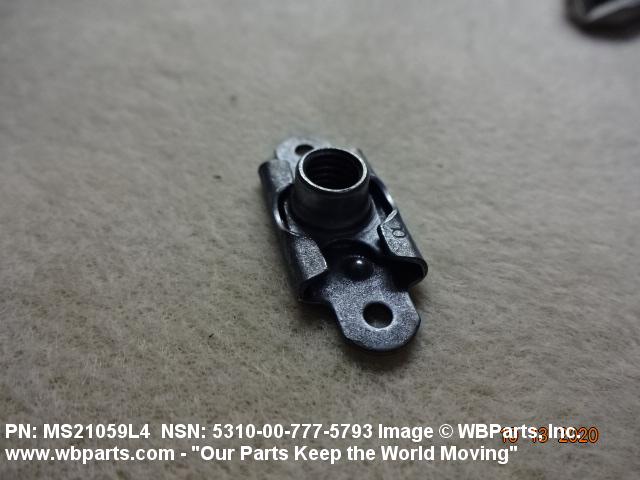

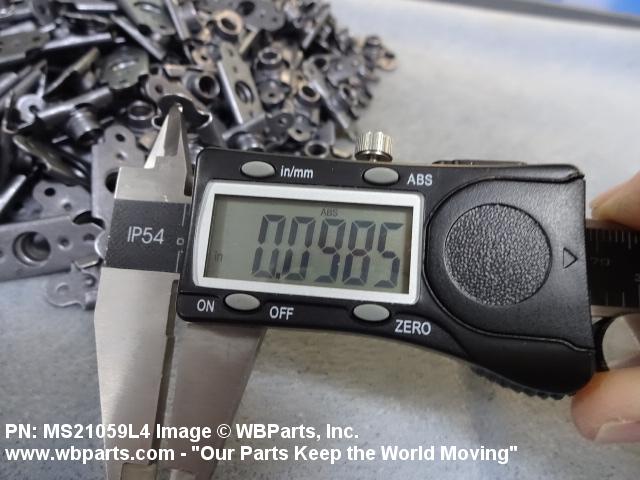

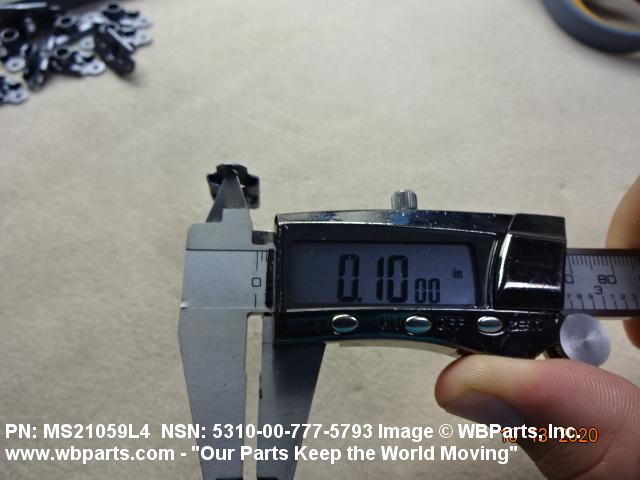

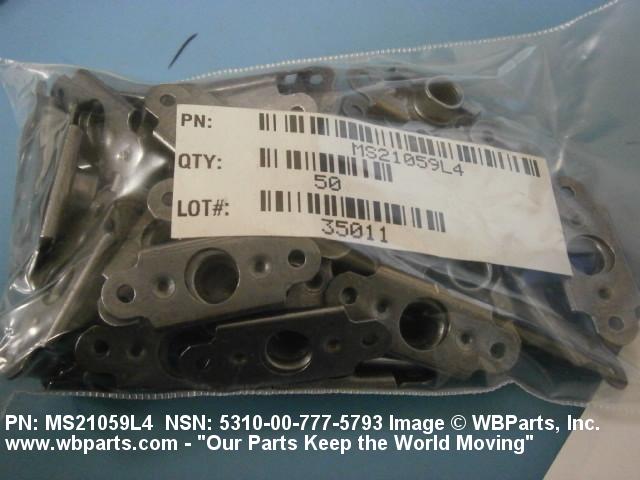

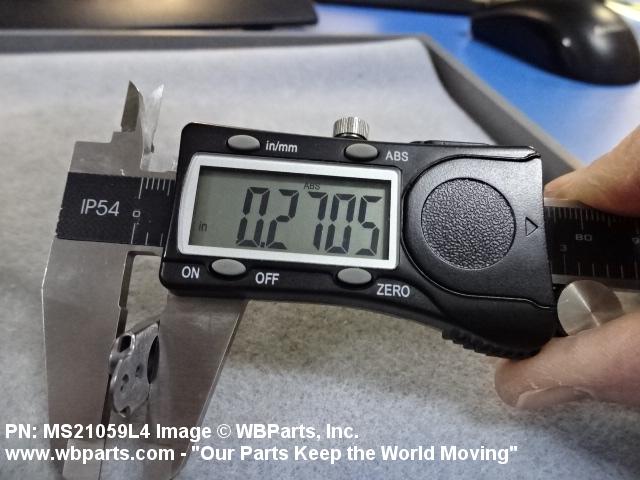

Drawings & Photos | NSN 5310-00-777-5793

Part Number	Request Date	QTY	Origin
BACN10JR4F	2024-07-185	36	US
MS21059L4	2024-04-117	100	United States
MS21059L4	2024-03-72	12	United States
MS21059L4	2024-03-72	102	United States
MS21059L4	2024-02-36	12	United States
MS21059L4	2024-01-31	12	United States
NAS686A4	2023-05-151	192	United States
MS21059L4	2021-12-362	20	Hong Kong
MS21059L4	2021-11-325	4	United States
MS21059L4	2020-06-175	1	Italy
5310-00-777-5793	2020-06-169	60	US
MS21059L4	2020-01-06	50	United States
5310-00-777-5793	2019-05-140	450	United States
MS21059L4	2019-04-94	24	US
MS21059L4	2018-02-57	60	United States
MS21059L4	2018-02-37	10	China
MS21059L4	2017-12-349	82	US
C	2017-06-170	0	BR
5310-00-777-5793	2017-04-115	40	US
MS21059L4	2017-03-90	4	us
5310-00-777-5793	2017-02-32	1	DIBBS-RFPs
5310-00-777-5793	2015-03-82	1000	US
5310-00-777-5793	2015-01-06	25	US
MS21059L4	2014-05-135	2	PH
MS21059L4	2014-03-77	30	United States
MS21059L4	2014-01-30	1000	United States
MS21059L4	2013-08-213	15	US
MS21059L4	2013-05-141	240	United States
MS21059L4	2013-05-134	50	CZ
5310-00-777-5793	2013-04-115	8	United States
5310-00-777-5793	2012-05-151	50	United States
MS21059L4	2012-05-135	250	UA
5310-00-777-5793	2012-05-135	250	UA
MS21059L4	2012-02-47	100	United Kingdom
MS21059L4	2012-02-45	300	US
NAS686A4	2011-12-355	500	US
5310-00-777-5793	2011-12-349	50	United Kingdom
MS21059L4	2011-10-291	300	United States
MS21059L4	2011-05-139	30	US
MS21059L4	2011-05-133	20	Spain
5310-00-777-5793	2011-05-130	400	United States
MS21059L4	2011-05-129	720	United States
MS21059L4	2010-05-126	153	US
MS21059L4	2010-03-77	30	MX
NAS686A4	2009-11-324	28	US
5310-00-777-5793	2009-11-323	50	US
5310-00-777-5793	2009-10-280	100	United States
5310-00-777-5793	2009-10-279	1200	United States
MS21059L4	2009-10-275	50	DE
5310-00-777-5793	2009-09-273	100	United States
MS21059L4	2008-12-357	60	US
MS21059L4	2008-11-324	24	us
MS21059L4	2008-11-324	66	us
MS21059L4	2008-09-263	200	United States
MS21059L4	2008-09-260	6	US
MS21059L4	2008-07-200	25	US
5310-00-777-5793	2008-07-200	25	US
BACN10JR4F	2008-05-151	20	United States
NAS686A4	2008-05-130	5000	United States
5310-00-777-5793	2008-03-72	40000	Czech Republic
5310-00-777-5793	2006-12-338	25	US

Cross Reference | NSN 5310-00-777-5793

Part Number	Cage Code	Manufacturer
13603-48	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
13605-048	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
13605-048	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
4158401-5	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
8830091	19203	PICATINNY ARSENAL
BACN10JN04	81205	THE BOEING COMPANY DBA BOEING
BACN10JR4F	81205	THE BOEING COMPANY DBA BOEING
BRF200A4	52828	REPUBLIC FASTENER MFG. CORP.
F5000-4BAC	15653	ALCOA GLOBAL FASTENERS, INC.
F5000-4BAC	F7652	B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS
F5000-4BAC	R1120	SATAIR A/S
MF1000-04BAC	15653	ALCOA GLOBAL FASTENERS, INC.
MF1000-04BAC	R1120	SATAIR A/S
MS21059L4	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21059L4	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NAS686A4	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
NS103203-048	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
NS103218-40	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
RF200A4	52828	REPUBLIC FASTENER MFG. CORP.
RM52LHTA521B-048	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
RM52LHTA521B-048	72962	HARVARD INDUSTRIES INC
RMF9201-4	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
RMF9201-4	72962	HARVARD INDUSTRIES INC
RMF9201M40	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
RMF9201M40	72962	HARVARD INDUSTRIES INC
T8091S4	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
T8091S428	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
T8124S04S	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
VN152A1-048	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
VN152A1-048	C4293	ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH
VN252A40L	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
VN252A40L	C4293	ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH
Z00.N5425387305	F0086	SOCATA

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-777-5793

Compare

Related Products | NSN 5310-00-777-5793

5310-00-777-5794, 5310-00-777-5795, 5310-00-777-5796, 5310-00-777-5812, 5310-00-777-5813

Technical Data | NSN 5310-00-777-5793

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.250 INCHES
THREAD QUANTITY PER INCH	28
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	49.0 ROCKWELL C MAXIMUM
NUT STYLE	A116 PLATE

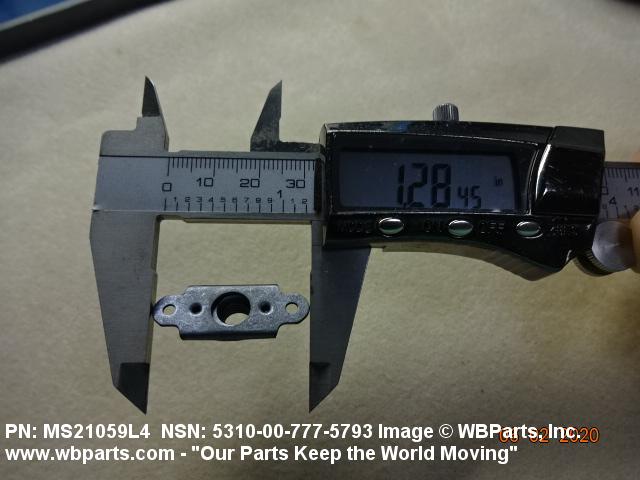

NUT LENGTH	1.292 INCHES MAXIMUM
NUT HEIGHT	0.281 INCHES MAXIMUM

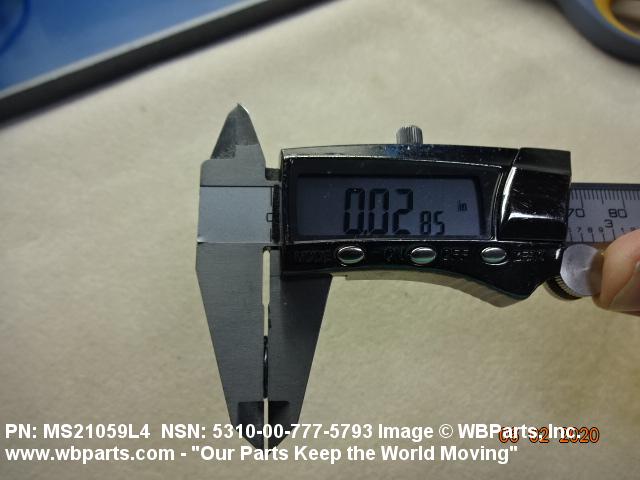

PLATE THICKNESS	0.032 INCHES MAXIMUM

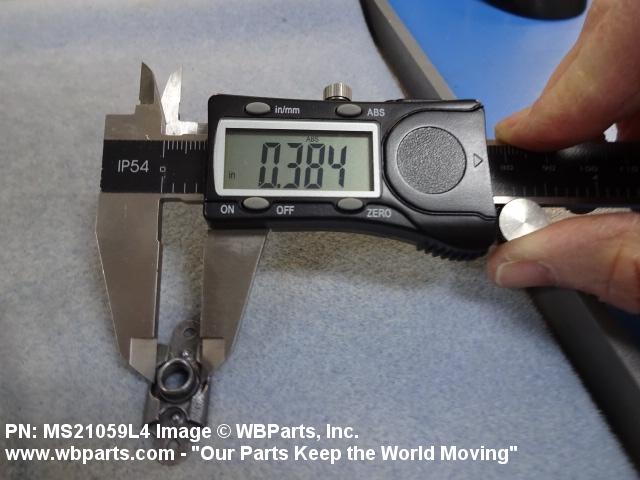

PLATE WIDTH	0.350 INCHES MINIMUM AND 0.516 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION	DRY FILM LUBRICANT
NUT MOUNTING PROVISION	STRAIGHT HOLES
MOUNTING HOLE ARRANGEMENT STYLE	F38 2 HOLES
MOUNTING HOLE DIAMETER	0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM
DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER	0.495 INCHES MINIMUM AND 0.505 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH	0.998 INCHES MINIMUM AND 1.002 INCHES MAXIMUM
TEMP RATING	450.0 DEG FAHRENHEIT NOMINAL
FEATURES PROVIDED	FLOATING NUT

Restrictions/Controls & Freight Information | NSN 5310-00-777-5793

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-777-5793

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
