NSN 5310-00-777-5787 MS21059L08, NAS686AC8, NAS68CA08

Product Details | PLATE SELF-LOCKING NUT

5310-00-777-5787 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS21059L08, NAS686AC8, NAS68CA08, NS10320382, NS103203-82, RF200Z08, RMF920182, RMF9201-82, T8091S08, T8091S832, VN152A182, VN152A1-82, Z00.N5425387175, Z00N5425387175, F500008BAC, F5000-08BAC, 10121673 , 1360582, 13605-82, 5310-00-777-5787, 00-777-5787, 5310007775787, 007775787

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1960	00-777-5787	05280 ( NUT, SELF-LOCKING, PLATE )

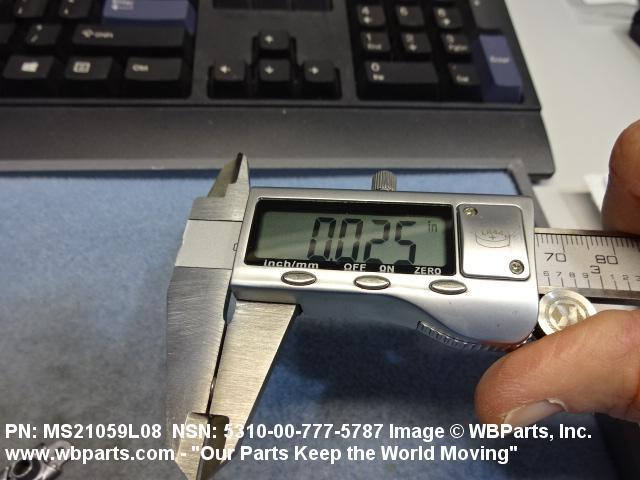

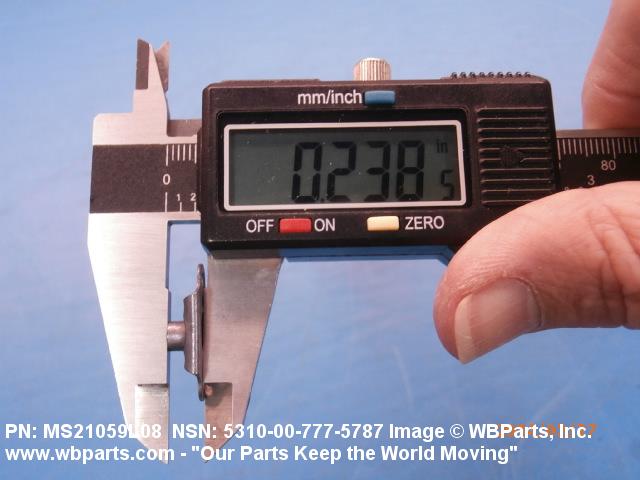

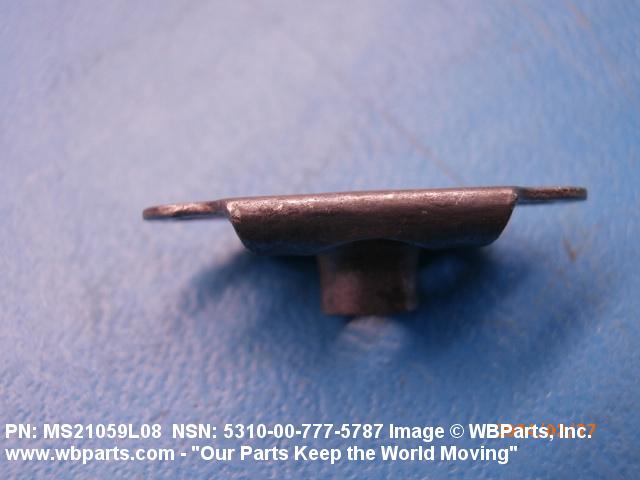

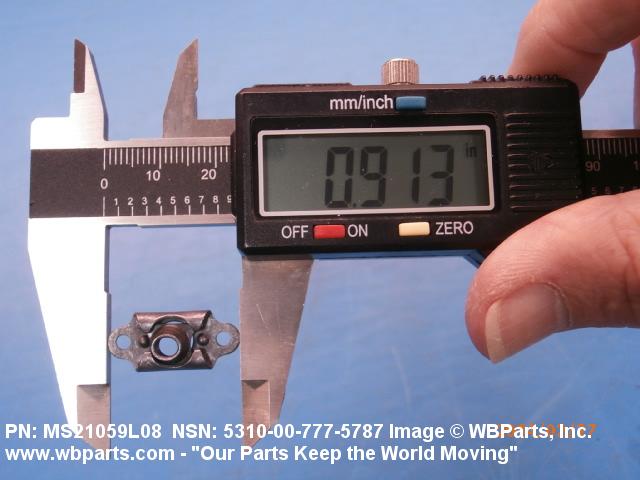

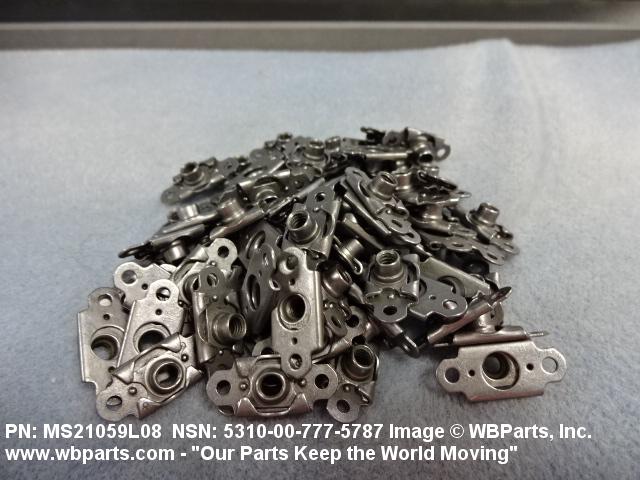

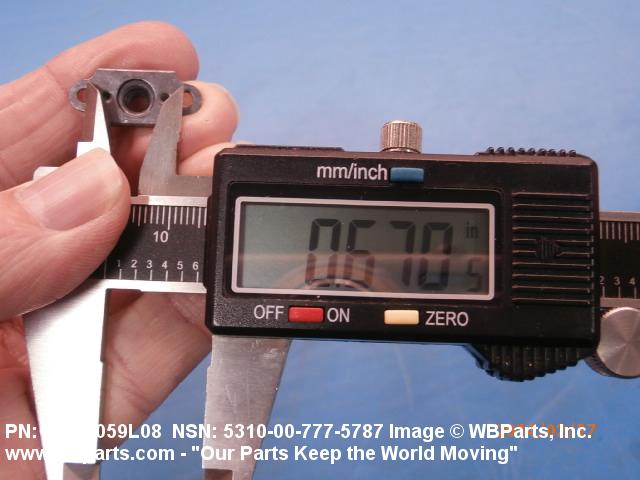

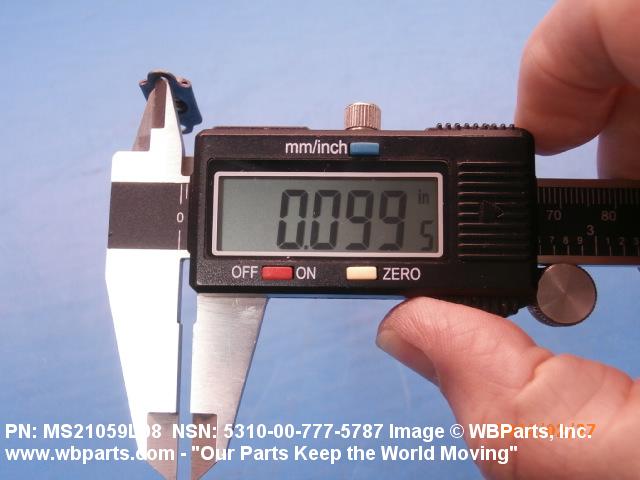

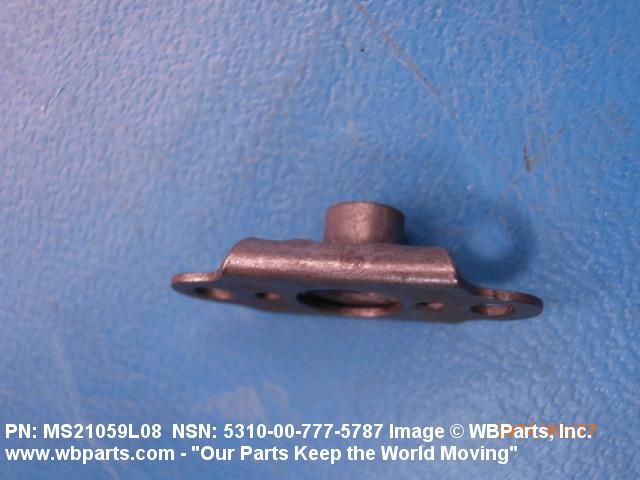

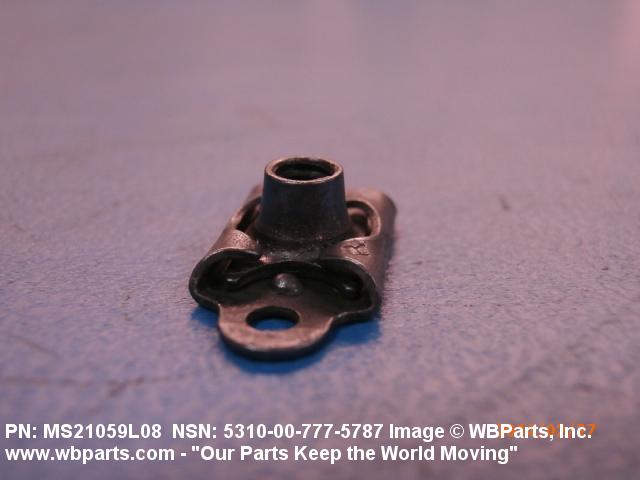

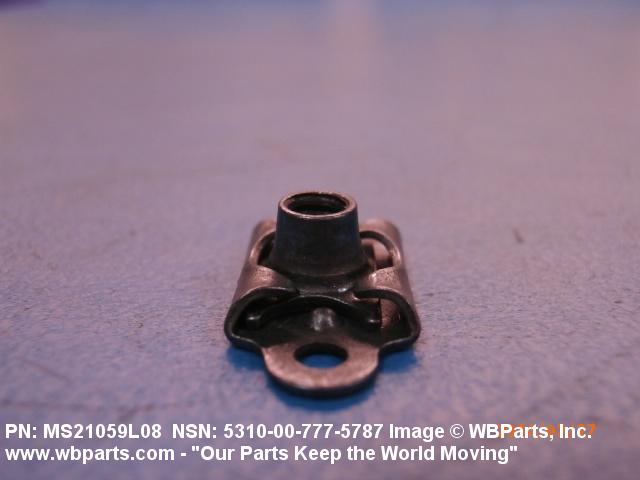

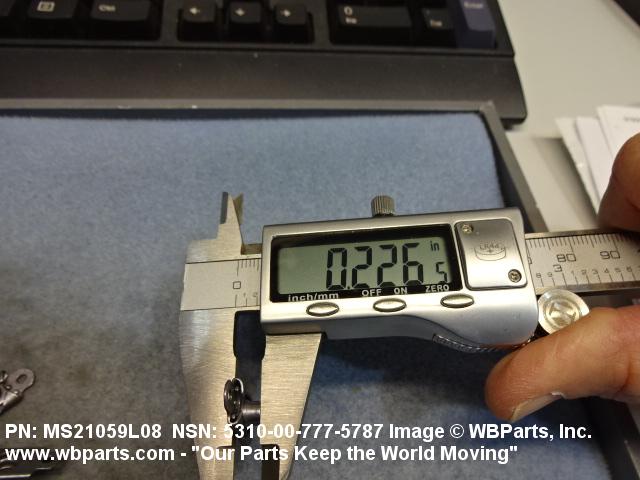

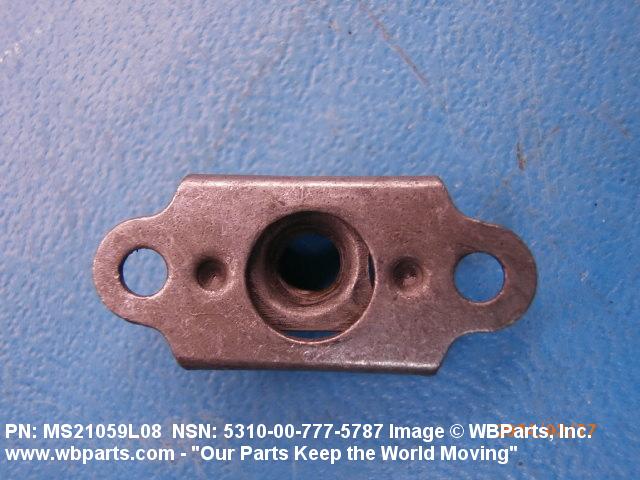

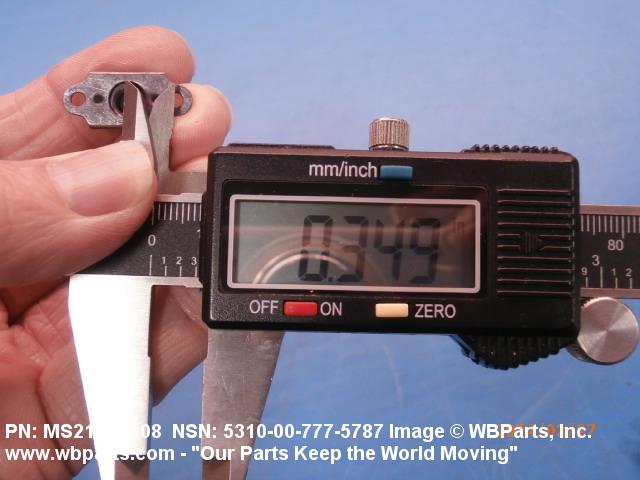

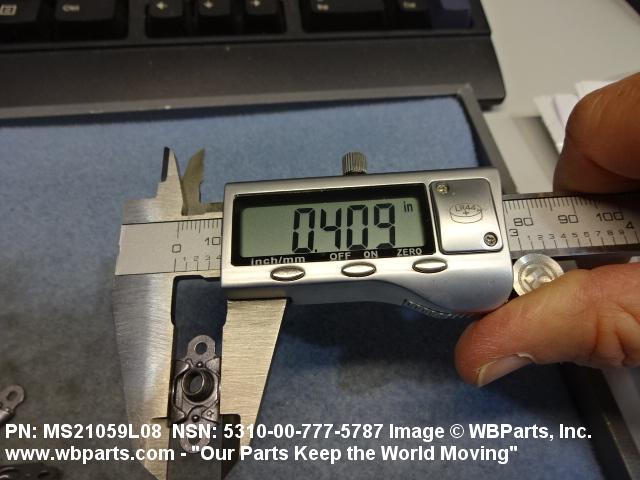

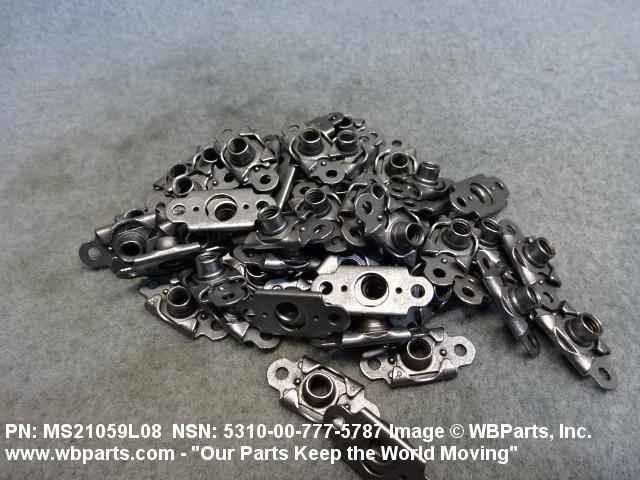

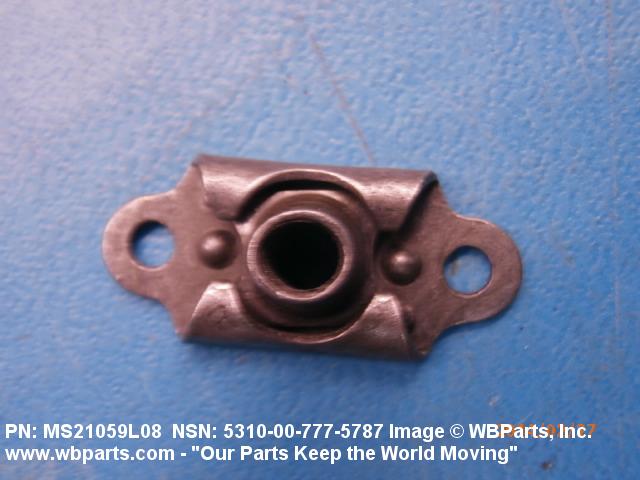

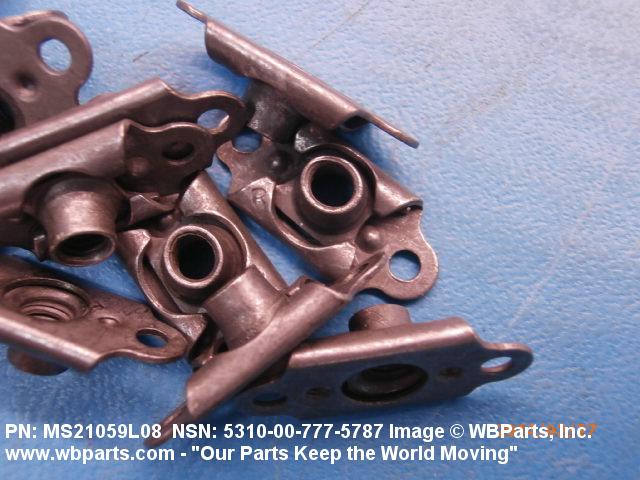

Drawings & Photos | NSN 5310-00-777-5787

Part Number	Request Date	QTY	Origin
5310-00-777-5787	2024-08-239	2511	DIBBS
5310-00-777-5787	2024-08-231	2511	DIBBS
MS21059L08	2024-03-66	100	EE
MS21059L08	2023-09-265	10	United States
5310-00-777-5787	2021-09-250	150	United States
5310-00-777-5787	2021-09-244	150	United States
MS21059L08	2021-07-188	75	United States
MS21059L08	2021-07-182	175	India
MS21059L08	2020-06-163	100	US
MS21059L08	2020-01-06	105	United States
MS21059L08	2019-11-322	630	United States
MS21059L08	2019-10-287	200	Brazil
MS21059L08	2019-07-190	60	CA
5310-00-777-5787	2019-07-190	60	CA
MS21059L08	2019-04-106	45	United States
5310-00-777-5787	2017-10-276	11	US
5310-00-777-5787	2016-11-309	50	United States
MS21059L08	2016-10-301	20	United States
MS21059L08	2016-10-291	13	United States
MS21059L08	2016-05-140	100	US
MS21059L08	2016-04-117	30	United States
MS21059L08	2016-04-117	30	United States
MS21059L08	2015-05-146	100	ZA
MS21059L08	2014-11-317	336	United States
MS21059L08	2014-11-314	20	IN
MS21059L08	2014-06-161	18	TW
MS21059L08	2014-04-91	50	Canada
MS21059L08	2014-03-79	273	United States
MS21059L08	2014-02-56	25	United States
MS21059L08	2014-02-56	10000	US
MS21059L08	2014-02-52	20	United States
MS21059L08	2014-01-15	5494	US
MS21059L08	2013-11-308	275	United States
MS21059L08	2013-02-38	2000	Turkey
MS21059L08	2013-01-24	100	United States
MS21059L08	2013-01-15	1700	China
MS21059L08	2013-01-15	6800	China
MS21059L08	2013-01-07	100	MY
MS21059L08	2013-01-07	800	US
MS21059L08	2012-11-310	3
MS21059L08	2012-07-202	480	US
5310-00-777-5787	2012-05-151	550	US
MS21059L08	2011-11-315	20	United States
5310-00-777-5787	2011-09-273	4	US
MS21059L08	2011-04-95	56	ZA
MS21059L08	2011-04-94	9	United States
5310-00-777-5787	2011-03-81	50	Australia
MS21059L08	2011-03-60	500	BR
5310-00-777-5787	2010-11-306	4700	US
5310-00-777-5787	2009-10-285	710	Australia
5310-00-777-5787	2009-09-273	400	US
5310-00-777-5787	2009-07-210	600	US
MS21059L08	2009-06-177	300	Italy
MS21059L08	2009-02-48	24	us
MS21059L08	2009-01-09	500	US
MS21059L08	2008-10-288	1000	US
MS21059L08	2008-08-241	100	PA
5310-00-777-5787	2007-11-325	200	Iraq
5310-00-777-5787	2007-01-16	1000	ZA

Cross Reference | NSN 5310-00-777-5787

Part Number	Cage Code	Manufacturer
13605-82	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
13605-82	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
F5000-08BAC	15653	ALCOA GLOBAL FASTENERS, INC.
MS21059L08	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21059L08	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NAS686AC8	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NAS68CA08	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NS103203-82	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
RF200Z08	52828	REPUBLIC FASTENER MFG. CORP.
RMF9201-82	72962	HARVARD INDUSTRIES INC
T8091S08	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
T8091S832	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
VN152A1-82	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
Z00.N5425387175	F0086	SOCATA

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-777-5787

Compare

Related Products | NSN 5310-00-777-5787

5310-00-777-5789, 5310-00-777-5791, 5310-00-777-5792, 5310-00-777-5793, 5310-00-777-5794

Technical Data | NSN 5310-00-777-5787

Characteristic	Specifications
THREAD SERIES	UNJC
NOMINAL THREAD SIZE	0.164 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	49.0 ROCKWELL C MAXIMUM
NUT STYLE	A116 PLATE

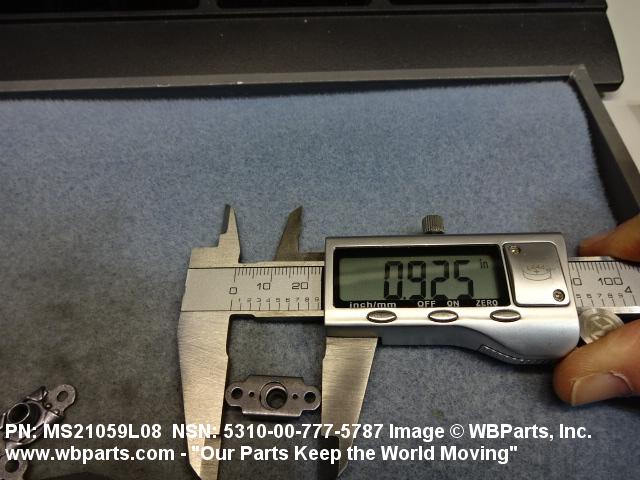

NUT LENGTH	0.948 INCHES MAXIMUM
NUT HEIGHT	0.250 INCHES MAXIMUM

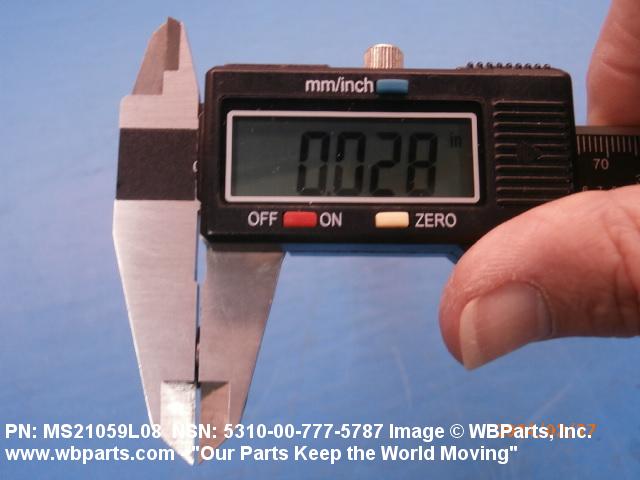

PLATE THICKNESS	0.032 INCHES MAXIMUM

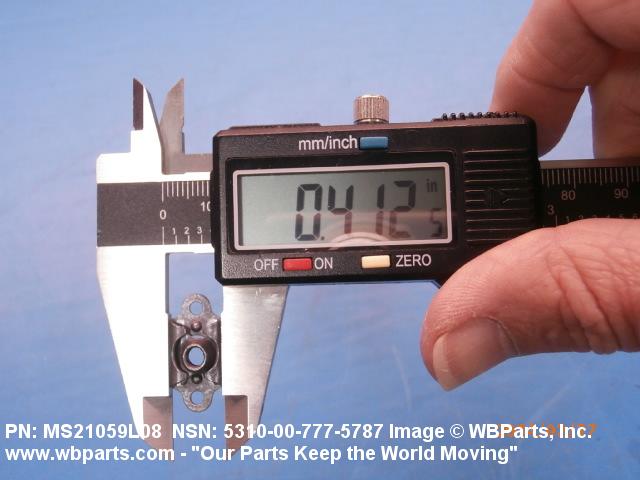

PLATE WIDTH	0.290 INCHES MINIMUM AND 0.416 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION	DRY FILM LUBRICANT
NUT MOUNTING PROVISION	STRAIGHT HOLES
MOUNTING HOLE ARRANGEMENT STYLE	F38 2 HOLES
MOUNTING HOLE DIAMETER	0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM
DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER	0.339 INCHES MINIMUM AND 0.349 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH	0.686 INCHES MINIMUM AND 0.690 INCHES MAXIMUM
TEMP RATING	450.0 DEG FAHRENHEIT NOMINAL
FEATURES PROVIDED	FLOATING NUT

Restrictions/Controls & Freight Information | NSN 5310-00-777-5787

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-777-5787

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BJ	AH-64 Airframe
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
